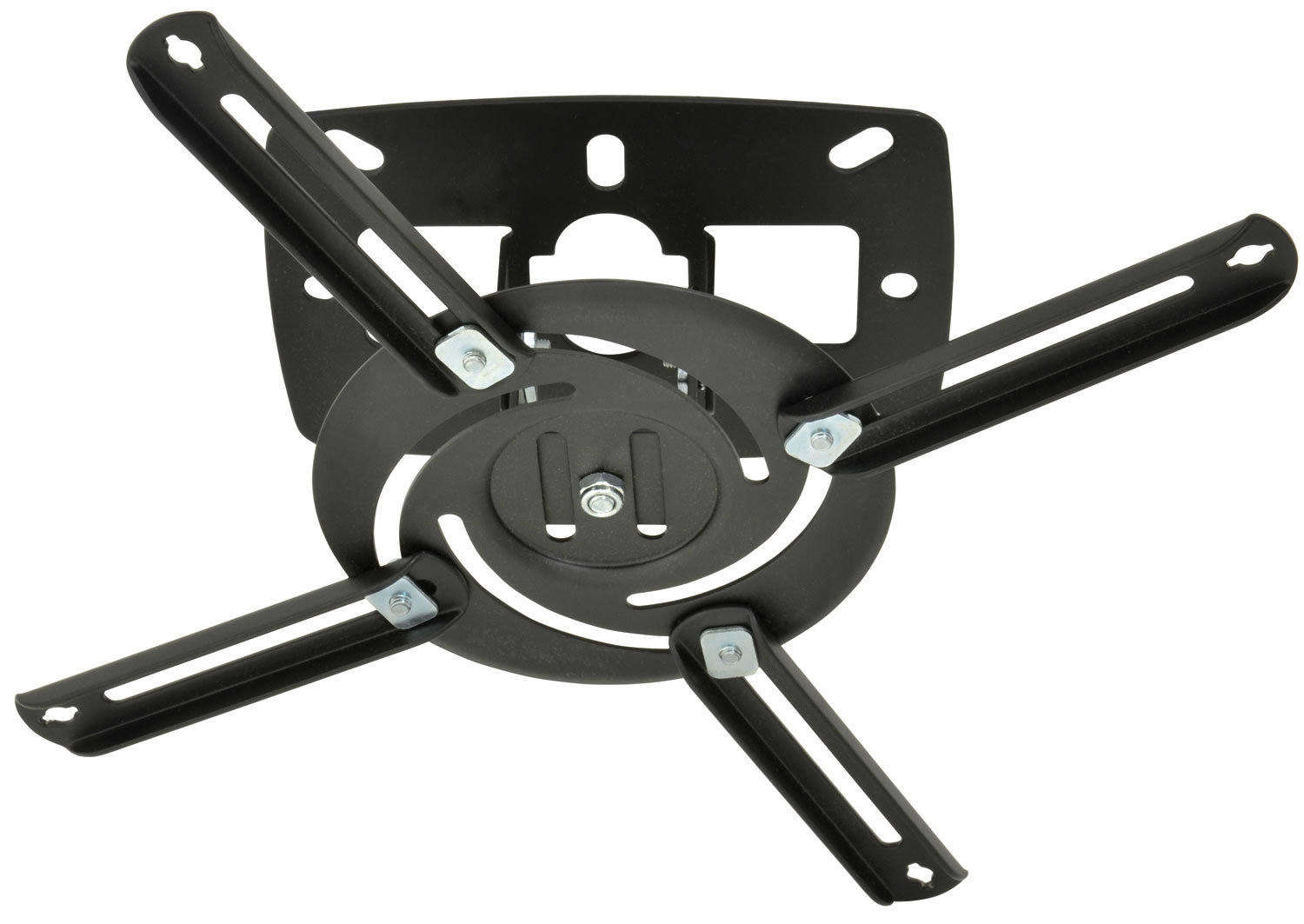

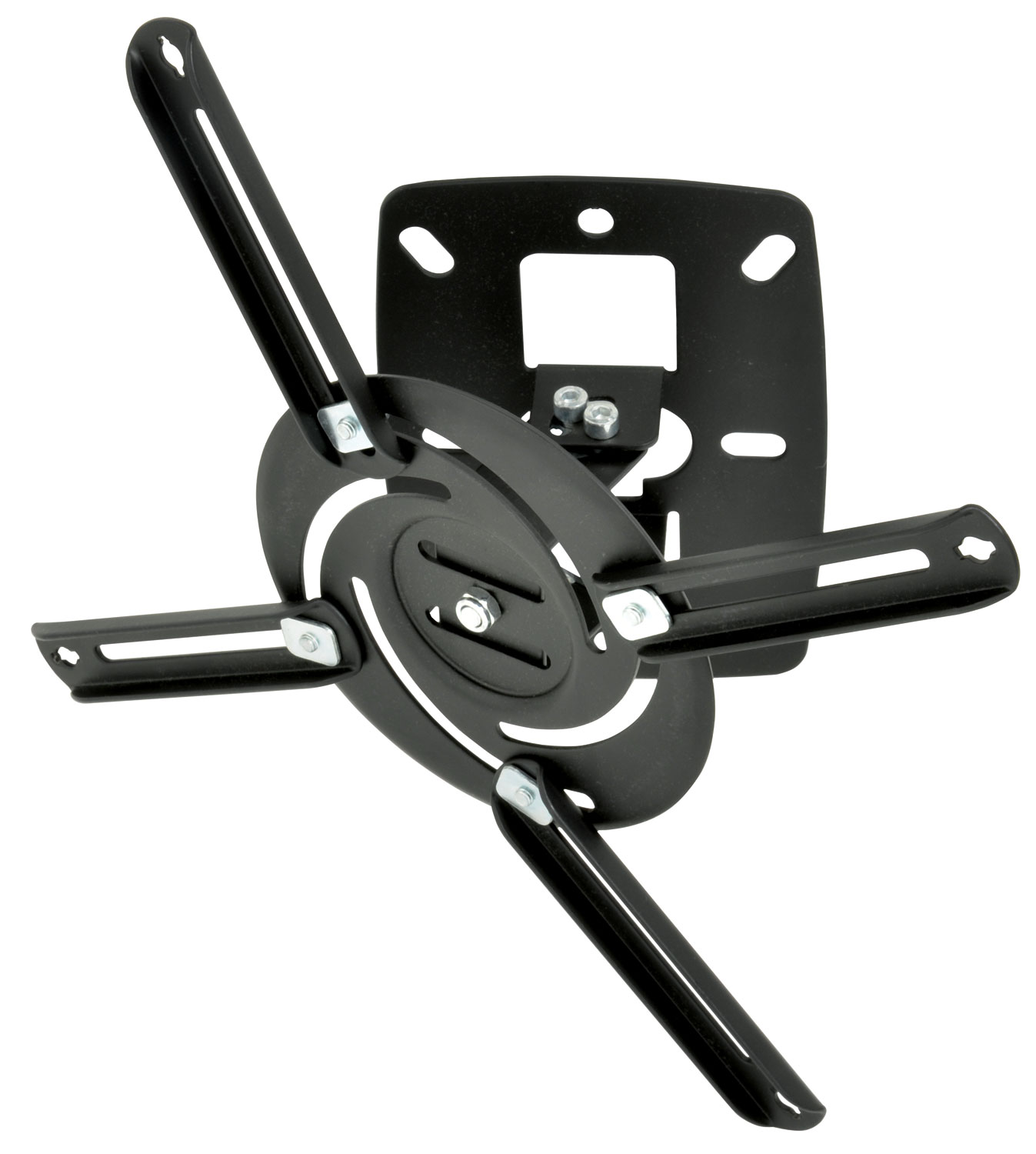

Ceiling Projector Bracket

129.580UK PJM80

A compact ceiling bracket with 4 adjustable arms enabling it to accommodate most projectors. Ideal for use in home cinemas, pubs and clubs, boardrooms or classrooms.

  • ±15° tilt mechanism
  • Adjustable arms will fit most projectors
  • Installation hardware included
Full description Find retailer
Description Version Packed
129.580UK
Projector ceiling bracket 		Gift Box

Ceiling Projector Bracket

A compact ceiling bracket with 4 adjustable arms enabling it to accommodate most projectors. Ideal for use in home cinemas, pubs and clubs, boardrooms or classrooms.

  • ±15° tilt mechanism
  • Adjustable arms will fit most projectors
  • Installation hardware included

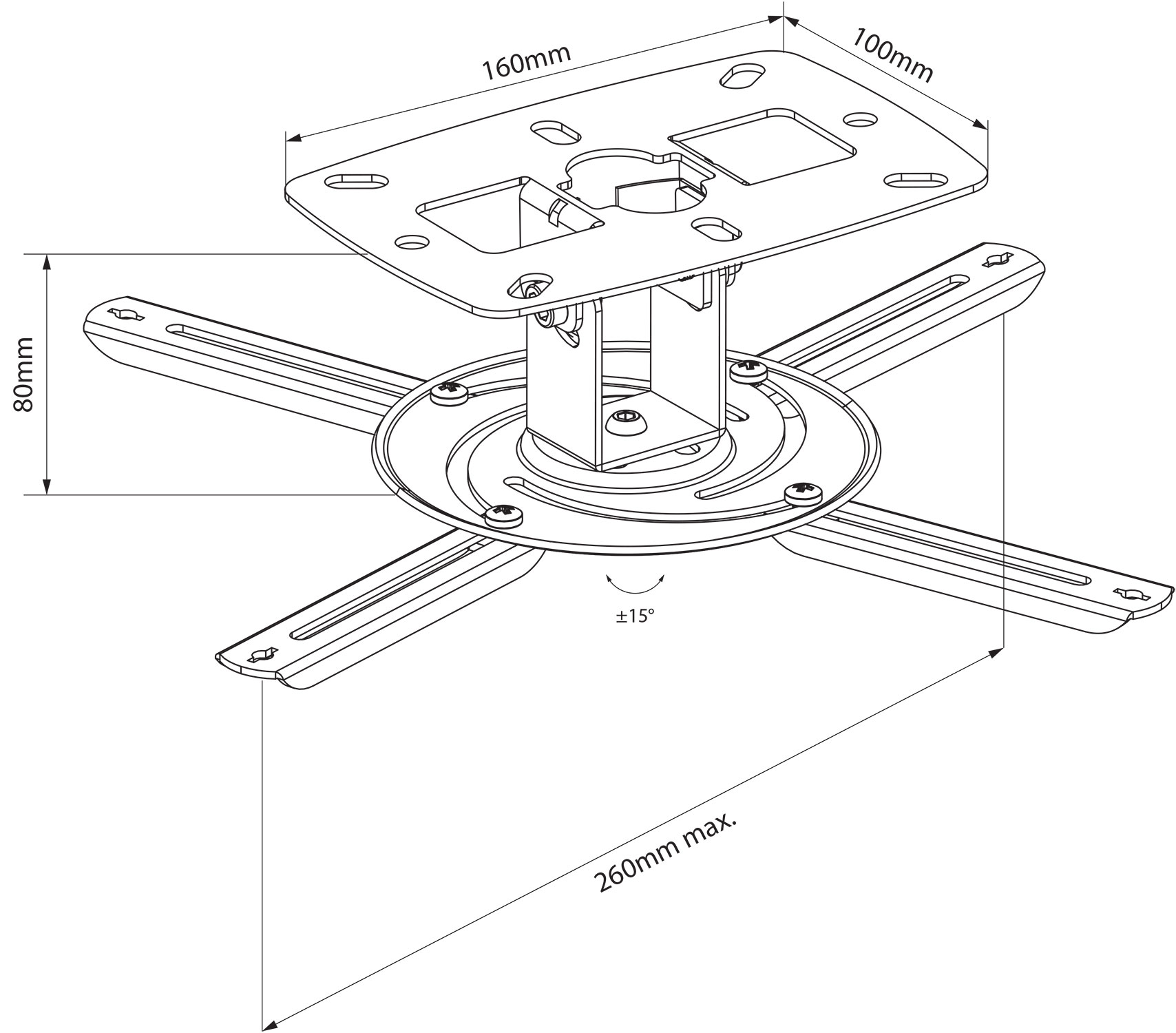

Specification

  • Max. weight load 8kg
  • Drop from ceiling 80mm
  • Projector mount : max. hole spacing 260 x 260mm
  • Ceiling mount plate size 160 x 100mm
  • Weight 780g

Trade information

  129.580UK
Barcode / EAN 5015972170427
Package type Gift Box
Package dimensions 180 x 137 x 80mm
Package weight 0.78kg
Package quantity 1 unit
Carton dimensions 430 x 200 x 295mm
Carton weight 7.80kg
Carton quantity 10 packages

Support

Instruction manual
For 129.580UK (327KB)
