IP20 24V Seamless COB LED Strip 5m

156.665UK

Lyyt Seamless COB LED Strip provides a continuous 'no spot' linear lighting solution. The COB (chip on board) technology consists of 528 tightly packed LEDs per metre and a phosphor layer coating w...

  • Seamless 'no spot' finish
  • 528 LED's/m
  • Self-adhesive backing for easy installation
Full description Find retailer
Description Version Packed
156.665UK
IP20 24V COB LED Strip 5m - CW 		IP20 CW Poly Bag
156.666UK
IP20 24V COB LED Strip 5m - WW 		IP20 WW Poly Bag
156.668UK
IP20 24V COB Strip 5m - Very WW 		IP20 VWW Poly Bag

Accessories

Description Version Packed
156.655UK
Single Colour COB Connector 		10mm Tape to Tape Poly Bag
156.658UK
Single Colour COB Flexible Link - 5 Pack 		1-Colour 10mm Poly Bag
153.759UK
Power Supply 24Vdc 2.50A 60W 		24Vdc 2.50A 60W Box Label
153.760UK
Power Supply 24Vdc 4.16A 100W 		24Vdc 4.16A 100W Box Label
153.761UK
Power Supply 24Vdc 6.25A 150W 		24Vdc 6.25A 150W Box Label
153.762UK
Power Supply 24Vdc 8.33A 200W 		24Vdc 8.33A 200W Box Label
153.763UK
Power Supply 24Vdc 10.4A 250W 		24Vdc 10.4A 250W Box Label
153.764UK
Power Supply 24Vdc 12.5A 300W 		24Vdc 12.5A 300W Box Label
153.793UK
RF 1-Colour LED Controller 		Box Label
156.653UK
1 Colour COB Connector L 5pk 		10mm L Poly Bag
156.651UK
1 Colour COB Connector T 5pk 		10mm T Poly Bag
156.649UK
1 Colour COB Connector X 5pk 		10mm X Poly Bag

IP20 24V Seamless COB LED Strip 5m

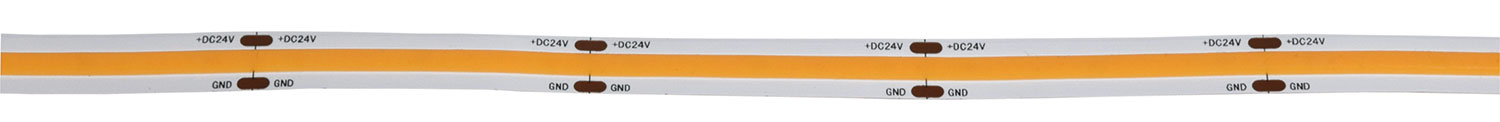

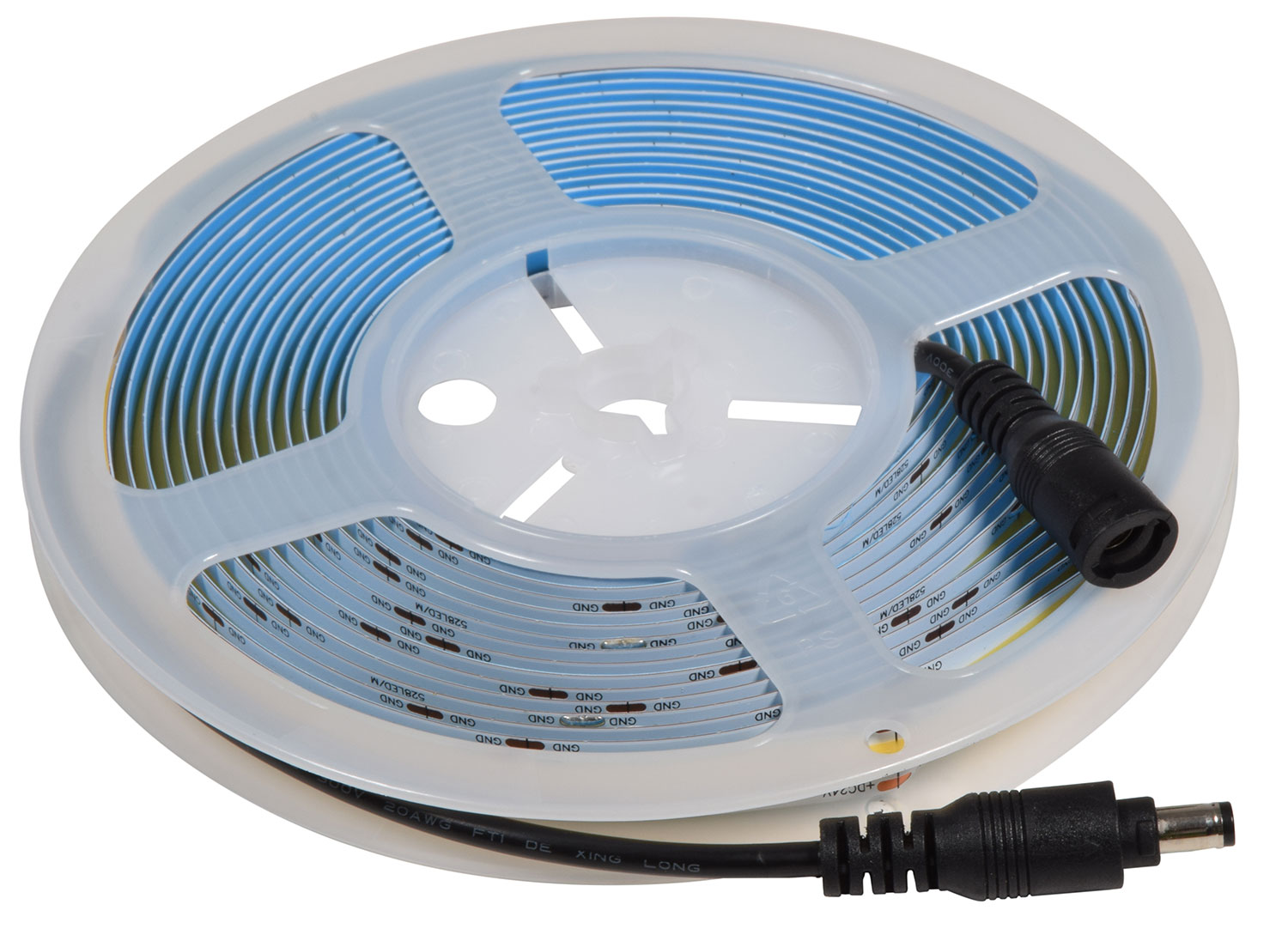

Lyyt Seamless COB LED Strip provides a continuous 'no spot' linear lighting solution. The COB (chip on board) technology consists of 528 tightly packed LEDs per metre and a phosphor layer coating which diffuses the LED's into a seamless array of light. The flexible COB strip is supplied on a 5m reel and can be cut to desired length along the designated cutting points, the strip is equipped with an adhesive backing for easy installation. The 24Vdc COB strip has a high CRI of 90 making it suitable for a wide variety of applications, such as in hospitality, retail, offices, displays, exhibitions and more. IP20 versions are for indoor use only.

  • Seamless 'no spot' finish
  • 528 LED's/m
  • Self-adhesive backing for easy installation
  • Low voltage (24Vdc) and power consumption
  • Flexible and lightweight
  • IP20
  • Voltage 24Vdc
  • Number of LEDs 528/m
  • Beam angle 180°
  • Cut intervals 45.45mm
  • Reel length 5m
  • LED : type Sanan
  • LED : spacing 2mm
  • Current 500mA per metre
  • Power consumption per metre 12W/m
  • Colour rendering index (CRI, Ra) Ra>90
  • Cross-section 10 x 2mm
  • Weight 0.126Kg
  • IP rating IP20

Versions

  156.665UK 156.666UK 156.668UK
Colour temperature 6500K 3000K 2000K
Colour Cool White Warm White Very Warm White
IP rating IP20 IP20 IP20

In the box

The box for this item contains :

  • 1 x 5m COB LED Strip

Downloads

Instruction manual
For 156.665UK (207KB)
UK Declaration of conformity
For 156.665UK (248KB)
EU Declaration of conformity
For 156.665UK (235KB)
