CAB Series Passive Cabinets

178.007UK CAB-6

Full-range speaker cabinets housed in a compact and lightweight moulded PP enclosure. Custom designed low frequency woofers are paired with titanium compression drivers for a powerful yet balanced ...

  • Integral top and side carry handles
  • 35mm pole mount
  • 2 x SPK sockets
Description Version Packed
178.007UK
CAB-6 Passive Speaker Cab 150Wrms
165mm (6.5") 150W Box Label BW
178.009UK
CAB-8 Passive Speaker Cab 150Wrms
200mm (8") 150W Box Printed
178.011UK
CAB-10 Passive Speakr Cab 220Wrms
250mm (10") 220W Box Label BW
178.013UK
CAB-12 Passive Speakr Cab 300Wrms
300mm (12") 300W Box Printed
178.016UK
CAB-15 Passive Speakr Cab 350Wrms
380mm (15") 350W Box Printed

CAB Series Passive Cabinets

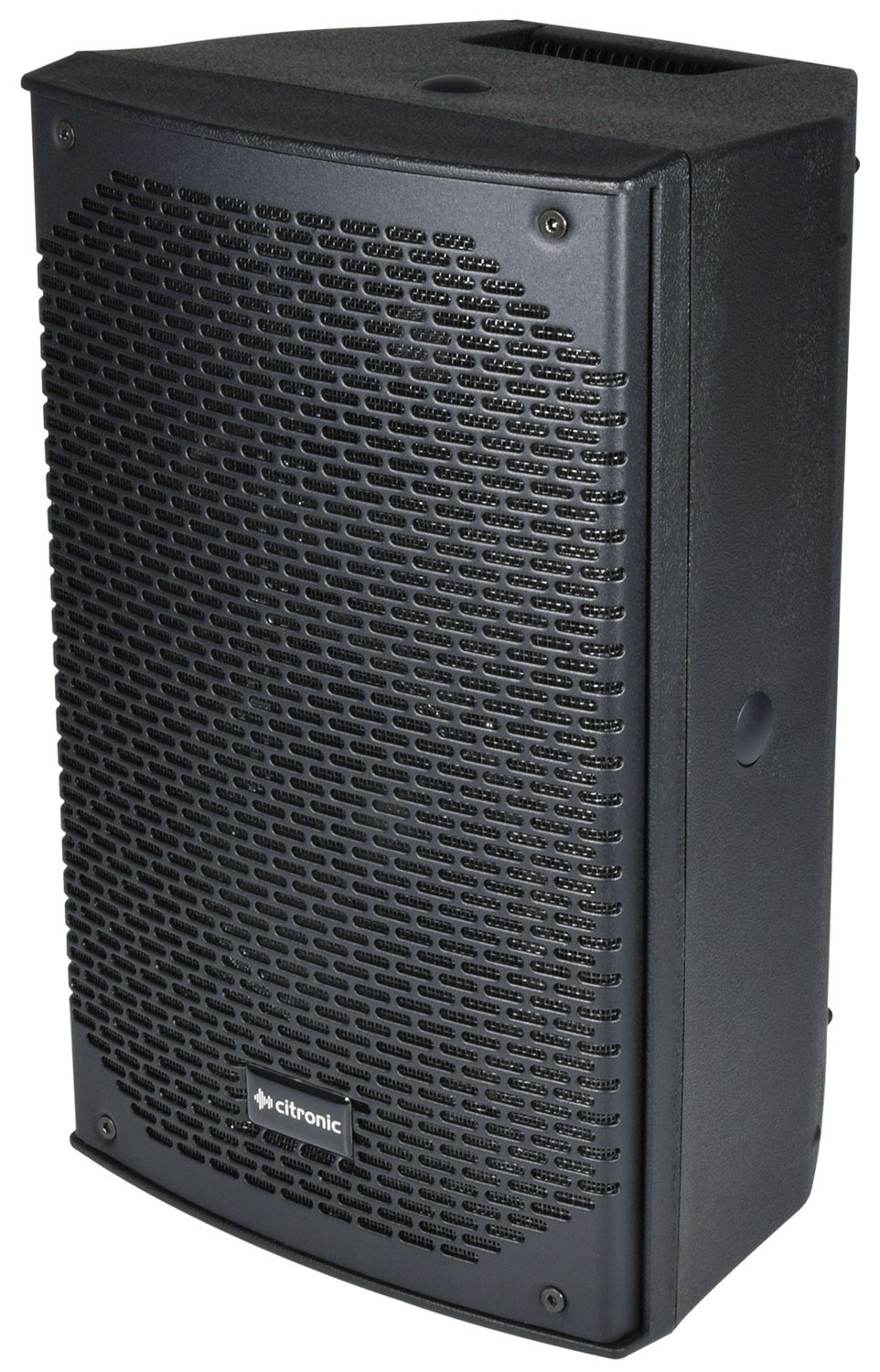

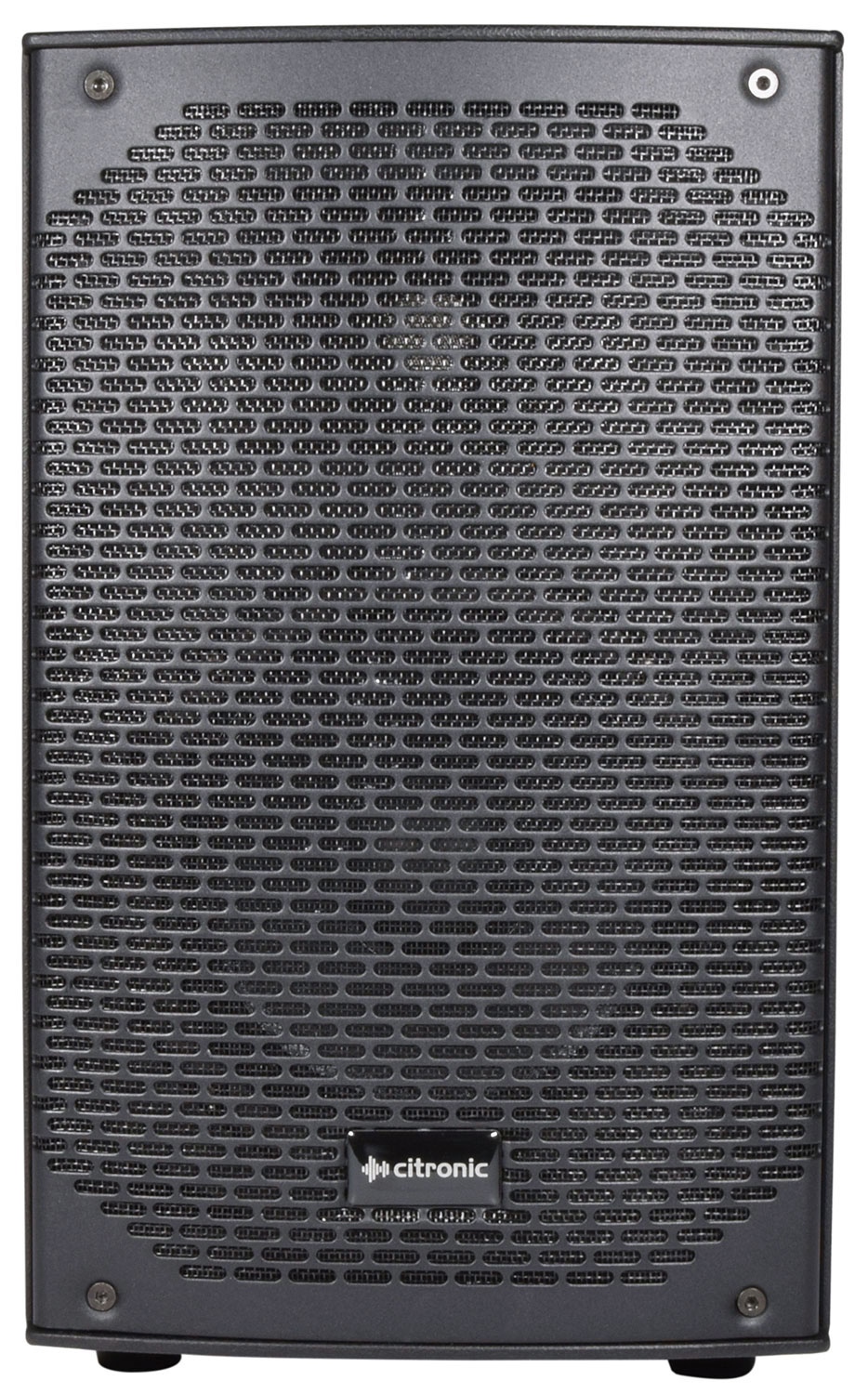

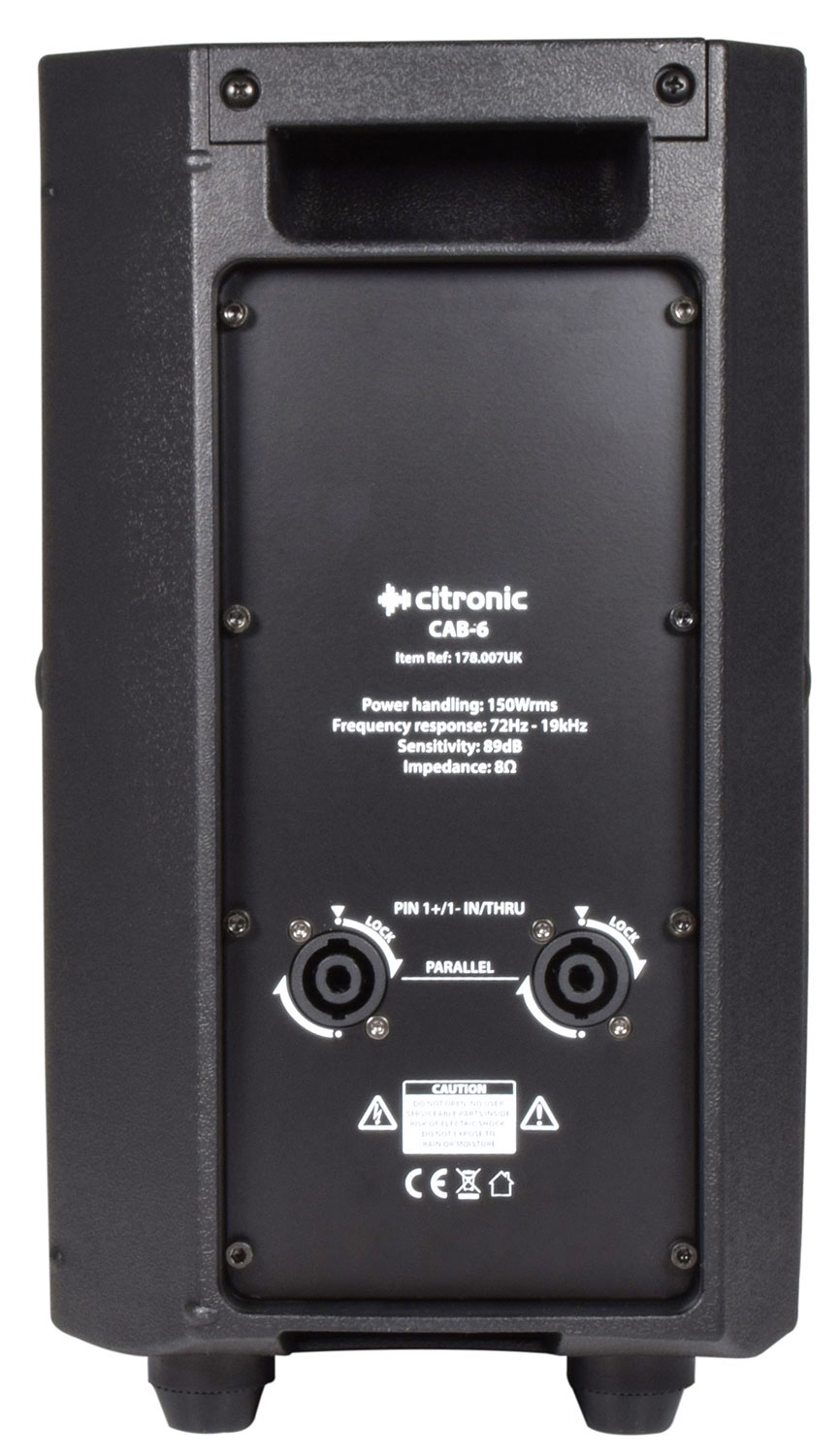

Full-range speaker cabinets housed in a compact and lightweight moulded PP enclosure. Custom designed low frequency woofers are paired with titanium compression drivers for a powerful yet balanced sound delivery. Each cabinet is fitted with top and side carrying handles and a 35mm pole mount socket. Connection from an amplifier is via Speakon lead to either of 2 sockets on the rear panel. Compact, lightweight and yet very capable sound reinforcement cabinets.

  • Integral top and side carry handles
  • 35mm pole mount
  • 2 x SPK sockets
  • Housing material Injection moulded polypropylene
  • Impedance 8 Ohms
  • Dispersion 90° x 60°
  • Connectors 2 x SPK socket

Versions

  178.007UK 178.009UK 178.011UK 178.013UK 178.016UK
Power handling : rms 150W 150W 220W 300W 350W
LF driver 165mmØ (6.5") 200mmØ (8") 250mmØ (10") 300mmØ (12") 380mmØ (15")
Voice coil 38mmØ (1.50") 38mmØ (1.50") 50mmØ (2.00") 50mmØ (2.00") 60mmØ (2.36")
HF driver 25mmØ (1.00") Ti CD 25mmØ (1.00") Ti CD 35mmØ (1.00") Ti CD 35mmØ (1.35") Ti CD 35mmØ (1.35") Ti CD
Frequency response 72Hz - 19kHz 61Hz - 19kHz 58Hz - 19kHz 53Hz - 19kHz 45Hz - 19kHz
Sensitivity @ 1W/1m 89dB 91dB 93dB 95dB 96dB
SPL max. 108dB 111dB 116dB 119dB 121dB
Crossover frequency 3.5kHz 3.5kHz 3.2kHz 2.8kHz 2.6kHz
Dimensions 362 x 215 x 208mm 485 x 268 x 268mm 530 x 310 x 300mm 603 x 355 x 350mm 695 x 420 x 390mm
Weight 5.2kg 7.0kg 10.0kg 13.2kg 16.6kg

Support : articles

Low impedance speakers

Impedance is the effective resistance of an electric circuit or component to alternating current, arising from the combined effects of resistance and reactance. Here we explain the features of low impedance and how it is implemented in a speaker system.

Sunday, 1st January 2017

Speaker system types

Our speaker and amplifier products cover many environments and applications with a focus on clear and efficient sound coverage. Here we discuss the different types of systems

Sunday, 1st January 2017

Power Ratings: RMS vs Max vs Peak

A summary explaining the key differences between RMS, Max and Peak power ratings.

Tuesday, 10th March 2020

In the box

The box for this item contains :

  • CAB-series passive full-range speaker cabinet

Downloads

UK Declaration of conformity
For 178.007UK (243KB)
EU Declaration of conformity
For 178.007UK (234KB)
