CAB Series Passive Cabinets

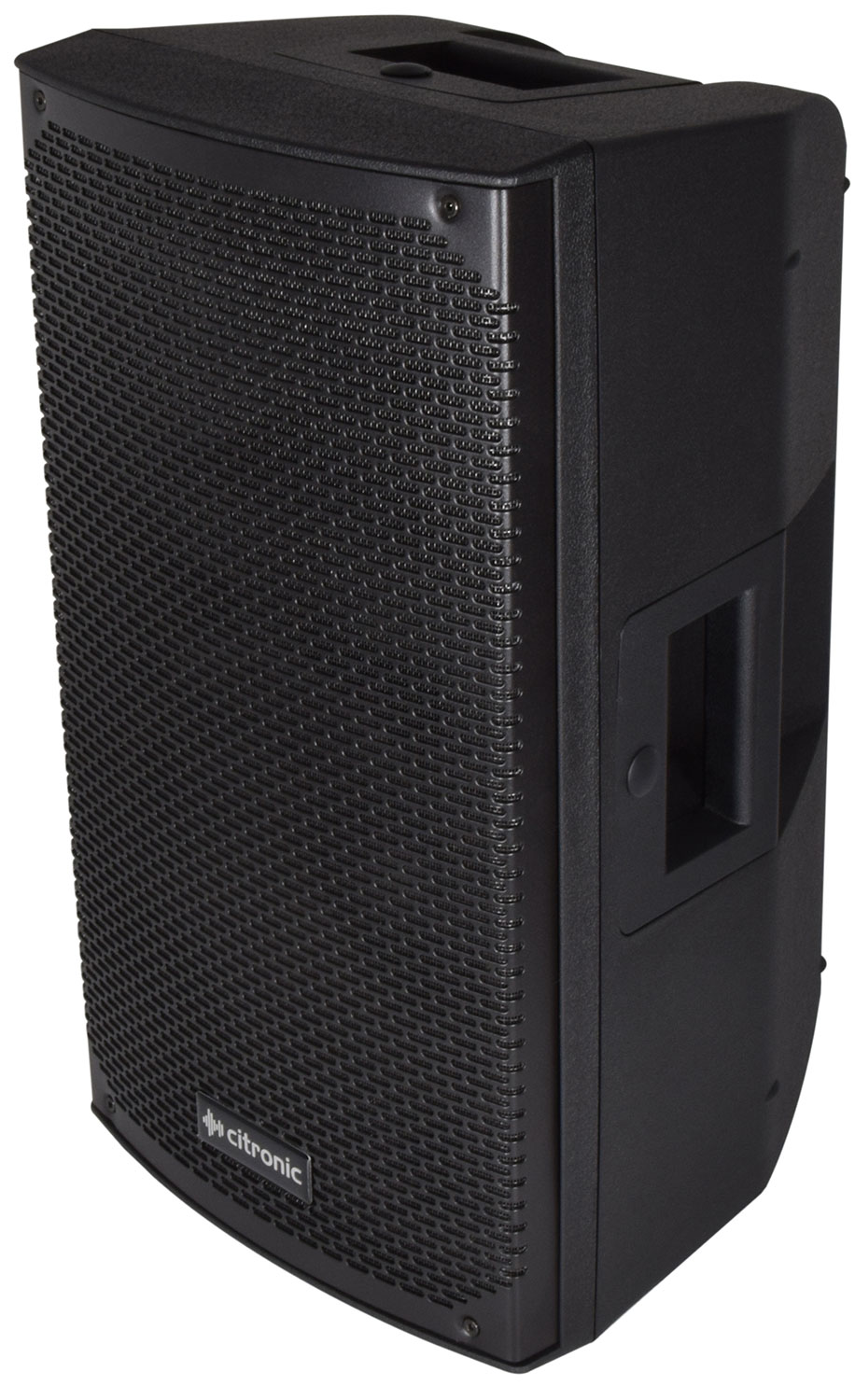

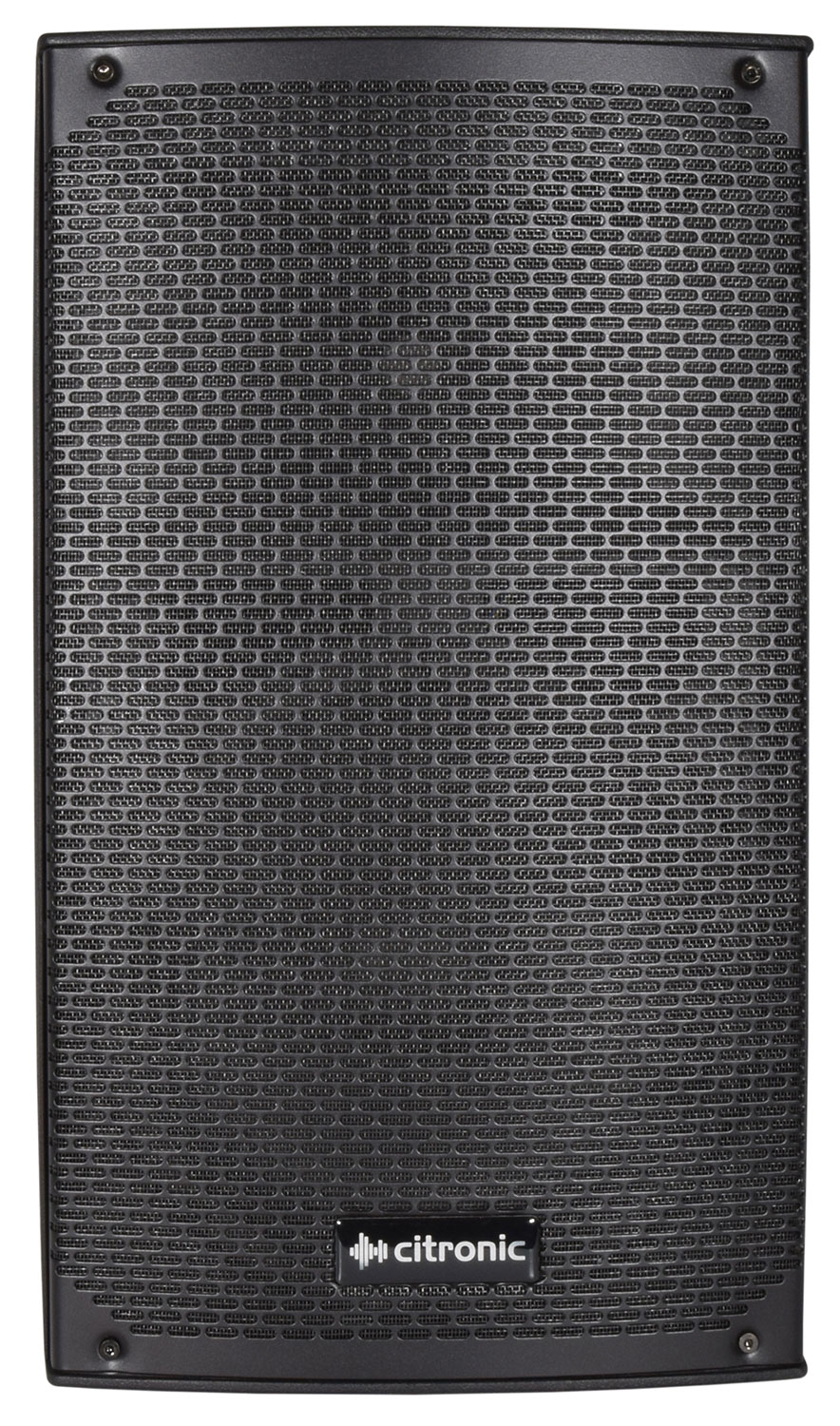

178.011UK CAB-10

Full-range speaker cabinets housed in a compact and lightweight moulded PP enclosure. Custom designed low frequency woofers are paired with titanium compression drivers for a powerful yet balanced ...

  • Integral top and side carry handles
  • 35mm pole mount
  • 2 x SPK sockets
Description Version Packed
178.007UK
CAB-6 Passive Speaker Cab 150Wrms
165mm (6.5") 150W Box Printed
178.009UK
CAB-8 Passive Speaker Cab 150Wrms
200mm (8") 150W Box Printed
178.011UK
CAB-10 Passive Speakr Cab 220Wrms
250mm (10") 220W Box Printed
178.013UK
CAB-12 Passive Speakr Cab 300Wrms
300mm (12") 300W Box Printed
178.016UK
CAB-15 Passive Speakr Cab 350Wrms
380mm (15") 350W Box Printed

CAB Series Passive Cabinets

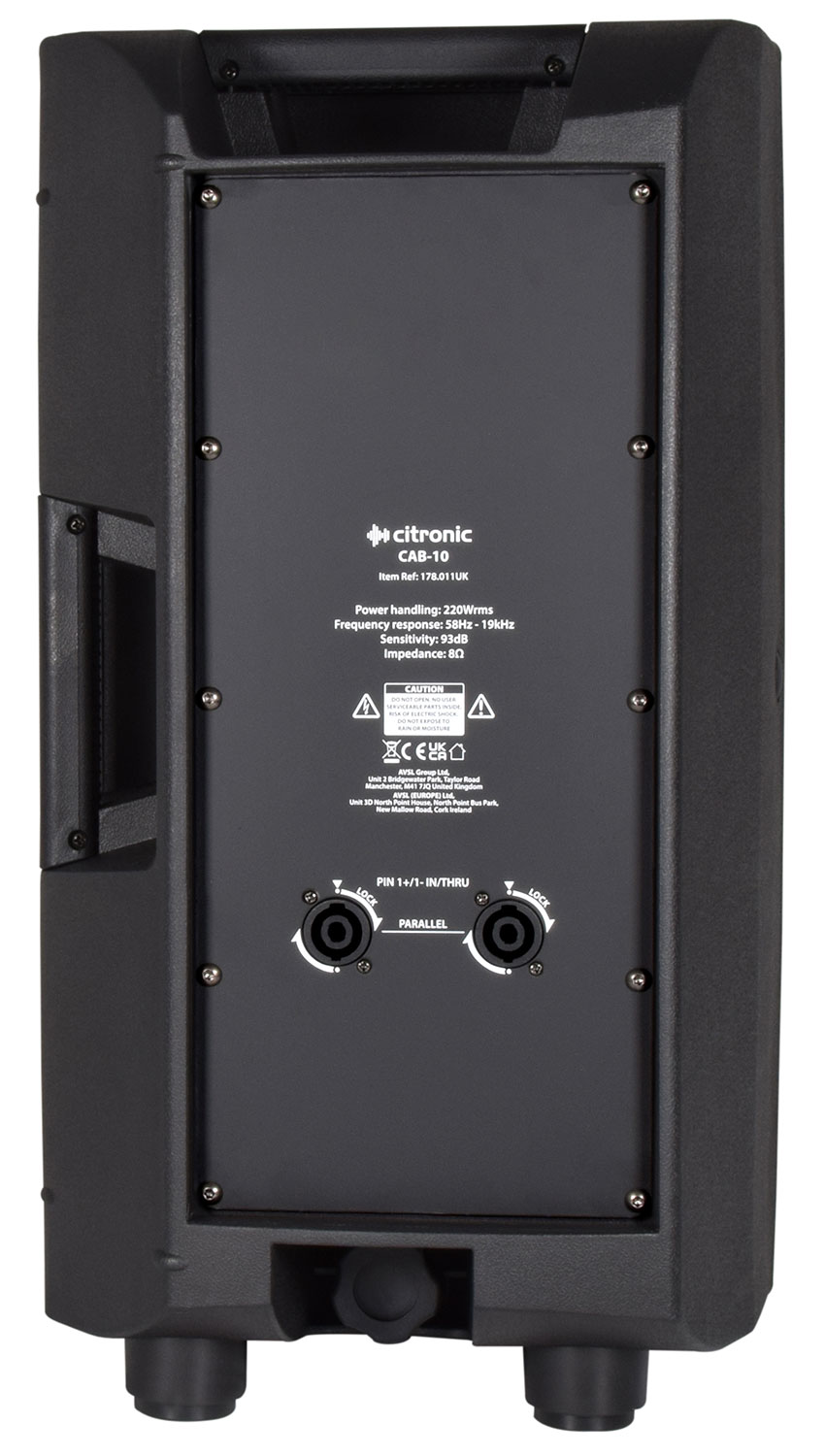

Full-range speaker cabinets housed in a compact and lightweight moulded PP enclosure. Custom designed low frequency woofers are paired with titanium compression drivers for a powerful yet balanced sound delivery. Each cabinet is fitted with top and side carrying handles and a 35mm pole mount socket. Connection from an amplifier is via Speakon lead to either of 2 sockets on the rear panel. Compact, lightweight and yet very capable sound reinforcement cabinets.

  • Integral top and side carry handles
  • 35mm pole mount
  • 2 x SPK sockets

Specification : Common

  • Housing material Injection moulded polypropylene
  • Impedance 8 Ohms
  • Dispersion 90° x 60°
  • Connectors 2 x SPK socket

Specification : Versions

  178.007UK 178.009UK 178.011UK 178.013UK 178.016UK
Power handling : rms 150W 150W 220W 300W 350W
LF driver 165mmØ (6.5") 200mmØ (8") 250mmØ (10") 300mmØ (12") 380mmØ (15")
Voice coil 38mmØ (1.50") 38mmØ (1.50") 50mmØ (2.00") 50mmØ (2.00") 60mmØ (2.36")
HF driver 25mmØ (1.00") Ti CD 25mmØ (1.00") Ti CD 35mmØ (1.00") Ti CD 35mmØ (1.35") Ti CD 35mmØ (1.35") Ti CD
Frequency response 72Hz - 19kHz 61Hz - 19kHz 58Hz - 19kHz 53Hz - 19kHz 45Hz - 19kHz
Sensitivity @ 1W/1m 89dB 91dB 93dB 95dB 96dB
SPL max. 108dB 111dB 116dB 119dB 121dB
Crossover frequency 3.5kHz 3.5kHz 3.2kHz 2.8kHz 2.6kHz
Dimensions 362 x 215 x 208mm 485 x 268 x 268mm 530 x 310 x 300mm 603 x 355 x 350mm 695 x 420 x 390mm
Weight 5.2kg 7.0kg 10.0kg 13.2kg 16.6kg

Trade information

  178.007UK 178.009UK 178.011UK 178.013UK 178.016UK
Barcode / EAN 5015972218235 5015972218242 5015972218259 5015972218266 5015972218273
Tariff code 8518210000 8518210000 8518210000 8518210000 8518210000
Country of Origin CN CN CN CN CN
Package type Box Printed Box Printed Box Printed Box Printed Box Printed
Package dimensions 295 x 430 x 285mm 345 x 540 x 345mm 365 x 593 x 357mm 413 x 677 x 410mm 480 x 762 x 467mm
Package weight 6.00kg 8.00kg 11.30kg 15.00kg 18.70kg
Package quantity 1 unit 1 unit 1 unit 1 unit 1 unit
Carton dimensions 295 x 430 x 285mm 345 x 540 x 345mm 365 x 593 x 357mm 413 x 677 x 410mm 480 x 762 x 467mm
Carton weight 6.00kg 8.00kg 11.30kg 15.00kg 18.70kg
Carton quantity 1 package 1 package 1 package 1 package 1 package

In the box

The box for this item contains :

  • CAB-series passive full-range speaker cabinet
