HD 7" Colour Video Door Phone

350.020UK VDP001

A sleek and modern video door phone that provides superb full colour HD images in all light conditions along with high quality duplex speech between the video head unit and the external camera call...

  • 7" widescreen display with 720p high definition imaging

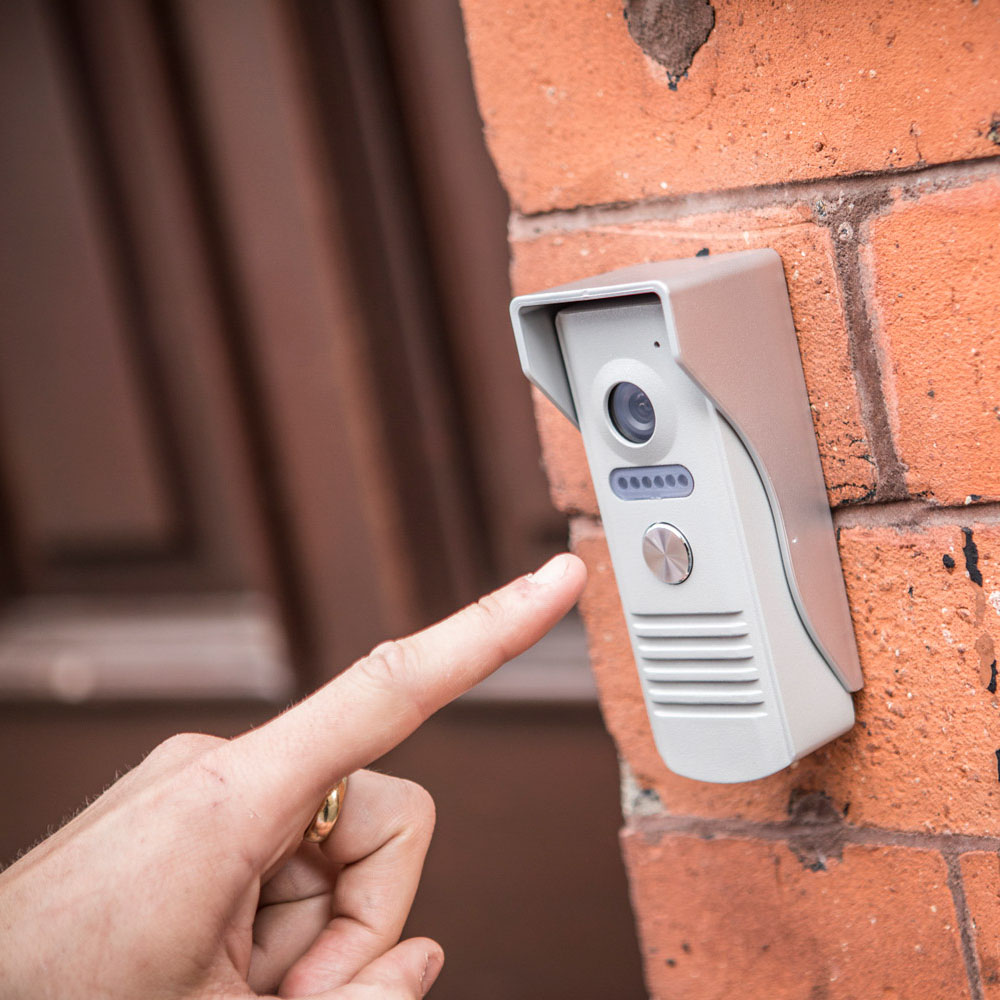

  • Weatherproof outdoor station with night vision
  • 2-way intercom
Description Version Packed
350.020UK
7" Colour Video Door Phone
Gift Box

HD 7" Colour Video Door Phone

A sleek and modern video door phone that provides superb full colour HD images in all light conditions along with high quality duplex speech between the video head unit and the external camera call point. Images in darker hours are also enhanced by the automatic activation of 6 infra red LEDs. The stylish low profile video head unit provides the facility to monitor the video feed from the external camera, talk to your visitor and options to both unlock an external door and an additional electric gate. The head unit face-plate and external call point chassis are manufactured in aluminium providing a tough and attractive finish. Also provided are 15m of installation cable and a UK power supply making the unit ideal for DIY installation.

  • 7" widescreen display with 720p high definition imaging
  • Weatherproof outdoor station with night vision
  • 2-way intercom
  • Electric door release function
  • Outdoor gate release function
  • Adjustable volume, image brightness and colour
  • 16 ringtones to choose from
  • Complete with 15m of cable and power supply for DIY installation

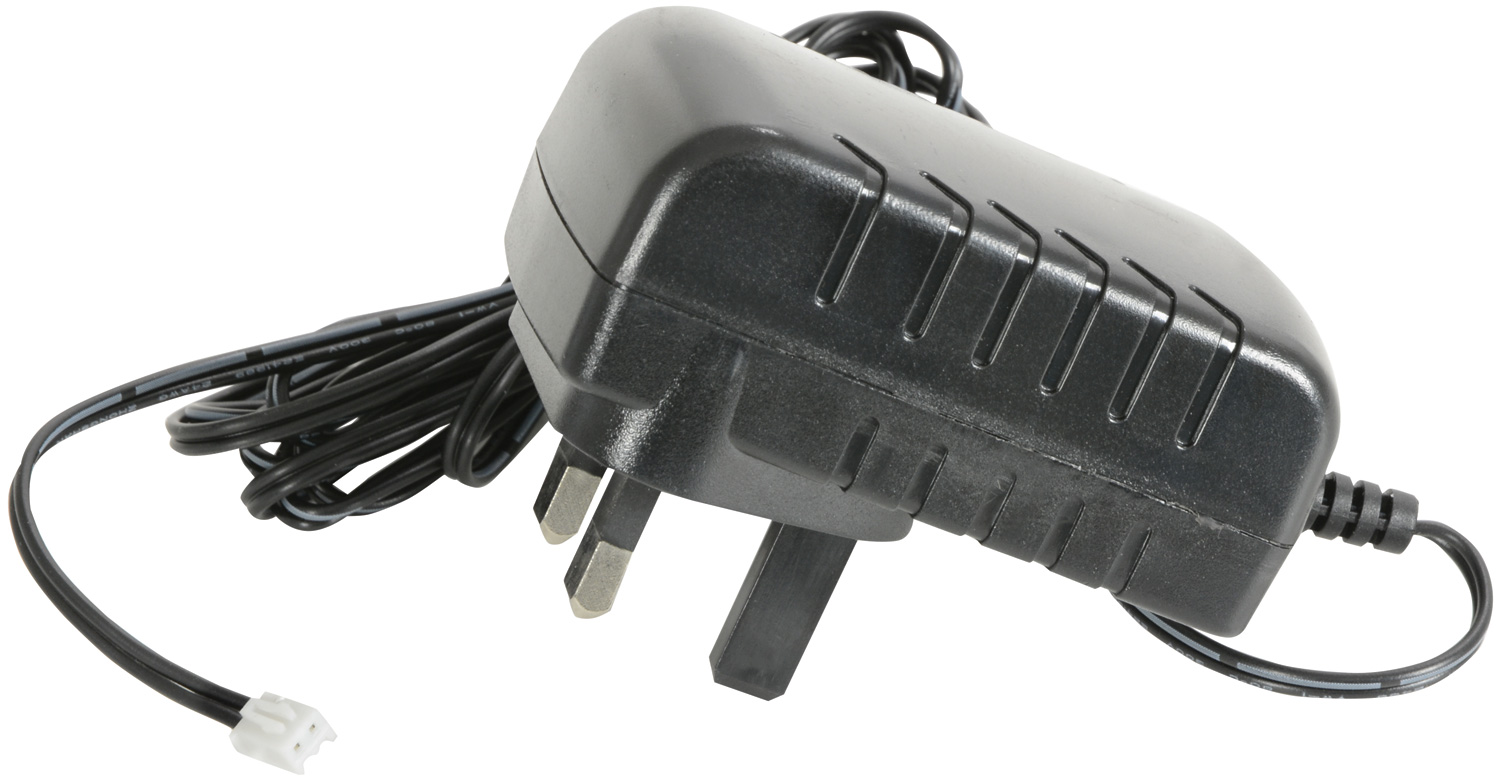

  • Power supply 12Vdc, 2A
  • Screen 7"
  • Screen resolution 800 x 480 (RGB)
  • Aspect ratio 5:3
  • Talk time 120 seconds +/- 10%
  • Power consumption Static <2W, Working <7W
  • Effective distance Approx 1m (outdoor unit)
  • Viewing angle Approx 45° (outdoor unit)
  • Operating temperature -10~+40°C (indoor unit), -15~+50°C (outdoor unit)
  • IP rating IP44 (outdoor unit)
  • Cable : length 15m (supplied)
  • Dimensions (indoor unit) 215 x 152 x 18mm
  • Dimensions (outdoor unit) 130 x 51 x 47mm
  • Weight (indoor unit) 390g
  • Weight (outdoor unit) 180g

In the box

The box for this item contains :

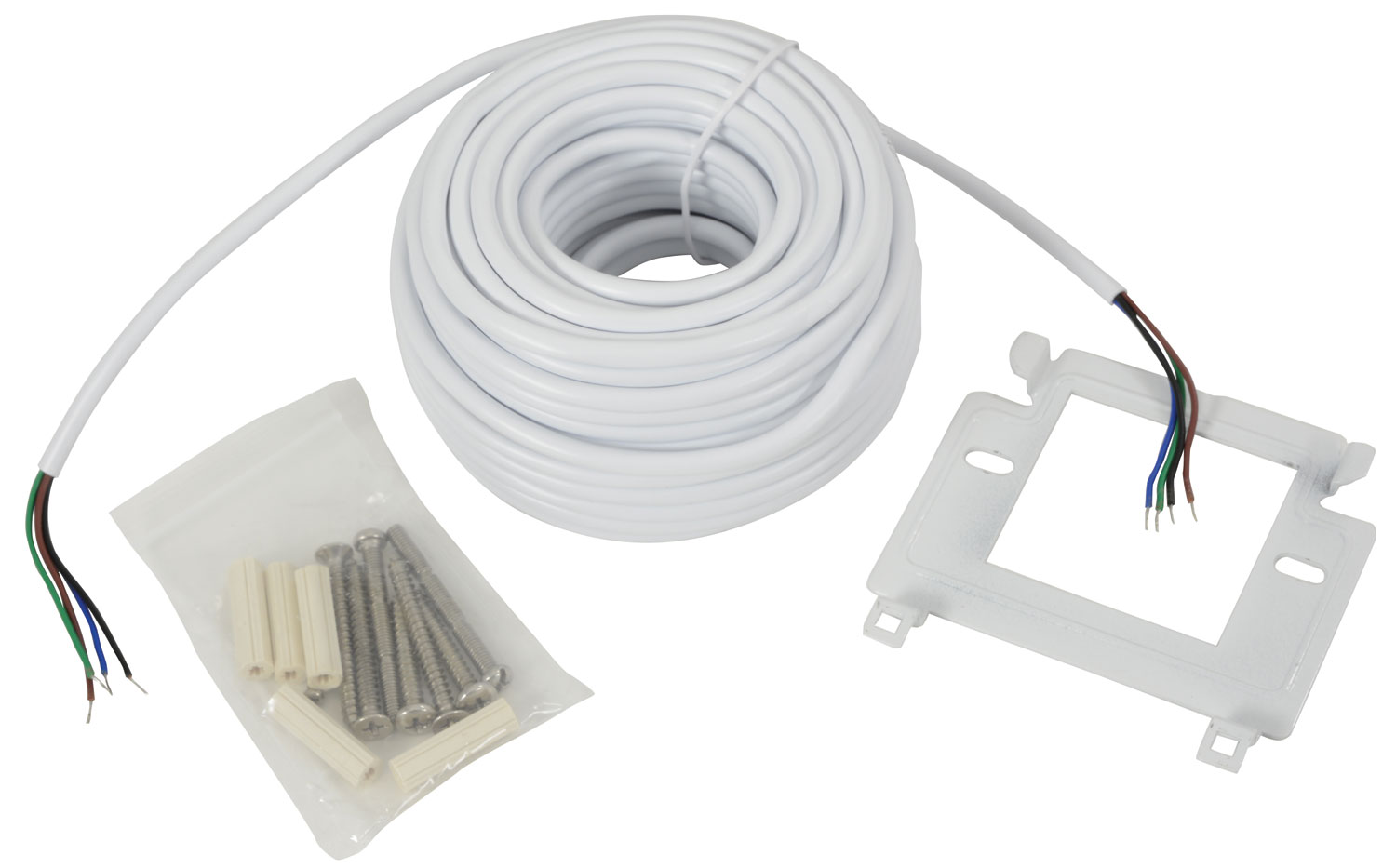

  • Indoor unit, outdoor unit, rain guard fixing bracket (outdoor unit), mains adaptor, fixing bracket (indoor unit), 15m cable, fixing screws pack

Downloads

Instruction manual
For 350.020UK (271KB)
UK Declaration of conformity
For 350.020UK (246KB)
EU Declaration of conformity
For 350.020UK (236KB)
