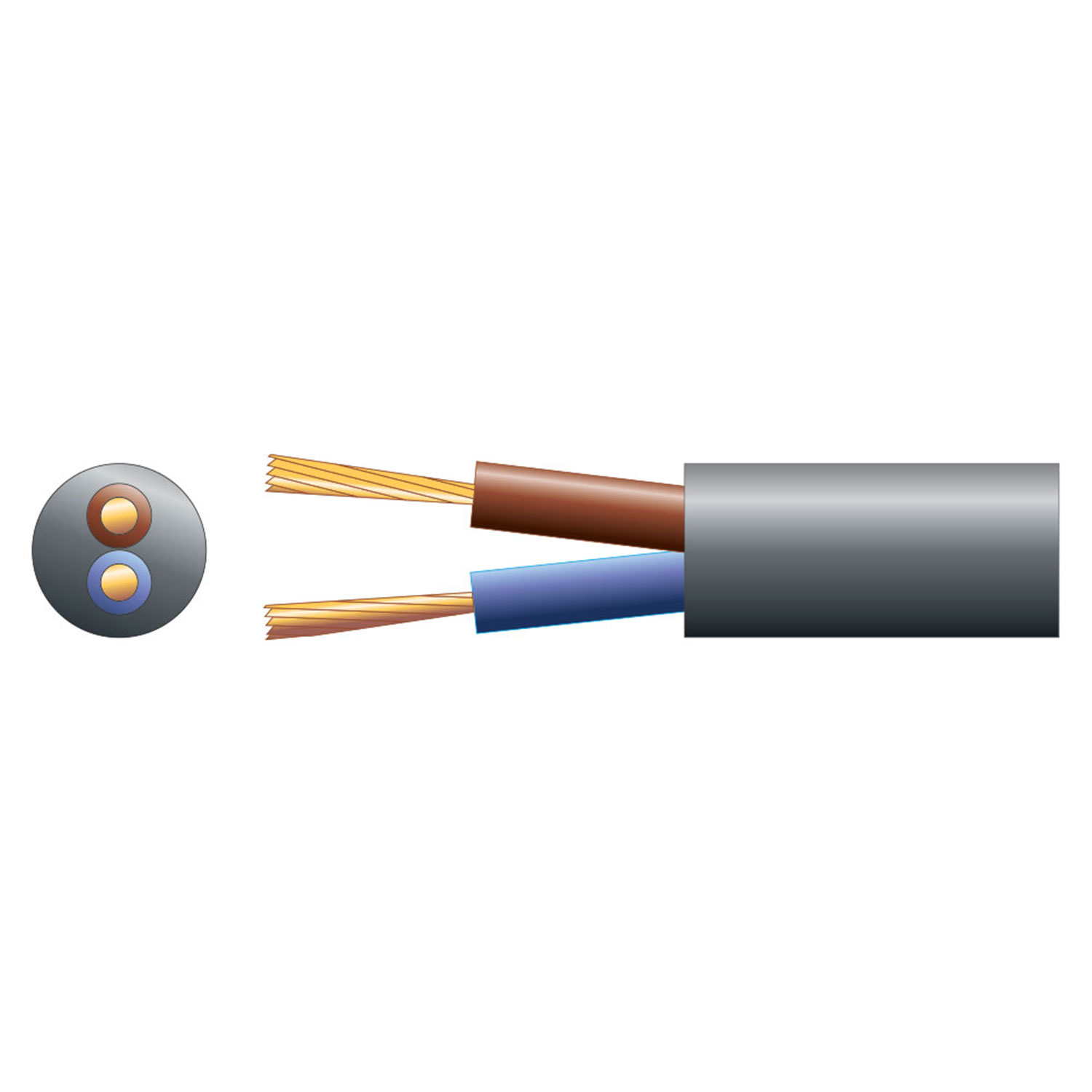

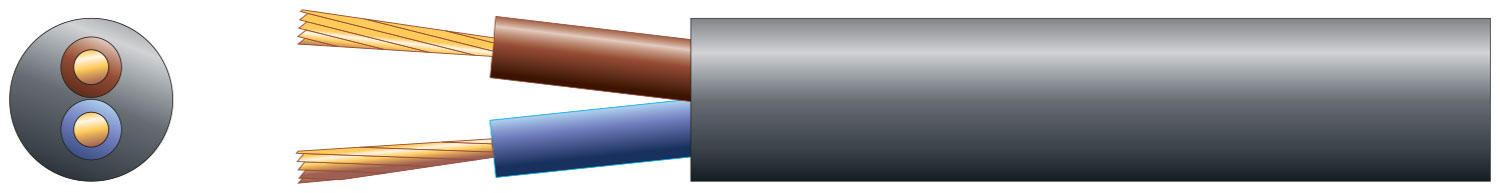

3182Y 2 Core Round PVC, 300/500V, HO5VV-F2, 15A

804.338UK

Round profile mains electric cable. Flexible PVC sheath for use in light electrical applications. BSI approved to BS6500, VDE approved.

Full description Find retailer
Description Version Packed
804.335UK
2 core round mains PVC, 2 x 48/0.2mm, 15A, 7.4mmØ, White, 100m 		White 100m Reel
804.338UK
2 core round mains PVC, 2 x 48/0.2mm, 15A, 7.4mmØ, Black, 100m 		Black 100m Reel
804.336UK
2 core round mains PVC, 2 x 48/0.2mm, 15A, 7.4mmØ, White, 50m 		White 50m Reel
804.339UK
2 core round mains PVC, 2 x 48/0.2mm, 15A, 7.4mmØ, Black, 50m 		Black 50m Reel

3182Y 2 Core Round PVC, 300/500V, HO5VV-F2, 15A

Round profile mains electric cable. Flexible PVC sheath for use in light electrical applications. BSI approved to BS6500, VDE approved.

Specification : Common

  • CSA 1.5mm²
  • Strands 2 x 48/0.2mmØ
  • Cable : dimensions 7.4mmØ
  • Packed 2 reels
  • Current 15.0A max.

Specification : Versions

  804.335UK 804.338UK 804.336UK 804.339UK
Length 100m 100m 50m 50m
Colour White Black White Black

Trade information

  804.335UK 804.338UK 804.336UK 804.339UK
Barcode / EAN 5015972050484 5015972050491 5015972200612 5015972200629
Package type Reel Reel Reel Reel
Package dimensions 250 x 170 x 250mm 250 x 170 x 250mm 250 x 170 x 250mm 250 x 170 x 250mm
Package weight 8.50kg 8.50kg 4.35kg 4.35kg
Package quantity 1 unit 1 unit 1 unit 1 unit
Carton dimensions 250 x 170 x 250mm 250 x 170 x 250mm 250 x 170 x 250mm 250 x 170 x 250mm
Carton weight 8.50kg 8.50kg 4.35kg 4.35kg
Carton quantity 1 package 1 package 1 package 1 package
