Premium KV-T series 100V Ceiling Speakers

952.280UK KV5T

Premium quality ABS 2-way ceiling speakers with magnetic frameless grille for high quality music reproduction in a sleek design. High energy glass-aramid main drivers are combined with a coaxial do...

  • 3 x 100V volume tappings via 4-core cable
  • 8 Ohm optional (bypass transfomer)

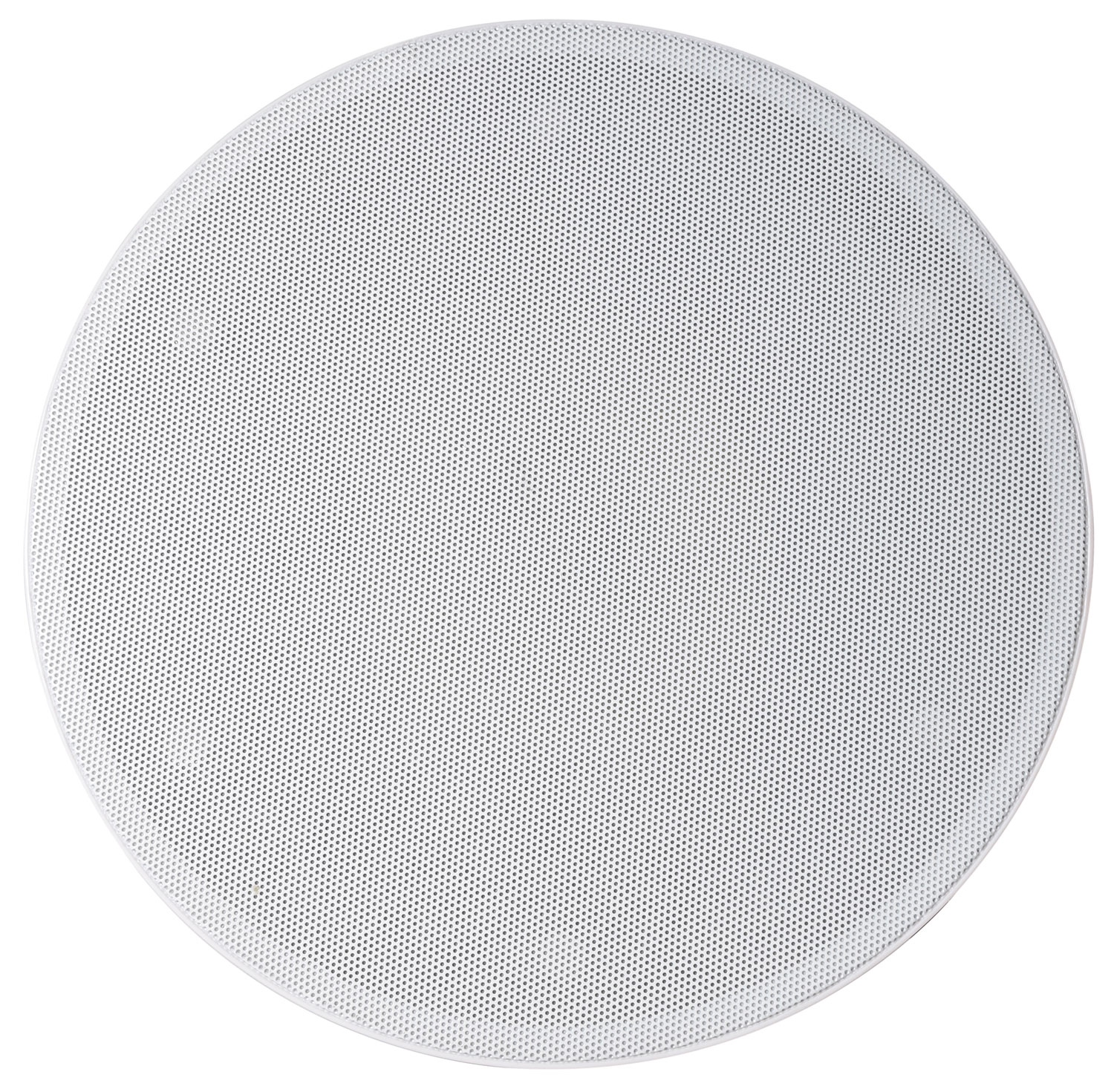

  • Magnetic low profile steel grille
Description Version Packed
952.280UK
KV5T Premium 100V Ceiling Speaker 20W
5.25" 100V 20W Box Label
952.281UK
KV6T Premium 100V Ceiling Speaker 30W
6.5" 100V 30W Box Label
952.282UK
KV8T Premium 100V Ceiling Speaker 40W
8" 100V 40W Box Label

Premium KV-T series 100V Ceiling Speakers

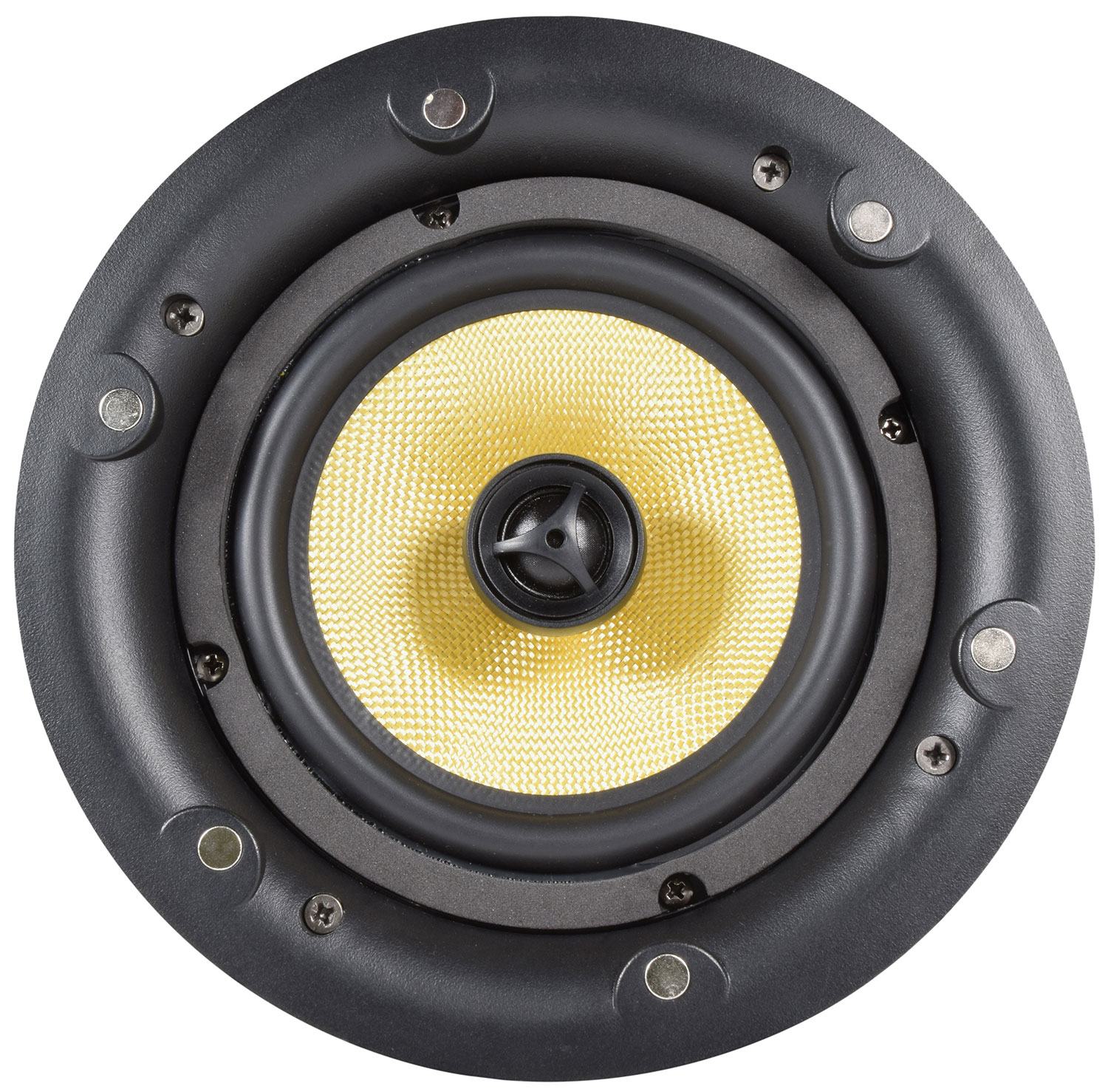

Premium quality ABS 2-way ceiling speakers with magnetic frameless grille for high quality music reproduction in a sleek design. High energy glass-aramid main drivers are combined with a coaxial dome tweeter and coupled to a wave guide baffle for optimum sound dispersion. Each KV-T speaker is fitted with a 100V transformer with selectable volume tappings. High performance ceiling speakers to integrate with 100V voice and background music systems.

  • 3 x 100V volume tappings via 4-core cable
  • 8 Ohm optional (bypass transfomer)
  • Magnetic low profile steel grille
  • Heavy duty glass-aramid cone
  • Supplied individually
  • Construction ABS basket & powder coated steel grille
  • Dispersion angle 120°
  • HF driver 25mmØ (1") ASV diaphragm

Versions

  952.280UK 952.281UK 952.282UK
Impedance 500, 1k, 2k Ohms or 8 Ohms 333, 666, 1.3k Ohms or 8 Ohms 250, 500, 1.3k Ohms or 8 Ohms
Tappings 5W, 10W, 20W & 8 Ohms (40W) 7.5W, 15W, 30W & 8 Ohms (60W) 10W, 20W, 40W & 8 Ohms (80W)
Magnet weight 270g 355g 465g
SPL @ 1W/1m 89dB 90dB 90dB
Max. SPL 100dB 103dB 105dB
Frequency response 80Hz - 20kHz 50Hz - 20kHz 50Hz - 20kHz
Cutout 180mmØ 205mmØ 255mmØ
Mounting depth 80mm 95mm 110mm
Dimensions 80 x 206mmØ 94 x 232mmØ 110 x 281mmØ

Support : articles

100V line speakers

For many applications, it is necessary to drive many speakers with a single amplifier, giving greater coverage to multiple rooms or over a given area. 100V line is a solution to this problem.

Sunday, 1st January 2017

Dispersion angles

Each ceiling speaker in an installation is capable of effectively providing coverage to an area defined by its dispersion angle. Here we show how to calculate the spacing of speakers to cover your installation

Sunday, 1st January 2017

Speaker system types

Our speaker and amplifier products cover many environments and applications with a focus on clear and efficient sound coverage. Here we discuss the different types of systems

Sunday, 1st January 2017

Power Ratings: RMS vs Max vs Peak

A summary explaining the key differences between RMS, Max and Peak power ratings.

Tuesday, 10th March 2020

In the box

The box for this item contains :

  • KV-T series premium 100V ceiling speaker

Downloads

UK Declaration of conformity
For 952.280UK (244KB)
EU Declaration of conformity
For 952.280UK (234KB)
