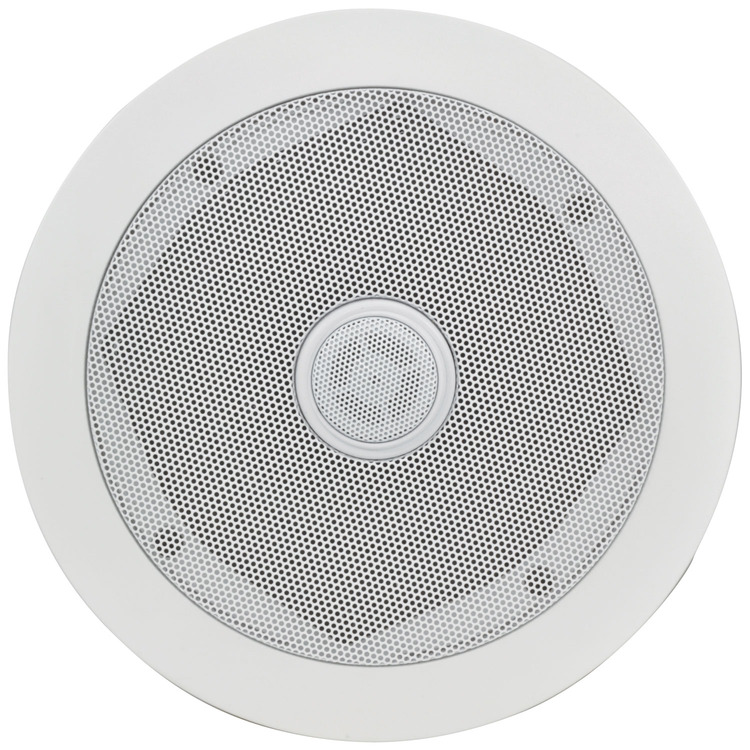

CD Series Ceiling Speakers with Directional Tweeter

952.528UK C5D

These easy fit ceiling speakers are ideal for main speakers, surround sound or remote speaker applications. The two-way design includes a Ferrofluid cooled silk dome tweeter and Polypropylene woofe...

  • 2-way easy fit ceiling speakers
  • Polypropylene woofer with rubber surround and Ferrofluid cooled silk dome tweeter
  • Adjustable directional tweeter
Description Version Packed
952.528UK
13cm (5.25") ceiling speaker with directional tweeter/ Single
5.25" Gift Box
952.534UK
16.5cm (6.5") ceiling speaker with directional tweeter/ Single
6.5" Gift Box
952.543UK
20cm (8") ceiling speaker with directional tweeter/ Single
8" Gift Box

CD Series Ceiling Speakers with Directional Tweeter

These easy fit ceiling speakers are ideal for main speakers, surround sound or remote speaker applications. The two-way design includes a Ferrofluid cooled silk dome tweeter and Polypropylene woofer with rubber surround to deliver the highest level sonic performance. The adjustable tweeter allows for the high frequencies to be focused in the direction of the listening area, this increases the flexibility when locating the speakers off-axis from the listeners.

  • 2-way easy fit ceiling speakers
  • Polypropylene woofer with rubber surround and Ferrofluid cooled silk dome tweeter
  • Adjustable directional tweeter

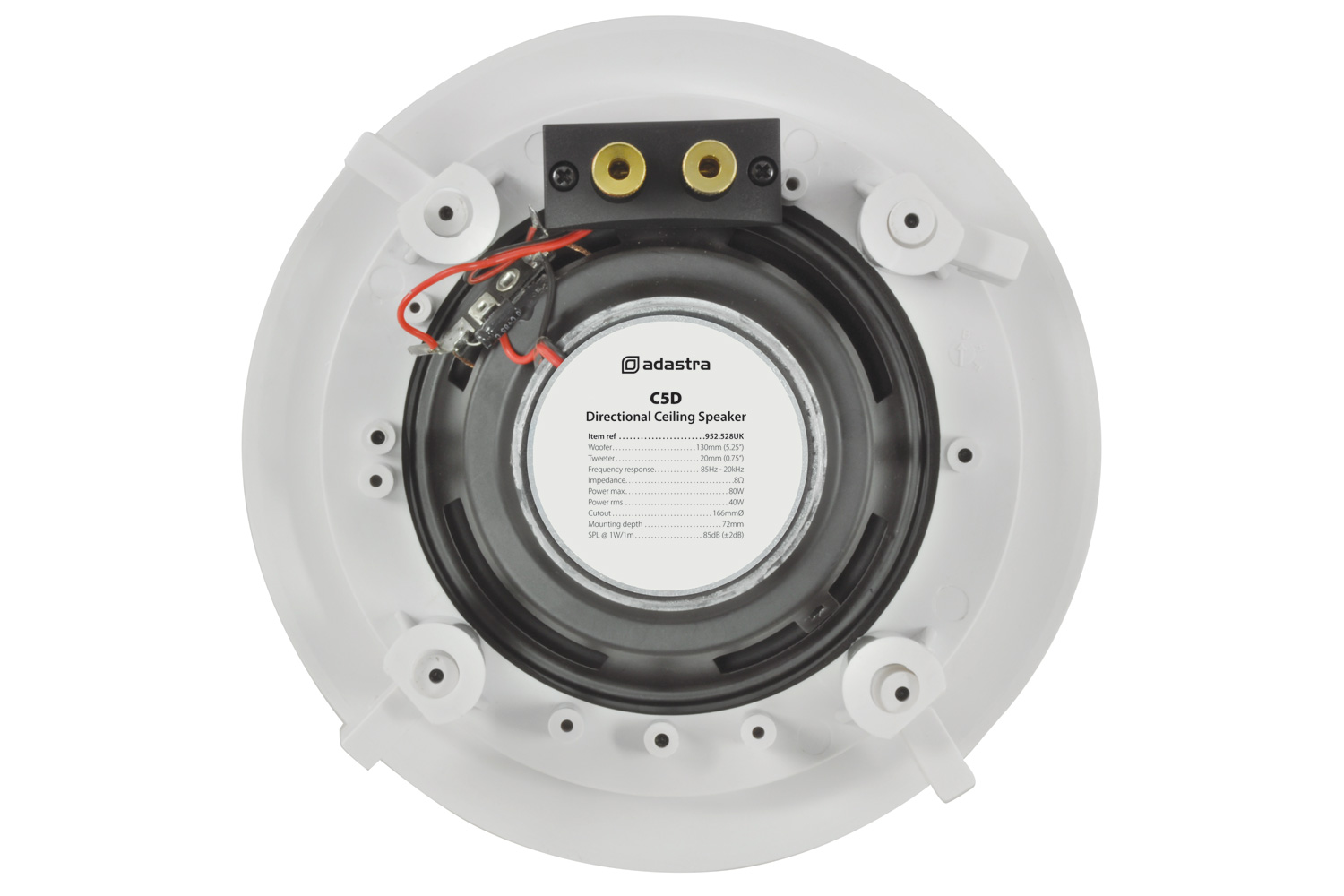

  • Spring-loaded terminal connections
  • Fitted with "dog-ear" mounts
  • Dispersion angle 155°

Versions

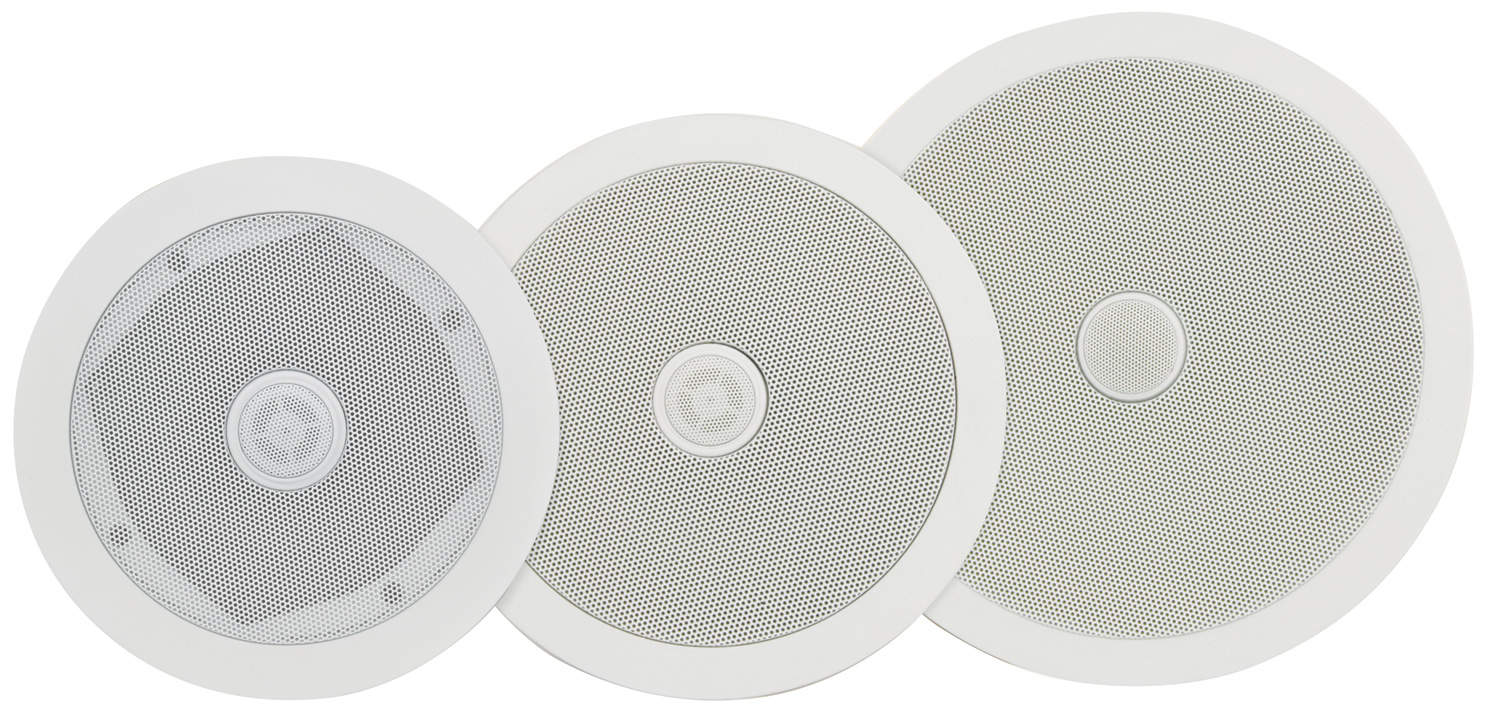

  952.528UK 952.534UK 952.543UK
Woofer 130mm (5.25") 165mm (6.5") 200mm (8")
Tweeter 18mm (0.7") 18mm (0.7") 25mm (1")
Frequency response 85Hz - 20kHz 60Hz - 20kHz 45Hz - 20kHz
Impedance 8 ohms 8 ohms 8 ohms
Power max. 80W 100W 120W
Power rms 40W 50W 60W
Sensitivity @ 1W/1m 85dB (±2dB) 85dB (±2dB) 87dB (±2dB)
Cutout 166mmØ 193mmØ 238mmØ
Mounting depth 72mm 79mm 90mm
Dimensions 83 x 202mmØ 93 x 227mmØ 101 x 271mmØ
Weight 850g 1.1kg 1.7kg
Packed quantity Single Single Single
