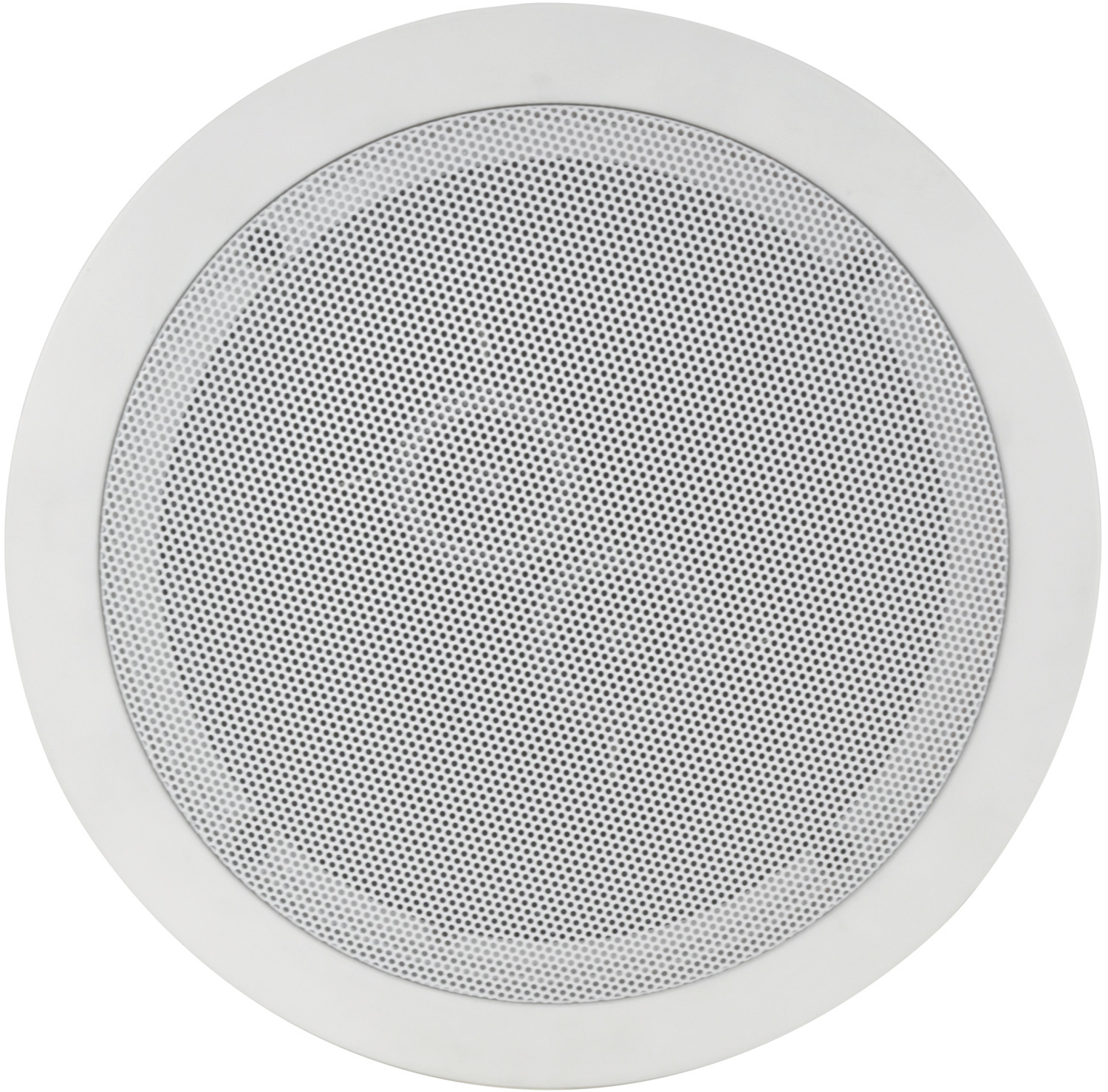

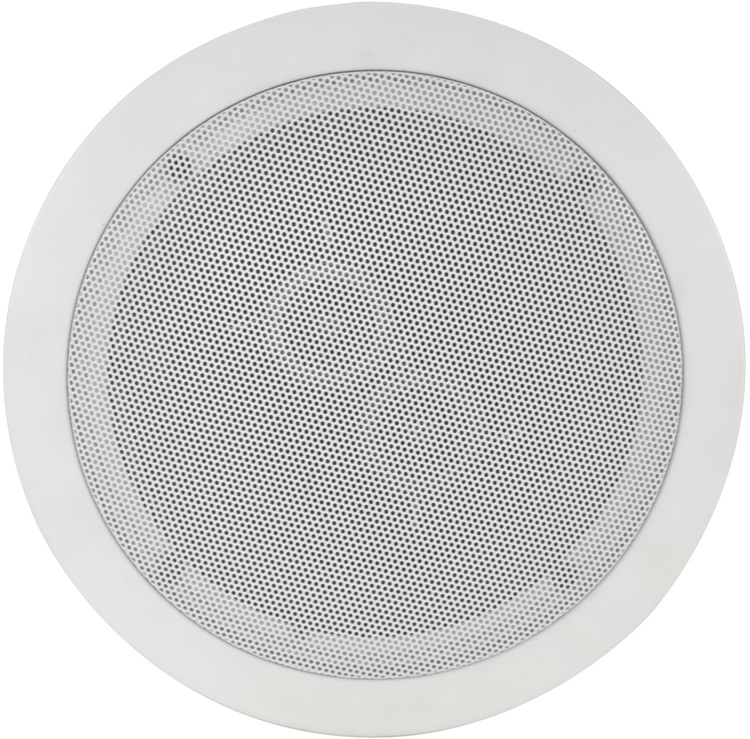

16.5cm (6.5") Dual Voice Coil Ceiling Speaker with Dual Tweeters

952.537UK C6S

A ceiling mount speaker that provides both left and right stereo channels from a single point, whilst maintaining channel separation. The speaker has dual mylar dome tweeters combined with a dual v...

  • Stereo 2-way easy fit ceiling speaker with "dog-ear" mounts
  • Dual mylar dome tweeters for separation and clarity
  • Dual voice coil polypropylene woofer with rubber surround
Description Version Packed
952.537UK
6.5" Dual voice coil ceiling speaker with dual tweeters
Box Label

16.5cm (6.5") Dual Voice Coil Ceiling Speaker with Dual Tweeters

A ceiling mount speaker that provides both left and right stereo channels from a single point, whilst maintaining channel separation. The speaker has dual mylar dome tweeters combined with a dual voice coil, polypropylene woofer to deliver a full, rich sound. Ideal for installation in small rooms.

  • Stereo 2-way easy fit ceiling speaker with "dog-ear" mounts
  • Dual mylar dome tweeters for separation and clarity
  • Dual voice coil polypropylene woofer with rubber surround
  • Gold-plated spring terminals
  • White ABS frame with steel grille
  • Supplied singly
  • Woofer 165mmØ (6.5")
  • Tweeter 2 x 13mmØ (0.5")
  • Frequency response 70Hz - 20kHz
  • Power max. 50W + 50W
  • Power rms 25W + 25W

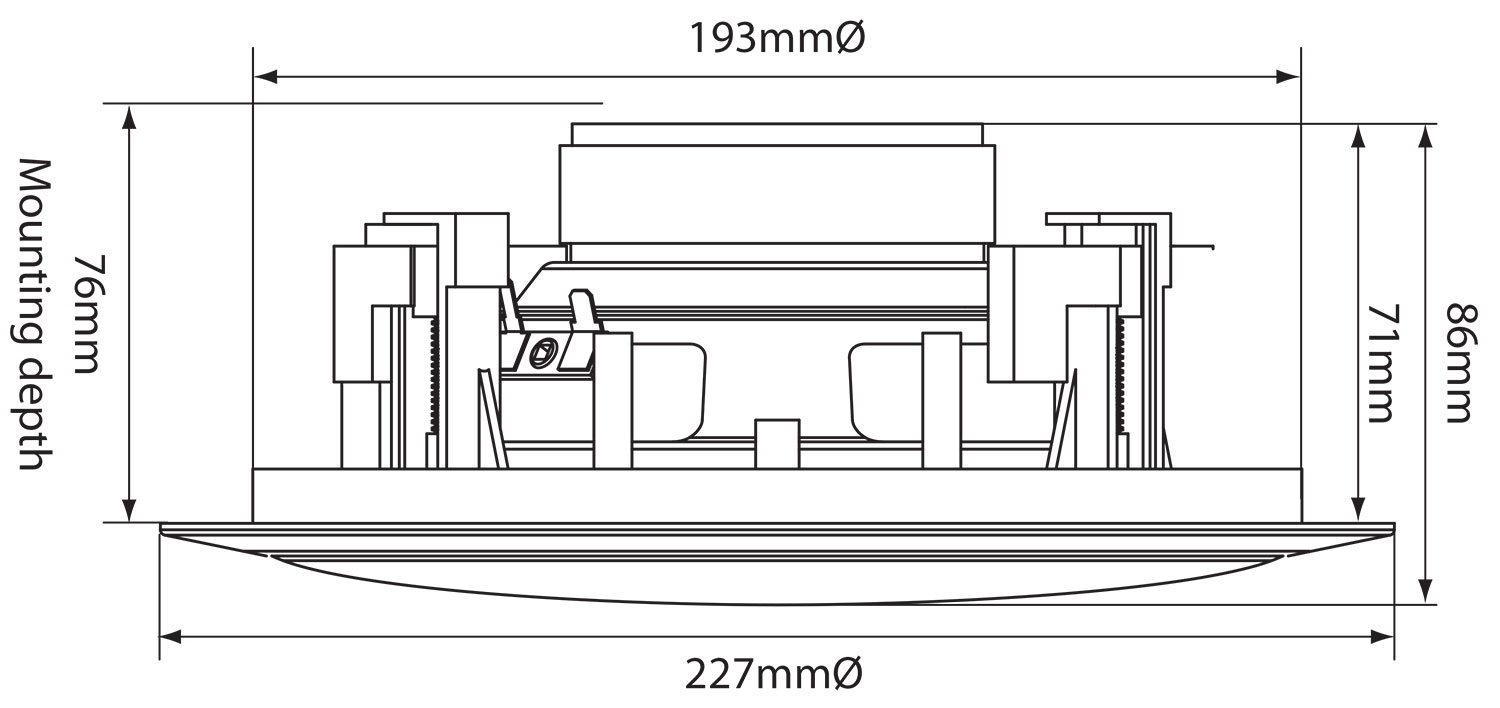

  • Cutout 193mmØ
  • Impedance 2 x 8 ohms
  • Dispersion angle 160°
  • Mounting depth 76mm
  • Sensitivity @ 1W/1m 82dB (±2dB)
  • Dimensions 86 x 227mmØ
  • Weight 1.4kg
