2 Way Low Profile 100V Line Ceiling Speakers
6.5"
952.261UK
LP6V
2-way ceiling speakers with flared baffle and a low profile magnetic grille. The main driver with concentric directional tweeter is operated via a rotary control with 5 x 100V volume tappings and an 8… more

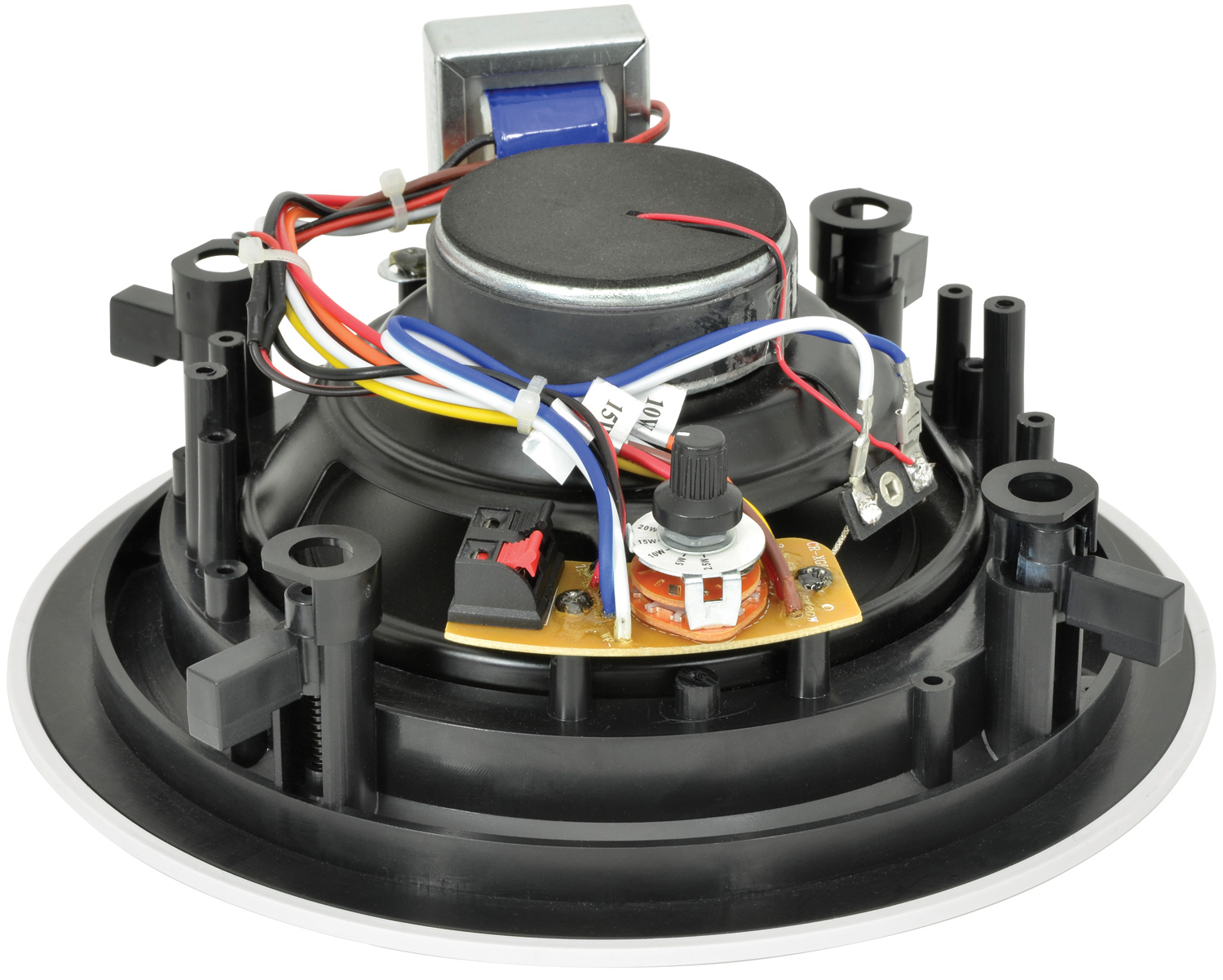

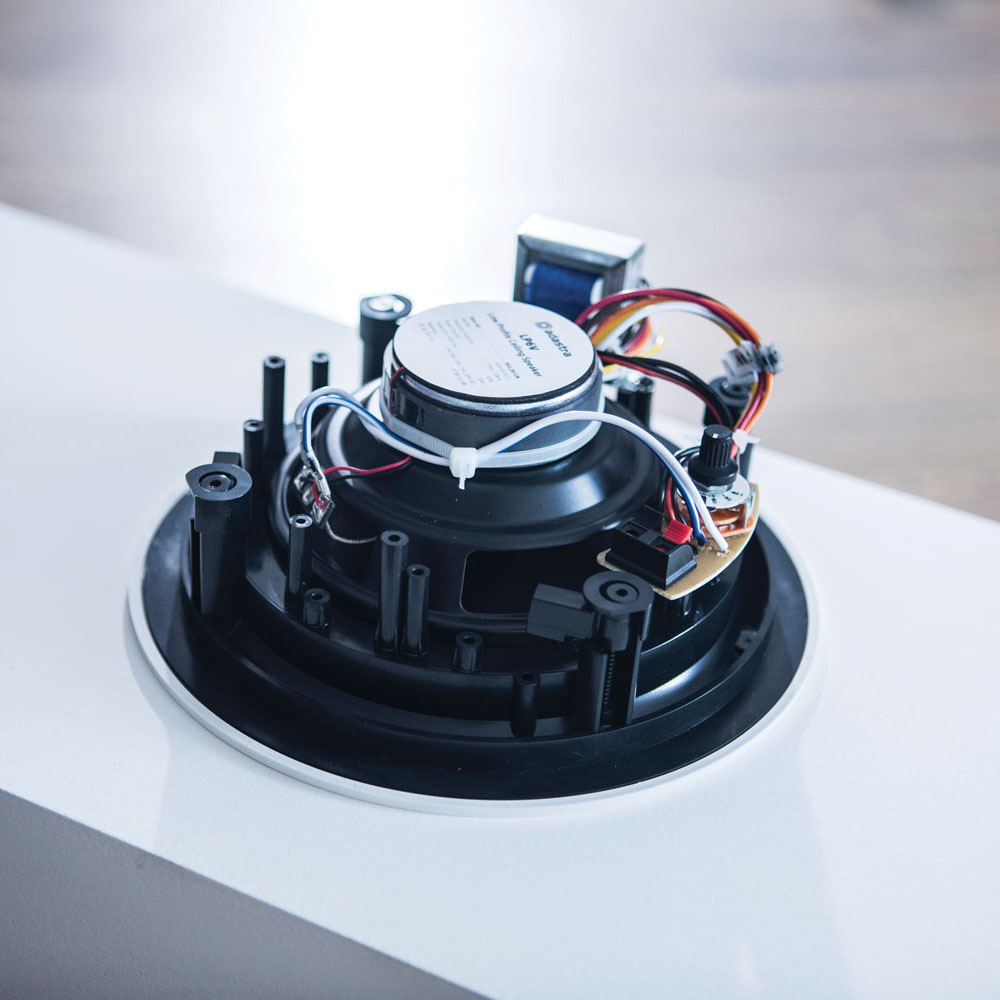

- Rotary selector switch for 100V line tappings or 8 Ohms
- Magnetic frameless grille

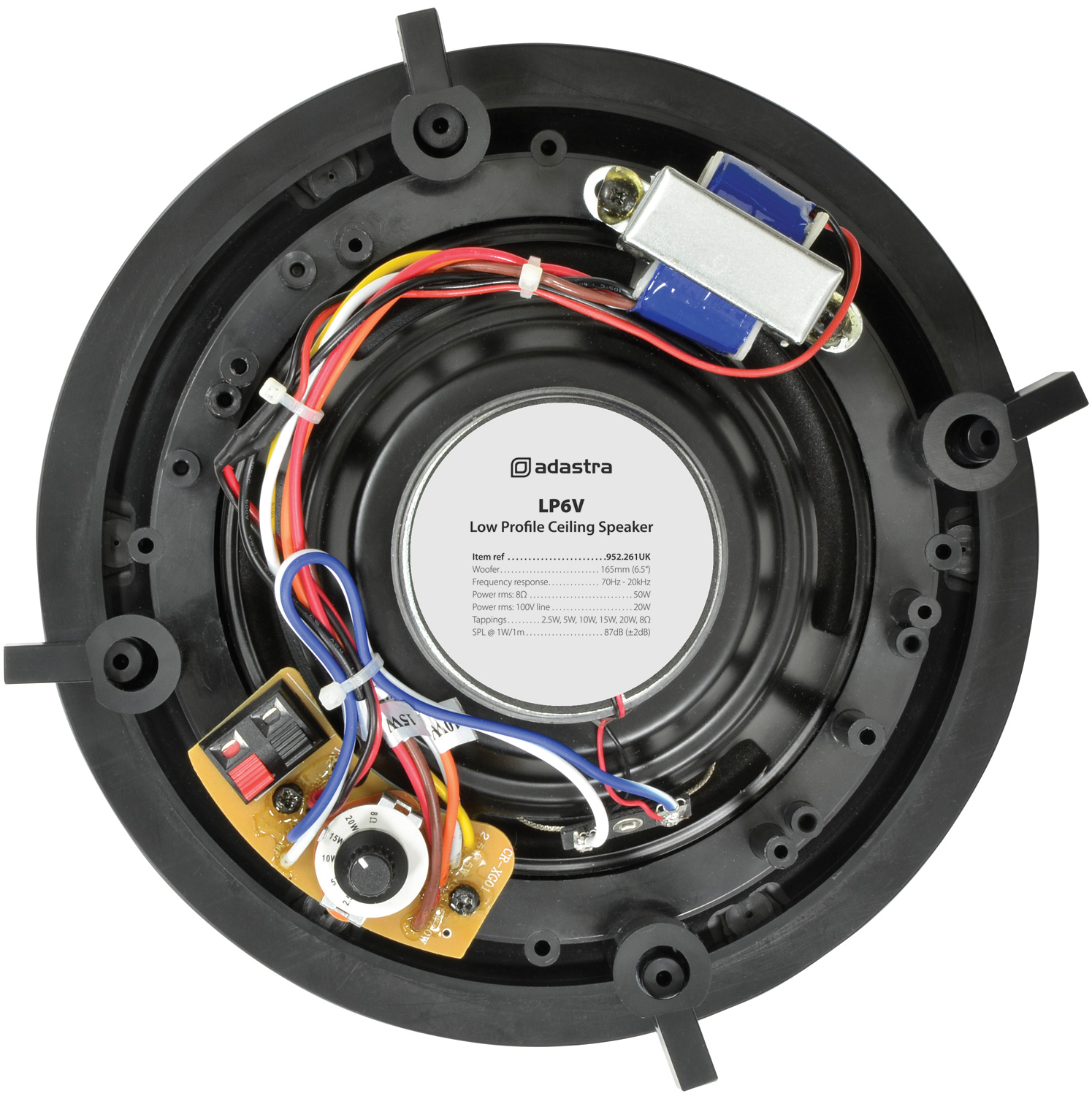

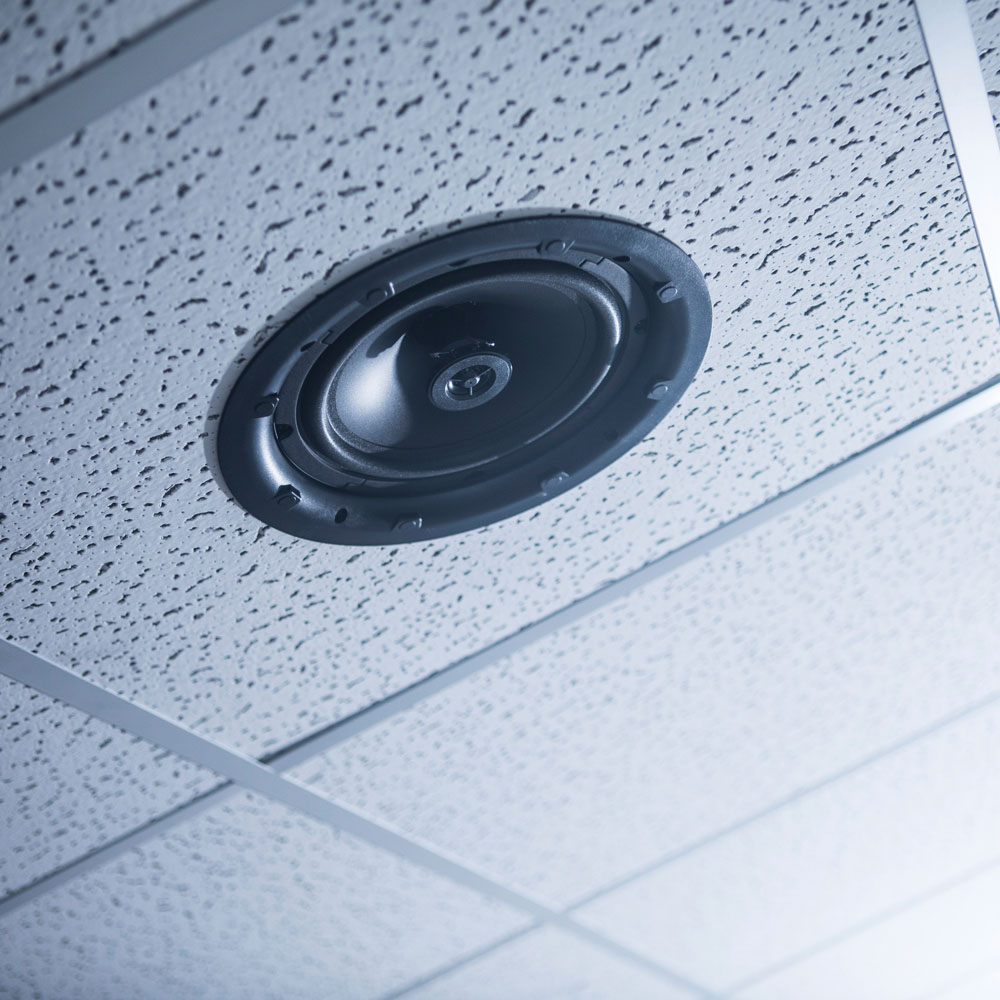

- Fitted with "dog-ear" mounts for fixing to suspended or false ceilings
2 Way Low Profile 100V Line Ceiling Speakers

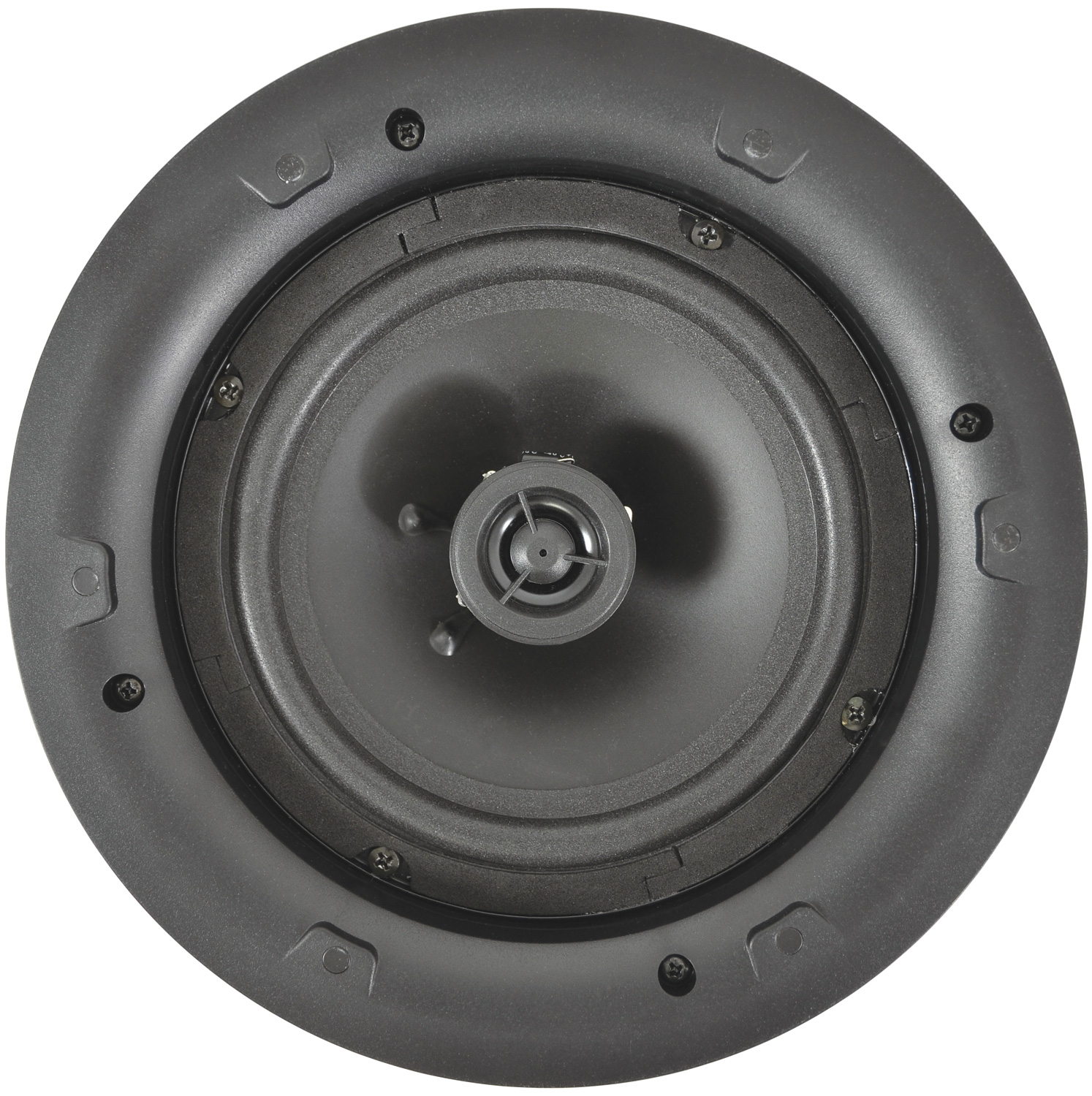

2-way ceiling speakers with flared baffle and a low profile magnetic grille. The main driver with concentric directional tweeter is operated via a rotary control with 5 x 100V volume tappings and an 8 Ohms option. Mount into suspended or false ceilings using the 4 "dog-ear" mounts to achieve a discreet, high quality sound installation.
- Rotary selector switch for 100V line tappings or 8 Ohms

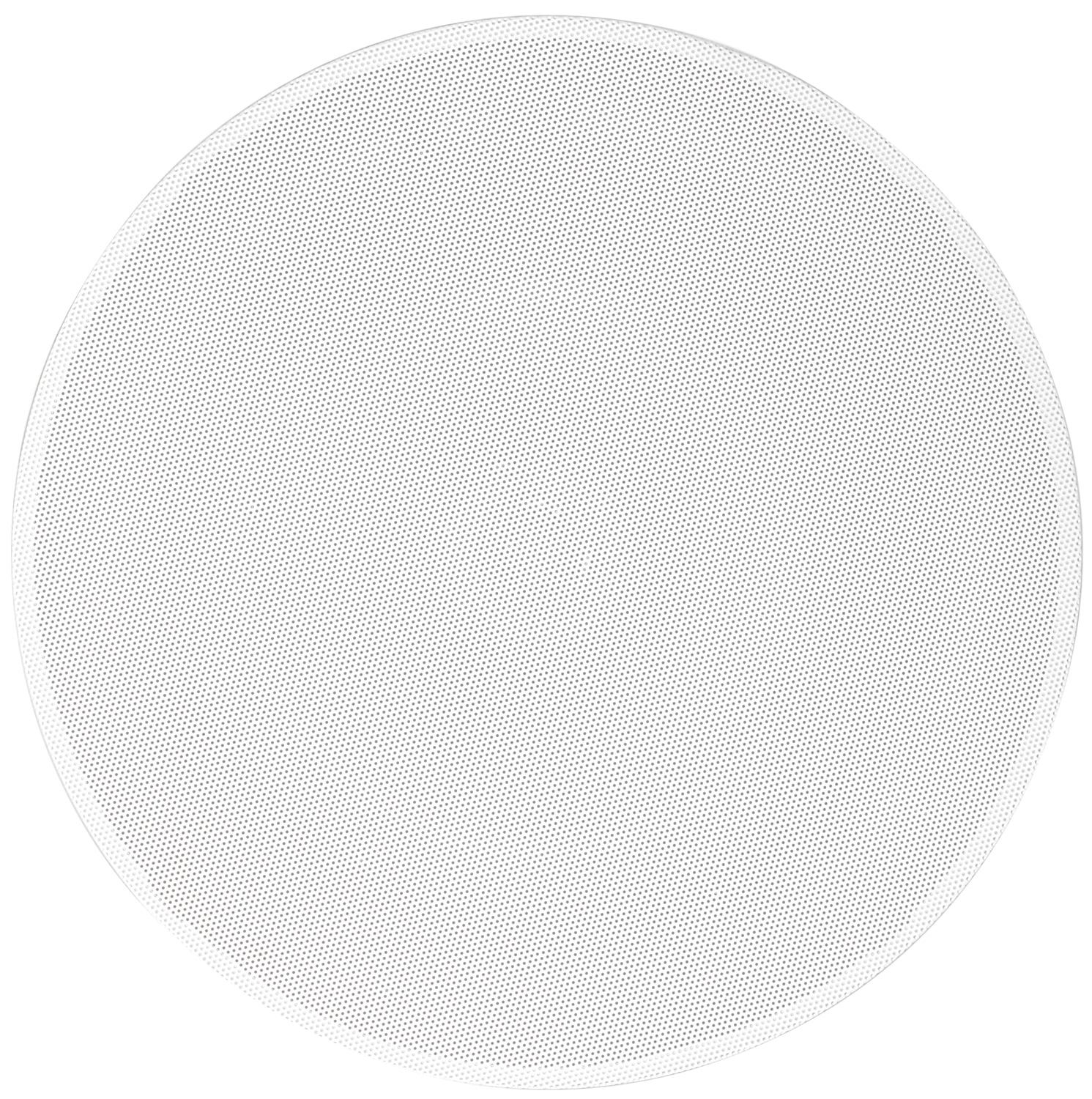

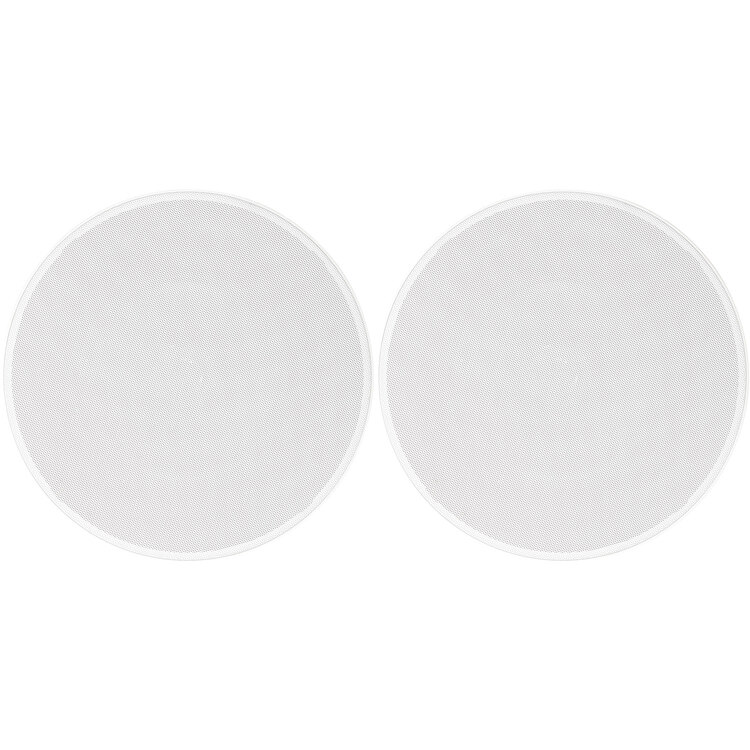

- Magnetic frameless grille
- Fitted with "dog-ear" mounts for fixing to suspended or false ceilings

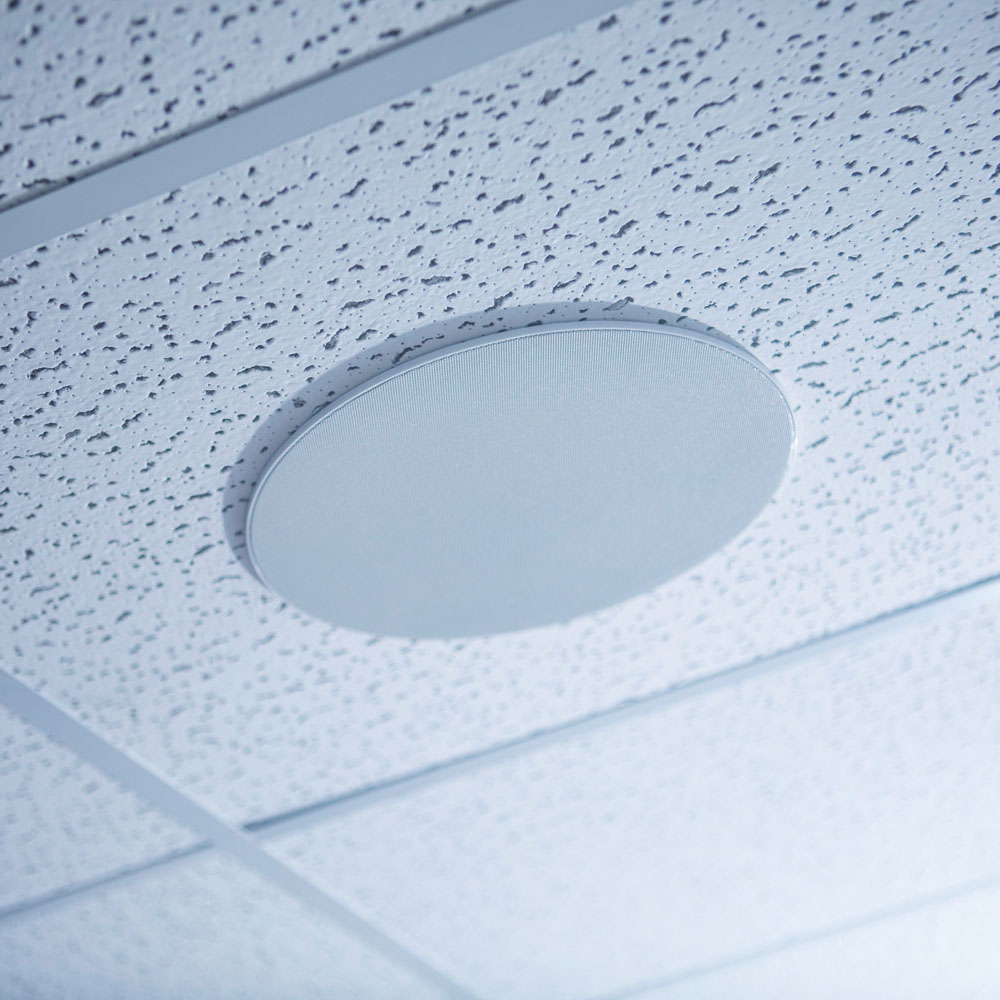

- Discreet, low profile installation
- Grille can be painted to match decor
- Supplied singly
- Weight 1.31kg
- Dimensions 102 x 232mmØ
- Tappings 2.5, 5, 10, 15, 20W & 8 Ohms
- SPL @ 1W/1m 87dB (±2dB)
- Mounting depth 99mm
- Cutout 202mm
- Power rms : 100V line 20W
- Power rms : 8 Ohms 50W
- Power max. : 8 Ohms 100W
- Frequency response 70Hz - 20kHz
- Tweeter 38mmØ (1.5")
- Woofer 165mmØ (6.5")
- Dispersion angle 160°
In the Box

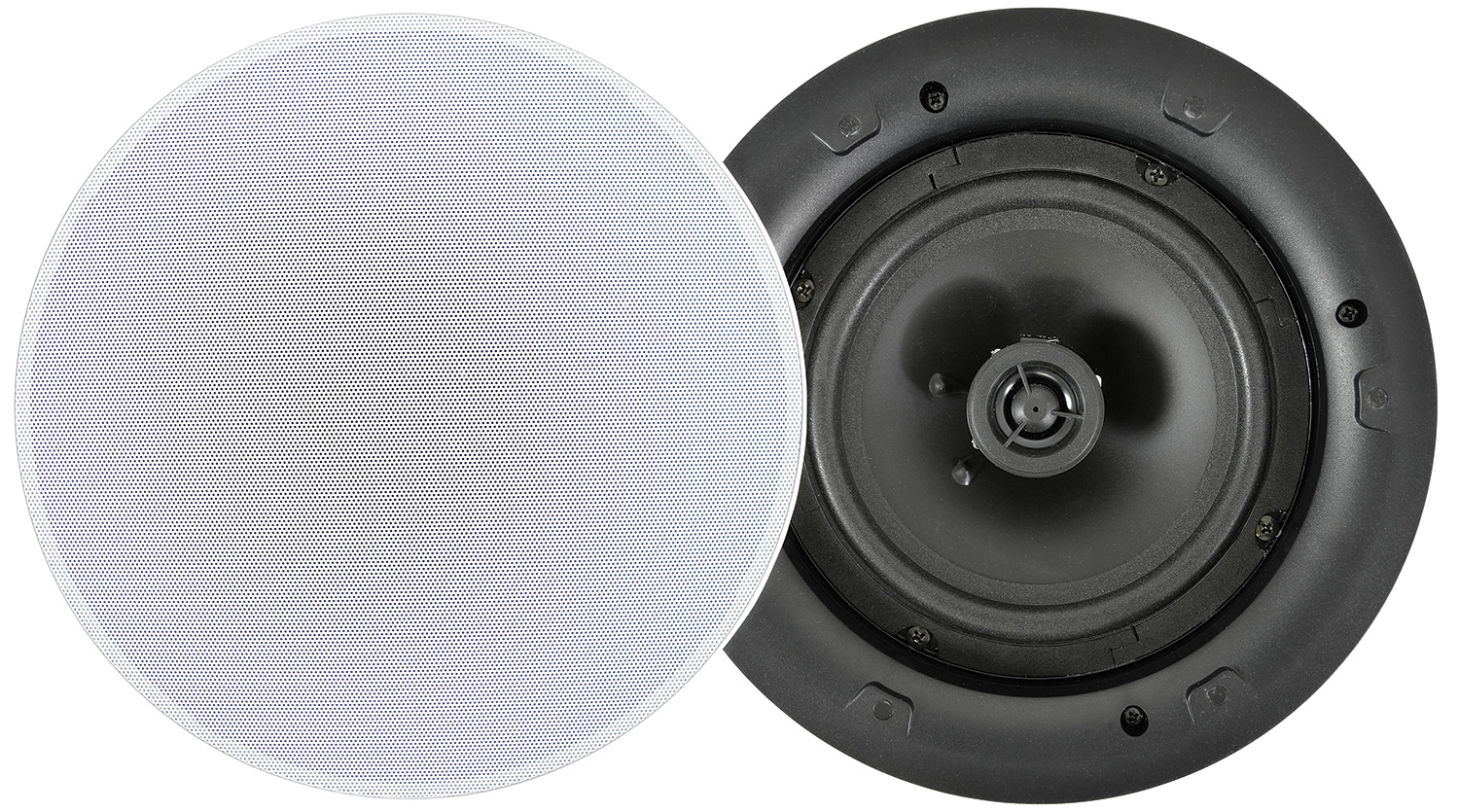

- Ceiling speaker with detachable grille
