RGBW WiFi Controller with Wall Plate

153.896UK

Lyyt RGBW smart controller with touch RF wall plate is compatible with voice control via Amazon Alexa and Google Assistant. Simply download the Tuya application to control LED tape remotely from yo...

  • WiFi controller powered by Tuya
  • Voice control via Amazon Alexa and Google Assistant
  • Pre-set lighting effect modes
Description Version Packed
153.896UK
RGBW WiFi Touch Wall Controller
RGBW WiFi Poly Bag

RGBW WiFi Controller with Wall Plate

Lyyt RGBW smart controller with touch RF wall plate is compatible with voice control via Amazon Alexa and Google Assistant. Simply download the Tuya application to control LED tape remotely from your phone, the app features 8 pre-set lighting effect modes, sound to light technology, colour scroll and a timer function. Complete with the WiFi controller is a sleek glass touch wall plate controller which has another 9 pre-set lighting effect modes, speed and dimming control and an individual white LED control button. This controller can be used with either 12V-24V RGBW or RGB LED tape/COB strip.

  • WiFi controller powered by Tuya
  • Voice control via Amazon Alexa and Google Assistant
  • Pre-set lighting effect modes
  • Sound-to-light technology
  • Speed and dimming control
  • Timer function
  • Recommended for use with 1 x 5m reel of Lyyt 12V RGB LED Tape 156.720UK or 2 x 5m reels max. of Lyyt 24V COB Strip 156.667UK, or 2 x 5m reels max. Lyyt 24V RGBW LED Tape 156.667UK, or 2 x reels max. Lyyt 24V RGB LED Tape 156.770UK
  • Pair multiple receivers to the same remote control to achieve wireless synchronization effect. Receivers must be within 10m of remote control.
  • Power supply 12-24V (16A Max.)
  • Output connection W / B / G / R / V+ screw terminals
  • Power connection DC5521 Jack or screw terminals
  • PWM frequency 1.95KHz
  • Frequency RF: 2.4GHz
  • Dimensions 20x40x70mm
  • Weight 80g

In the box

The box for this item contains :

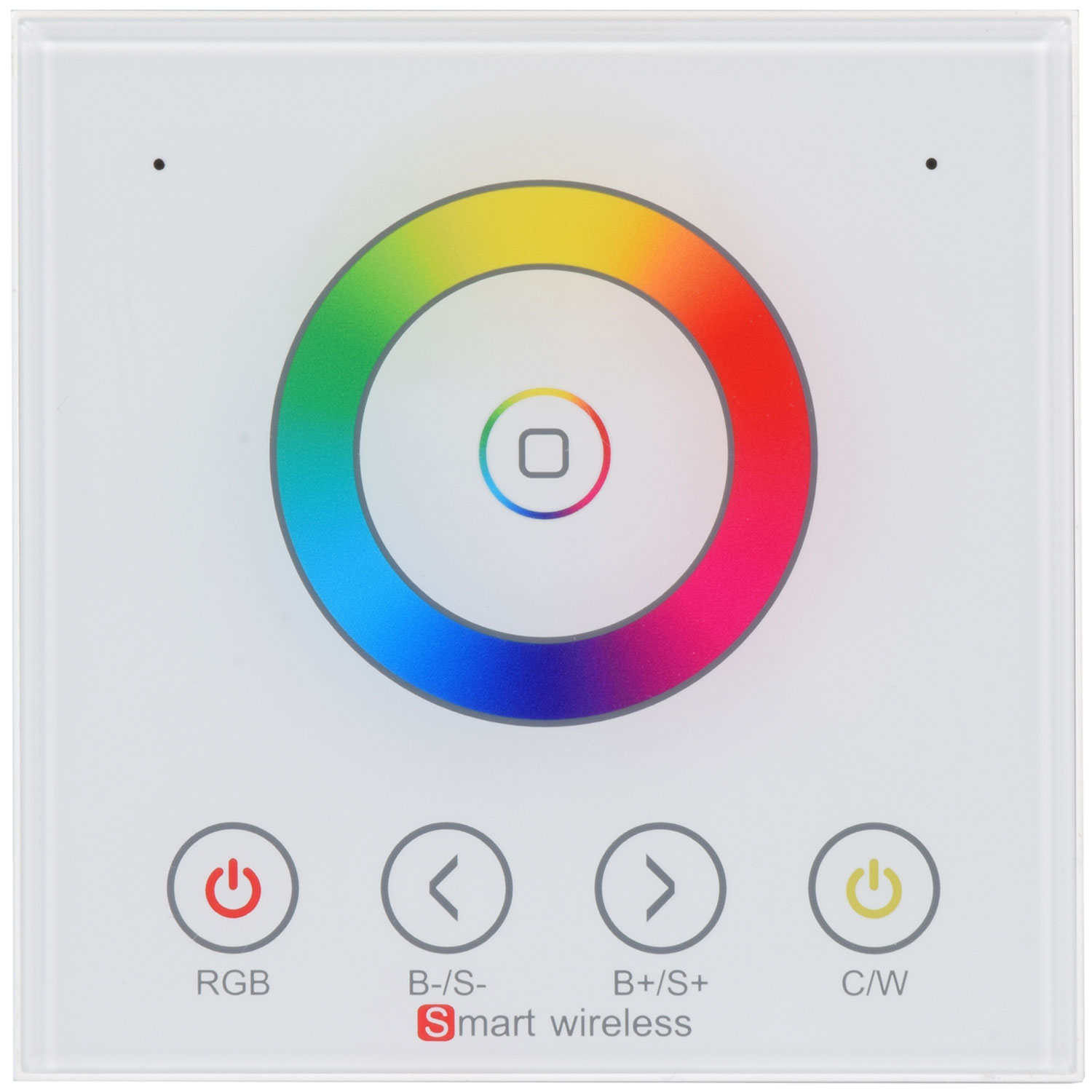

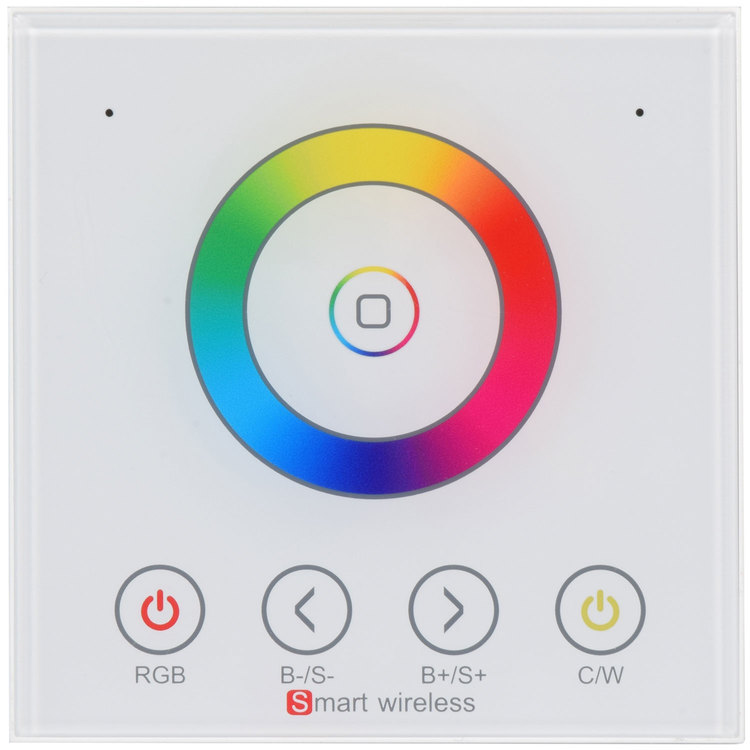

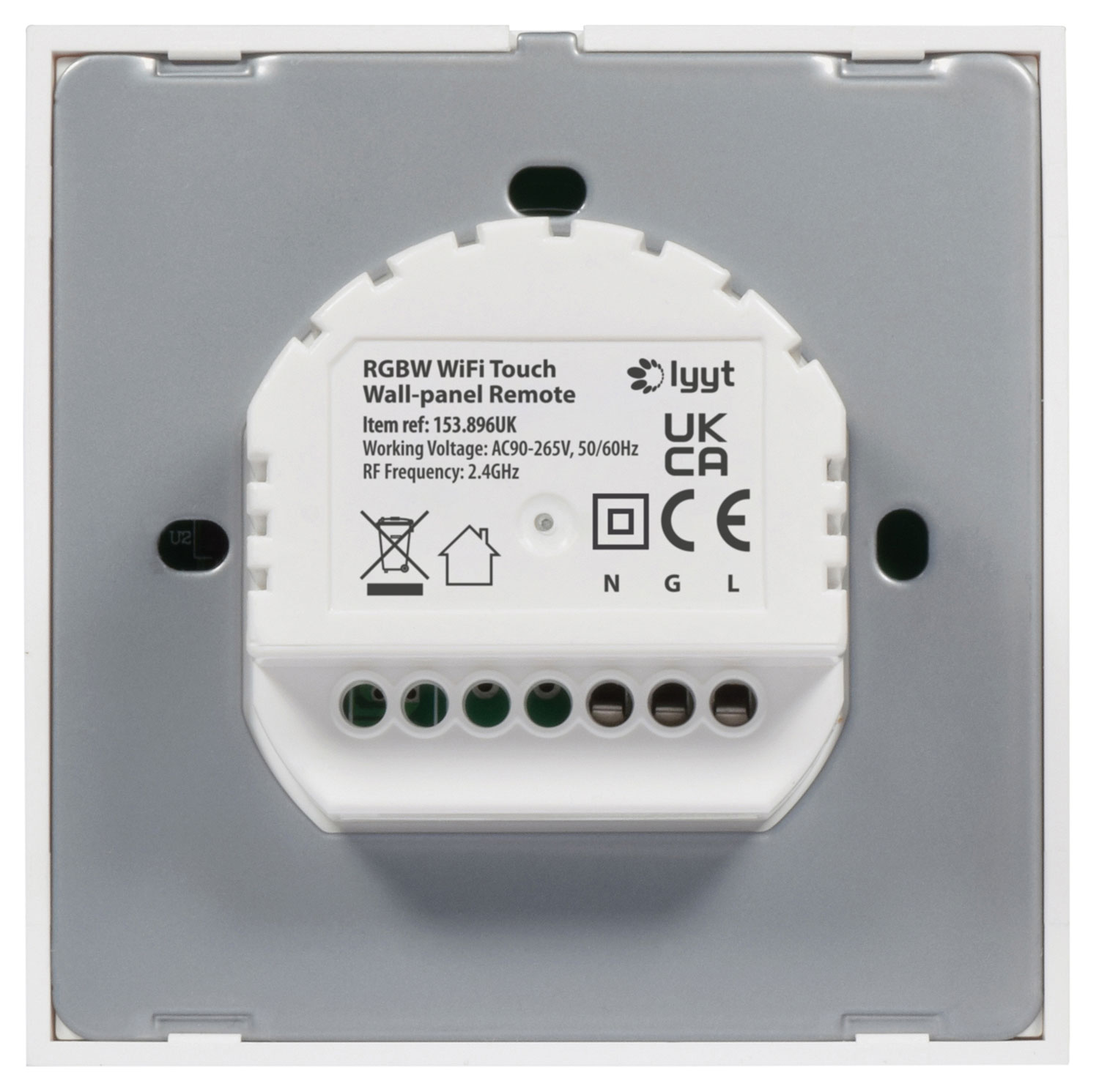

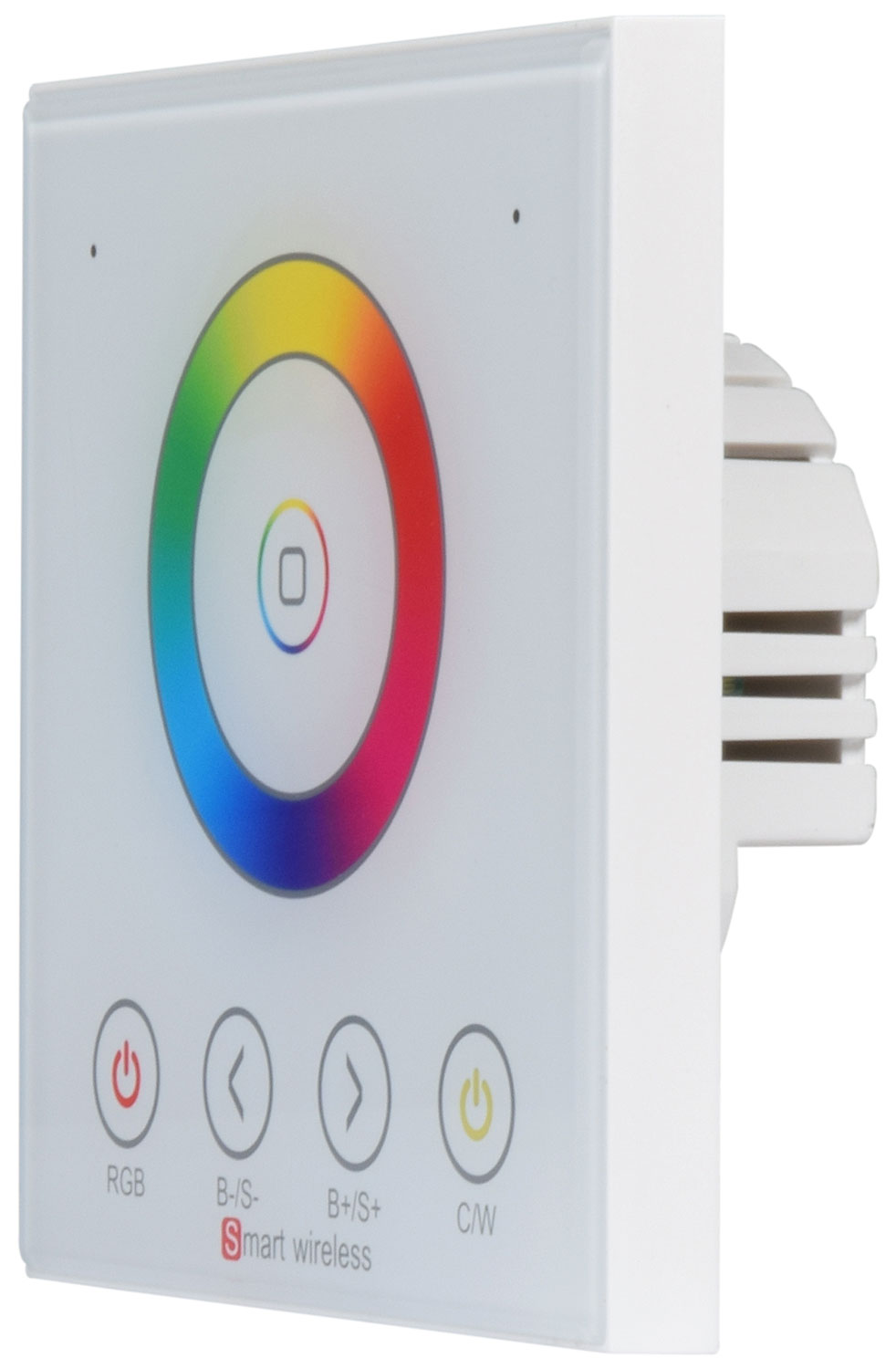

  • RGBW Touch Wall Plate

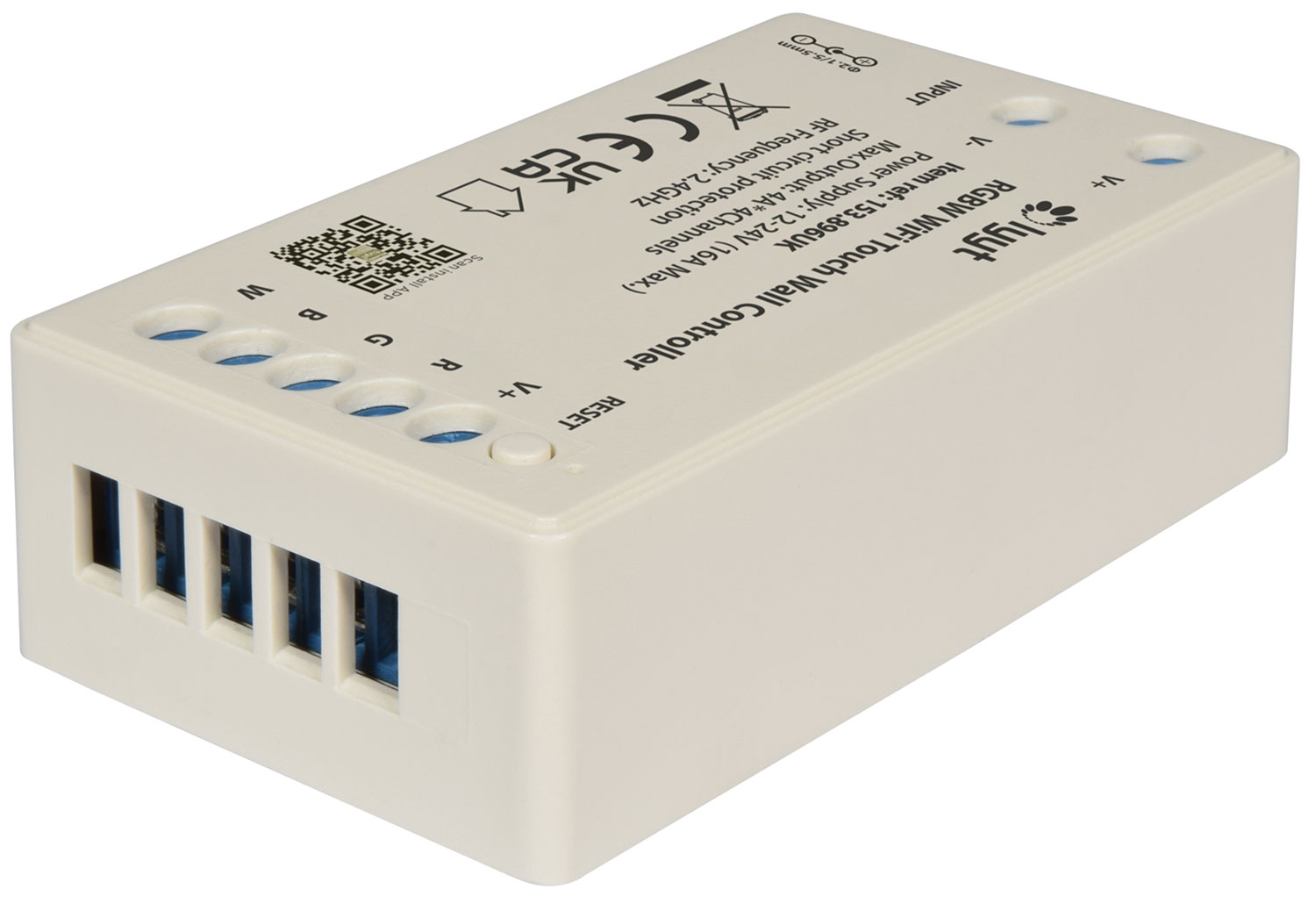

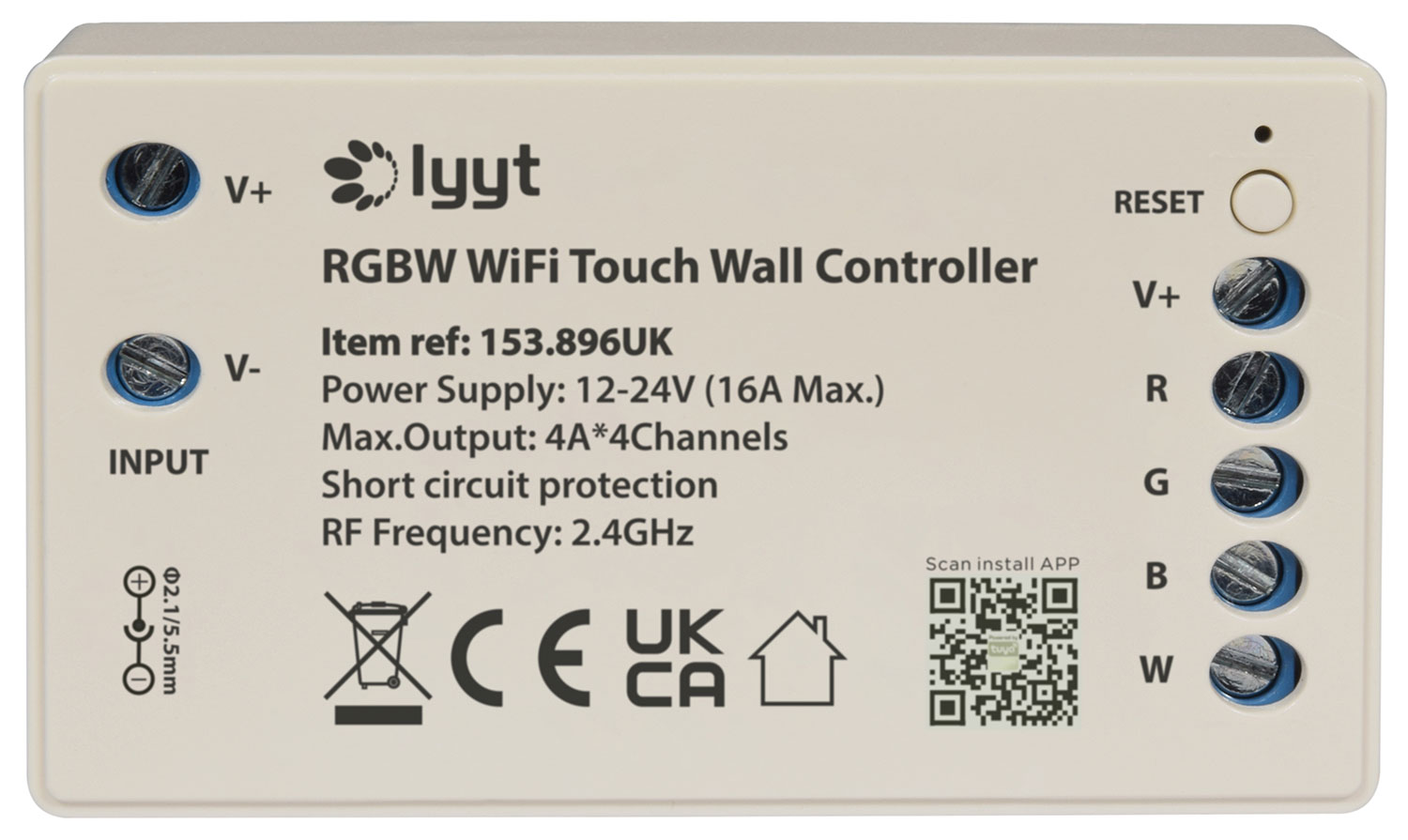

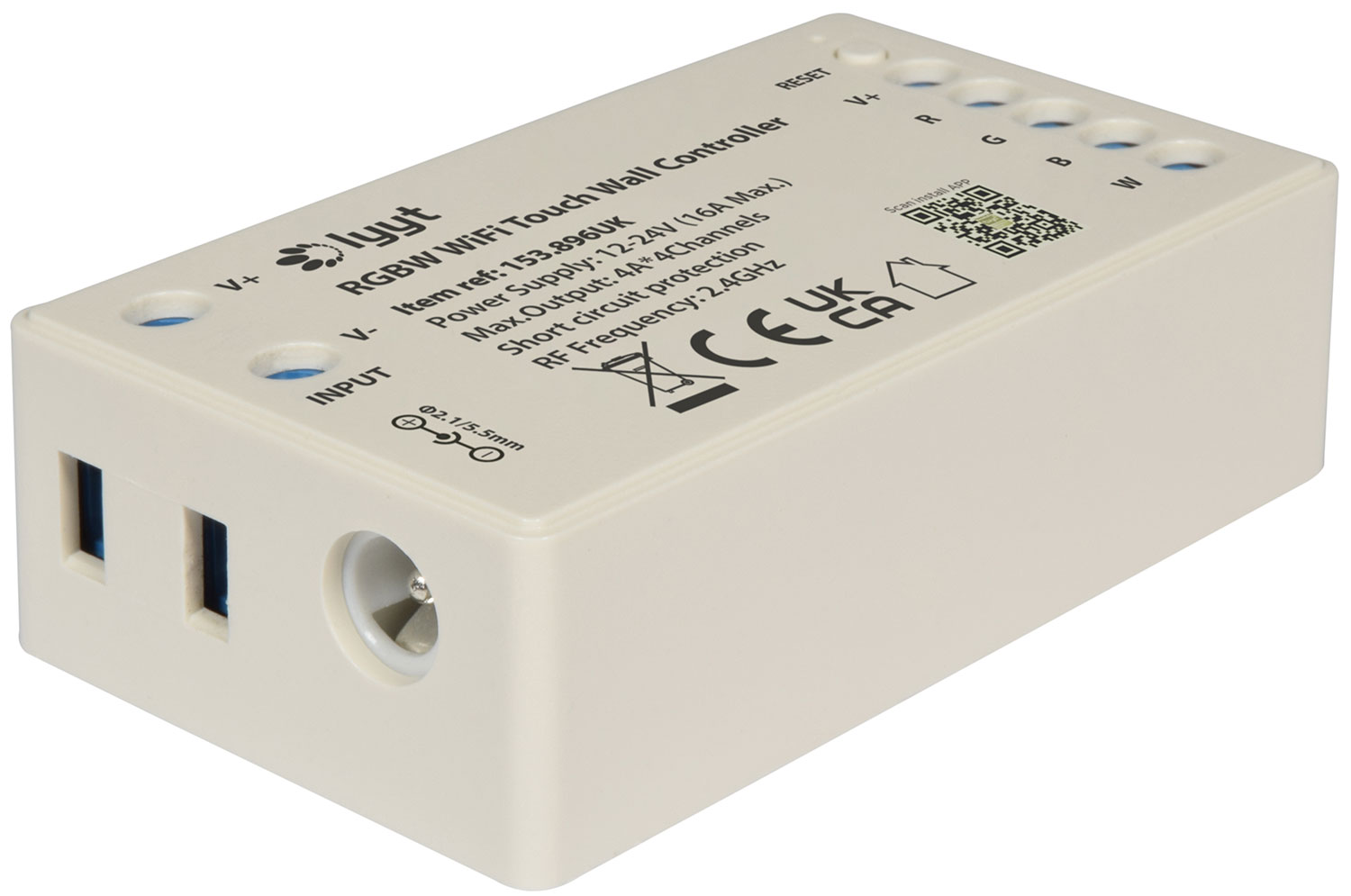

  • WiFi LED Controller
