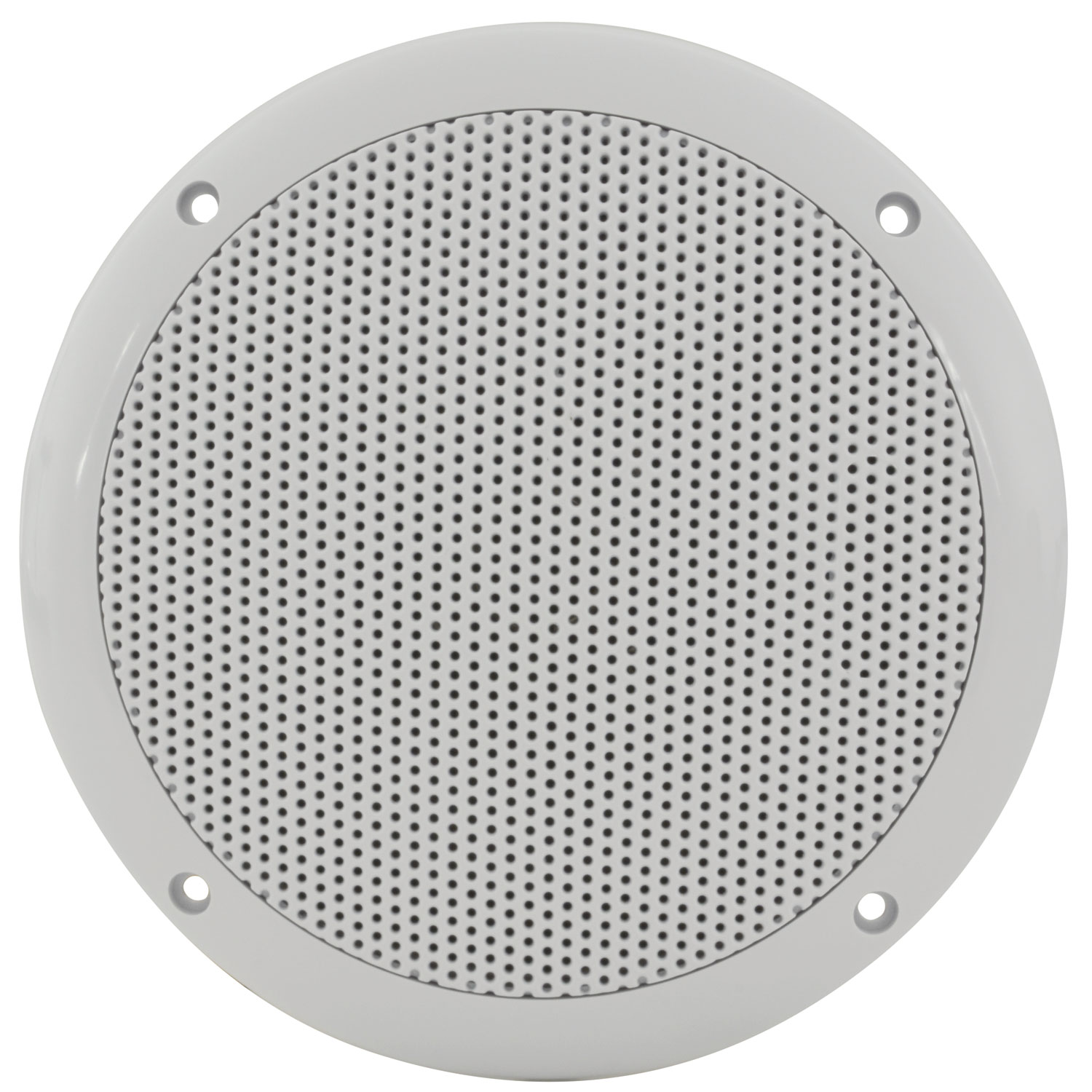

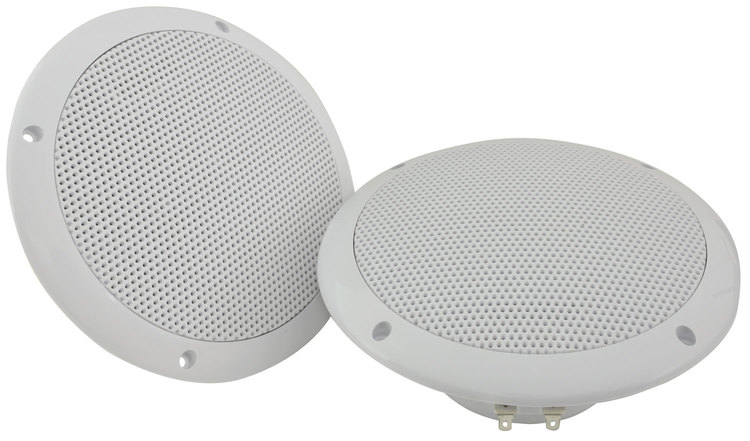

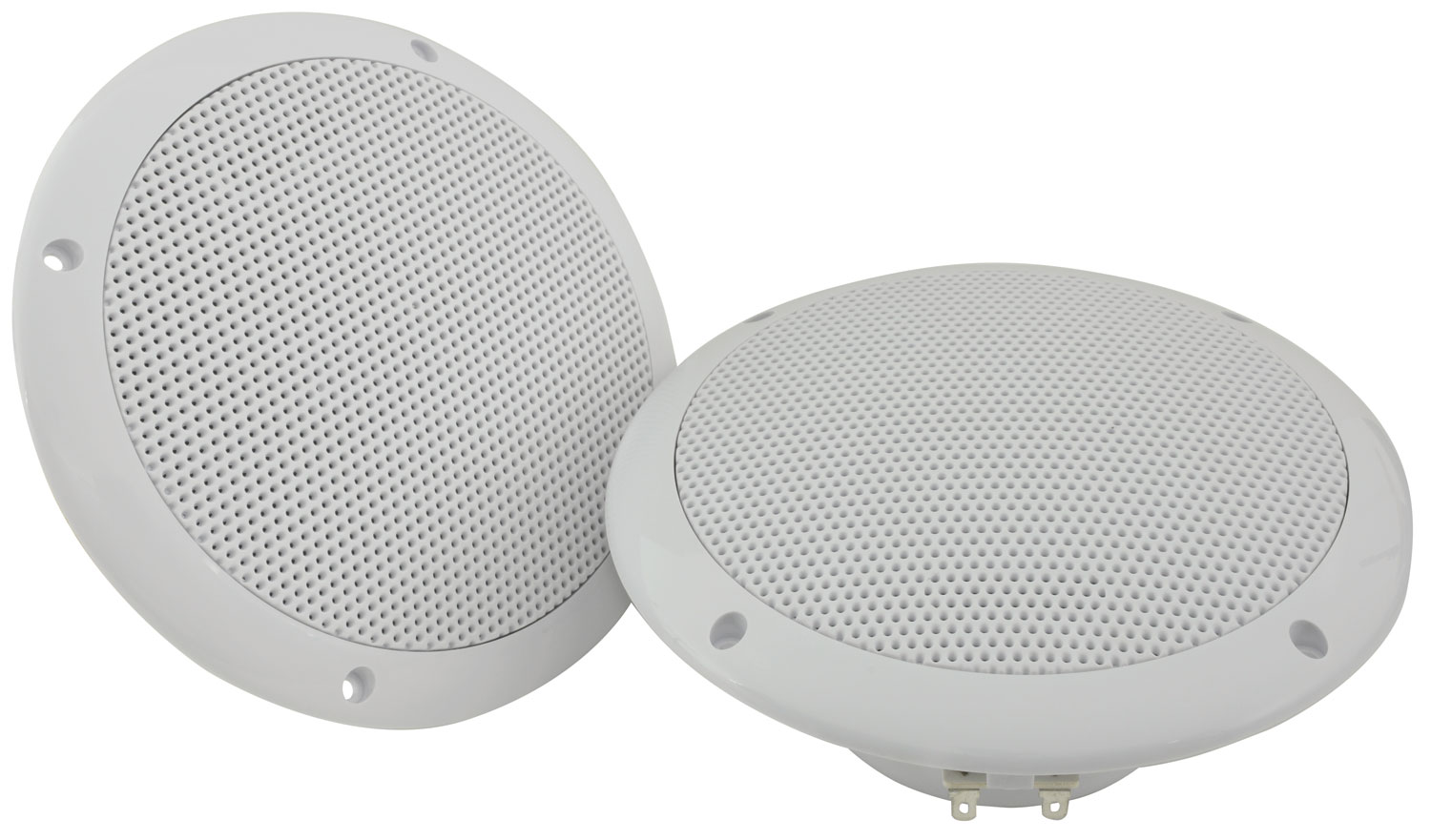

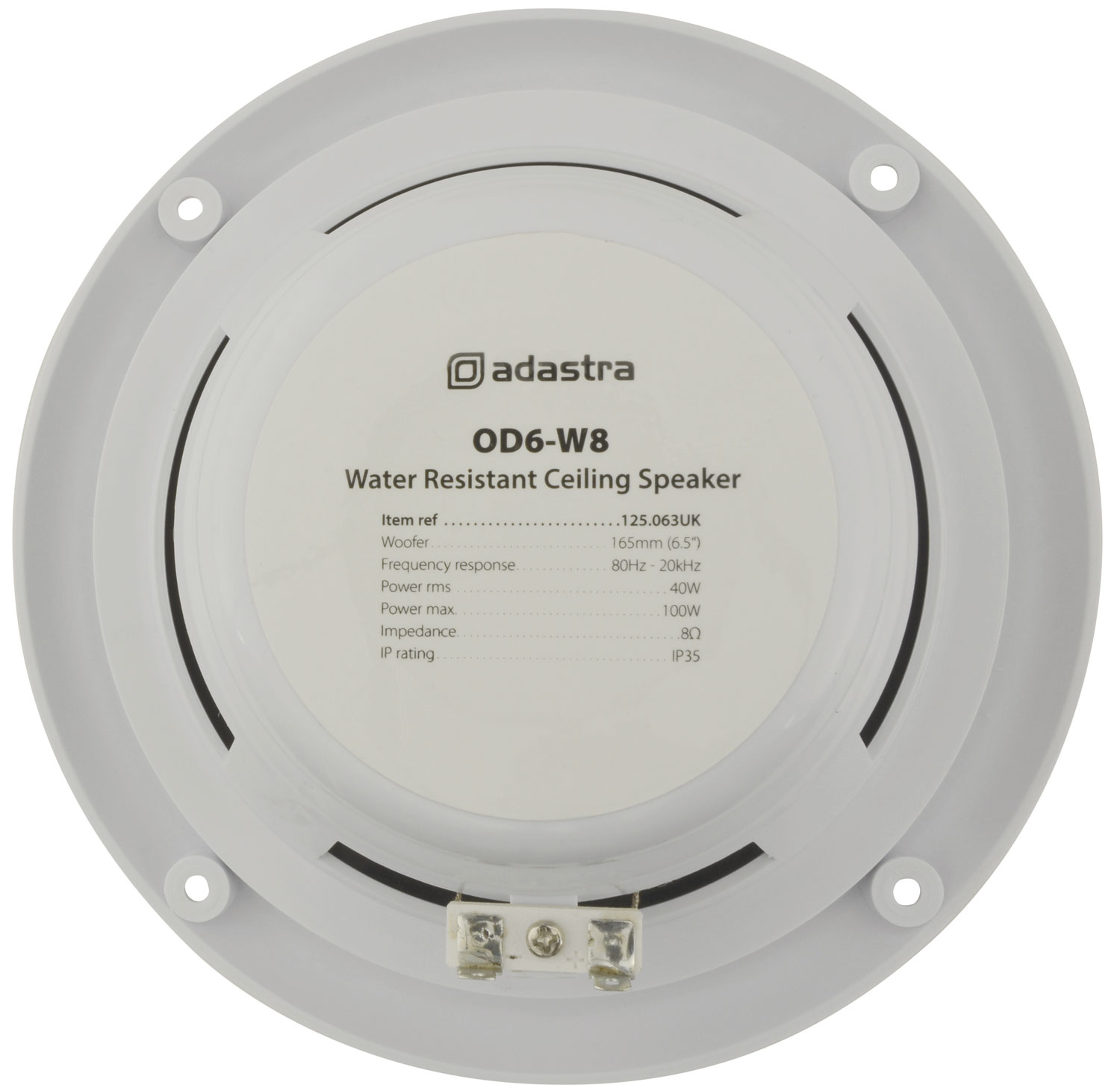

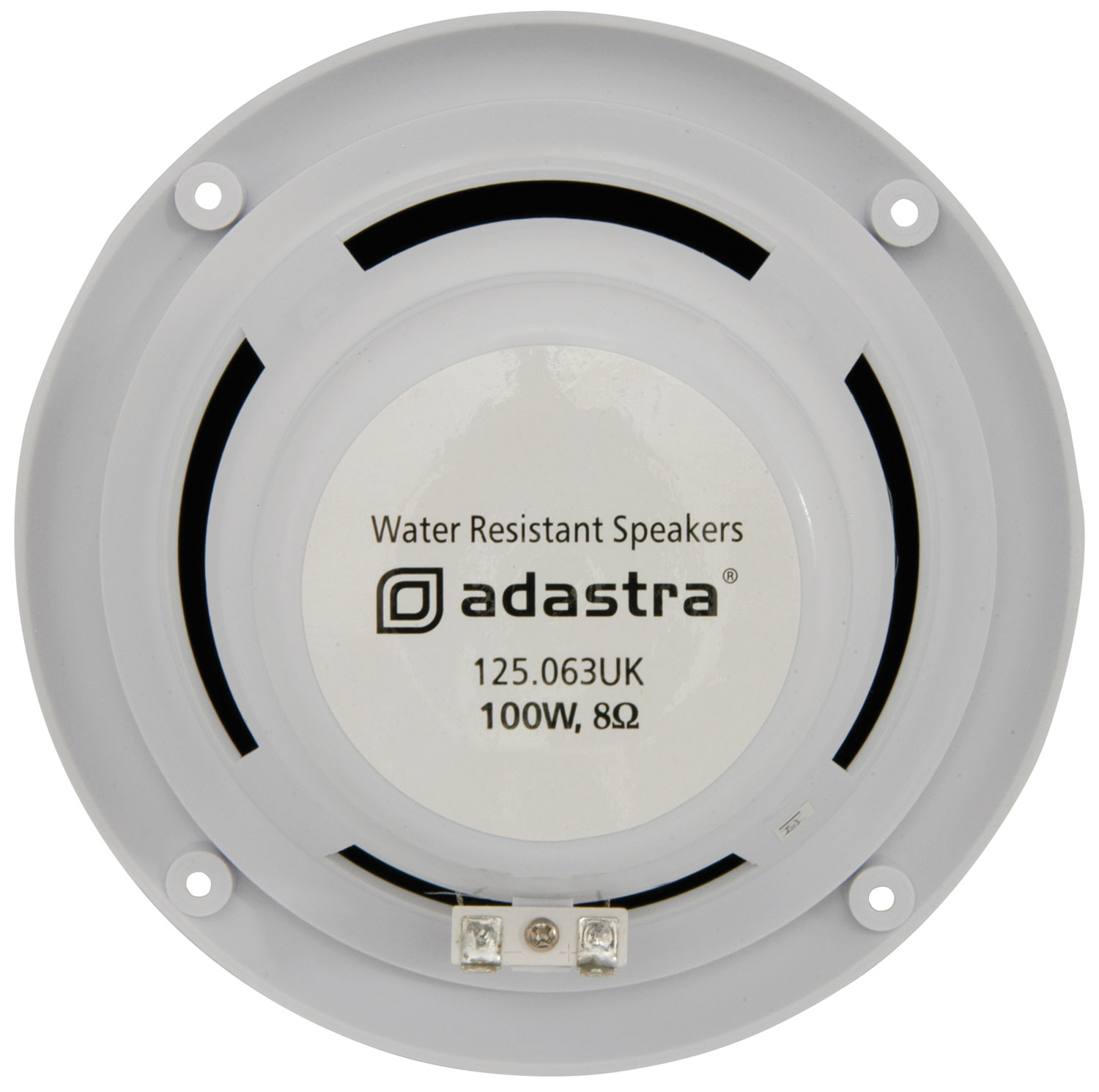

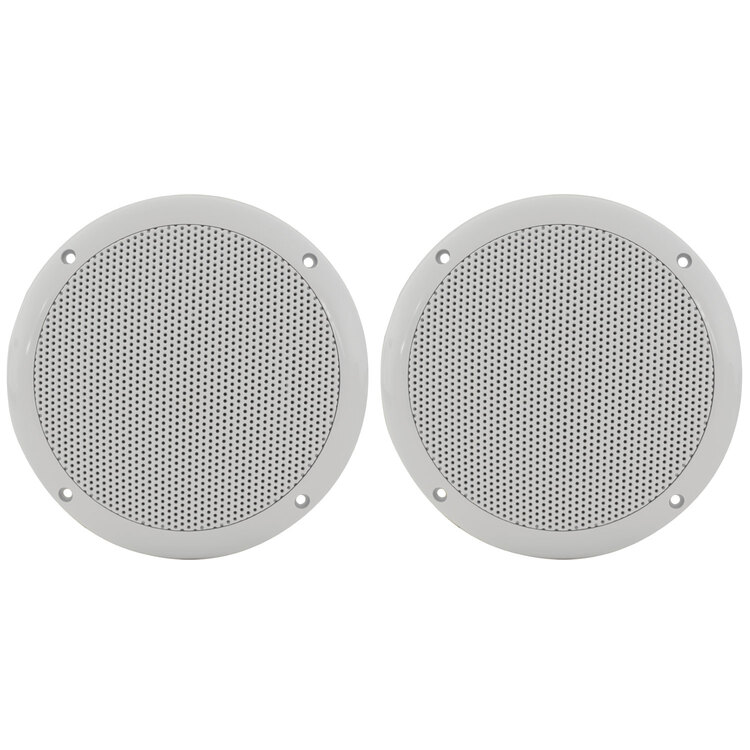

OD Series Water Resistant Speakers
6.5" White 8 Ohm
125.063UK
OD6-W8
A range of water resistant speakers for panel mounting, suitable for PA installations in swimming pools, bathrooms etc. more
- 2-way speakers
- 5cm (2") tweeter with mylar cone
- IP35 rated
| DESCRIPTION | VERSION | PACKED | |
|---|---|---|---|
|
125.032UK
OD5-W8 Water resistant speaker, 13cm (5"), 80W max, 8 ohms, White |
5" White 8 Ohm | Box Label |
|
125.063UK
0D6-W8 Water resistant speaker, 16.5cm (6.5"), 100W max, 8 ohms, White |
6.5" White 8 Ohm | Box Label |
|
125.050UK
OD6-B8 Water resistant speaker, 16.5cm (6.5"), 100W max, 8 ohms, Black |
6.5" Black 8 Ohm | Box Label |
OD Series Water Resistant Speakers
A range of water resistant speakers for panel mounting, suitable for PA installations in swimming pools, bathrooms etc.
- 2-way speakers
- 5cm (2") tweeter with mylar cone
- IP35 rated
- Plastic enclosure
- Spade terminal connections (6mm)
- Woofer with polypropylene cone
- Built-in crossover
- Includes fixing kit
- Gasket included
- Supplied in pairs
- Weight 745g
- Dimensions 84.5 x 180mmØ
- SPL @ 1W/1m 87dB
- Mounting depth 65mm
- Cutout 132mmØ
- Magnet weight 221g (7.8 oz)
- Power rms 40W
- Power max. 100W
- Frequency response 80Hz - 20kHz
- Speaker size 165mm (6.5")
- Impedance 8 ohms
- Colour White
- Tweeter 50mm (2")
- Humidity max. 95%
- IP rating IP35
- Dispersion angle 140°
- Temperature range -20 - 85°C
