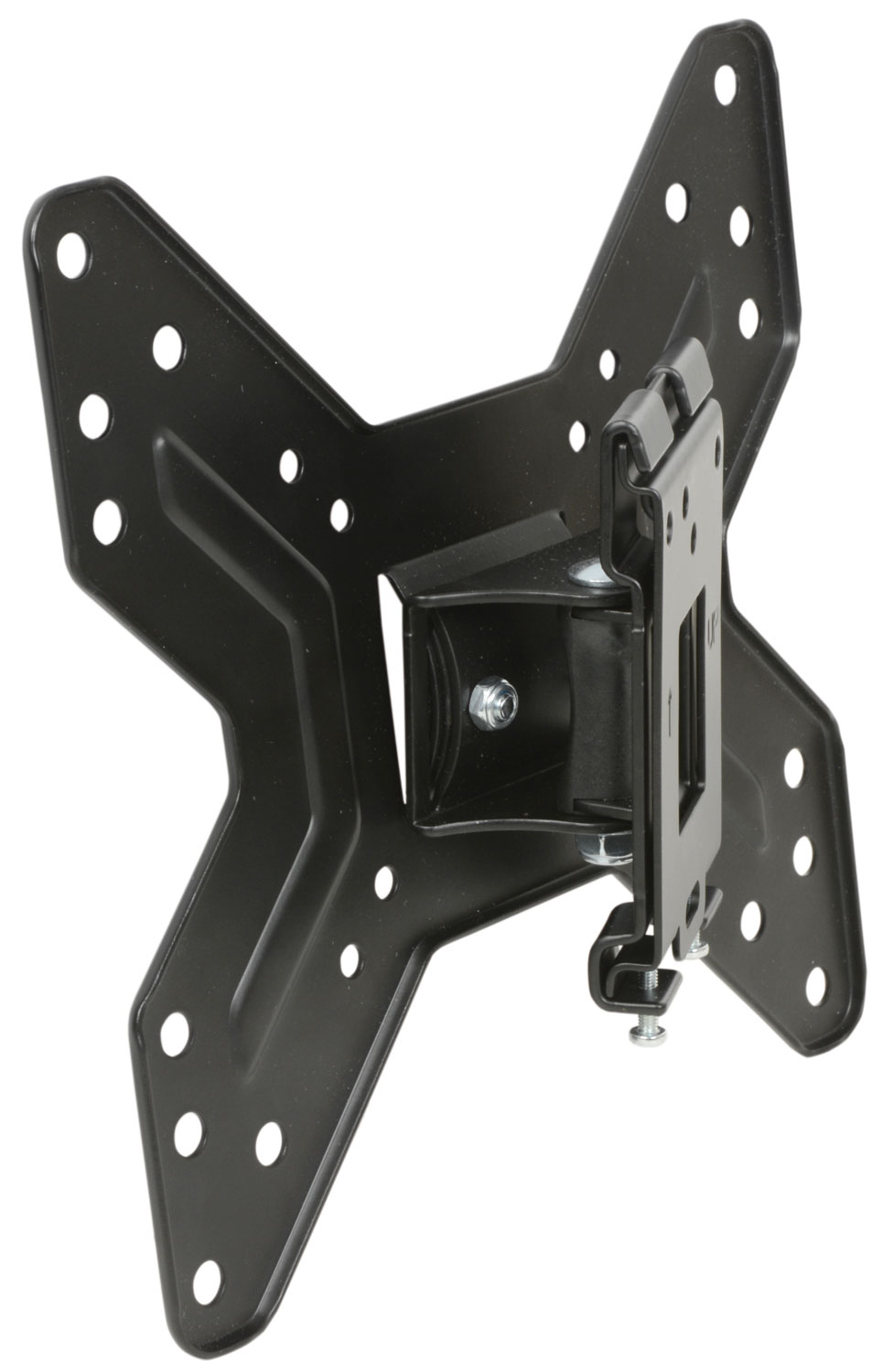

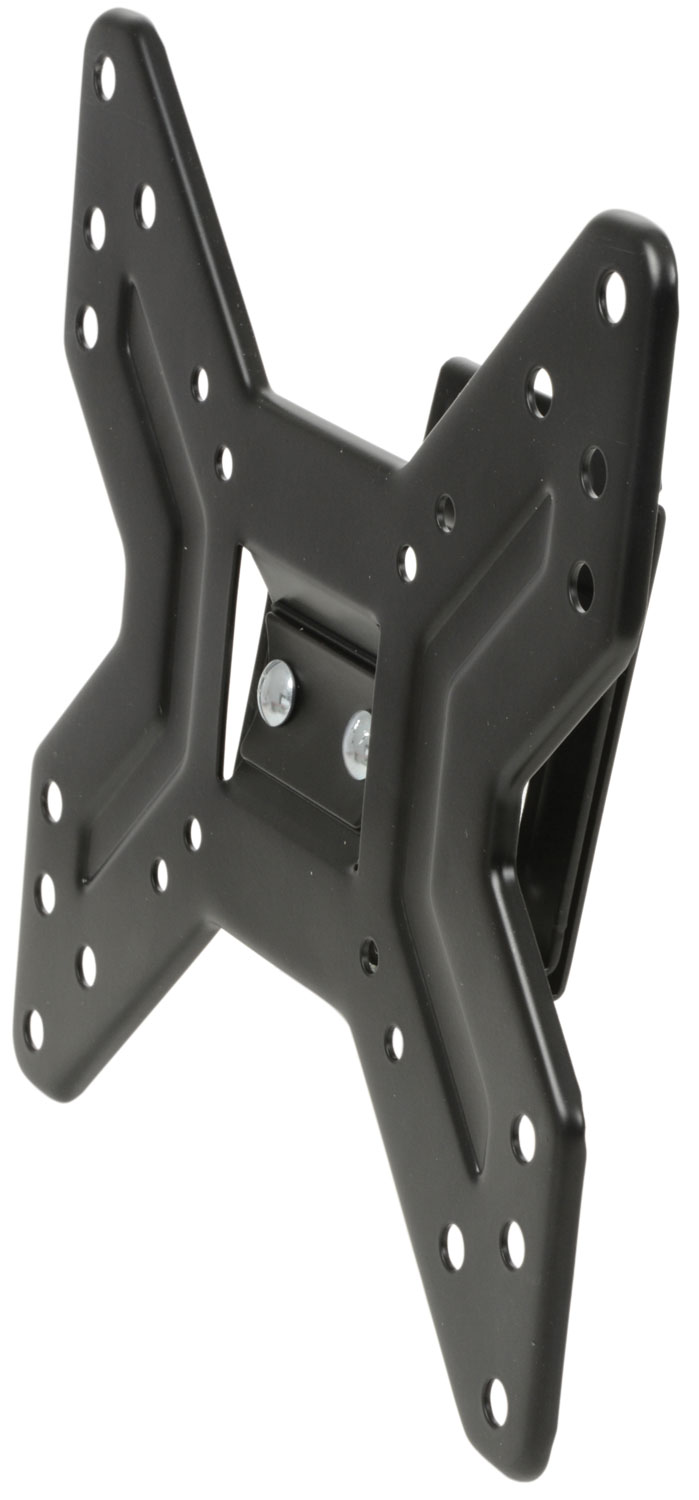

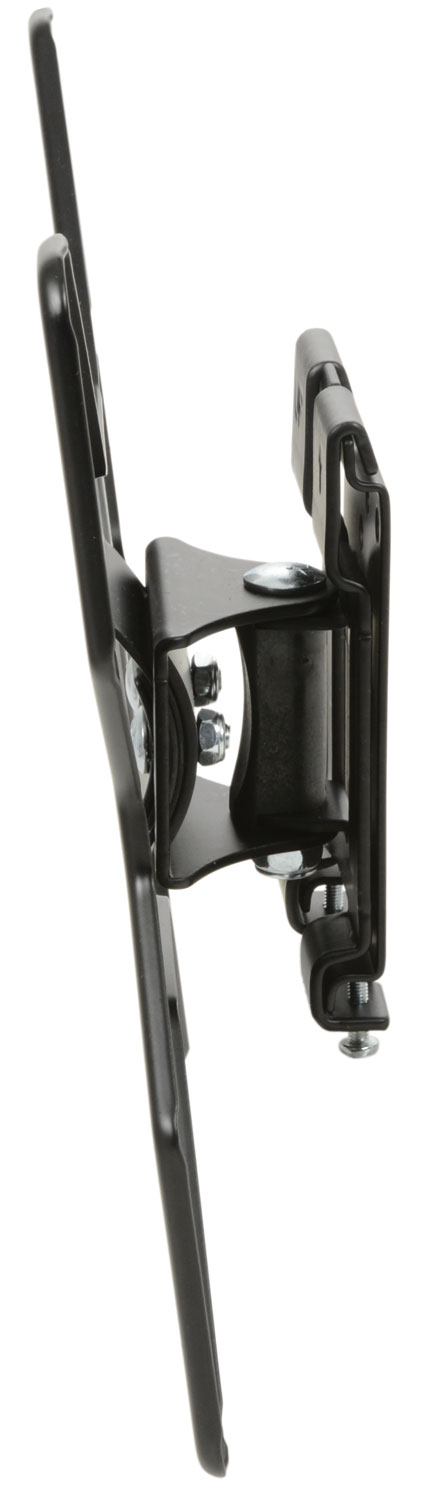

Tilt & Swivel Wall Mount TV/Monitor Bracket

An adjustable rolled steel wall bracket suitable for mounting VESA compatible screens from 10" up to 45"

• Suitable for mounting LCD or LED TV screen sizes 10" to 45"
• 25kg maximum loading capacity
• VESA 75, 100 & 200 hole patterns
• Swivels ±20° from wall connection point
• -5° to +10° tilting mechanism

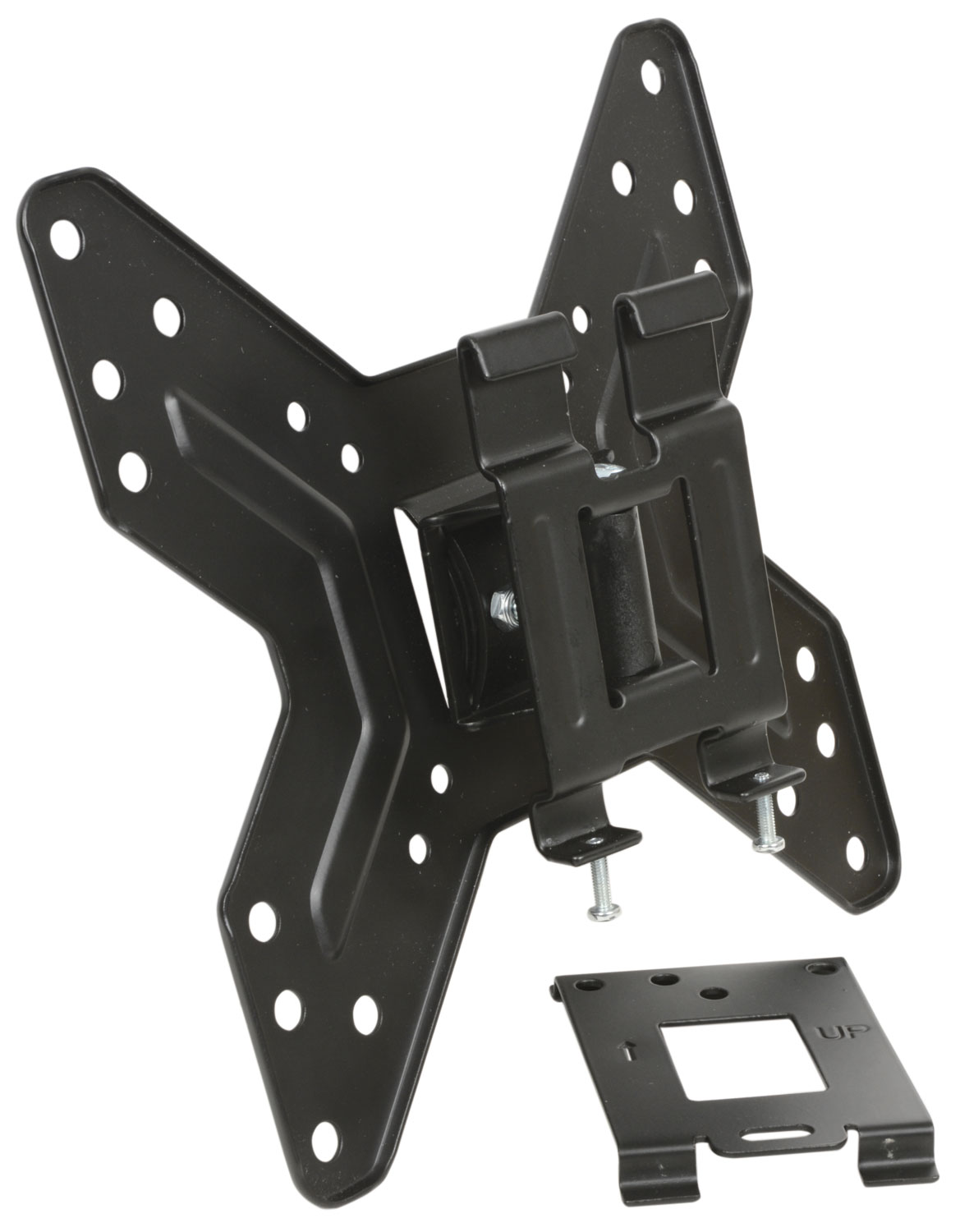

• Separate wall mounting plate for simple installation
• Installation hardware included

• Max. hole spacing 200 x 200mm
• Distance from wall 48mm
• Max. weight load 25kg
• VESA 75 x 75, 100 x 100 and 200 x 200mm
• Wall plate dimensions 70 x 120mm (W x H)
• Weight 750g
• TV fixing screws provided 4 x M4 12mm, 4 x M5 12mm, 4 x M6 12mm, 4 x M8 16mm
