Double Arm Full Motion TV/Monitor Wall Mount Bracket

129.512UK HQT201

A double arm, fully adjustable steel wall bracket suitable for mounting screens from 13" to 40". Its stylish yet sturdy design can both tilt and swivel to provide you with the ideal viewing angle. ...

  • Suitable for mounting screens sized 13" to 40"
  • VESA 75 and 100 hole patterns

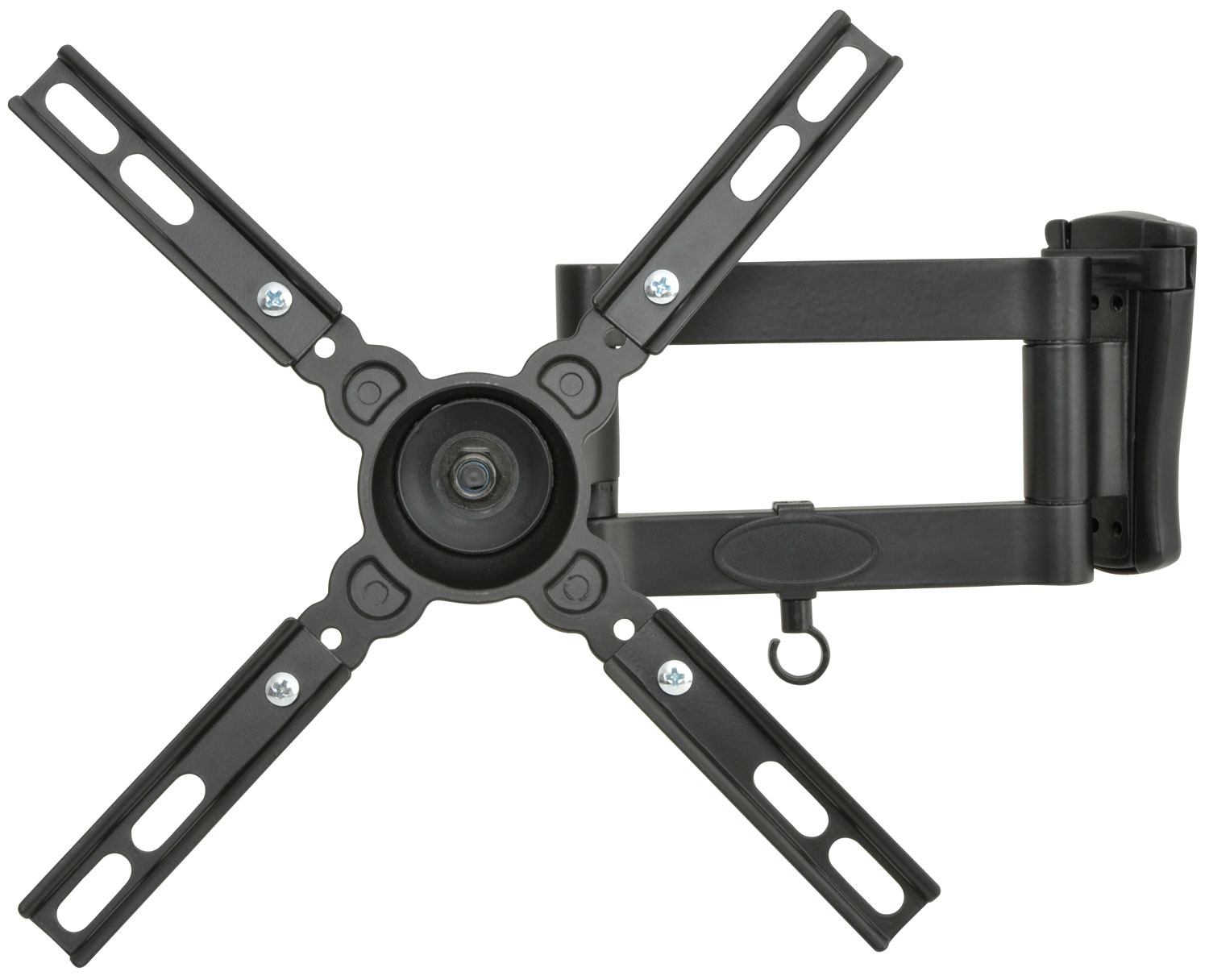

  • VESA 200 hole pattern adaptors included
Description Version Packed
129.512UK
Compact Full Motion Double Arm TV/Monitor Wall Bracket 13" to 40"
200x200 Max (13-40") Gift Box

Double Arm Full Motion TV/Monitor Wall Mount Bracket

A double arm, fully adjustable steel wall bracket suitable for mounting screens from 13" to 40". Its stylish yet sturdy design can both tilt and swivel to provide you with the ideal viewing angle. Supplied with integrated spirit level, cable retainer and fixing kit.

  • Suitable for mounting screens sized 13" to 40"
  • VESA 75 and 100 hole patterns
  • VESA 200 hole pattern adaptors included
  • Swivels 180° from wall connection point and 180° from arm joint
  • -5° to 15° tilt mechanism
  • Integrated spirit level and cable retainer
  • Built-in lock for safety and stability

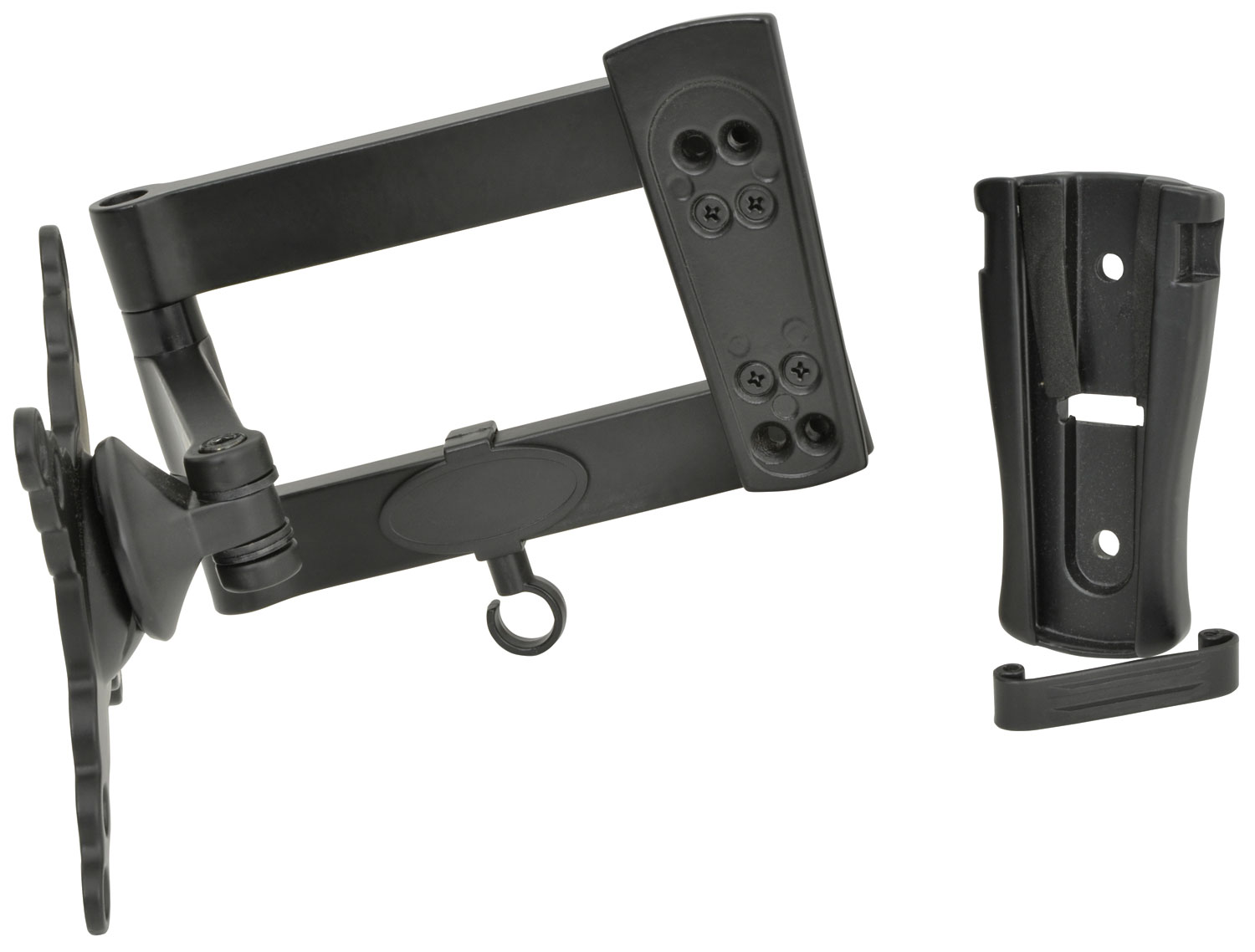

  • Bracket detaches from wall mount for easy installation.
  • Installation hardware included

Specification

  • Max. VESA 200x200mm (with adaptor)
  • Max. weight load 15kg
  • Screen size 13" to 40"

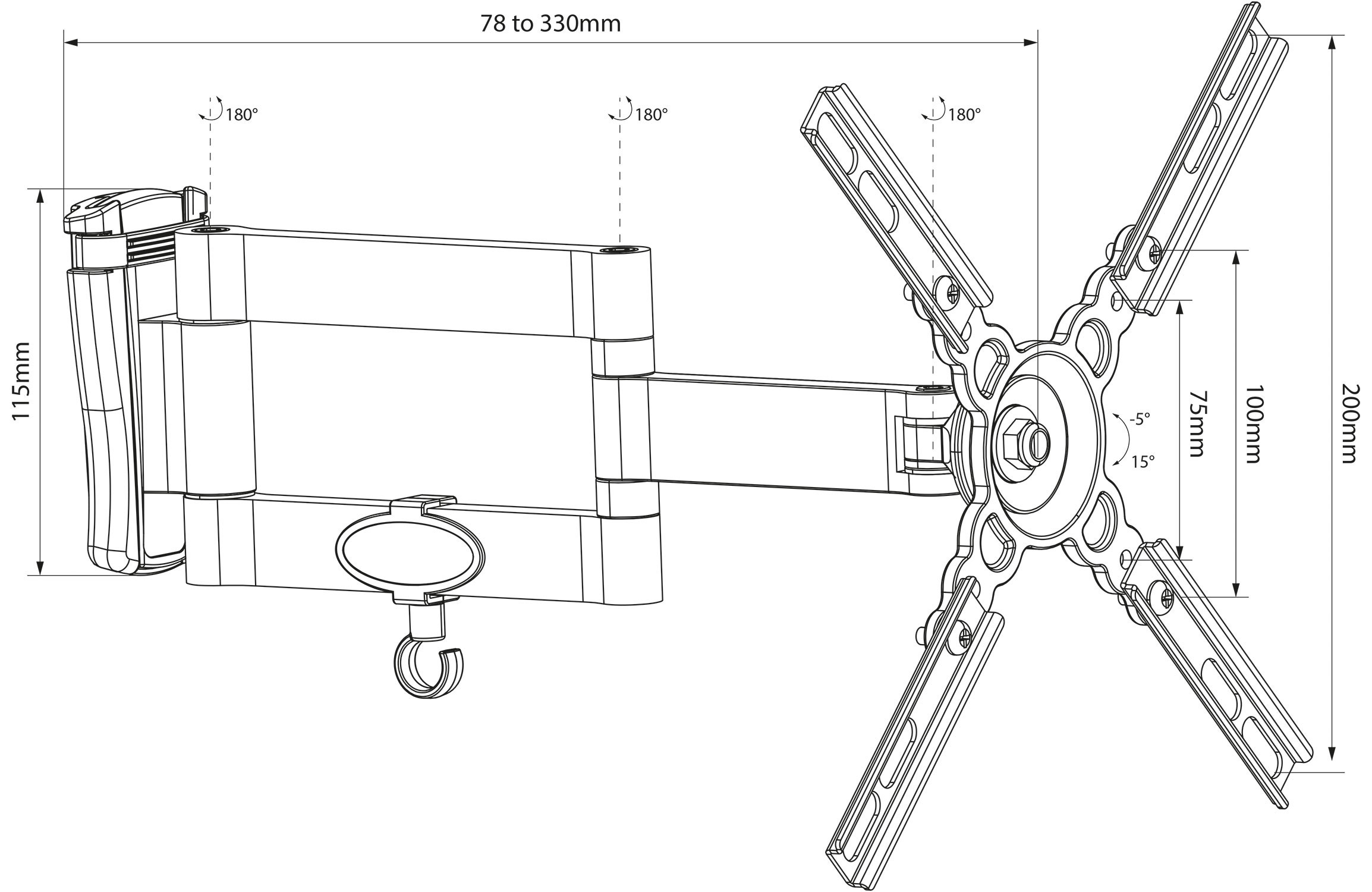

  • Distance from wall 78 - 330mm
  • Wall plate dimensions 57 x 115mm
  • Weight 1.02kg
  • TV fixing screws provided 4 x M4 12mm,4 x M4 25mm,8 x M5 12mm,4 x M5 25mm,4 x M6 16mm,4 x M8 16mm

Trade information

  129.512UK
Barcode / EAN 5015972170045
Tariff code 8302419000
Country of Origin CN
Package type Gift Box
Package dimensions 155 x 210 x 79mm
Package weight 1.02kg
Package quantity 1 unit
Carton dimensions 336 x 450 x 336mm
Carton weight 16.32kg
Carton quantity 16 packages

Videos

AV:LINK TV Brackets and Projector Brackets Overview

Support

Instruction manual
For 129.512UK (484KB)
