Compact Full Motion TV/Monitor Wall Mount Bracket

129.510UK HQS201

A compact, adjustable steel wall bracket suitable for mounting screens from 13" to 40". Its stylish yet sturdy design can both tilt and swivel to provide you with the ideal viewing angle. Supplied ...

  • Suitable for mounting screens sized 13" to 40"
  • VESA 75 and 100 hole patterns
  • VESA 200 hole pattern adaptors included
Full description Video Find retailer
Description Version Packed
129.510UK
Compact Full Motion TV/Monitor Wall Bracket Vesa 200x200 13" to 40" 		200x200 Max (13-40") Gift Box

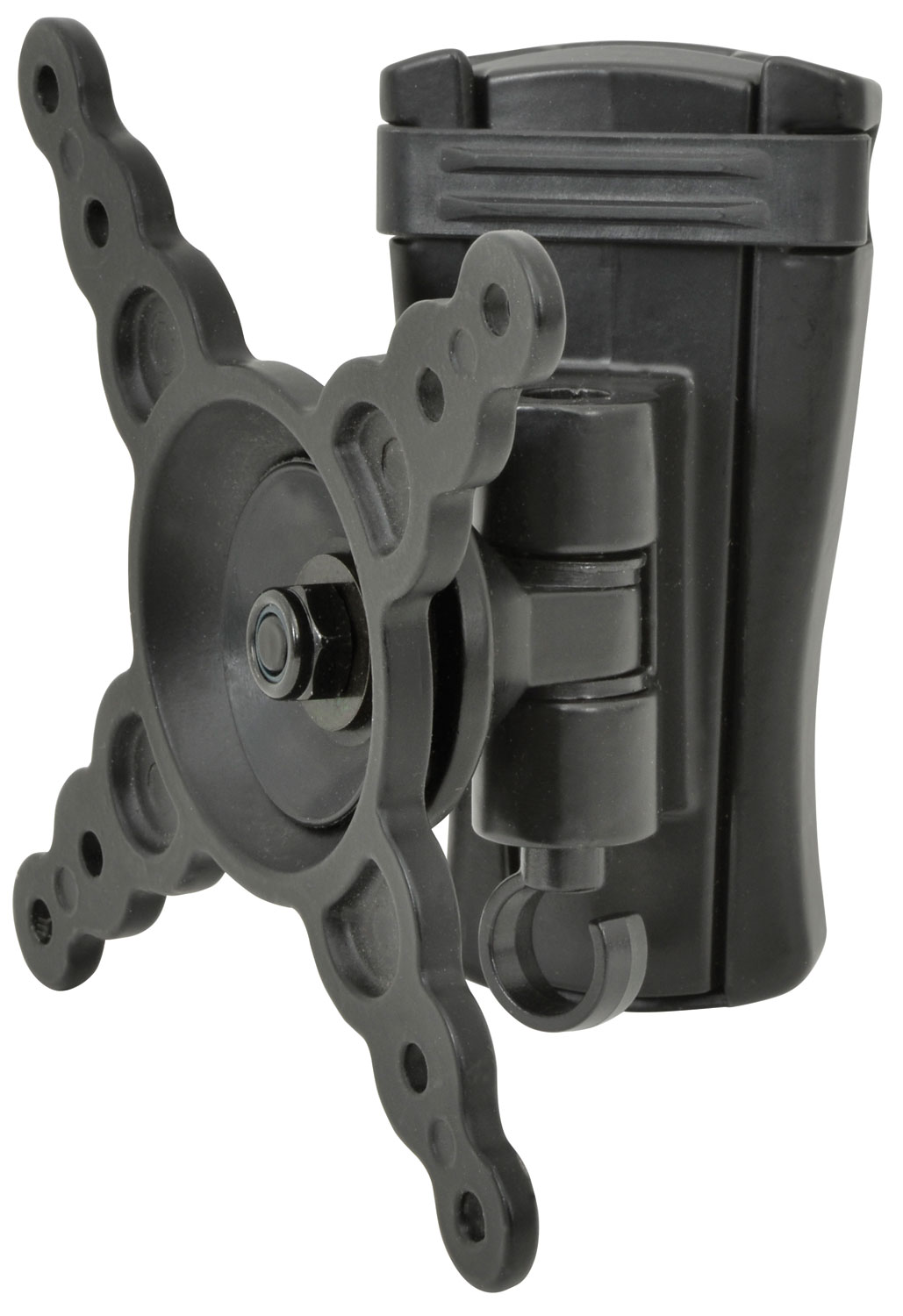

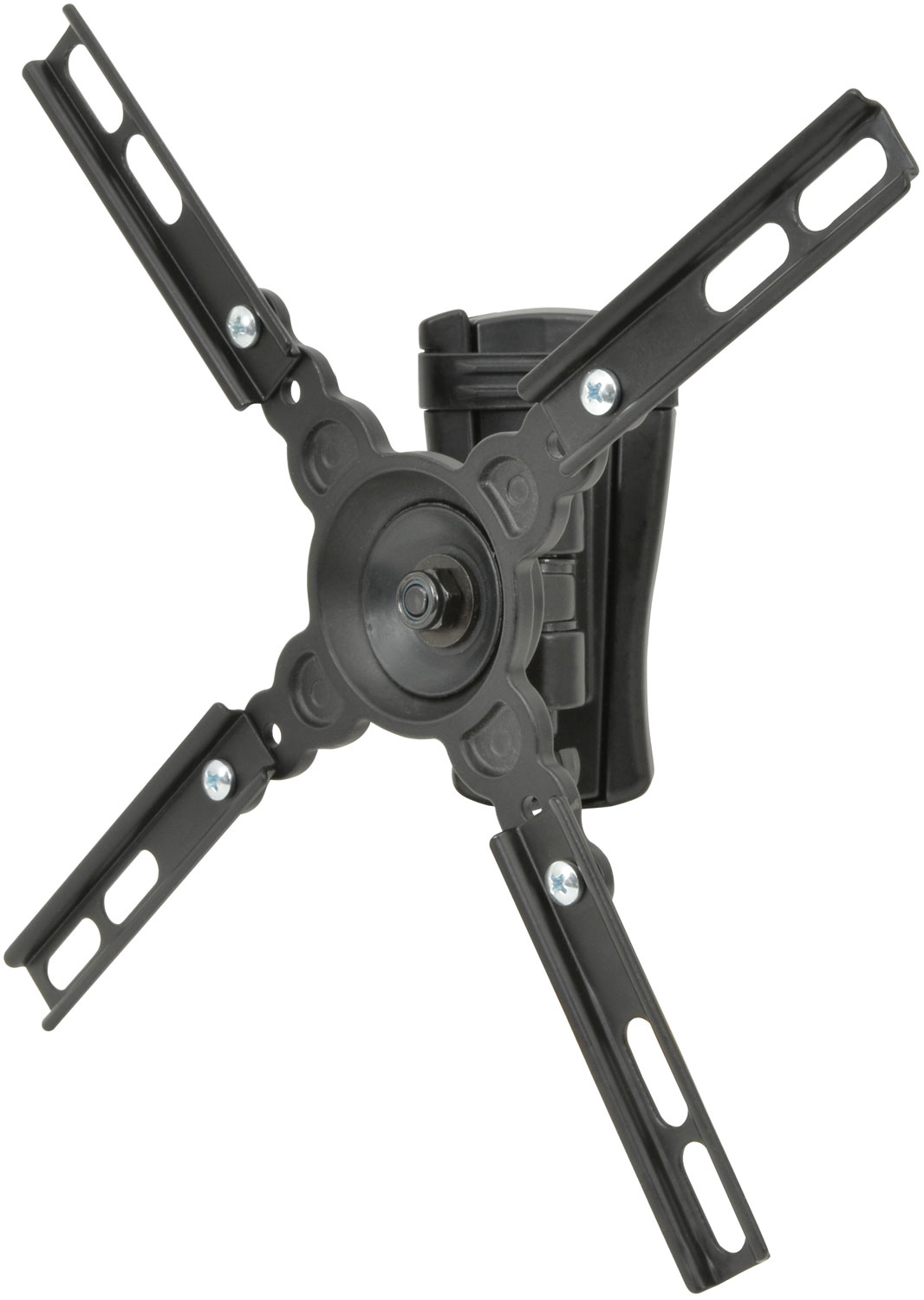

Compact Full Motion TV/Monitor Wall Mount Bracket

A compact, adjustable steel wall bracket suitable for mounting screens from 13" to 40". Its stylish yet sturdy design can both tilt and swivel to provide you with the ideal viewing angle. Supplied with integrated spirit level, cable retainer and fixing kit.

  • Suitable for mounting screens sized 13" to 40"
  • VESA 75 and 100 hole patterns
  • VESA 200 hole pattern adaptors included
  • Swivels 180° from wall connection point
  • -5° to 15° tilt mechanism
  • Integrated spirit level and cable retainer
  • Built-in lock for safety and stability

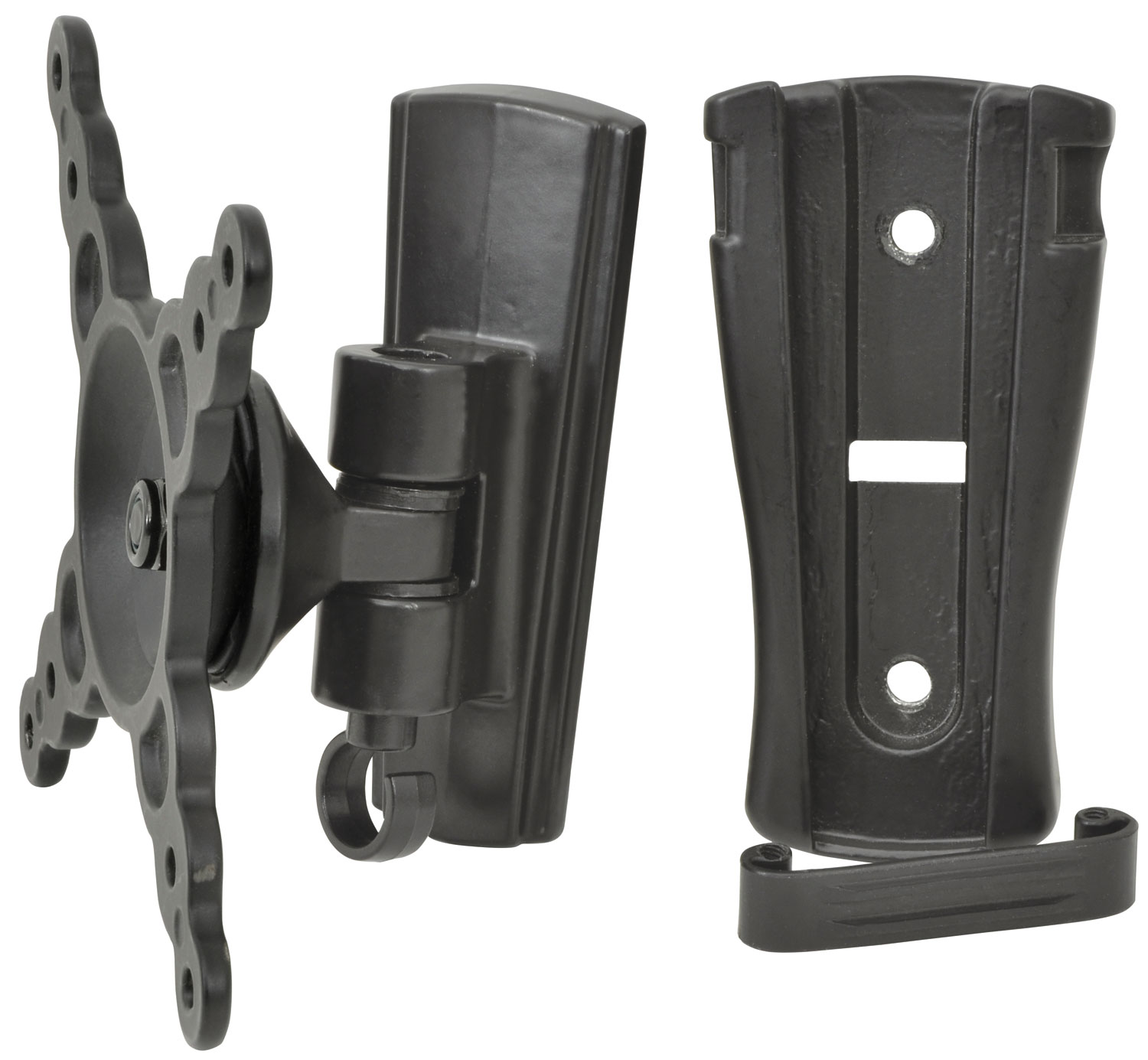

  • Bracket detaches from wall mount for easy installation.
  • Installation hardware included
  • Max. VESA 200x200mm (with supplied adaptor)
  • Max. weight load 15kg
  • Screen size 13" to 40"

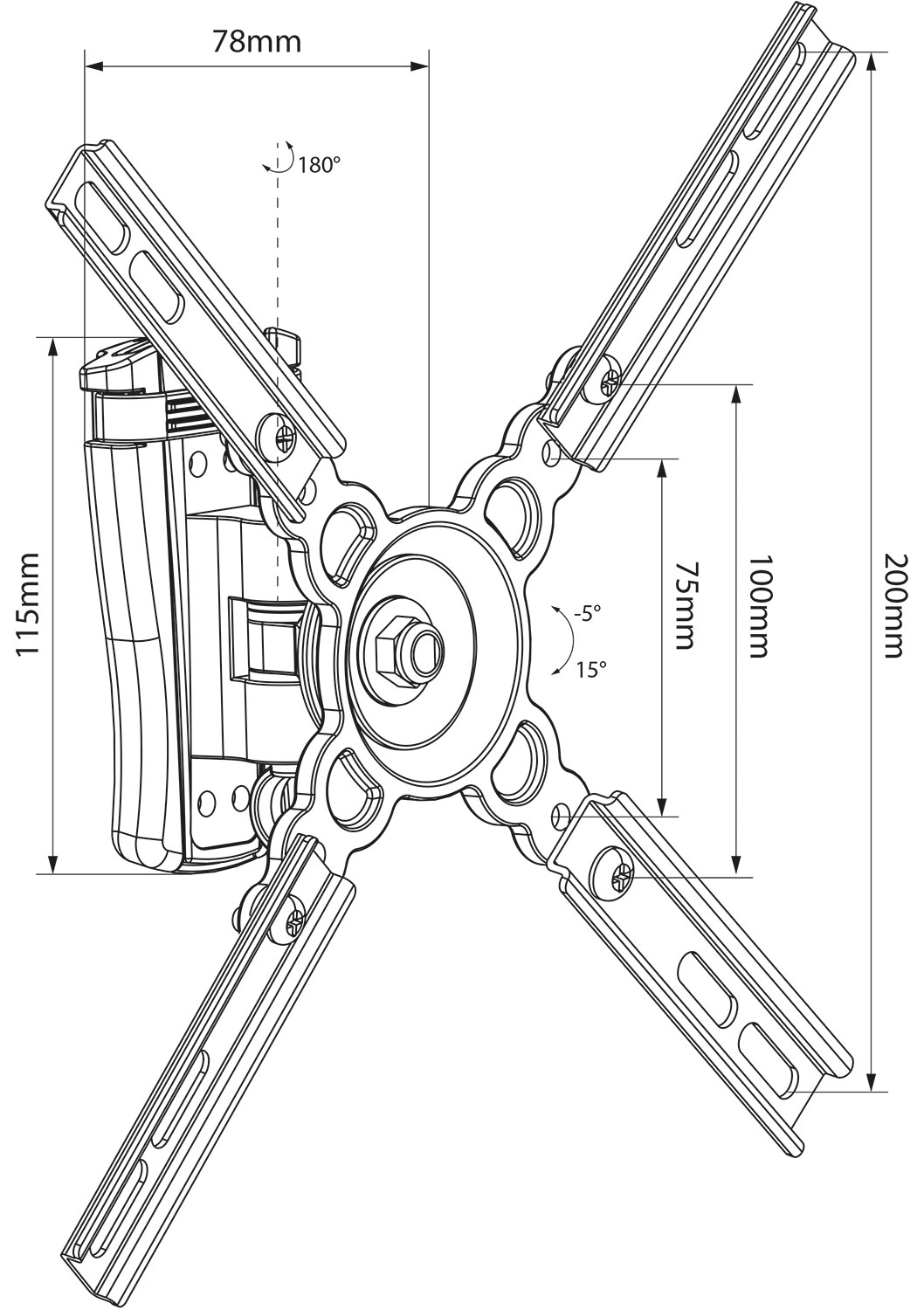

  • Distance from wall 78mm
  • Wall plate dimensions 57 x 115mm
  • Weight 640g
  • TV fixing screws provided 4 x M4 12mm,4 x M4 25mm,8 x M5 12mm,4 x M5 25mm,4 x M6 16mm,4 x M8 16mm

Videos

AV:LINK TV Brackets and Projector Brackets Overview

Downloads

Instruction manual
For 129.510UK (2.0MB)
