Full Motion Double Arm TV Wall Bracket for Curved & Flat Screens 32" to 75"
600x400 Max (32-65")
129.561UK
CC601
This full motion TV wall bracket has a special angle adjustable mount which will accommodate both flat and curved screens. Its suitable for screen sizes from 32" to 75" or with VESA mounting patterns… more
- Suitable for 32" to 75" flat or curved TV's up to 45kg in weight
- Compatible with VESA mounting patterns up to 600x400mm
- -2° to 12° tilt mechanism
| DESCRIPTION | VERSION | PACKED | |
|---|---|---|---|
|
129.561UK
Full Motion Curved & Flat TV Wall Bracket 32" to 65" |
600x400 Max (32-65") | Gift Box |
Full Motion Double Arm TV Wall Bracket for Curved & Flat Screens 32" to 75"

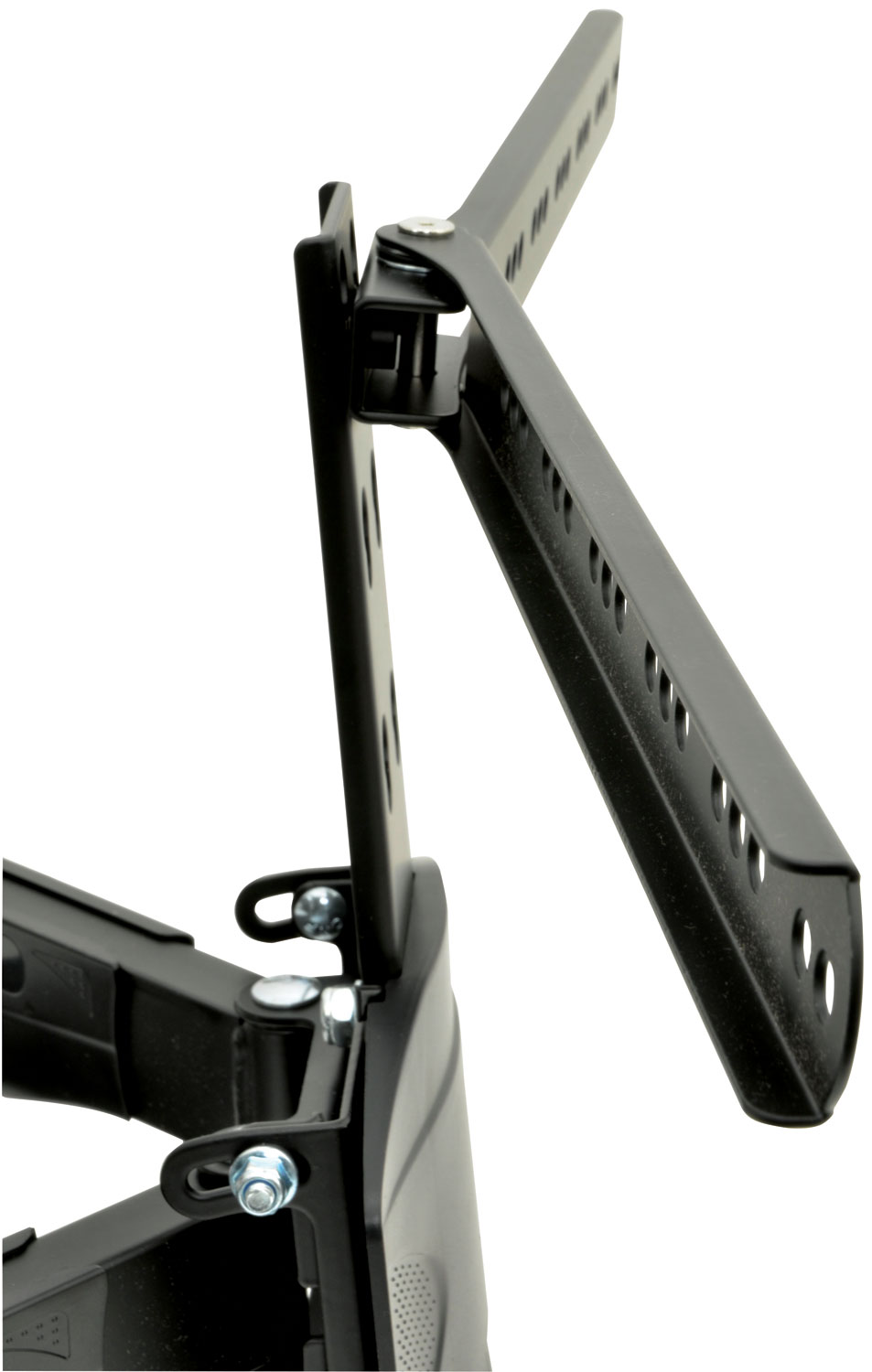

This full motion TV wall bracket has a special angle adjustable mount which will accommodate both flat and curved screens. Its suitable for screen sizes from 32" to 75" or with VESA mounting patterns up to a maximum of 600x400mm.
- Suitable for 32" to 75" flat or curved TV's up to 45kg in weight
- Compatible with VESA mounting patterns up to 600x400mm
- -2° to 12° tilt mechanism
- 90° pan from wall plate
- 45° swivel from arm joint
- Sturdy dual arm support
- Integrated cable management system
- Installation hardware included
- Max. VESA 600 x 400
- Max. weight load 45kg
- Screen size 32" - 75"
- Distance from wall 74 - 514mm
- Tilt range -2° to 12°
- Wall plate dimensions 477 x 394mm
- Bracket dimensions 648 x 440mm
- Weight 7.35kg
- TV fixing screws provided 4 x M4 25mm, 4 x M5 25mm, 4 x M6 25mm, 4 x M8 25mm
