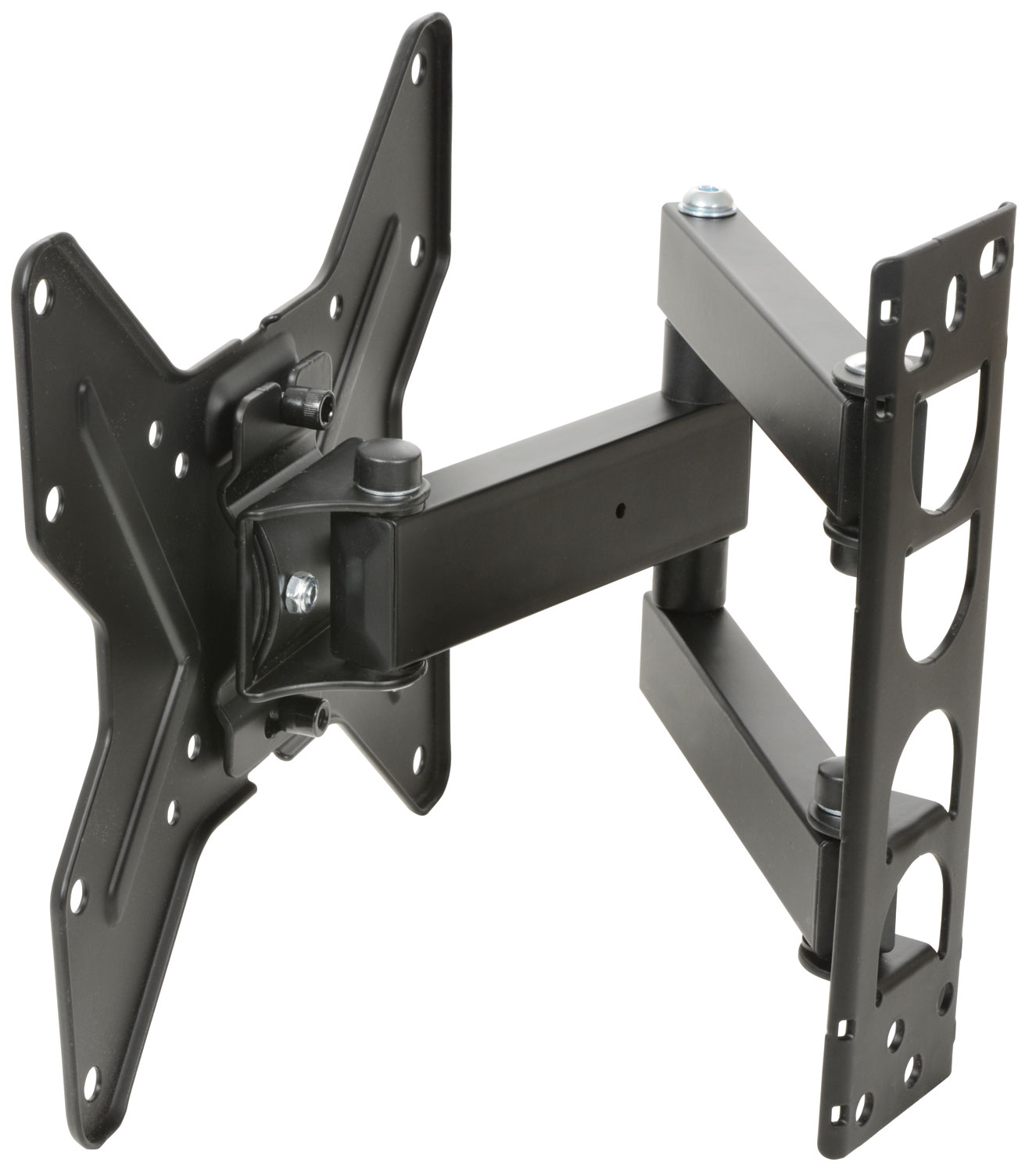

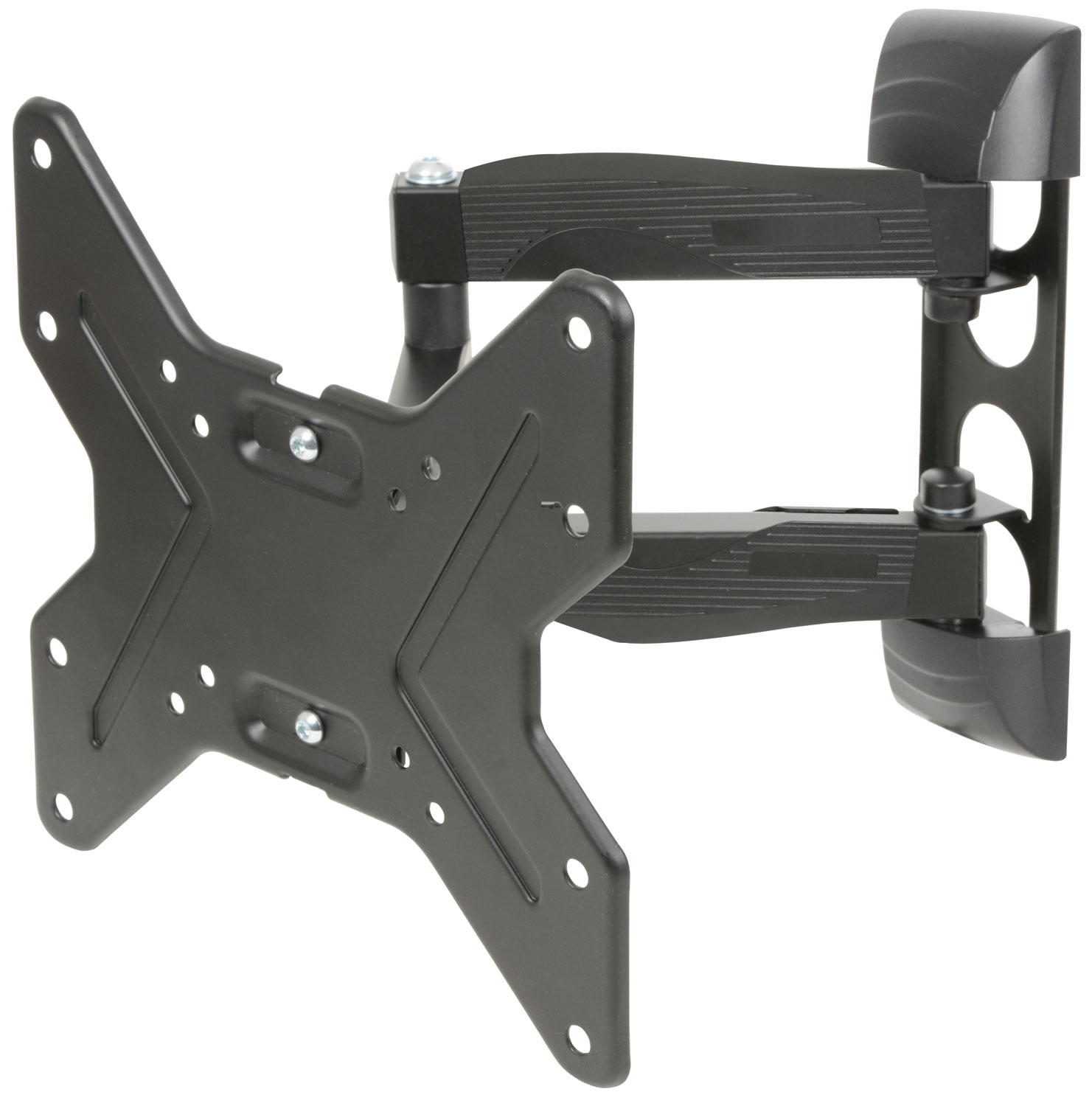

Full Motion Double Arm TV/Monitor Wall Mount Bracket

129.515UK IND201

An adjustable rolled steel double arm wall bracket suitable for mounting VESA compatible screens from 26" to 45" and up to 25kg in weight.

  • Suitable for mounting LCD or LED screens sized 26" to 45"
  • VESA 75, 100 and 200 hole patterns
  • Swivels 180° from wall connection point and 180° from arm
Description Version Packed
129.515UK
Full Motion Double Arm TV Wall Bracket
200x200 Max (26-45") Gift Box

Full Motion Double Arm TV/Monitor Wall Mount Bracket

An adjustable rolled steel double arm wall bracket suitable for mounting VESA compatible screens from 26" to 45" and up to 25kg in weight.

  • Suitable for mounting LCD or LED screens sized 26" to 45"
  • VESA 75, 100 and 200 hole patterns
  • Swivels 180° from wall connection point and 180° from arm
  • -5° to 10° tilt mechanism
  • Locking screws for safety
  • Installation hardware included
  • Max. hole spacing 200 x 200mm
  • Distance from wall 52 - 342mm
  • Max. weight load 25kg
  • VESA 75 x 75, 100 x 100 and 200 x 200
  • Wall plate dimensions 234 x 72mm
  • Weight 1.76kg
  • TV fixing screws provided 4x M4 20mm, 4x M5 x 20mm, 4x M6 x 20mm, 4x M8 x 20mm

Videos

AV:LINK TV Brackets and Projector Brackets Overview

Downloads

Instruction manual
For 129.515UK (5.3MB)
