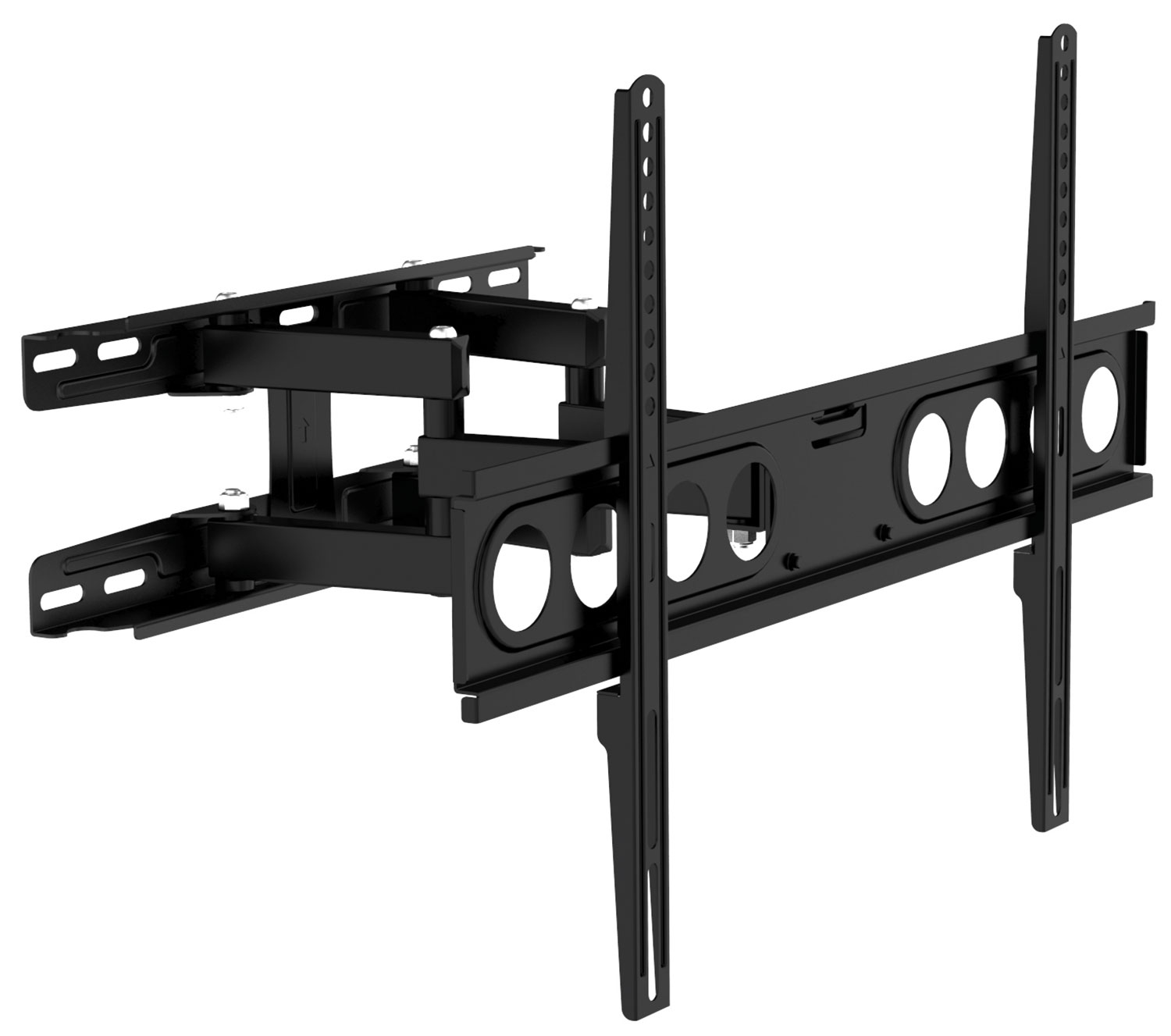

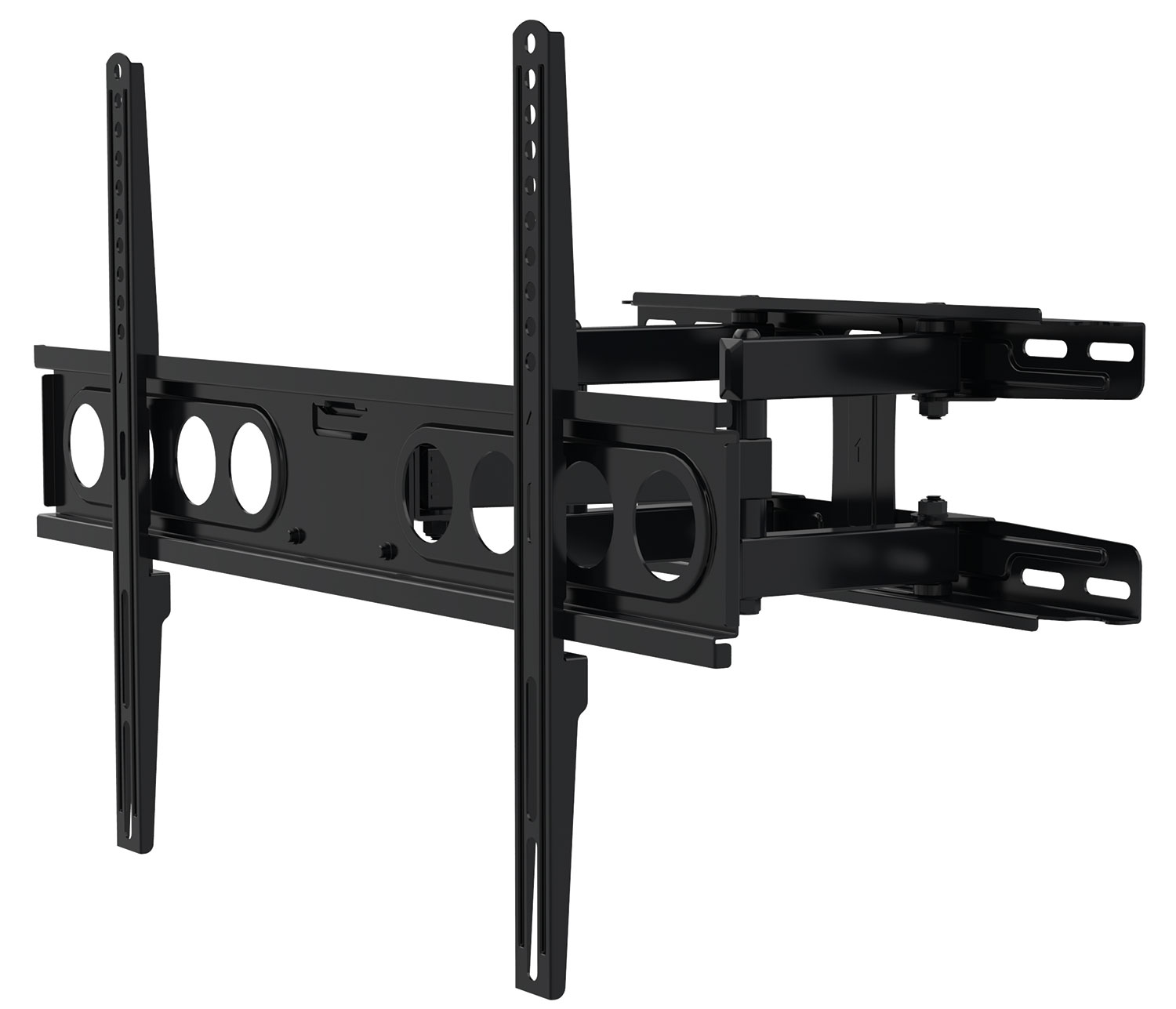

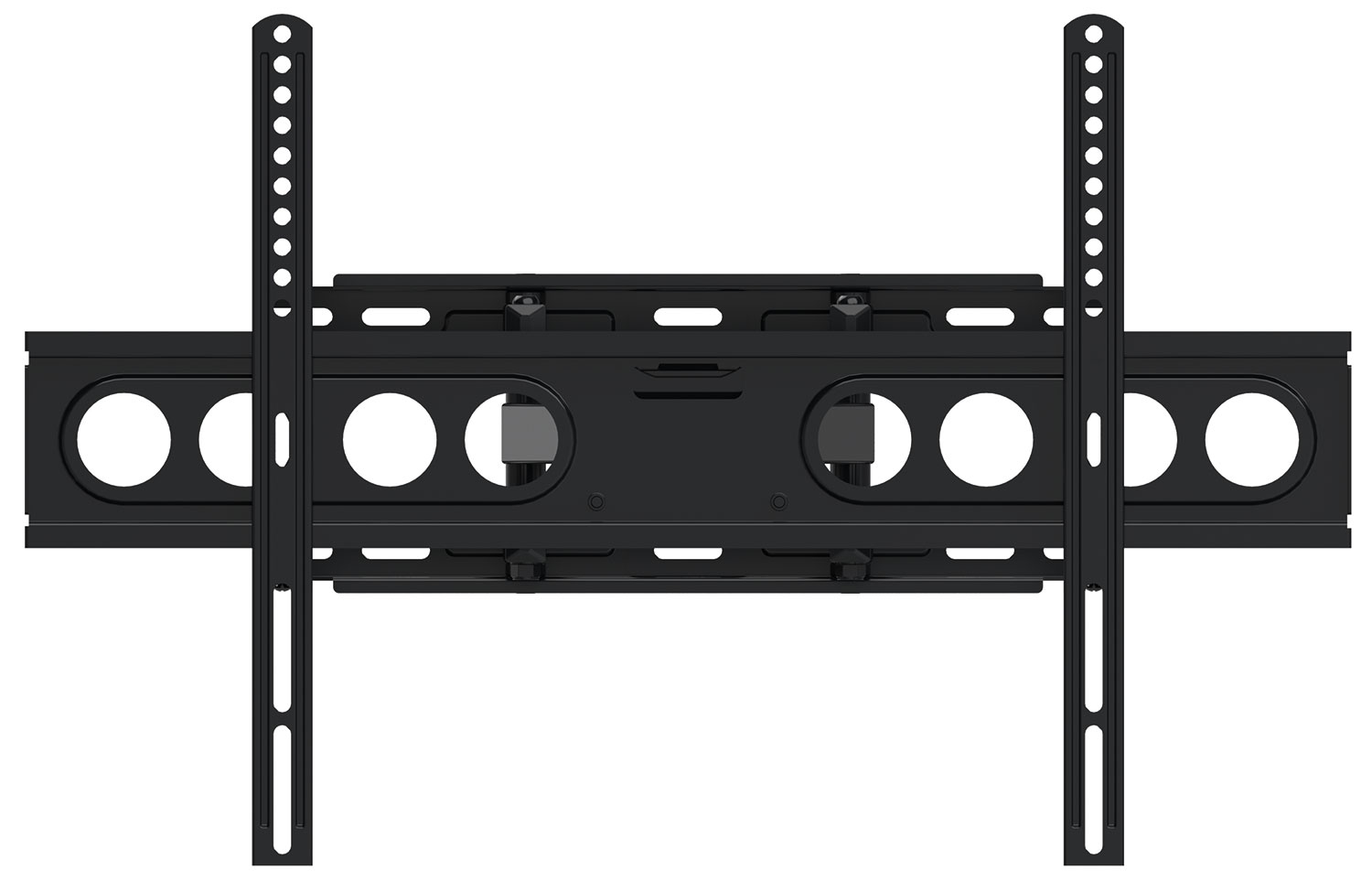

Full Motion TV Bracket 32-75"

129.568UK FML600

Full motion double arm design with a larger wall fixing plate for more secure installations on studded and concrete walls and compatible with TV's up to 35kg in weight and with VESA hole patterns u...

  • Larger wall fixing plate for more secure installations on studded and concrete walls
  • Compatible with VESA hole patterns up to 600 x 400
  • Maximum weight load 35kg
Full description Find retailer
Description Version Packed
129.568UK
Full Motion TV Bracket 32-70" 		Gift Box

Full Motion TV Bracket 32-75"

Full motion double arm design with a larger wall fixing plate for more secure installations on studded and concrete walls and compatible with TV's up to 35kg in weight and with VESA hole patterns up to 600 x 400. Easy to extend, tilt and swivel this versatile bracket provides the optimum viewing angle from any seat in the room and comes supplied with a wide range of fixings for many applications.

  • Larger wall fixing plate for more secure installations on studded and concrete walls
  • Compatible with VESA hole patterns up to 600 x 400
  • Maximum weight load 35kg
  • -5° to 15° tilt mechanism
  • 90° Swivel range
  • Wide range of fixings supplied
  • Screen size 32" to 75"
  • Max. VESA 600 x 400
  • Max. weight load 35kg
  • Distance from wall 68-340mm
  • Tilt range -5° to 15°
  • Swivel 45° to -45°
  • Wall plate dimensions 430 x 158mm (W x H)
  • Dimensions 654 x 420mm (W x H)
  • Weight 3.66kg

In the box

The box for this item contains :

  • 1pc TV bracket
  • 4pcs M4 x 20mm
  • 4pcs M5 x 20mm
  • 4pcs M6 x 20mm
  • 4pcs M8 x 30mm
  • 4pcs Spacer
  • 4pcs Plate
  • 4pcs Wall screw
  • 4pcs Wall plug
  • 4pcs Washer
  • 1pc Magnetic spirit level (removable)
  • 1pc Allen key
  • 1pc Hexagonal wrench
  • 1pc User guide

Downloads

Instruction manual
For 129.568UK (1.2MB)
