10" Speaker System 200W
170.362UK
CX-2008
A speaker enclosure made from premium Birch ply with multi-angle design for arraying and wedge monitoring. The cabinet has flying points for convenient installation or top-hat for pole mounting.… more
- Full range 2-way enclosure
- 25cm (10") high power woofer
- Compression driver with titanium diaphragm
| DESCRIPTION | VERSION | PACKED | |
|---|---|---|---|
|
170.362UK
CX-2008 passive speaker 10" 200W |
Box Label |

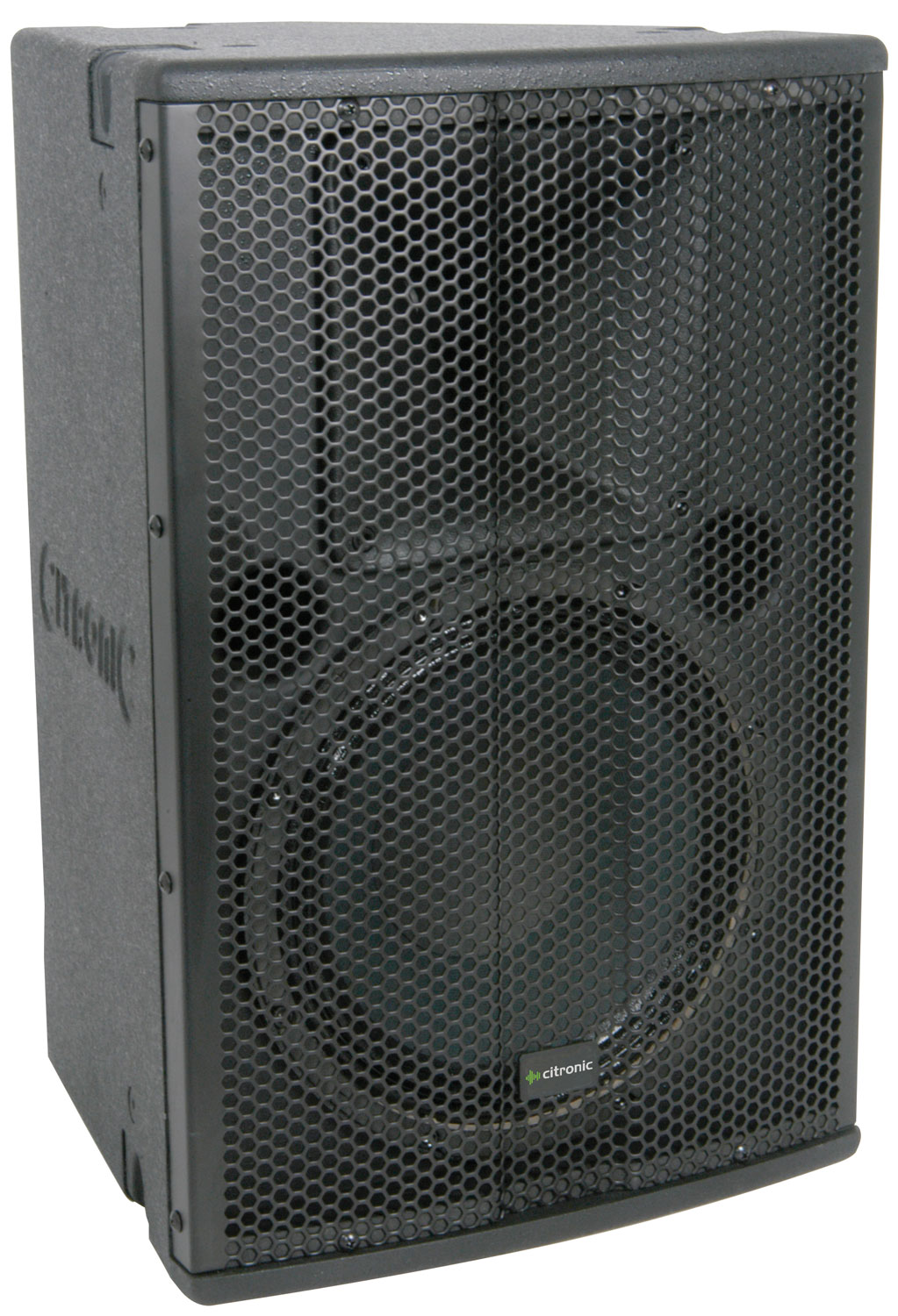

10" Speaker System 200W
A speaker enclosure made from premium Birch ply with multi-angle design for arraying and wedge monitoring. The cabinet has flying points for convenient installation or top-hat for pole mounting. Custom designed drivers project full range output with a wide dispersion for excellent coverage to listeners.
- Full range 2-way enclosure
- 25cm (10") high power woofer
- Compression driver with titanium diaphragm
- High SPL, high sensitivity speaker
- Durable black textured paint finish
- 35mm pole mount socket
- Supplied singly
- Woofer 25cm (10")
- Tweeter 4.4cm (1.7") Titanium
- Power rms 200W
- Connector Speakon® NL4
- Crossover frequency 2.5kHz
- Frequency response 60Hz - 20kHz
- Horn rotation 50-100° x 55°
- Impedance 8 ohms
- SPL @ 1W/1m 95dB
- THD <3%
- Dimensions 330 x 308 x 502mm
- Weight 15kg
