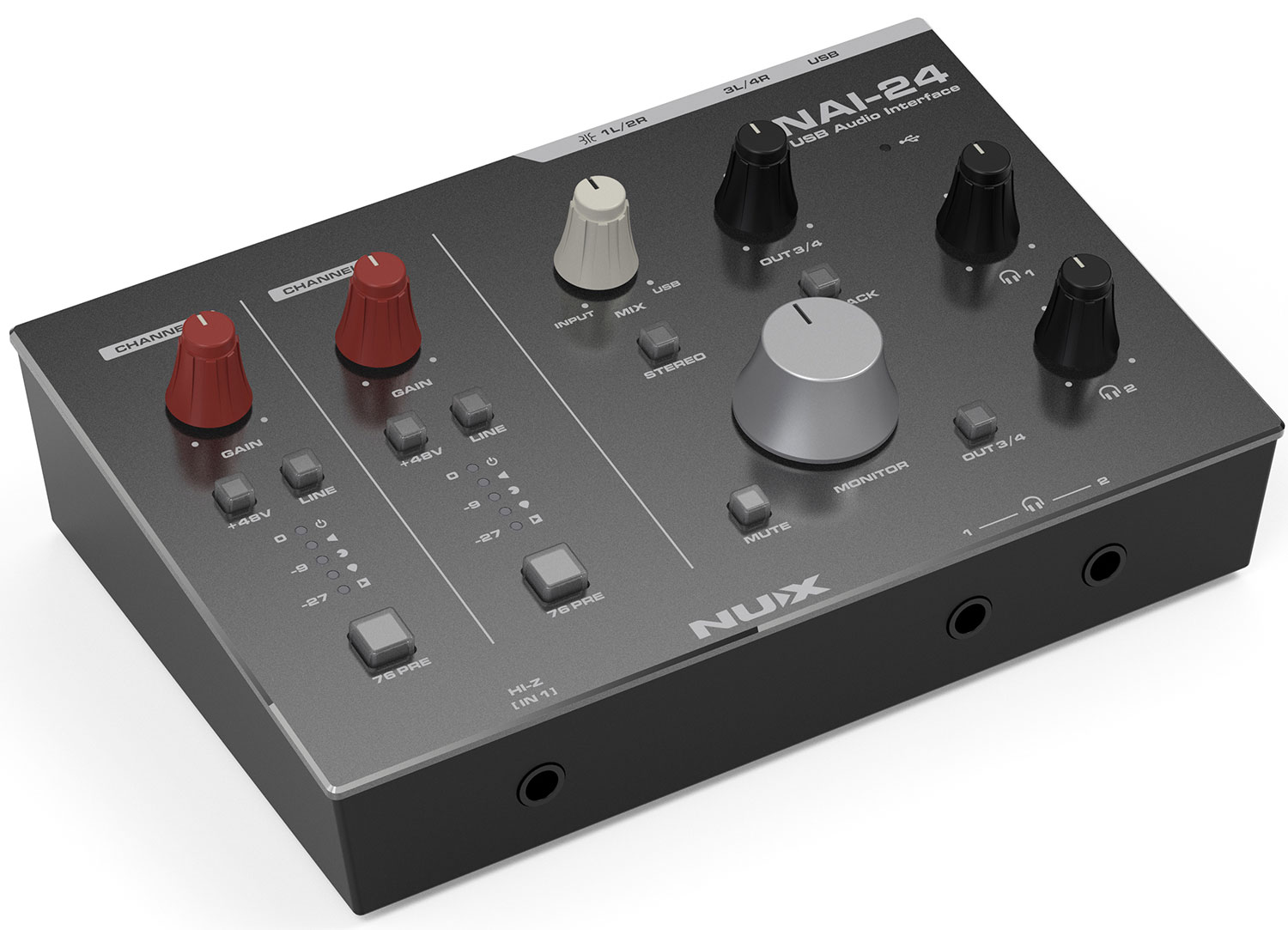

NAI-24 Audio Interface

NAI-24 is a USB audio interface built to deliver premium sound quality to home and project studios. Incorporating studio grade audio transformers for noise-free signal isolation and discrete class-A preamplifiers for pure sound integrity and professional AD/DA chips to accurately digitize the result with minimal latency. NAI-24 has 2 mic/line inputs, each equipped with a pure FET 76-style compressor with selectable preset modes. 48V phantom power is switchable to either input and a front-mounted HI-Z input can handle a guitar or other instrument directly though input 1. Multiple routing options to 2 independent sets of speakers or headphones can be used to monitor the signal directly or post processing. To complete the package, each NAI-24 ships with an access code to download your own licensed copy of CUBASE 13 LE professional recording software. NAI-24 turns your PC or Mac computer into a fully functioning recording setup with the same qualilty normally only found in large commercial studios.

• Supplied with download code for CUBASE 13 LE
• Dual analogue 76 style compressors

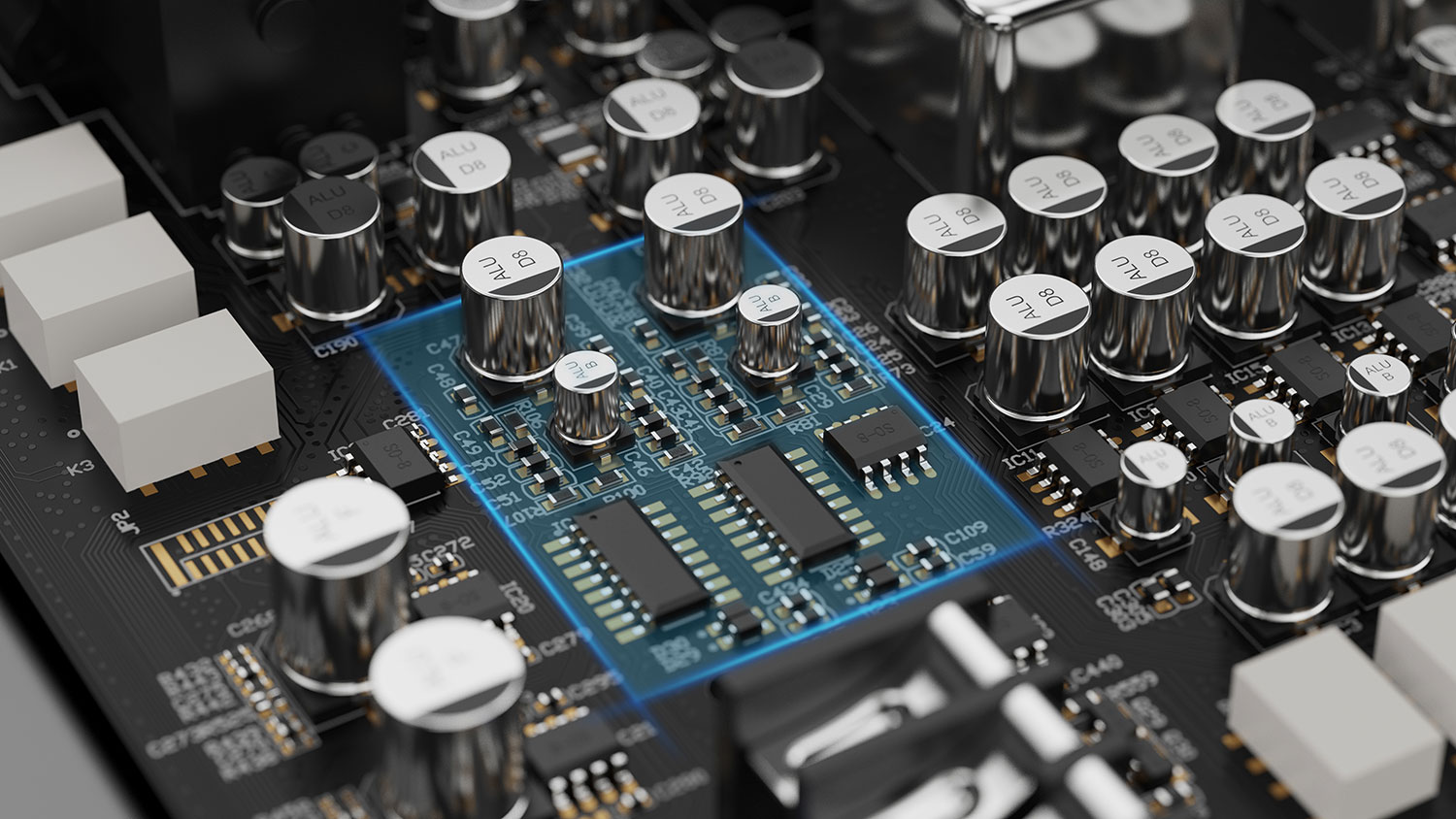

• Discrete class A preamps and studio grade transformers
• AKM AD/DA conversion chips
• USB-C bus powered (cable supplied)

• Power supply 5Vdc USB-C bus-powered
• Interface USB 2.0
• Phantom power +48V switchable inputs 1 & 2
• Sampling format Up to 192kHz, 32-bit
• Dynamic range 114dB Mic/Line, 112dB HI-Z/Line out (A-weighted)
• THD +N 0.003%@-1dBFS (at minimum gain)
• Input impedance 2.4k (mic), 21k (line), 1M (Hi-Z)
• Input level 6dBu max (mic), 26dBu max (line), -10dBu nominal (Hi-Z)
• Dimensions 194 x 128 x 67mm
• Weight 722g
