CASA Passive Sub Cabinets

178.126UK CASA-15B

Lightweight subwoofer cabinets with minimal footprint and very capable power handling. Each cabinet is constructed from 15mm MDF with integral side handles for easy portability and 35mm socket to a...

  • Compact and lightweight design
  • 15mm MDF cabinets with hard-wearing paint finish
  • 2 x side carry handles
Description Version Packed
178.121UK
CASA-10B Passive Sub 300Wrms
10" 300W Box Label
178.123UK
CASA-12B Passive Sub 400Wrms
12" 400W Box Label
178.126UK
CASA-15B Passive Sub 500Wrms
15" 500W Box Label
178.129UK
CASA-18B Passive Sub 600Wrms
18" 600W Box Label

Accessories

Description Version Packed
902.126UK
15" Sub Driver 8ohm 500Wrms for CASA-15B
15" sub 8ohm 500Wrms Box Label
127.315UK
CASA-15B Slip Cover
CASA-15B/BA Poly Bag

CASA Passive Sub Cabinets

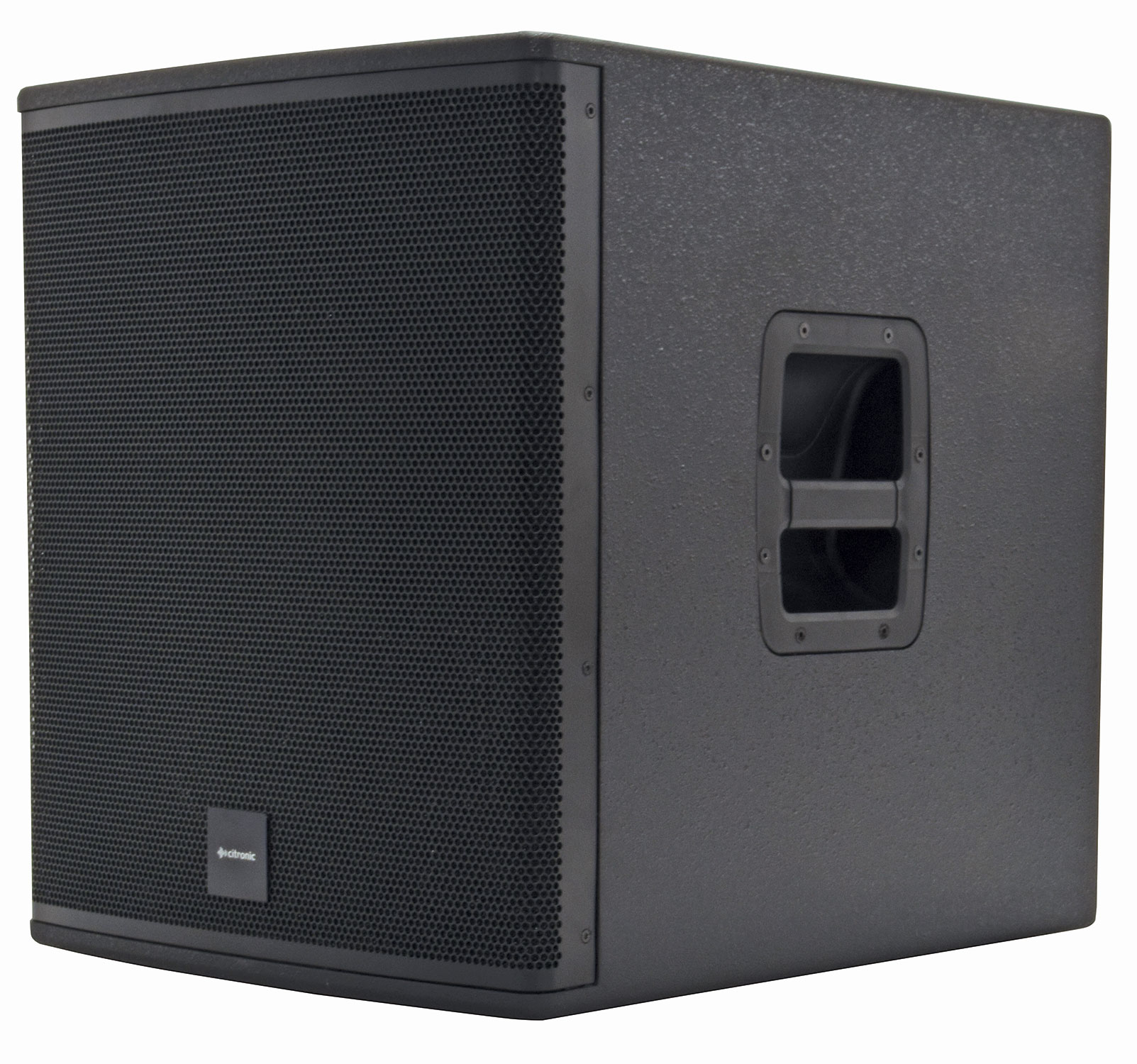

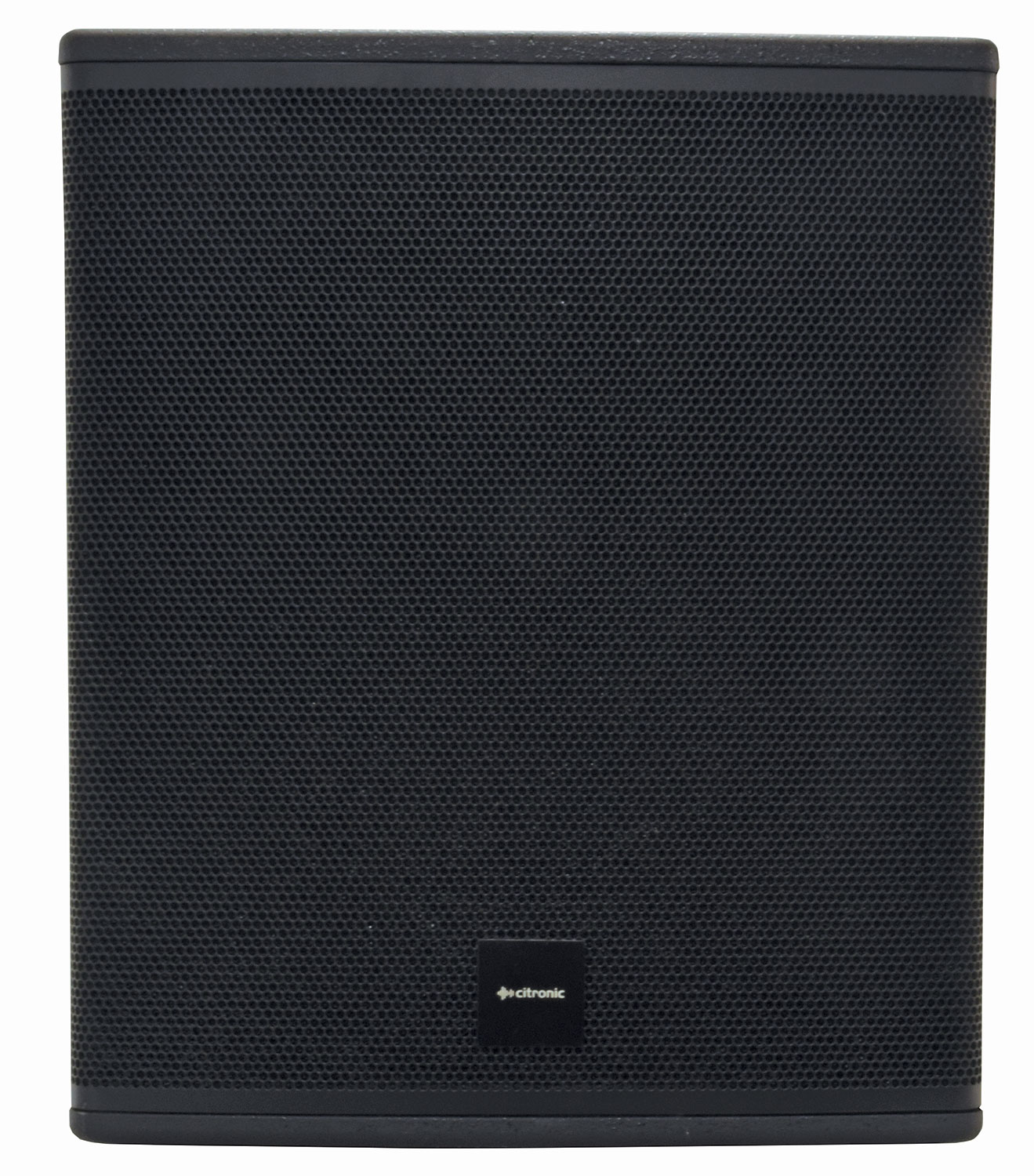

Lightweight subwoofer cabinets with minimal footprint and very capable power handling. Each cabinet is constructed from 15mm MDF with integral side handles for easy portability and 35mm socket to accommodate a mounting pole. The high flex sub driver is front-loaded with a protective steel grille to deliver powerful transients and add warmth to any sound system. Output from a power amplifier is via Speakon leads to sockets on the rear panel. Designed as a perfect match for the CASA range of PA cabinets and equally at home as part of any high energy sound reinforcement setup.

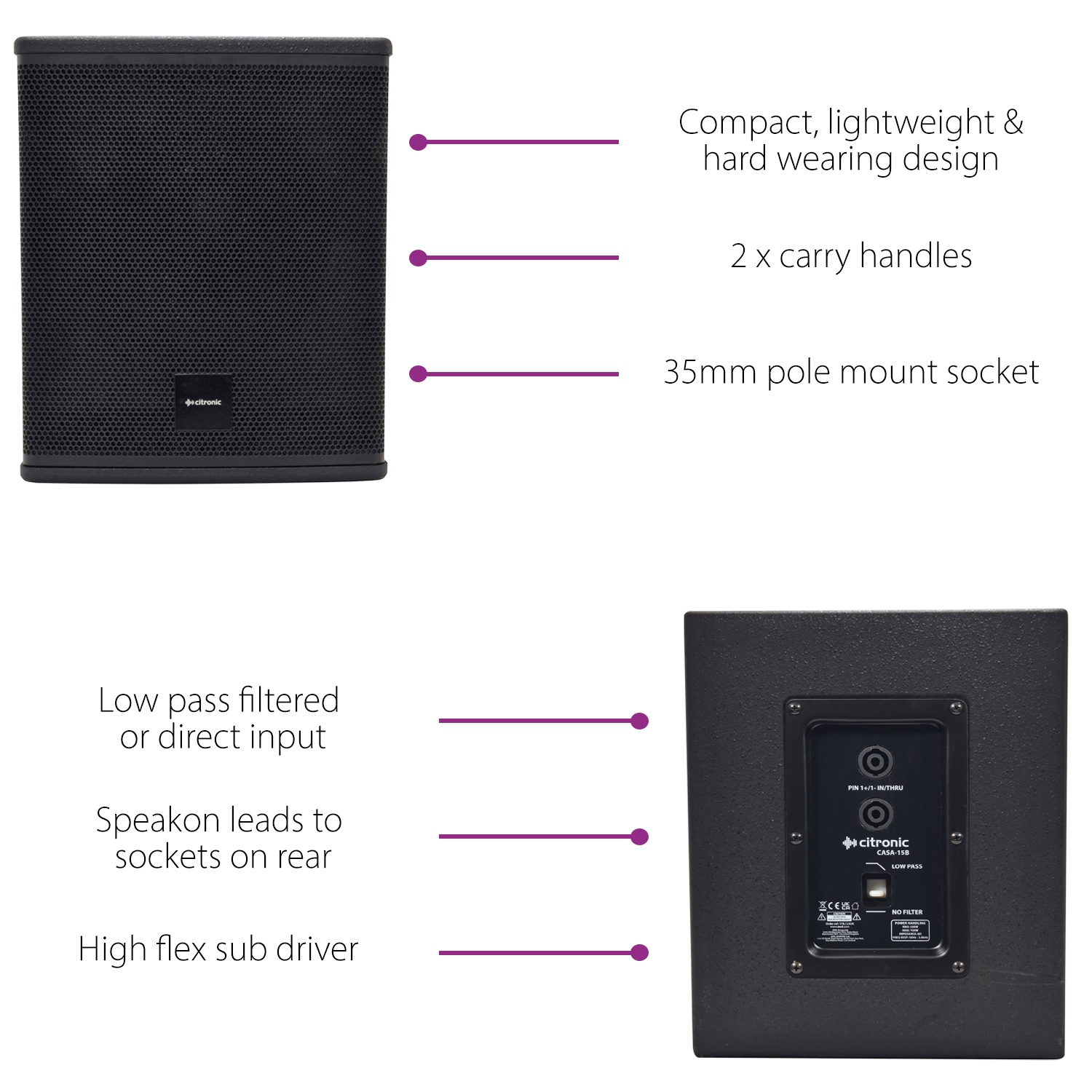

  • Compact and lightweight design
  • 15mm MDF cabinets with hard-wearing paint finish
  • 2 x side carry handles
  • Low pass filtered or direct input

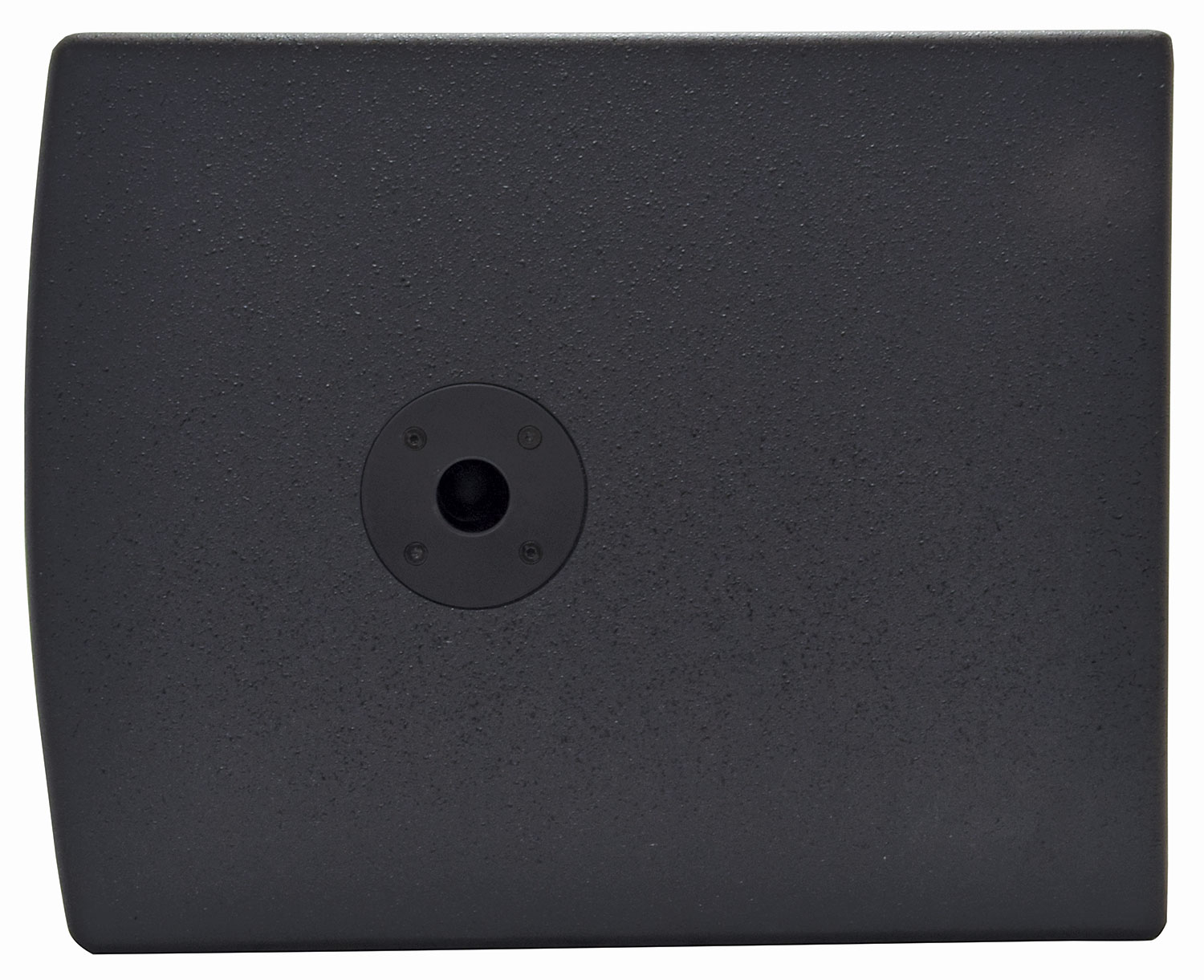

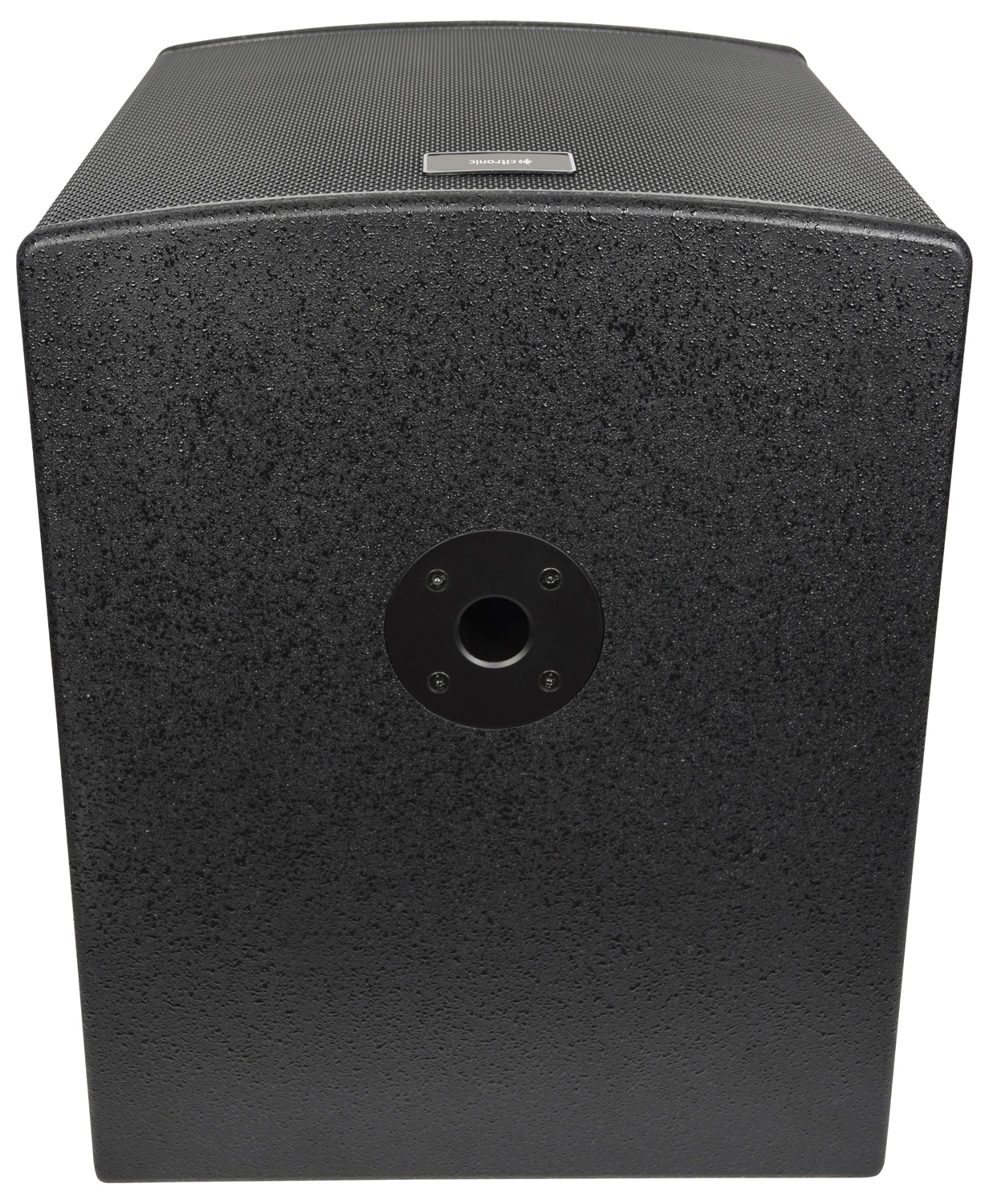

  • 35mm pole mount socket
  • Construction 15mm MDF with durable texture paint finish
  • Hardware 2 x side carry handles + 35mm pole mount socket

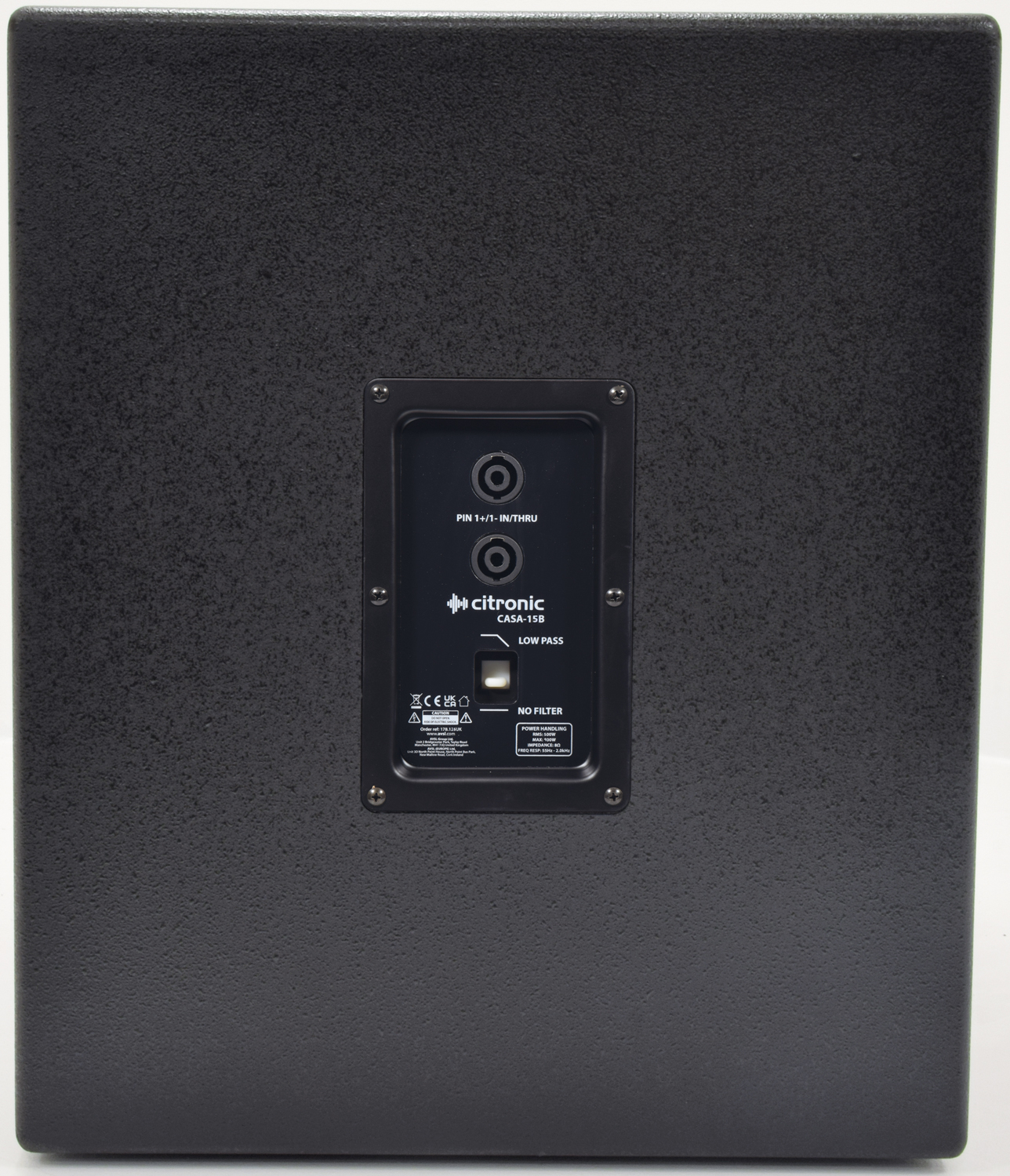

  • Connection 2 x SPK socket
  • Impedance 8 Ohms
  • Filter type 120Hz low pass 12dB/oct

Versions

  178.121UK 178.123UK 178.126UK 178.129UK
Sub driver 250mmØ (10") 300mmØ (12") 375mmØ (15") 450mmØ (18")
Voice coil 50mmØ (2") 62mmØ (2.5") 75mmØ (3") 75mmØ (3")
Power handling : rms 300W 400W 500W 600W
Power handling : max 500W 700W 900W 1100W
SPL max. 120.0dB 122.0dB 123.5dB 127.0dB
Frequency response 60Hz - 2.0kHz 55Hz - 2.0kHz 50Hz - 2.0kHz 45Hz - 1.8kHz
Dimensions 431 x 407 x 338mm 480 x 450 x 380mm 564 x 540 x 448mm 645 x 605 x 510mm
Weight 12kg 14kg 21kg 30kg

Support : articles

Low impedance speakers

Impedance is the effective resistance of an electric circuit or component to alternating current, arising from the combined effects of resistance and reactance. Here we explain the features of low impedance and how it is implemented in a speaker system.

Sunday, 1st January 2017

Speaker system types

Our speaker and amplifier products cover many environments and applications with a focus on clear and efficient sound coverage. Here we discuss the different types of systems

Sunday, 1st January 2017

In the box

The box for this item contains :

  • CASA series passive sub cabinet

Downloads

UK Declaration of conformity
For 178.126UK (242KB)
EU Declaration of conformity
For 178.126UK (233KB)
