AVSL : Product : Cable (Reels) : Loudspeaker : CCA : 801.050UK

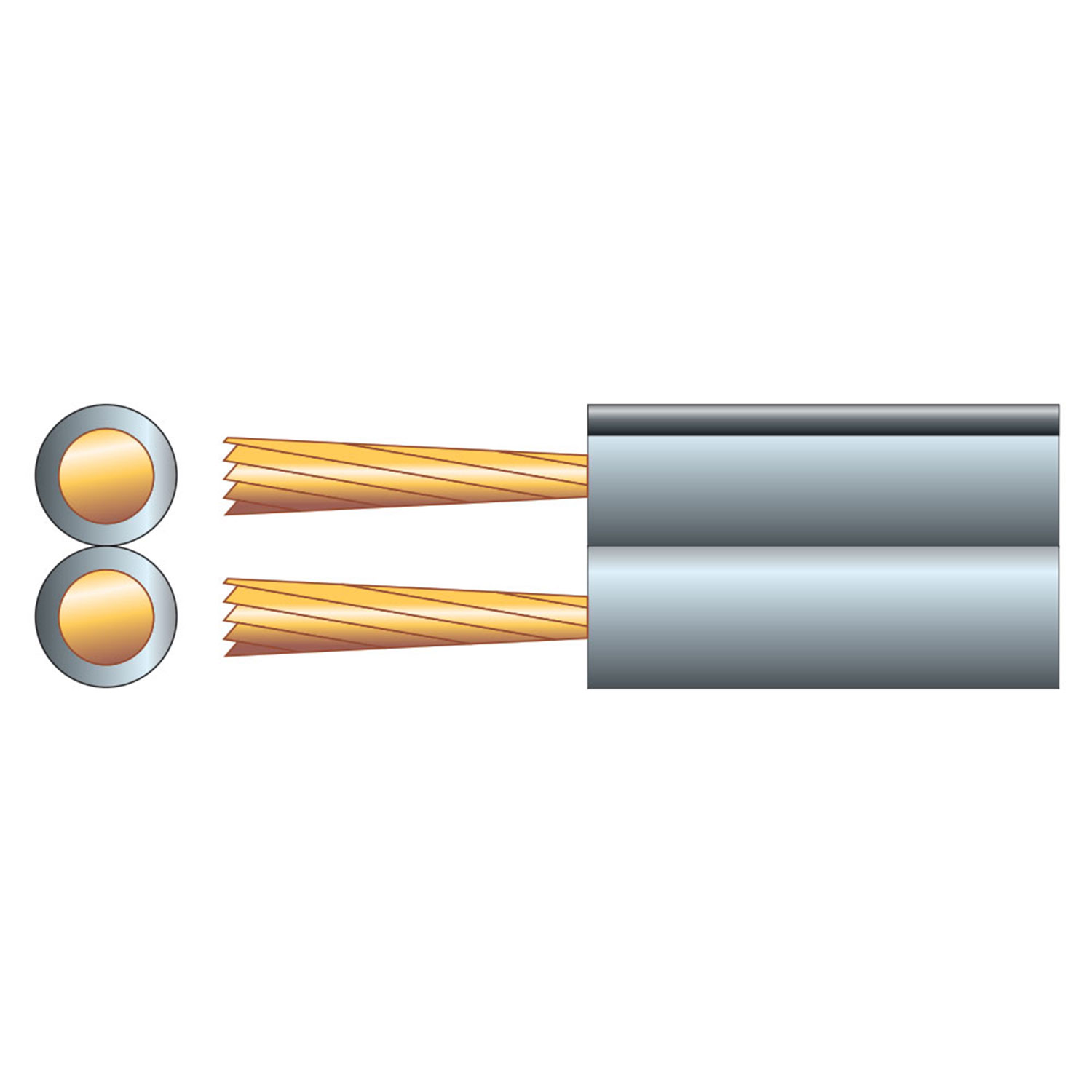

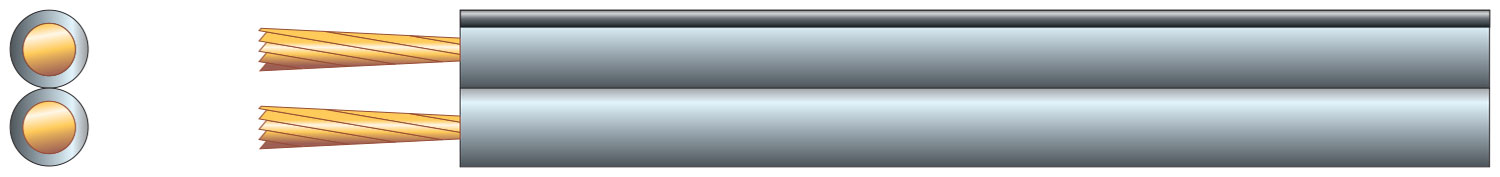

Standard Figure 8 Speaker Cable

801.050UK

A range of flexible, standard speaker cable with polarity line indicator.

Full description Find retailer

	Description	Version	Packed
	801.056UK Fig 8 Speaker Cable, 2 x (7 x 0.18mmØ)	2x7 White 100m	Reel
	801.050UK Fig 8 Speaker Cable, 2 x (7 x 0.18mmØ)	2x7 Grey/Black 100m	Reel
	801.053UK Fig 8 Speaker Cable, 2 x (7x 0.18mmØ)	2x7 Black/Wht 100m	Reel
	801.239UK Fig 8 Speaker Cable, 2 x (13 x 0.18mmØ)	2x13 Grey/Black 100m	Reel
	801.330UK Fig 8 Speaker Cable, 2 x (13 x 0.18mmØ)	2x13 Wh/Black 100m	Reel
	801.333UK Fig 8 Speaker Cable, 2 x (13 x 0.18mmØ)	2x13 Black/Wh 100m	Reel
	801.422UK Fig 8 Speaker Cable, 2 x (26 x 0.18mmØ)	2x26 White/Blk 100m	Reel

Standard Figure 8 Speaker Cable

A range of flexible, standard speaker cable with polarity line indicator.

Conductor Copper/Copper Clad Aluminium
Length 100m

Versions

	801.056UK	801.050UK	801.053UK	801.239UK	801.330UK	801.333UK	801.422UK
CSA	0.18mm²	0.18mm²	0.18mm²	0.33mm²	0.33mm²	0.33mm²	0.66mm²
Strands	2 x (4 x 0.18mmØCu + 3 x 0.18mmØCCA)	2 x (4 x 0.18mmØCu + 3 x 0.18mmØCCA)	2 x (4 x 0.18mmØCu + 3 x 0.18mmØCCA)	2 x (7 x 0.18mmØCu + 6 x 0.18mmØCCA)	2 x (7 x 0.18mmØCu + 6 x 0.18mmØCCA)	2 x (7 x 0.18mmØCu + 6 x 0.18mmØCCA)	2 x (13 x 0.18mmØCu + 13 x 0.1mmØCCA)
Dimensions	1.8 x 3.6mm	1.8 x 3.6mm	2.0 x 4.0mm	2.0 x 4.0mm	2.0 x 4.0mm	2.0 x 4.0mm	2.5 x 5.0mm
Current	1.0A max.	1.0A max.	1.0A max.	2.5A max.	2.5A max.	2.5A max.	6.0A max.
Sheath	White	Grey	Black	Grey	White	Black	White
Polarity	Black	Black	White	Black	Black	White	Black
Packed quantity	12 reels	12 reels	12 reels	12 reels	12 reels	12 reels	8 reels

Downloads

UK Declaration of conformity
For 801.050UK (242KB)

EU Declaration of conformity
For 801.050UK (233KB)
