AVSL : Product : Cable (Reels) : Telephone : 808.211UK

Economy Telephone Cable

808.211UK

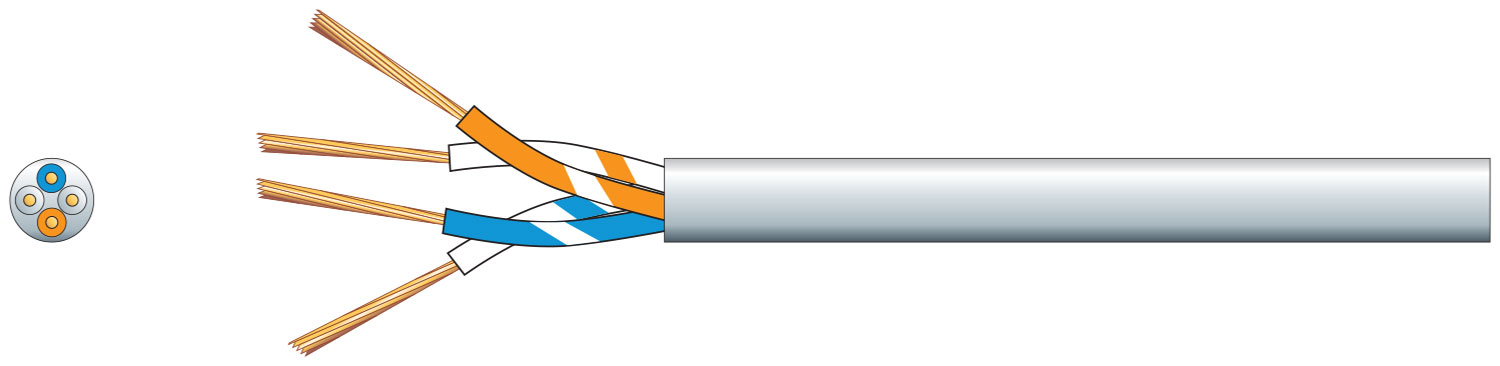

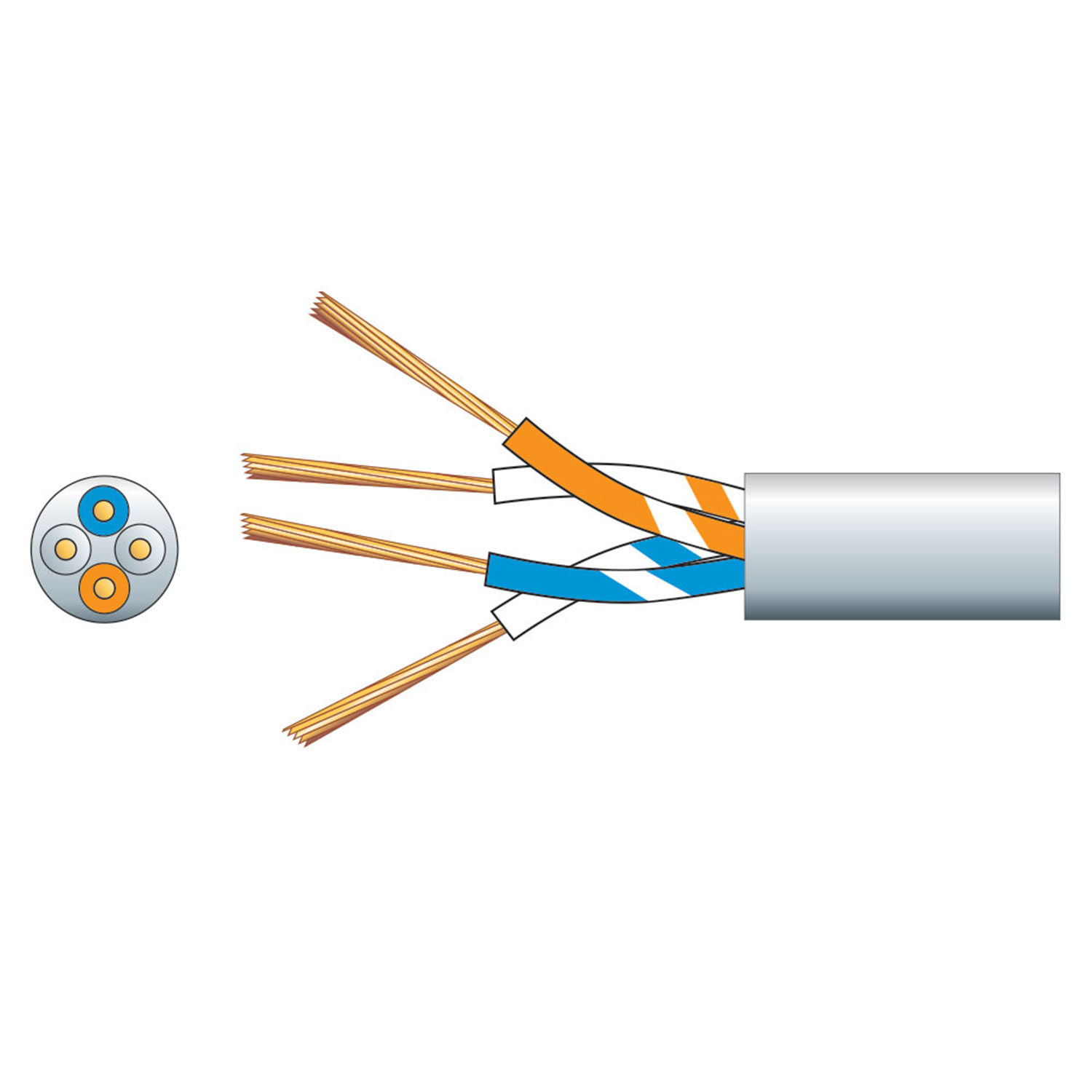

Telephone cable with solid copper clad steel conductor and colour coded insulation. Fits standard RJ11, RJ12, RJ45 type connectors.

Solid copper clad steel conductor
Colour coded insulation

Full description Find retailer

	Description	Version	Packed
	808.211UK 2 Pairs Telephone Cable CCS White 100m	2 Pairs White 100m	Reel
	808.213UK 3 Pairs Telephone Cable CCS White 100m	3 Pairs White 100m	Reel
	808.215UK 4 Pairs Telephone Cable CCS White 100m	4 Pairs White 100m	Reel
	808.217UK 6 Pairs Telephone Cable CCS White 100m	6 Pairs White 100m	Reel

Economy Telephone Cable

Telephone cable with solid copper clad steel conductor and colour coded insulation. Fits standard RJ11, RJ12, RJ45 type connectors.

Solid copper clad steel conductor
Colour coded insulation

Conductor CCS
Conductor diameter 0.45mmØ
CSA 0.16mm²
Length 100m

Versions

	808.211UK	808.213UK	808.215UK	808.217UK
Cores	4 (2 pairs)	6 (3 pairs)	8 (4 pairs)	12 (6 pairs)
Cable : diameter	3.6mmØ	4.5mmØ	5.4mmØ	6.2mmØ
Weight	1.8kg	2.3kg	2.8kg	3.3kg

Downloads

UK Declaration of conformity
For 808.211UK (240KB)

EU Declaration of conformity
For 808.211UK (233KB)
