100V line speakers
For many applications, it is necessary to drive many speakers with a single amplifier, giving greater coverage to multiple rooms or over a given area. 100V line is a solution to this problem.
Metal Quick Fit 100V Ceiling Speakers
952.168UK
EC56V
Metal framed ceiling speakers with a quick-fit design, suitable for mounting into almost any material. All metal, flush fit grille fitted with quality speaker and 100V line transformer tapped at 1....
- Easy quick-fit mechanism

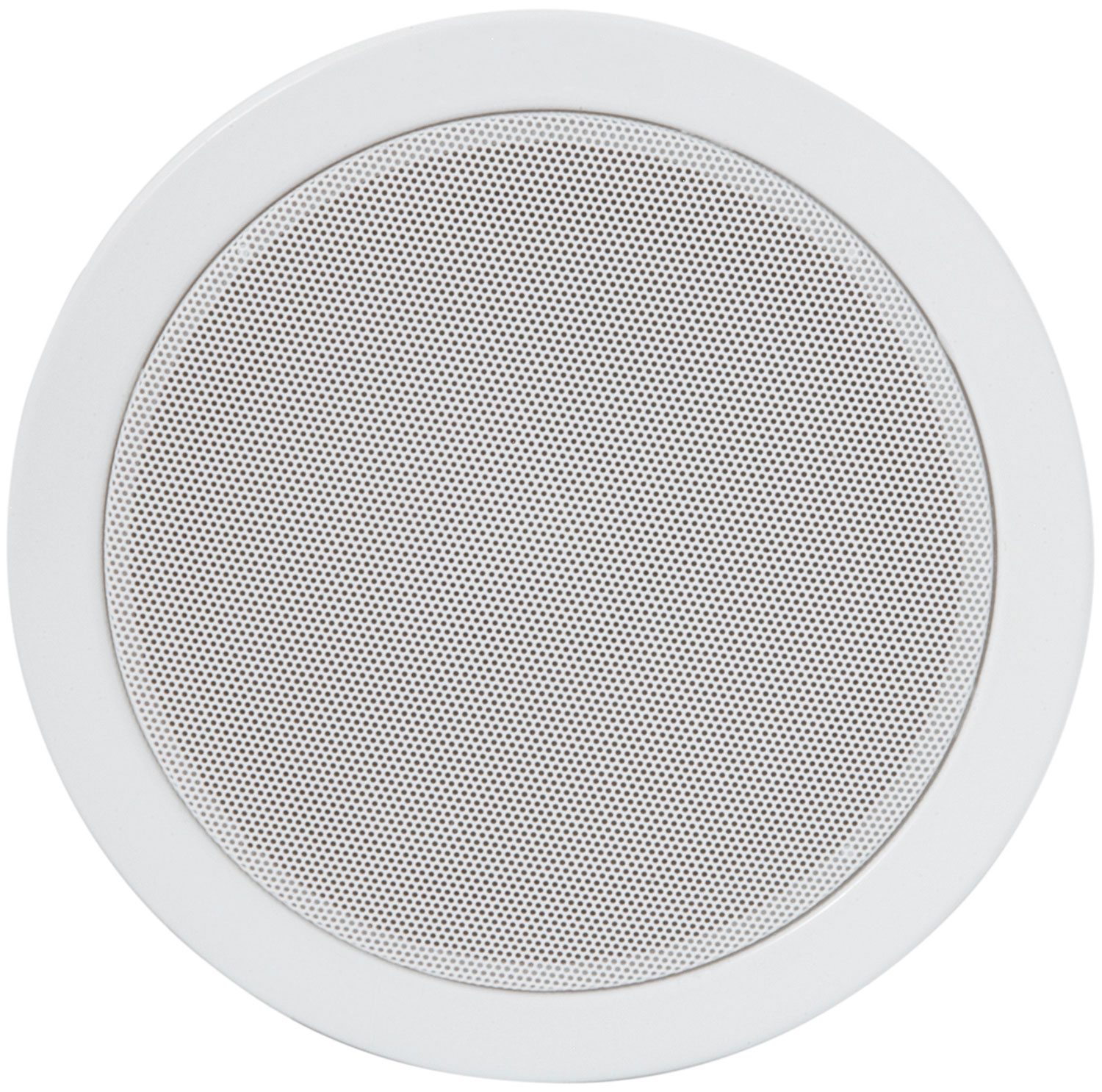

- Slimline flush fitting grille

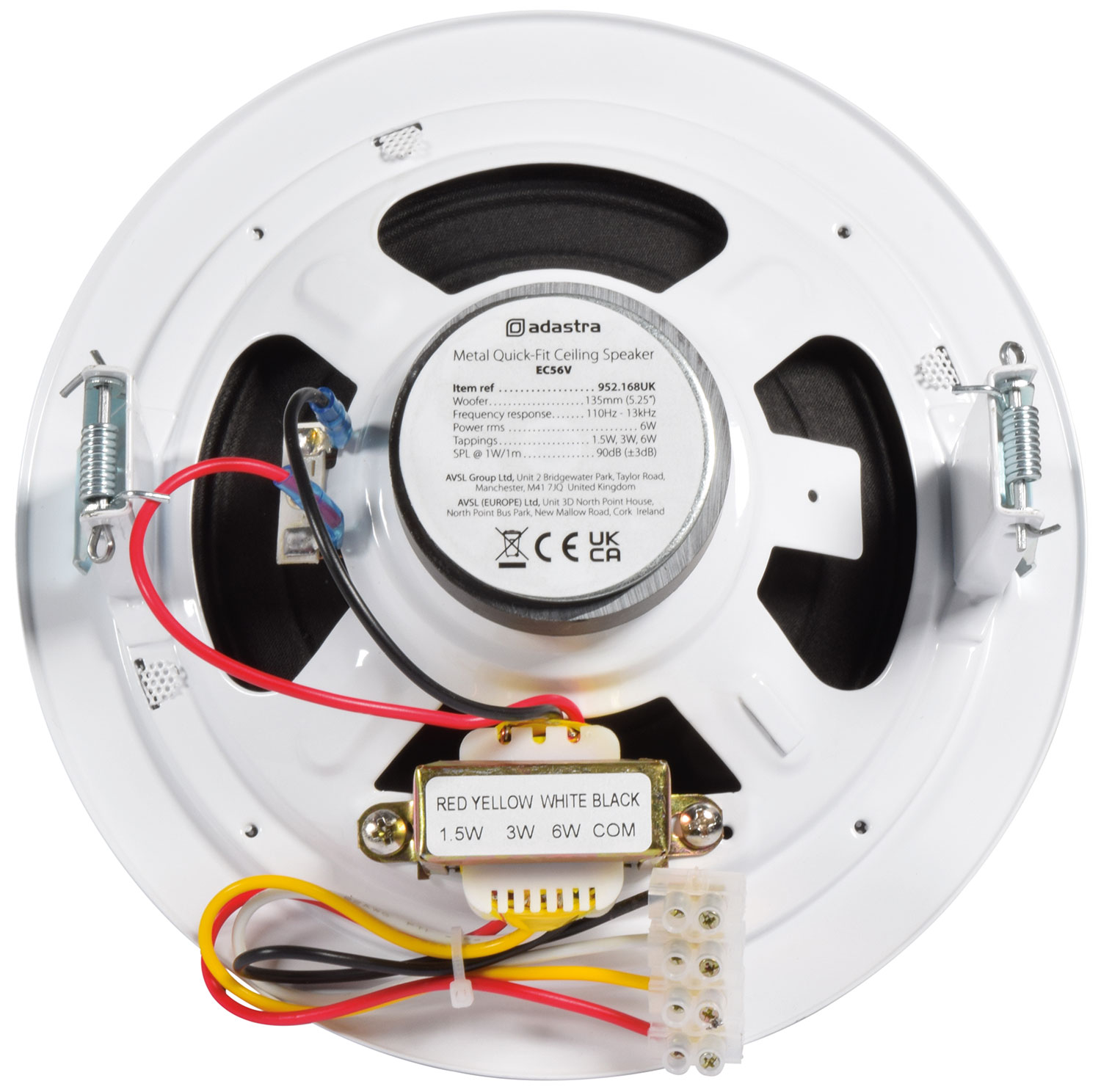

- Tappings @ 1.5W, 3W, 6W
Metal Quick Fit 100V Ceiling Speakers
Metal framed ceiling speakers with a quick-fit design, suitable for mounting into almost any material. All metal, flush fit grille fitted with quality speaker and 100V line transformer tapped at 1.5W, 3W and 6W.
- Easy quick-fit mechanism
- Slimline flush fitting grille
- Tappings @ 1.5W, 3W, 6W
- Material Metal
- Dispersion angle 155°
- Power rms : 100V line 6W

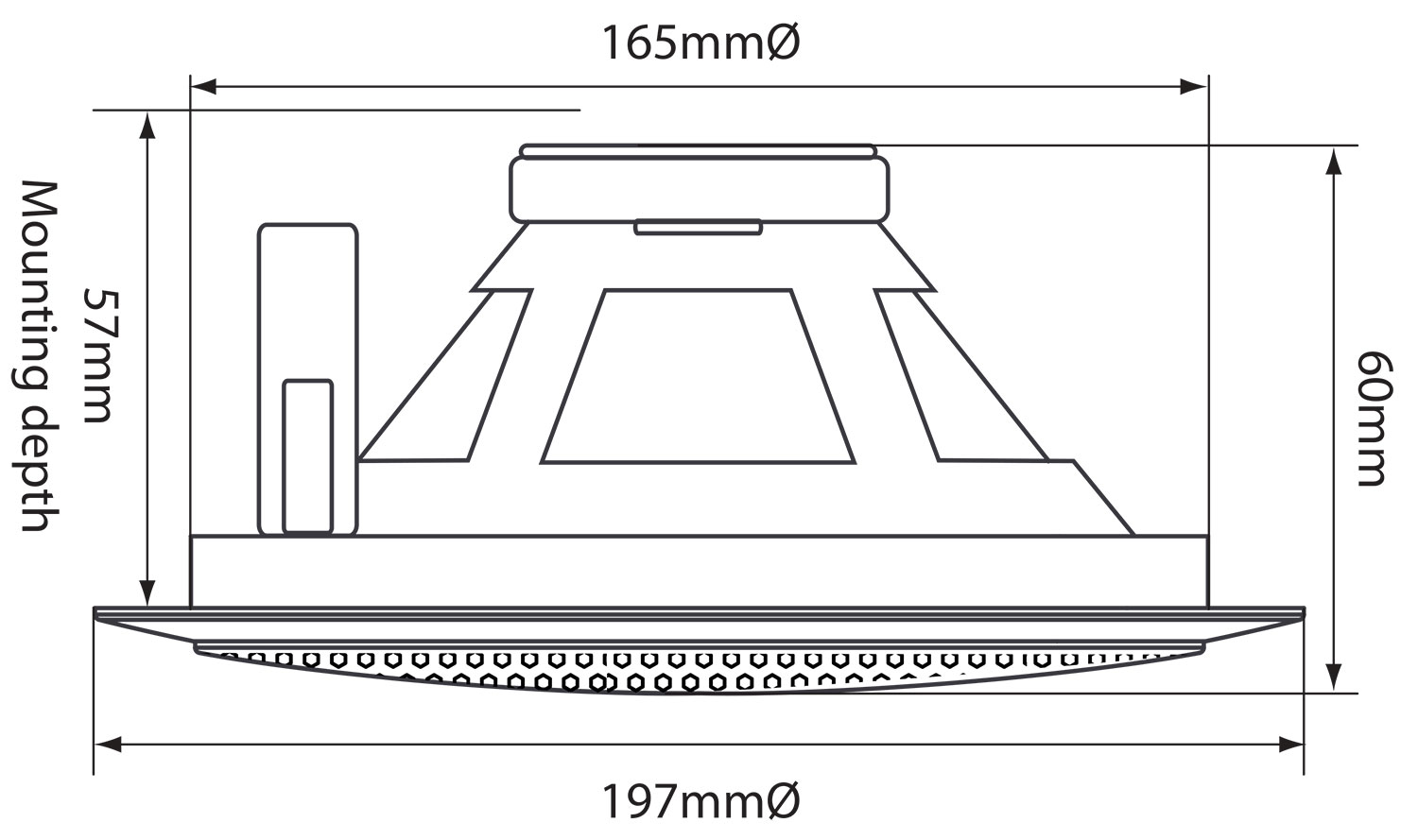

- Mounting depth 57mm
- Frequency response 110Hz - 13kHz
- SPL @ 1W/1m 90dB (±3dB)
- Tappings 1.5, 3, 6W
- Weight 638g
Versions
| 952.168UK | 952.178UK | |
|---|---|---|
| Driver | 135mm (5.25") | 135mm (5.25") |
| Cutout | 165mmØ | 165mmØ |
| Dimensions | 60 x 197mmØ | 60 x 197mmØ |
| Weight | 638g | 638g |
| Colour | White | Black |
Support : articles
Dispersion angles
Each ceiling speaker in an installation is capable of effectively providing coverage to an area defined by its dispersion angle. Here we show how to calculate the spacing of speakers to cover your installation
Speaker system types
Our speaker and amplifier products cover many environments and applications with a focus on clear and efficient sound coverage. Here we discuss the different types of systems
Power Ratings: RMS vs Max vs Peak
A summary explaining the key differences between RMS, Max and Peak power ratings.
In the box
The box for this item contains :
- Metal framed ceiling speaker
