CA-5D Fire-Rated Ceiling Speaker 5.25in - 100V
CA-5D
952.204UK
CA-5D
CA-5D is a recessed ceiling speaker in a moulded basket and top dome made from V0 fire-retardant ABS material. Internally, the 5.25" dual cone driver is coated in a fire-resistant finish, connected… more
- 100V transformer with 4 power tappings
- Fire resistant EN54-24 compliant
- Ceramic terminal block and thermal fuse fitted.
| DESCRIPTION | VERSION | PACKED | |
|---|---|---|---|
|
952.204UK
5.25in ABS EN54 Ceiling Speaker |
CA-5D | Box Label |
CA-5D Fire-Rated Ceiling Speaker 5.25in - 100V

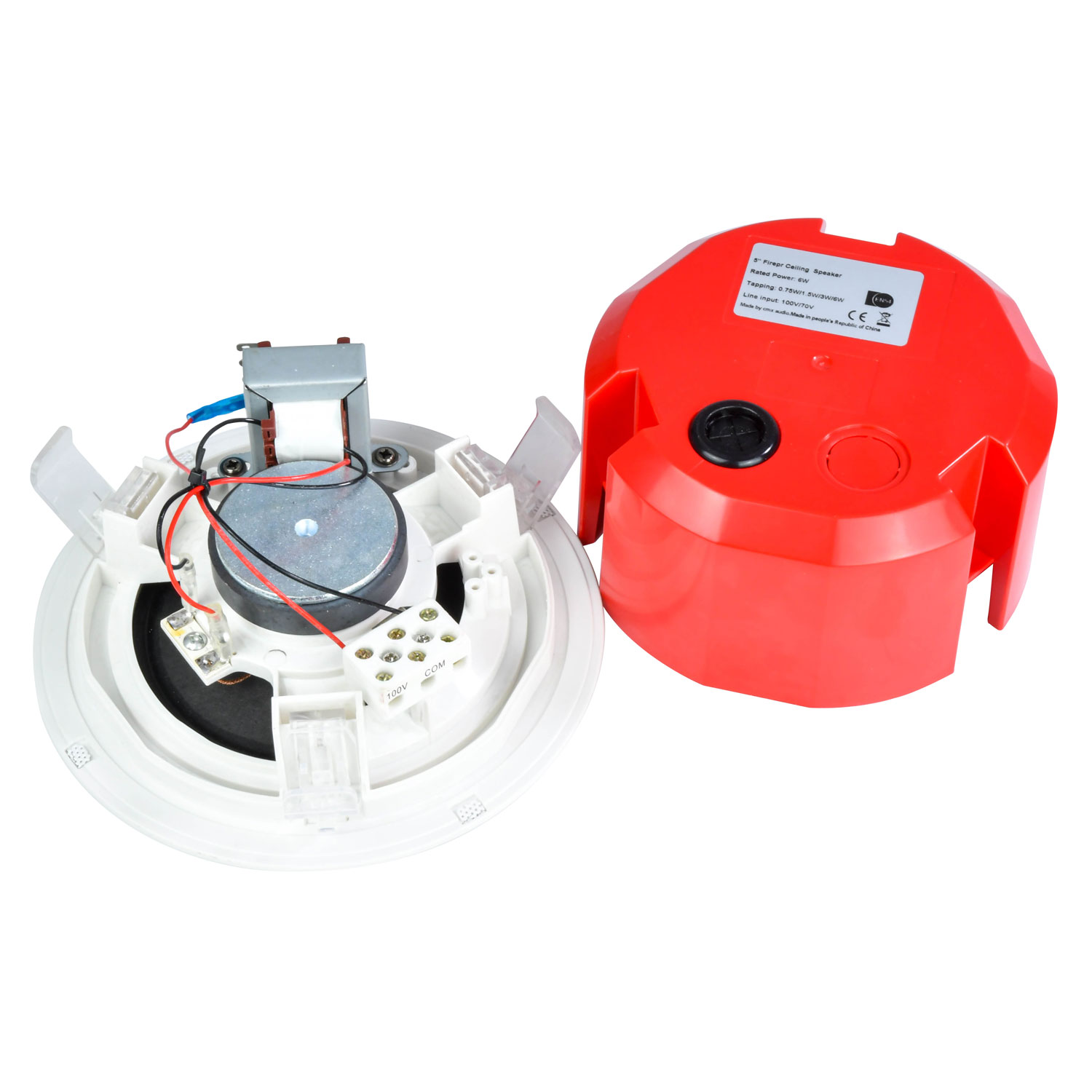

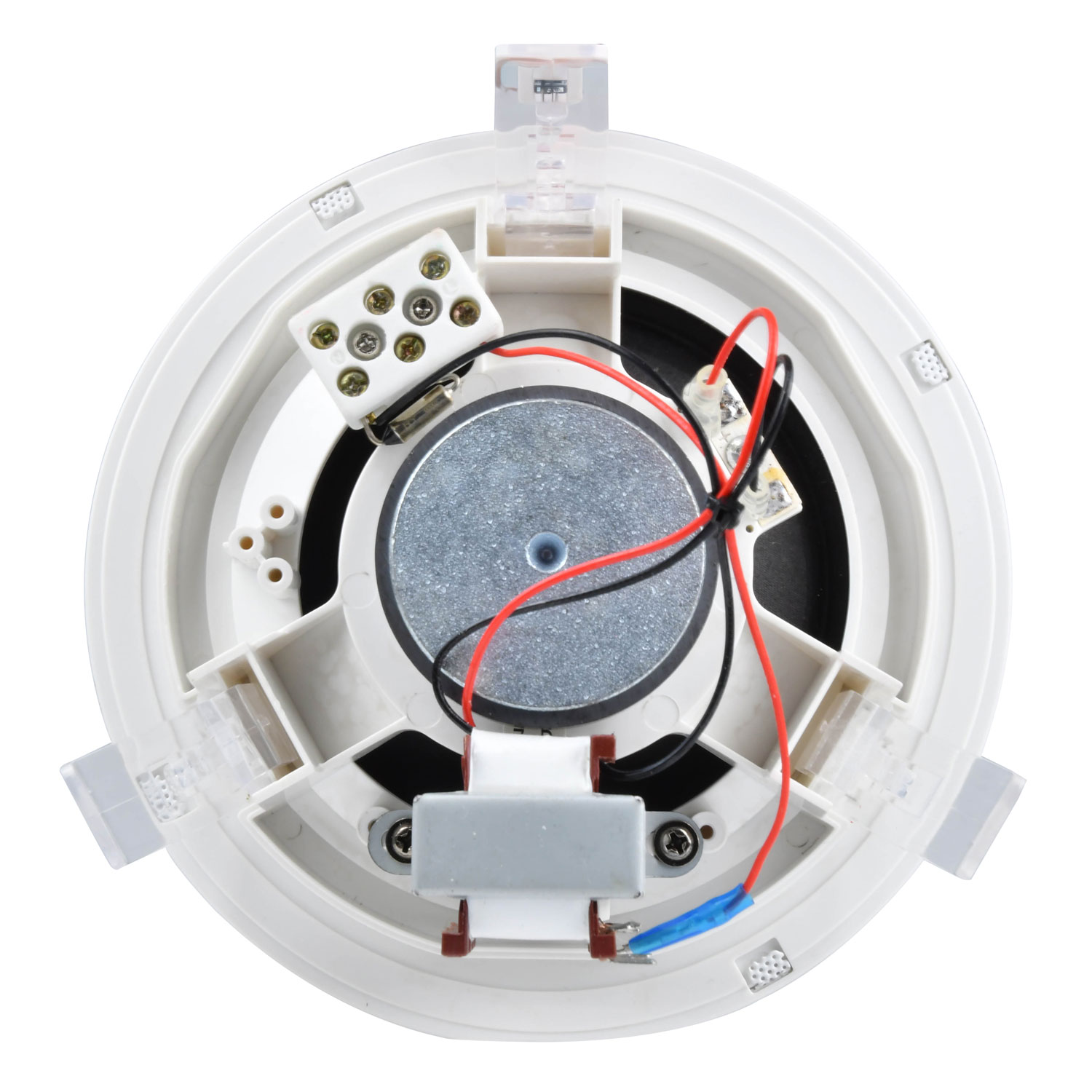

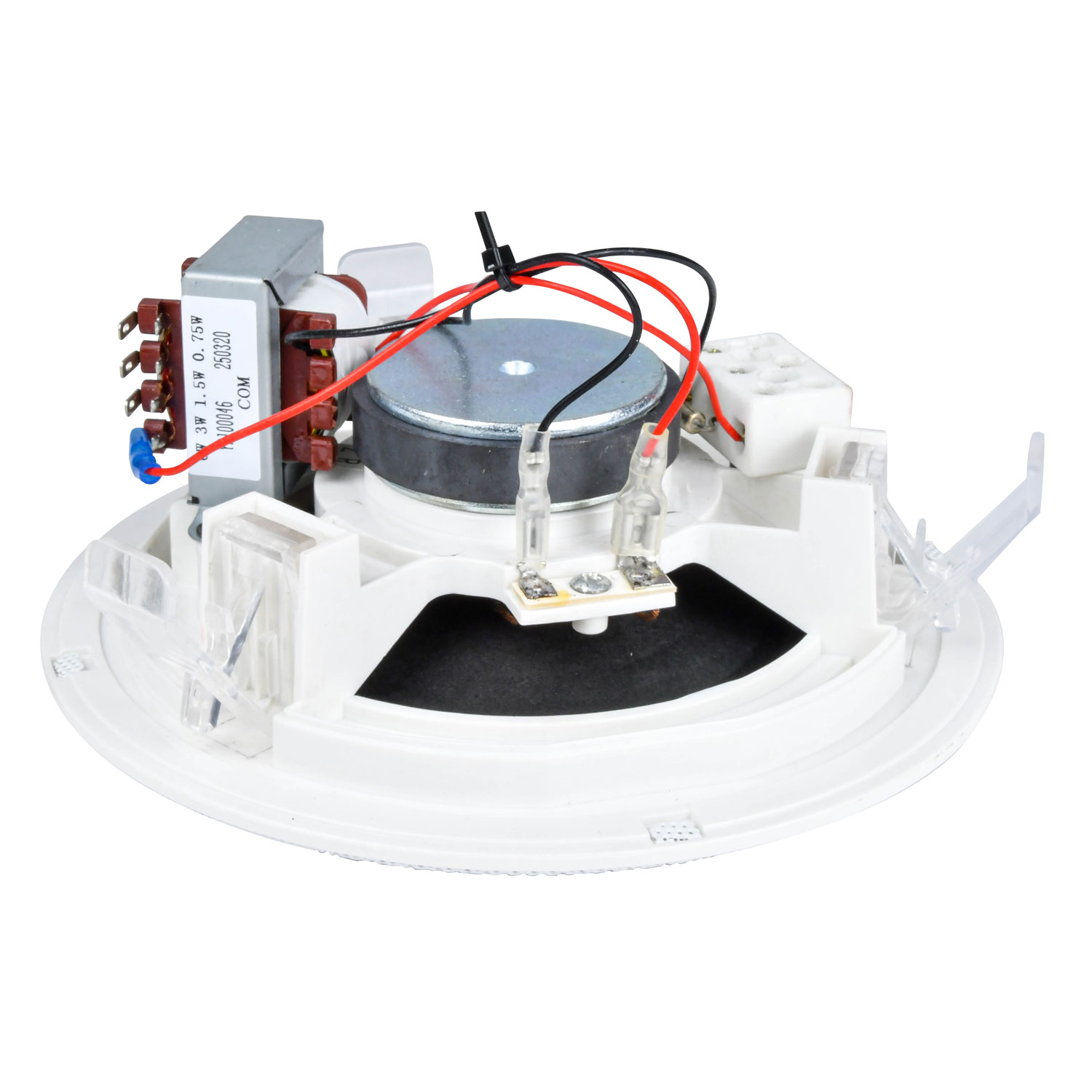

CA-5D is a recessed ceiling speaker in a moulded basket and top dome made from V0 fire-retardant ABS material. Internally, the 5.25" dual cone driver is coated in a fire-resistant finish, connected via a fire-resistant cable to a ceramic terminal block and 100V transformer. Cable access is via gland knock-out holes. Fully certified to EN54-24 for use in fire-rated commercial installations.
- 100V transformer with 4 power tappings
- Fire resistant EN54-24 compliant
- Ceramic terminal block and thermal fuse fitted.
- 3-way quick-fit ceiling clamps
- Construction Moulded fire-resistant ABS (V0)
- Driver 135mmØ (5.25") coated dual cone
- Tappings 0.75W, 1.5W, 3W, 6W
- Sensitivity 92±2dB (max 98±2dB) @ 1W/1m
- Frequency response 105Hz-15kHz
- Impedance 8 ohms
- Approvals EN54-24
- Cutout diameter 140mmØ
- Dimensions 85 x 165mmØ
- Weight 650g
In the Box
- CA-5D fire-rated ceiling speaker
