EN54-24 Fire Rated Horn Speakers

952.246UK FH15V

Moulded ABS weatherproof horn speakers with EN54-24 fire rating. Low impedance (8 Ohm) or 100V operation with switchable volume tappings (70V settings also included). Hard-wired with a fire-resista...

  • EN54-24 fire systems certification
  • IP66 weatherproof
  • 5VB fireproof ABS material
Description Version Packed
952.246UK
FH15V Horn Speaker EN54 100V - 15W IP66
15W Box Label
952.247UK
FH30V Horn Speaker EN54 100V - 30W IP66
30W Box Label

EN54-24 Fire Rated Horn Speakers

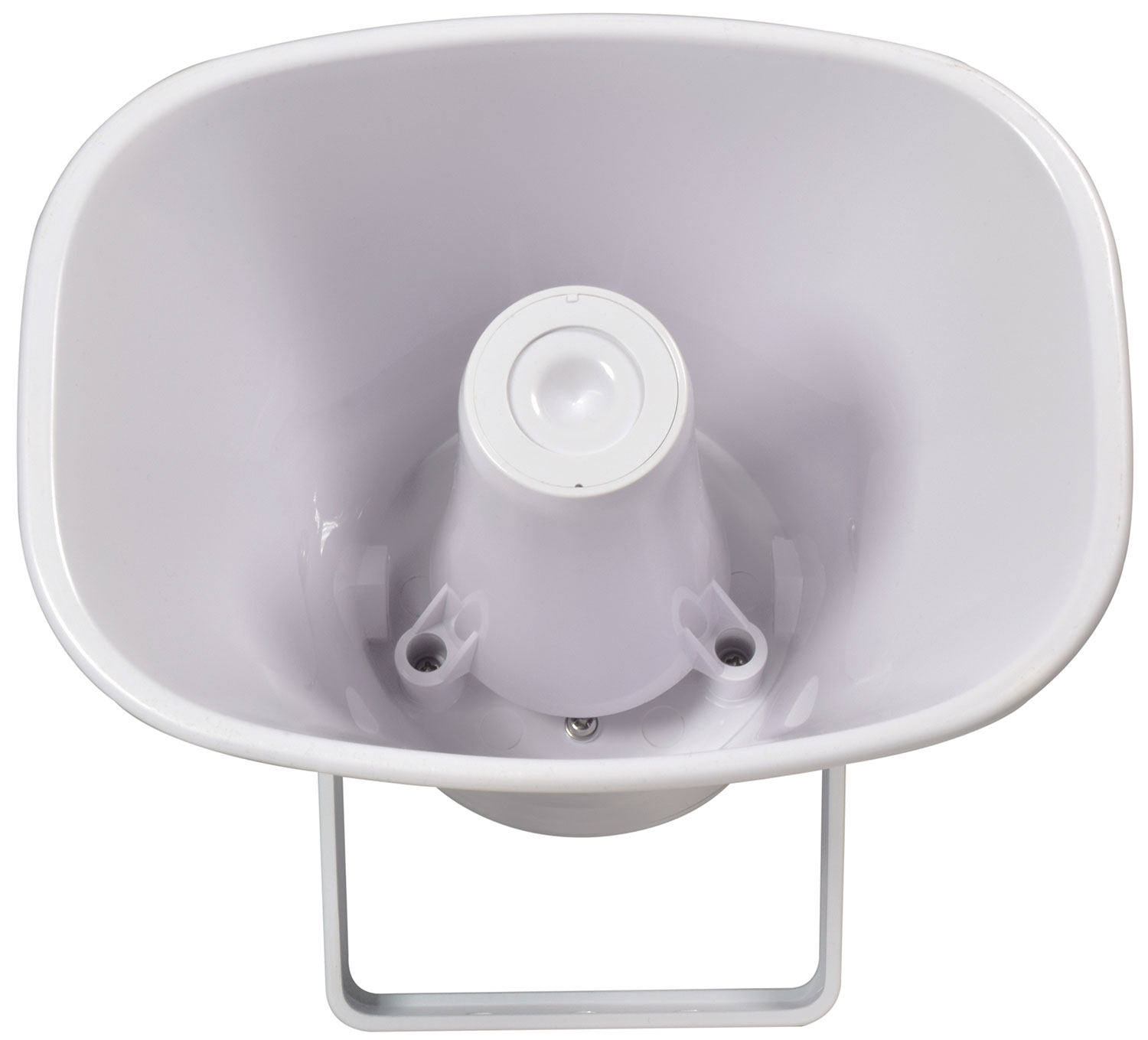

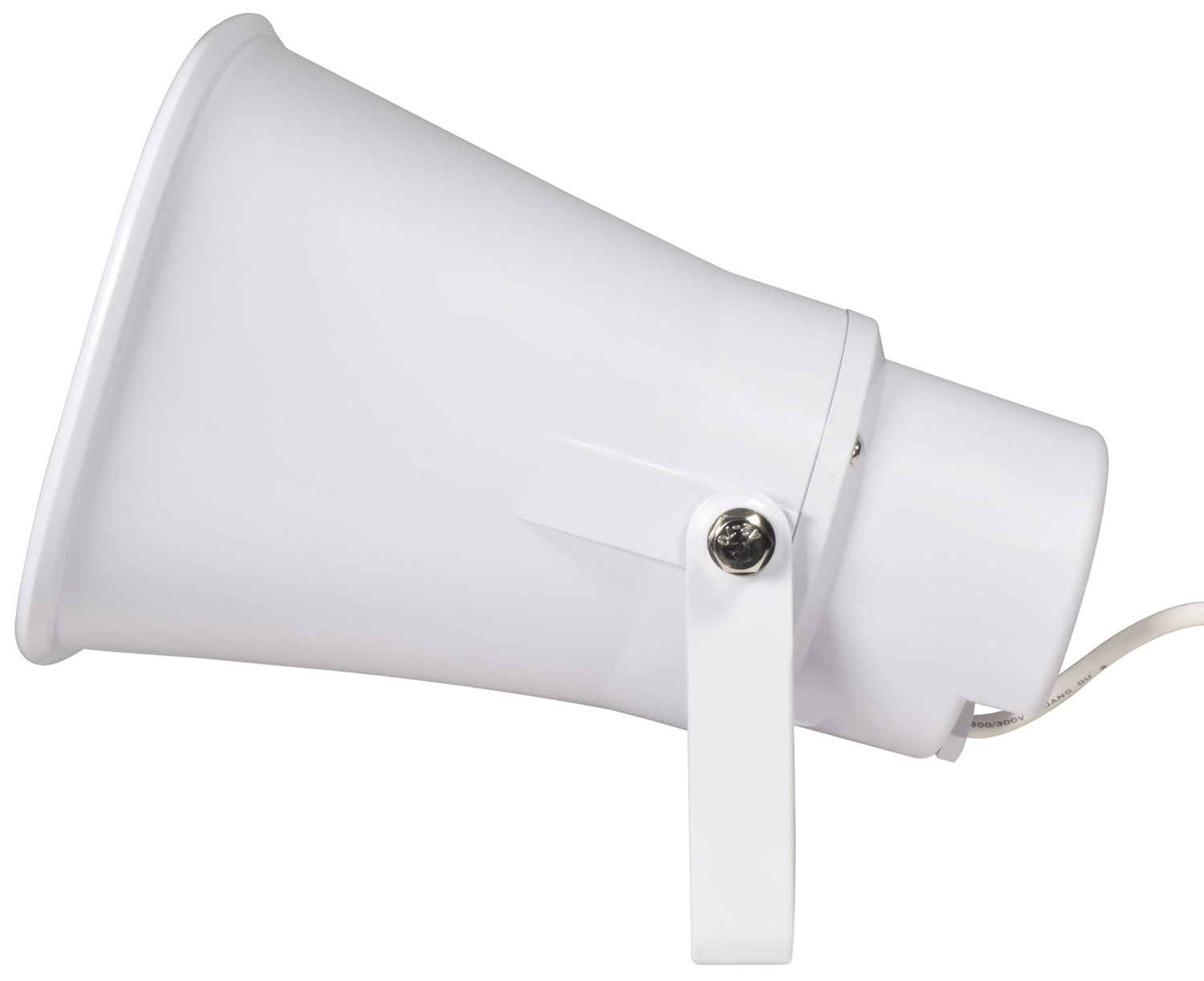

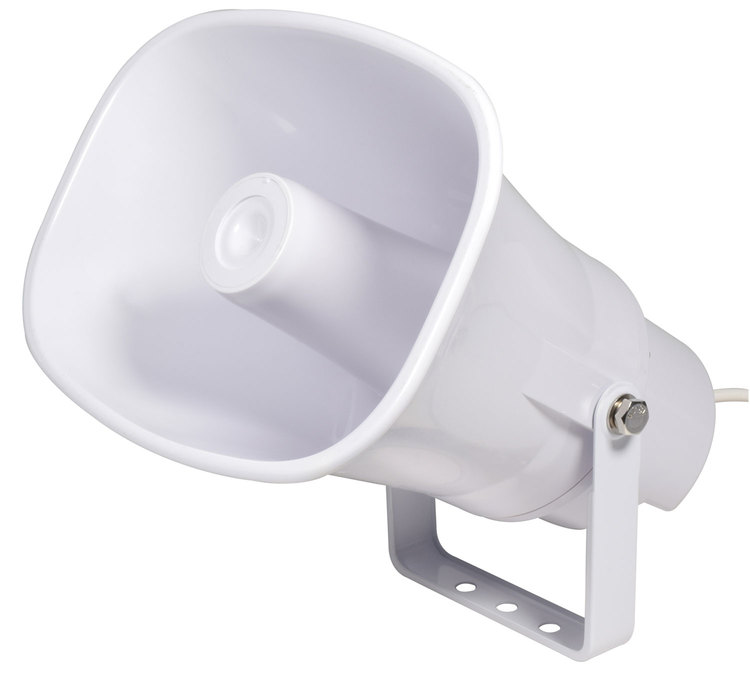

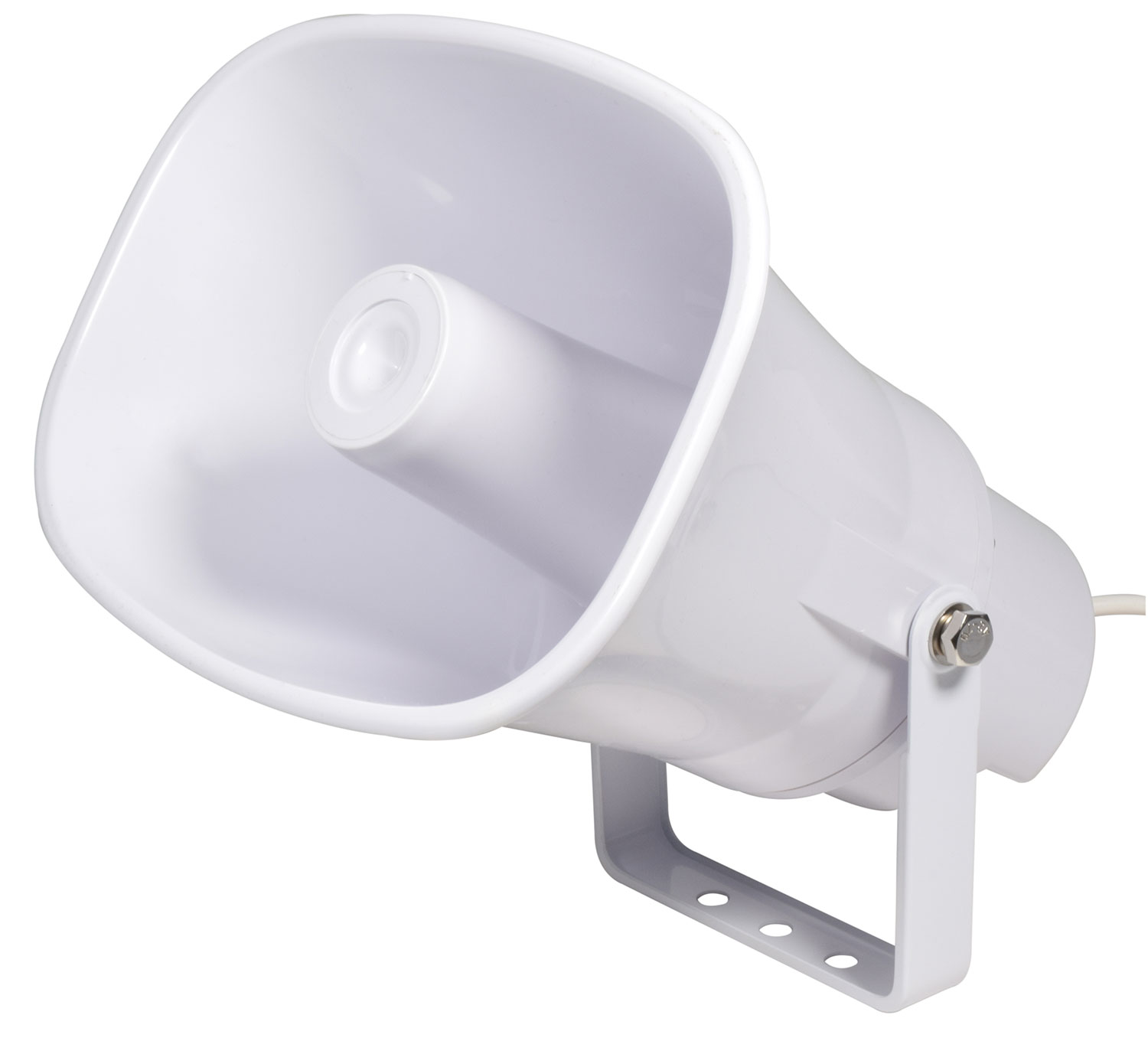

Moulded ABS weatherproof horn speakers with EN54-24 fire rating. Low impedance (8 Ohm) or 100V operation with switchable volume tappings (70V settings also included). Hard-wired with a fire-resistant cable and junction box, fitted with a ceramic screw terminal block and thermal fuse. Surface mounting via a powder-coated steel adjustable U-bracket. Designed for voice announcements and alerts in commercial PA installations.

  • EN54-24 fire systems certification
  • IP66 weatherproof
  • 5VB fireproof ABS material
  • 100V, 70V or 8 Ohm operation
  • Ceramic terminals and thermal fuse
  • Construction 5VB fire-rated ABS housing, powder-coated steel bracket
  • IP rating IP66
  • Fire rating EN54-24 certified
  • Connection Hard-wired fire-resistant cable, ceramic terminal block
  • Circuit protection Thermal fuse

Versions

  952.246UK 952.247UK
Power rms : 8 Ohms 15W 30W

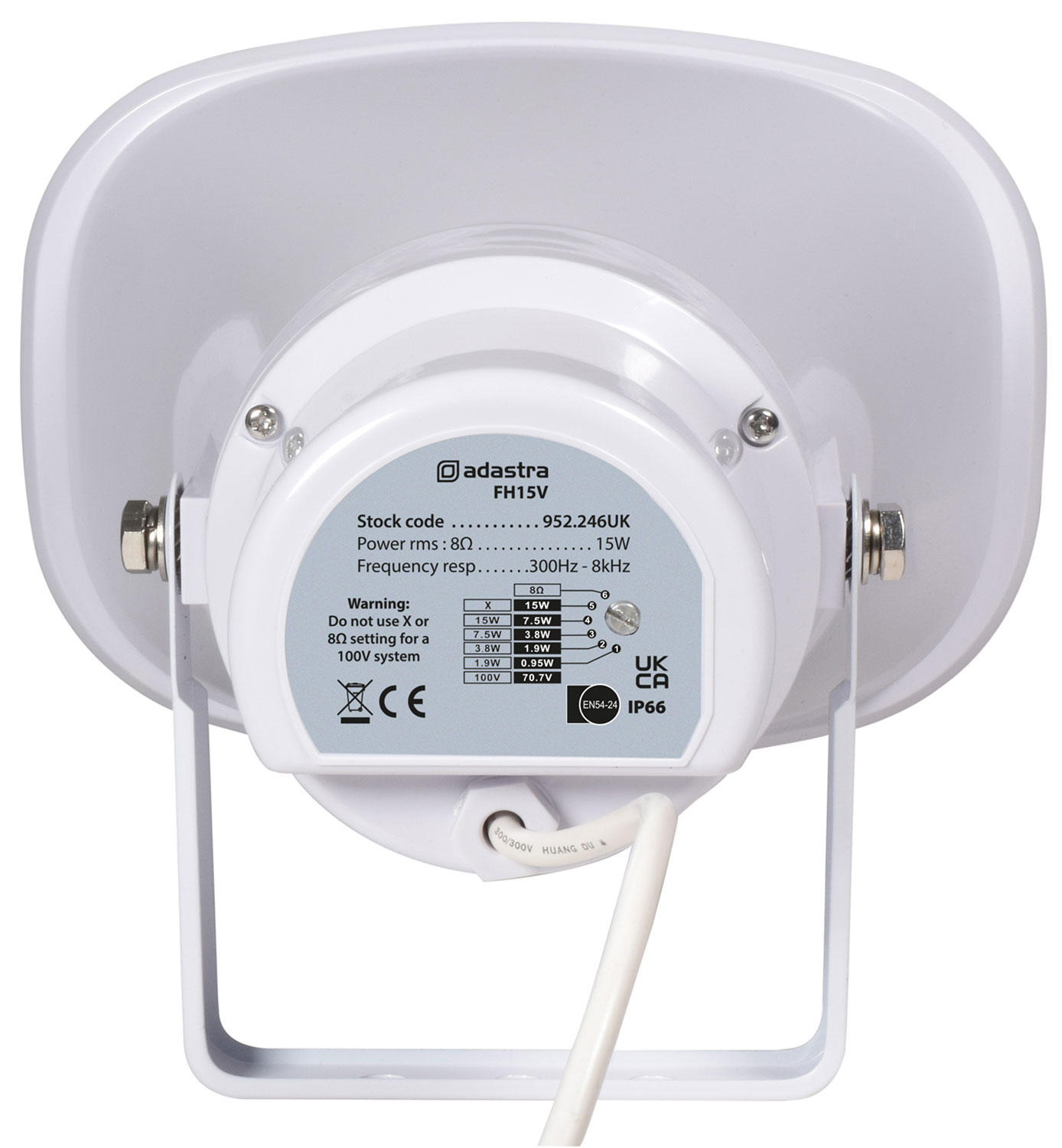

Tappings 1.9W, 3.8W, 7.5W, 15W (100V) & 8 Ohms 3.8W, 7.5W, 15W, 30W (100V) & 8 Ohms
SPL @ 1W/1m 105dB 113dB
Frequency response 300Hz - 8kHz 300Hz - 6.5kHz
Dimensions 250 x 220 x 162mm 300 x 282 x 203mm
Weight 1.53kg 2.26kg

Support : articles

100V line speakers

For many applications, it is necessary to drive many speakers with a single amplifier, giving greater coverage to multiple rooms or over a given area. 100V line is a solution to this problem.

Sunday, 1st January 2017

Speaker system types

Our speaker and amplifier products cover many environments and applications with a focus on clear and efficient sound coverage. Here we discuss the different types of systems

Sunday, 1st January 2017

Power Ratings: RMS vs Max vs Peak

A summary explaining the key differences between RMS, Max and Peak power ratings.

Tuesday, 10th March 2020

In the box

The box for this item contains :

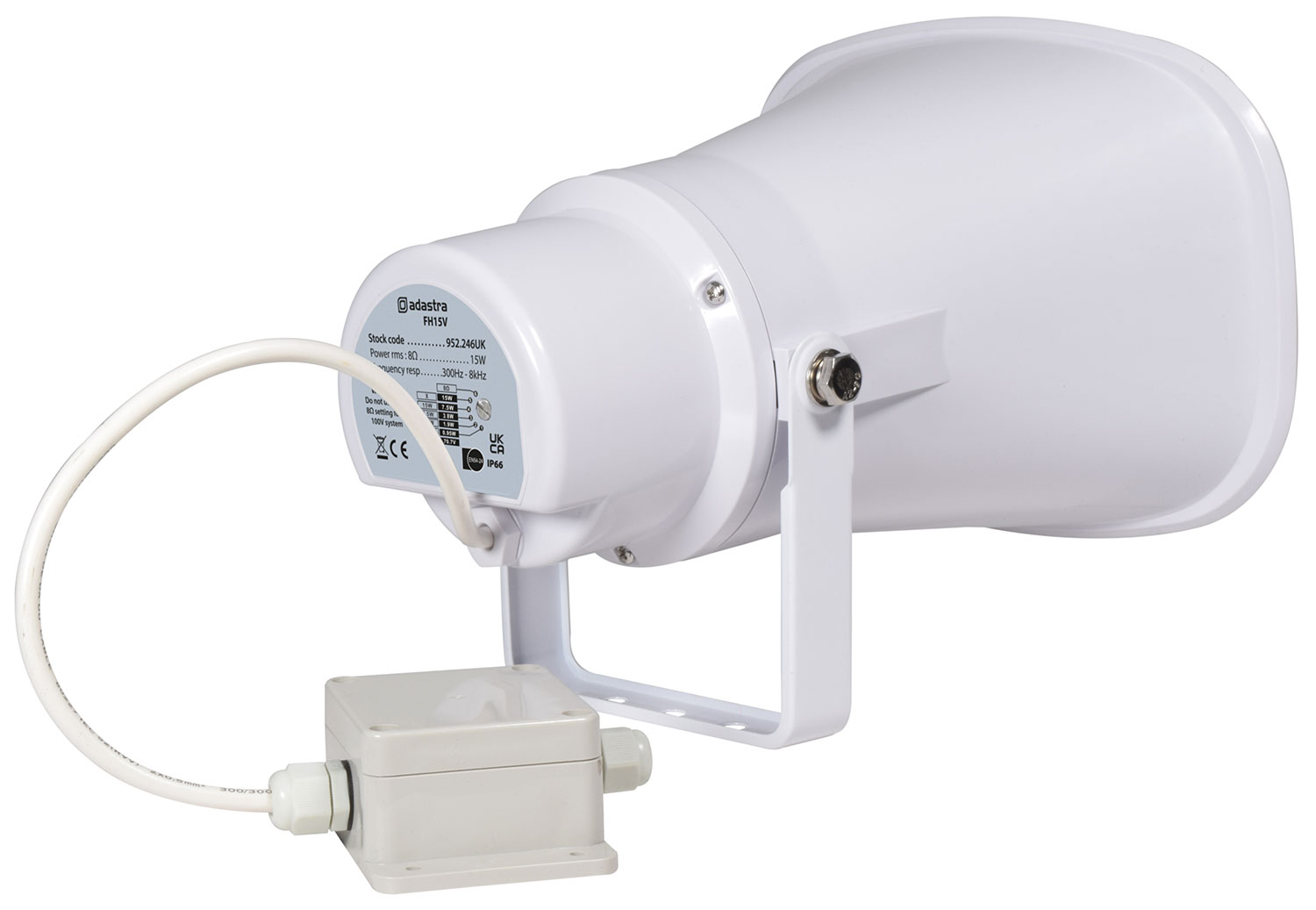

  • ABS horn speaker & hard-wired junction box
  • Mounting bracket & screws

Downloads

Instruction manual
For 952.246UK (84KB)
UK Declaration of conformity
For 952.246UK (248KB)
EU Declaration of conformity
For 952.246UK (236KB)
