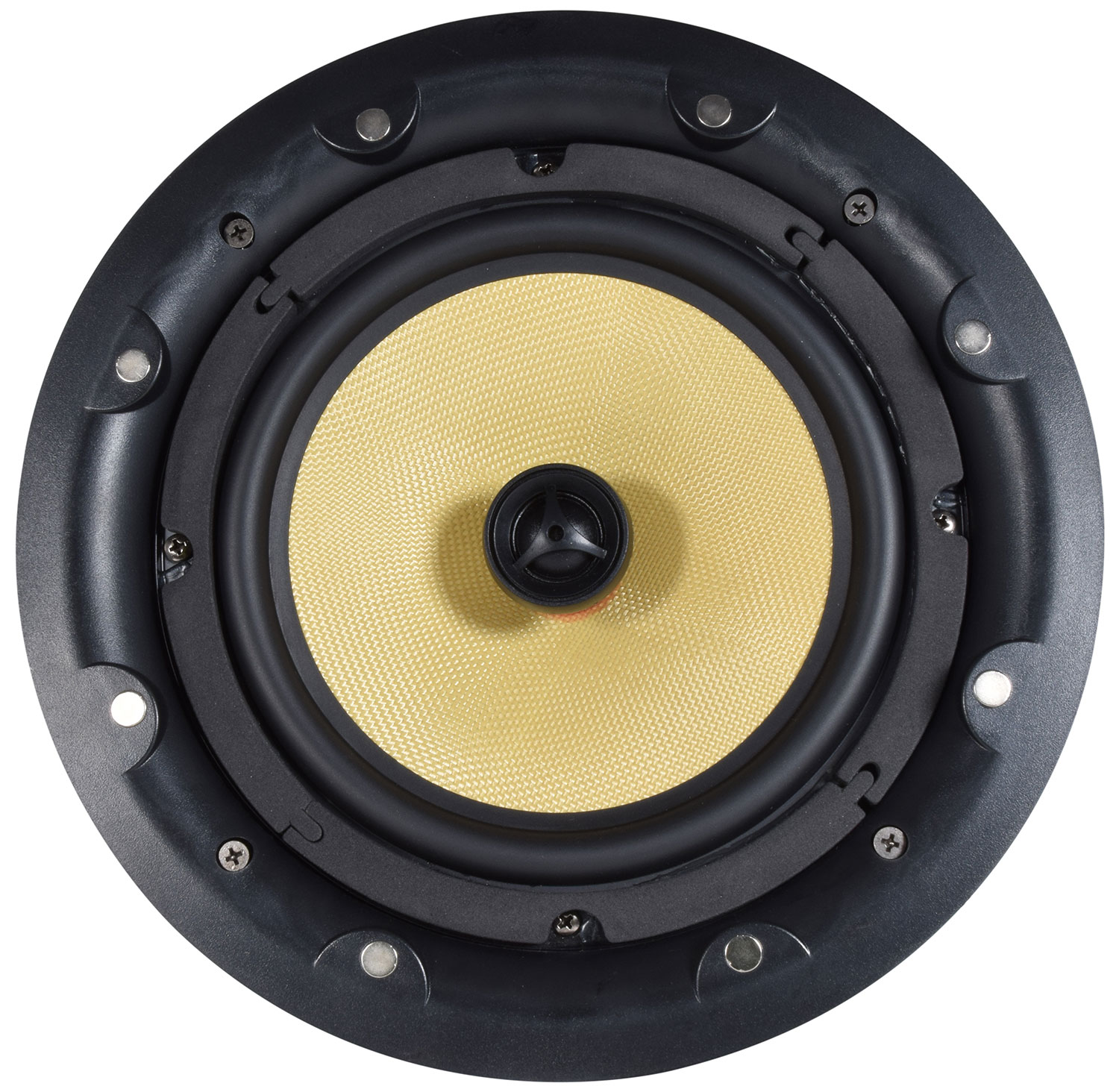

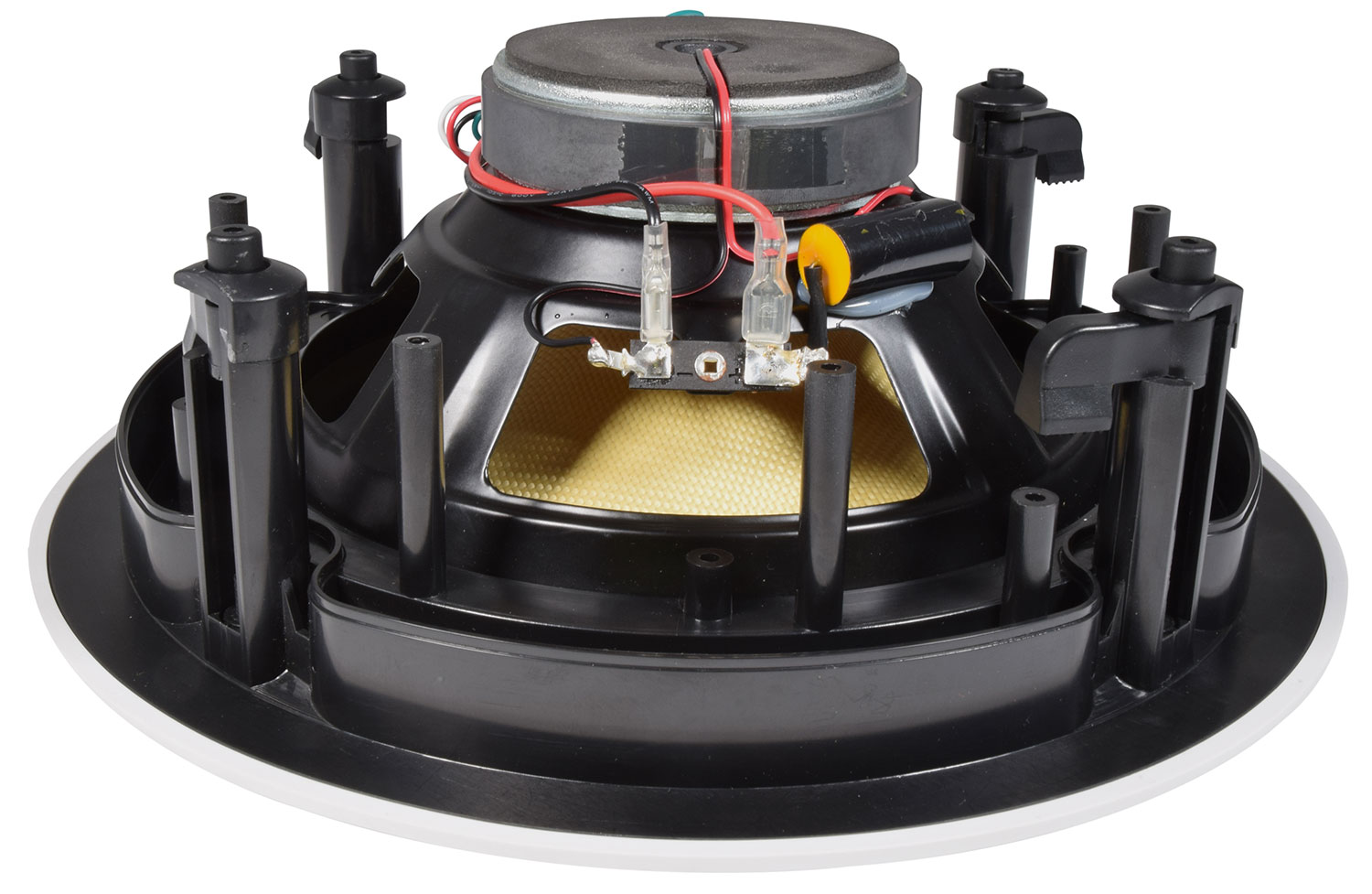

Premium KV-T series 100V Ceiling Speakers
8" 100V 40W
952.282UK
KV8T
Premium quality ABS 2-way ceiling speakers with magnetic frameless grille for high quality music reproduction in a sleek design. High energy glass-aramid main drivers are combined with a coaxial dome… more
- 3 x 100V volume tappings via 4-core cable
- 8 Ohm optional (bypass transfomer)

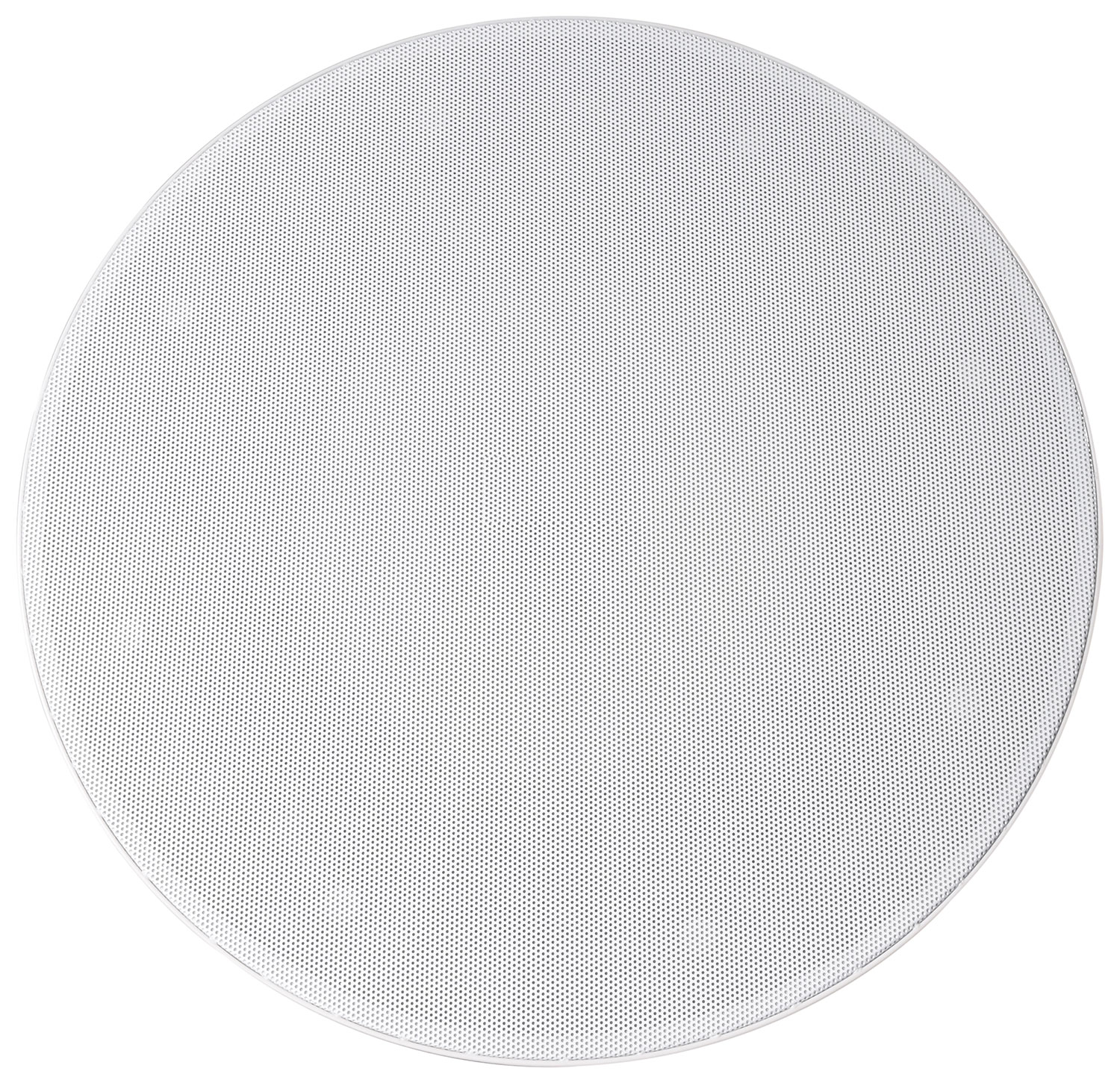

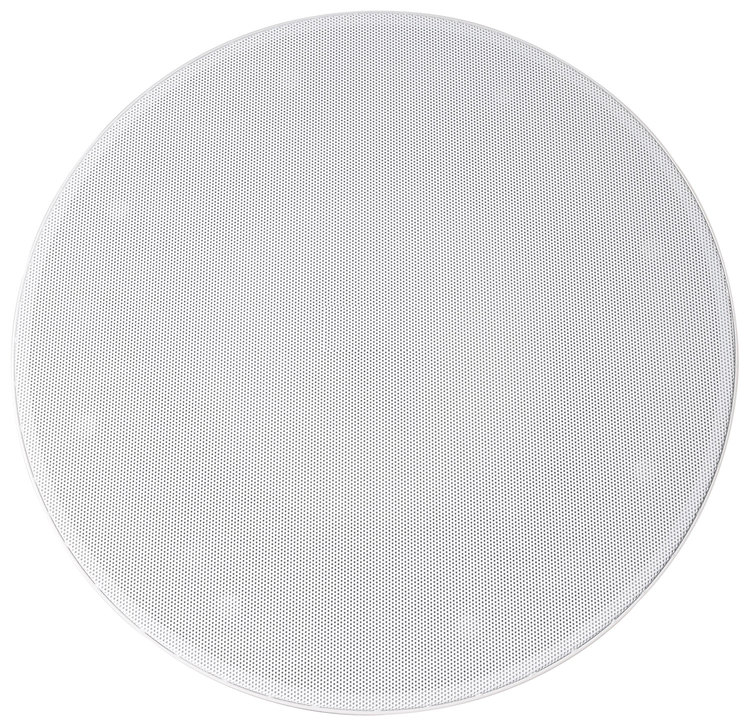

- Magnetic low profile steel grille
Premium KV-T series 100V Ceiling Speakers
Premium quality ABS 2-way ceiling speakers with magnetic frameless grille for high quality music reproduction in a sleek design. High energy glass-aramid main drivers are combined with a coaxial dome tweeter and coupled to a wave guide baffle for optimum sound dispersion. Each KV-T speaker is fitted with a 100V transformer with selectable volume tappings. High performance ceiling speakers to integrate with 100V voice and background music systems.
- 3 x 100V volume tappings via 4-core cable
- 8 Ohm optional (bypass transfomer)
- Magnetic low profile steel grille
- Heavy duty glass-aramid cone
- Supplied individually
- Impedance 250, 500, 1.3k Ohms or 8 ohms
- Tappings 10W, 20W, 40W & 8 ohms (80W)
- Magnet 465g
- Sensitivity 90dB (1W/1m)
- SPL max. 105dB
- Frequency response 50Hz-20kHz
- Cutout diameter 255mmØ
- Mounting depth 110mm
- Dimensions 110 x 281mmØ
- Construction ABS basket & powder coated steel grille
- Dispersion angle 120°
- HF driver 25mmØ (1") ASV diaphragm
In the Box
- KV-T series premium 100V ceiling speaker
