Electric Projector Screens
952.325UK
EPS120-16:9
A range of large format projector screens with built-in electric motor controlled via the in-line switch or remote control. The screen is housed in a white steel case with mounting brackets on eith...
- Fitted with In-line control switch
- RF remote control included
- Black border enhances the definition of the projected image
| Description | |
|---|---|
|
952.321UK
86" 4:3 Electric Motorised Projector Screen |
|
952.322UK
100" 4:3 Electric Motorised Projector Screen |
|
952.323UK
120" 4:3 Electric Motorised Projector Screen |
|
952.324UK
100" 16:9 Electric Motorised Projector Screen |
|
952.325UK
120" 16:9 Electric Motorised Projector Screen |
|
|
952.324EU
100" 16:9 Electric Motorised Projector Screen EU Version |
|
|
952.325EU
120" 16:9 Electric Motorised Projector Screen EU Version |
Electric Projector Screens

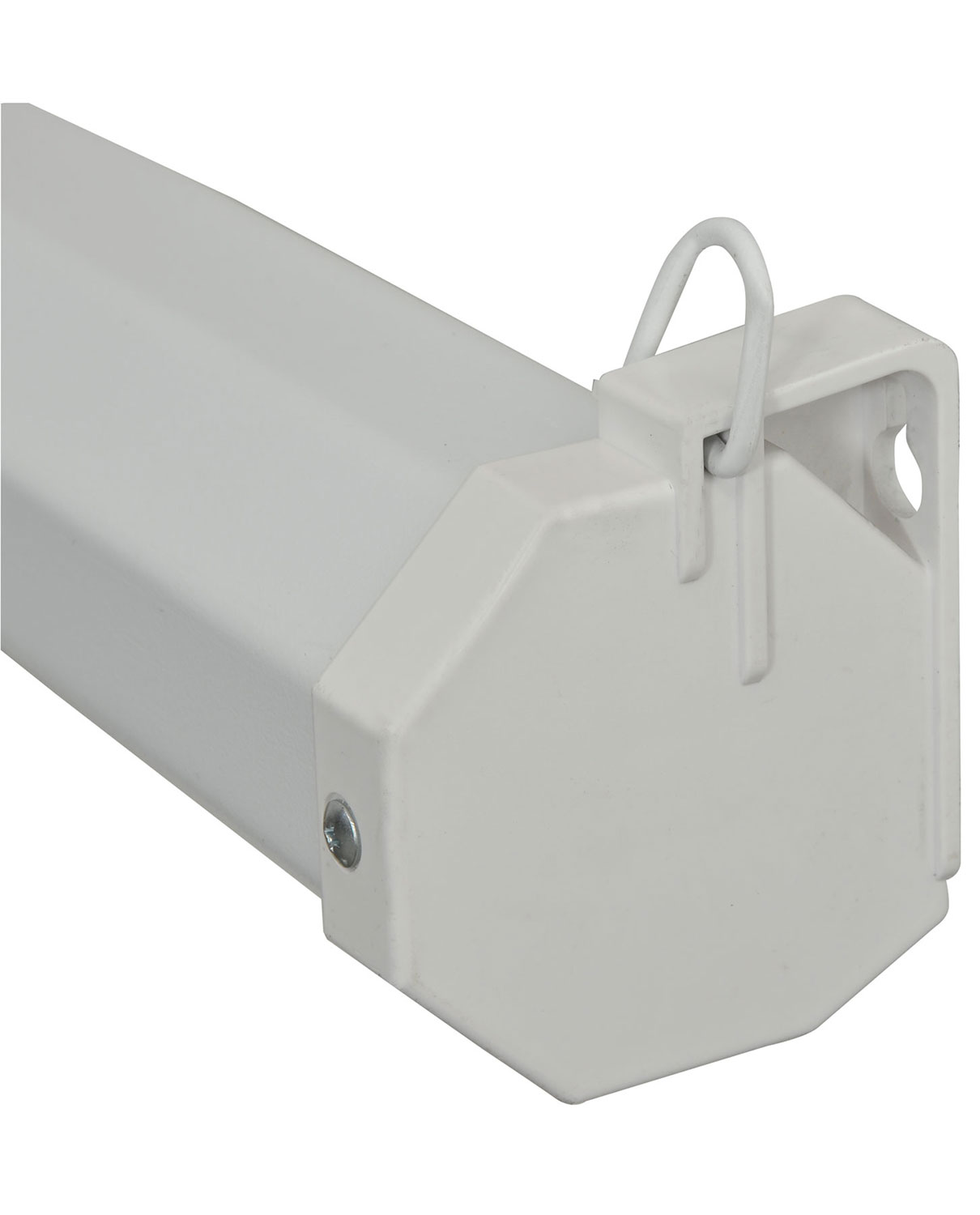

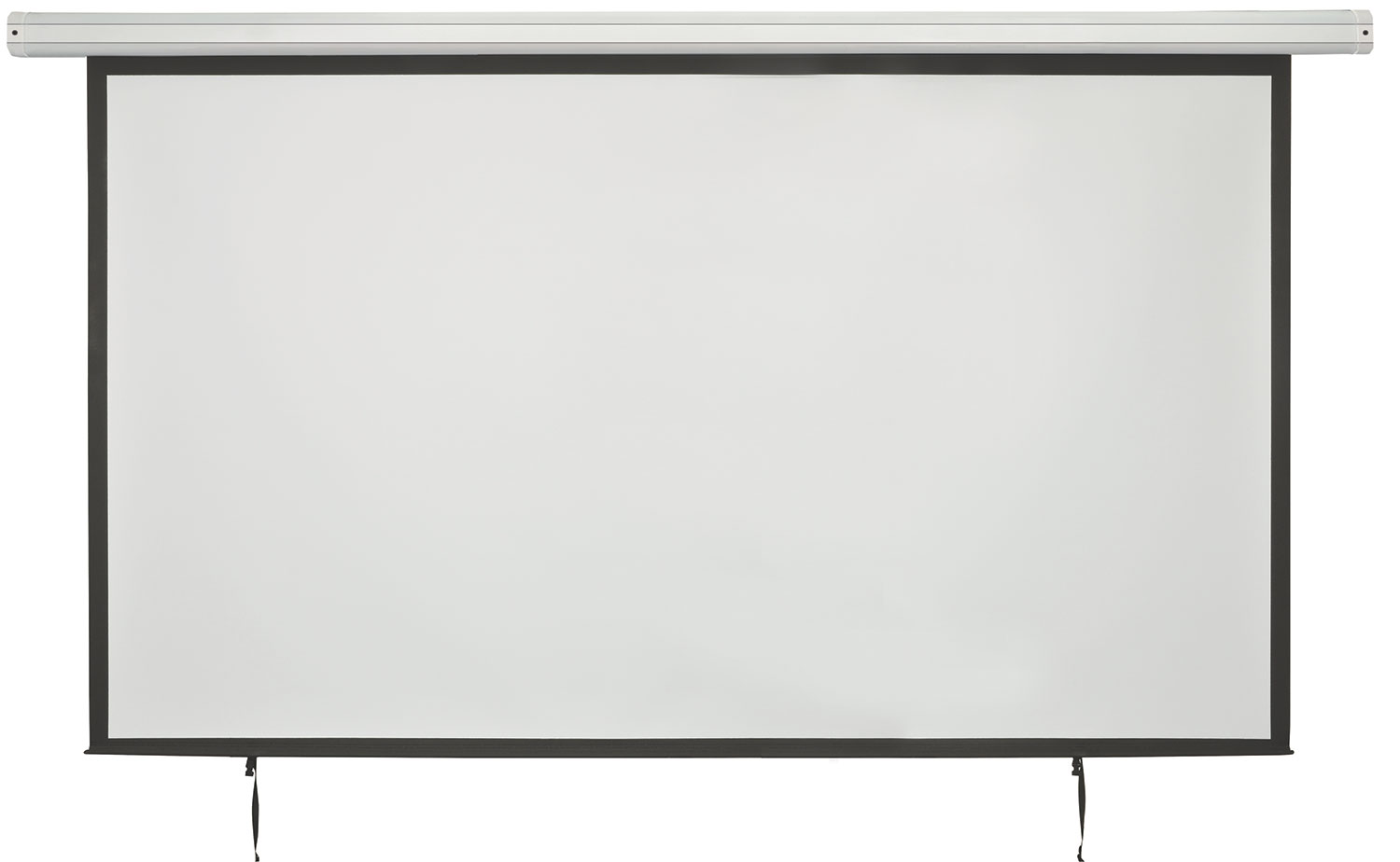

A range of large format projector screens with built-in electric motor controlled via the in-line switch or remote control. The screen is housed in a white steel case with mounting brackets on either end, allowing installation onto ceilings or walls. The screen itself has a weighted bottom bar to prevent the screen jamming in the case or curling. Various sizes available for all types of installation such as classrooms, auditoriums or places of worship.

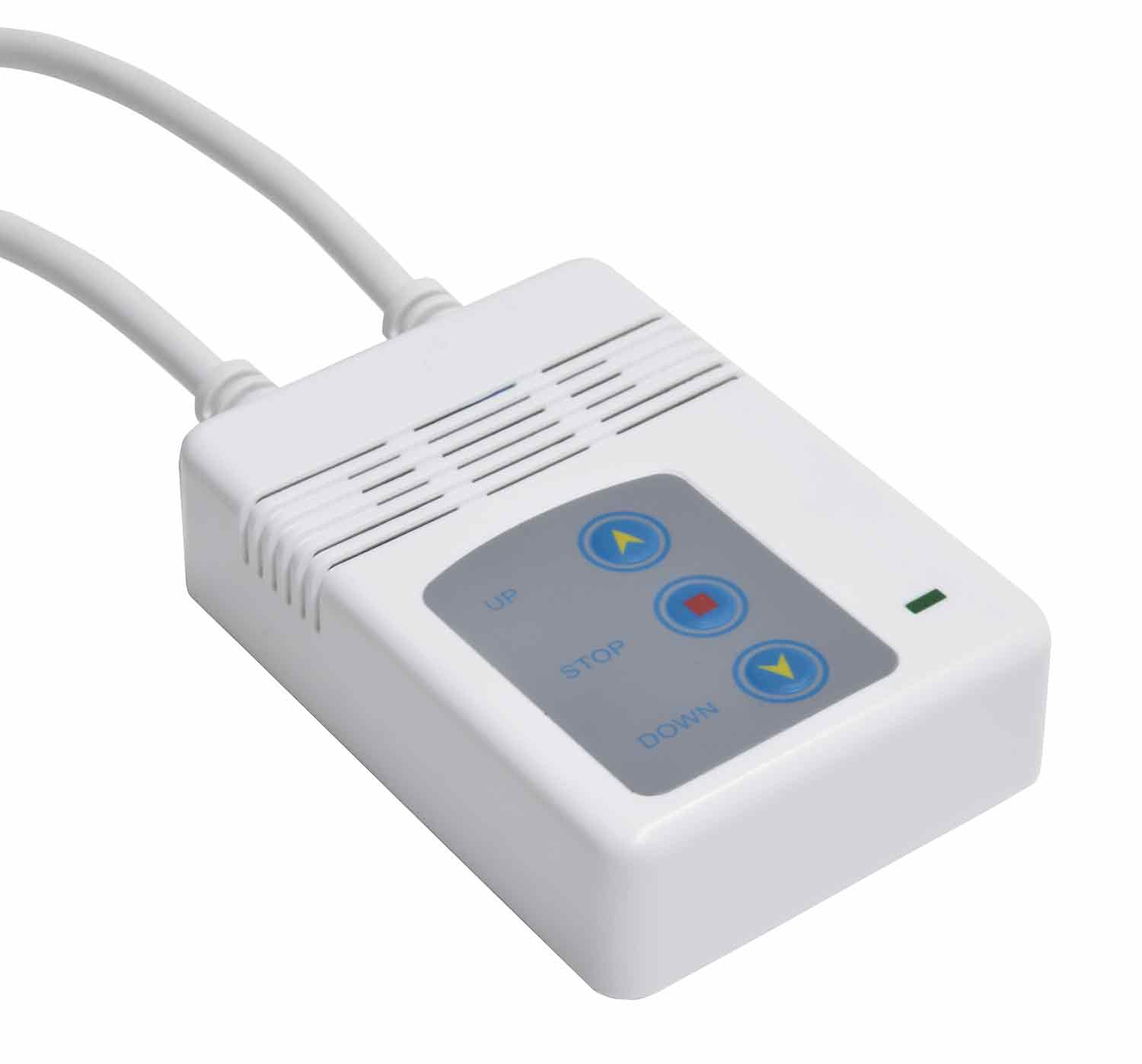

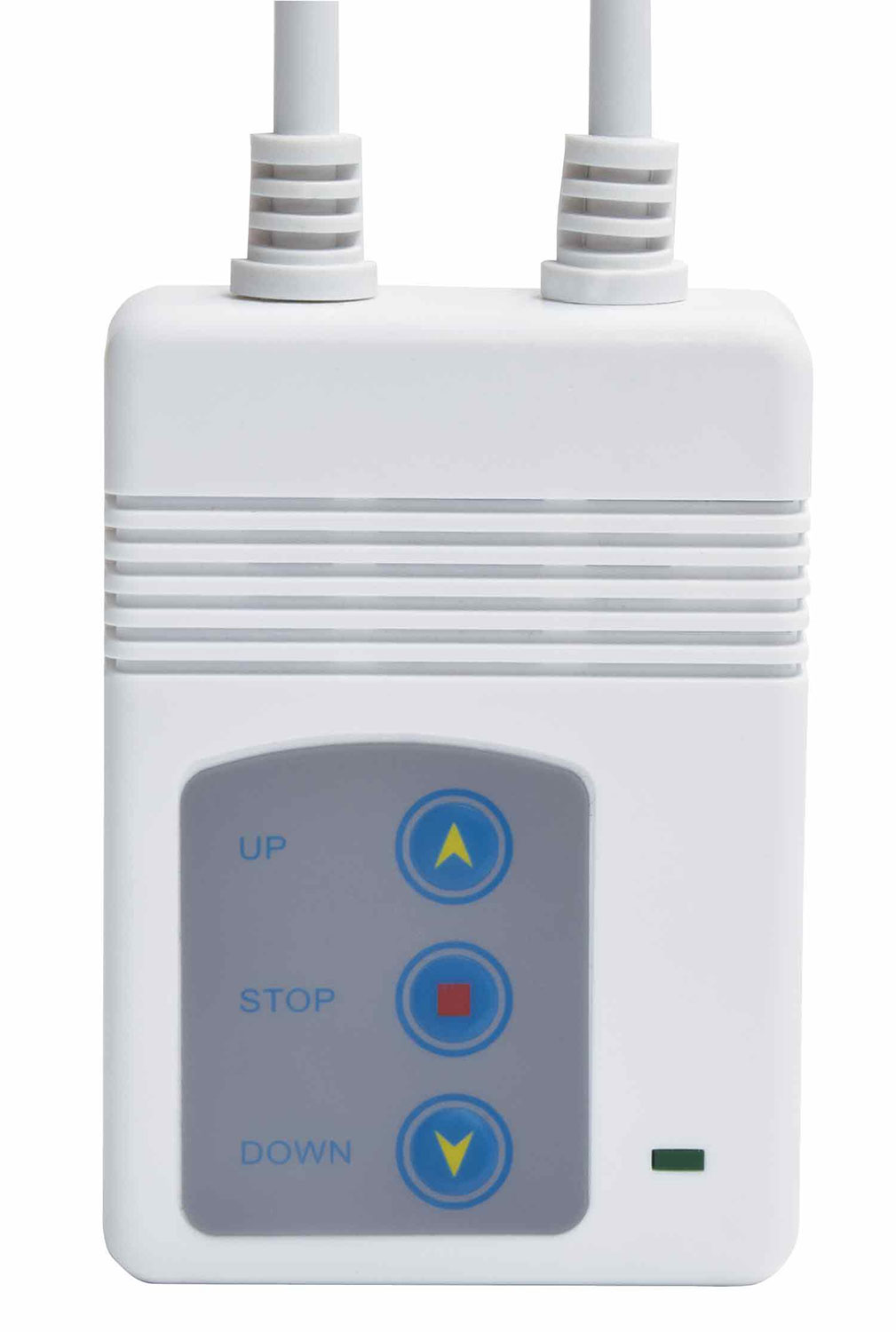

- Fitted with In-line control switch

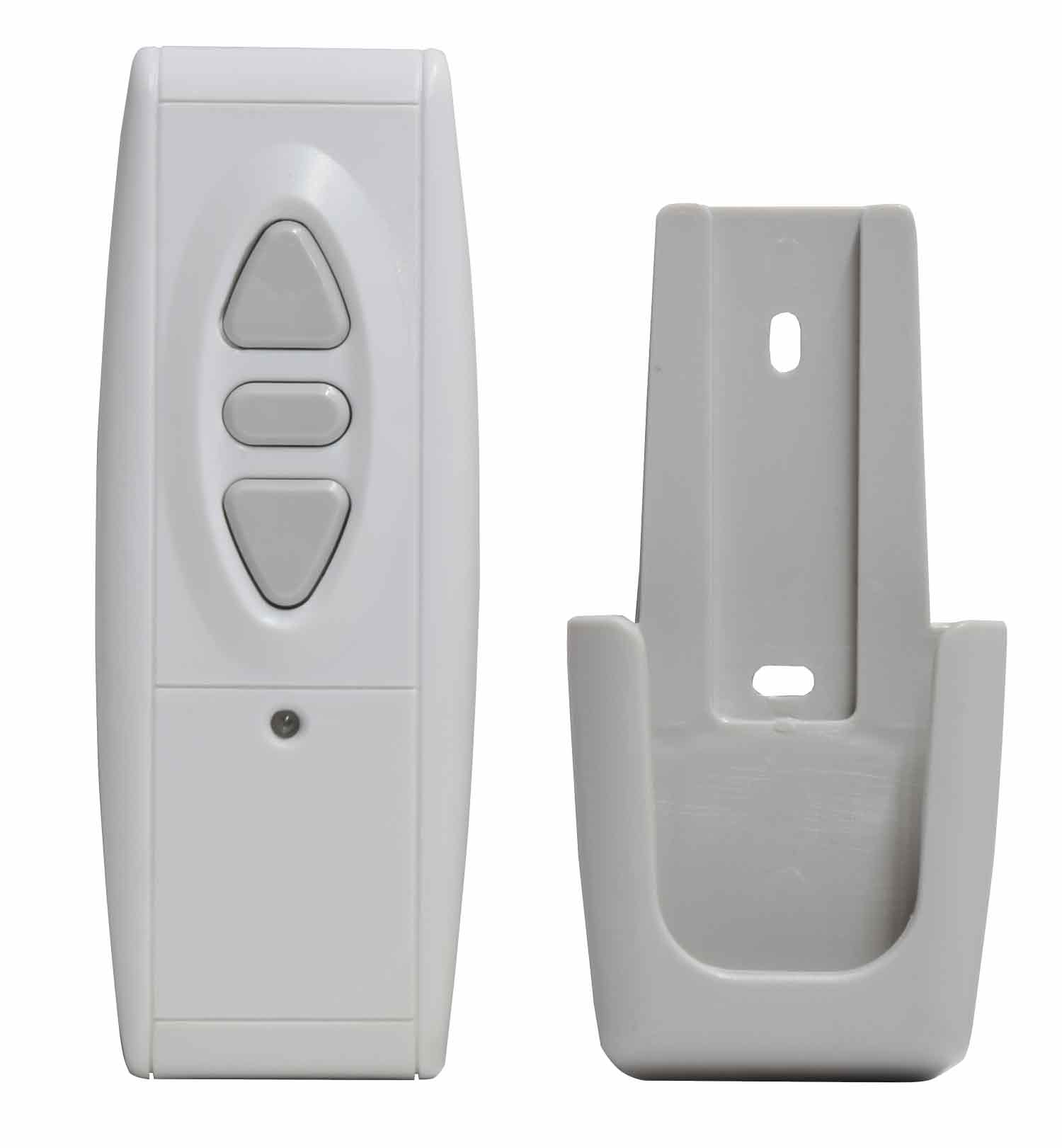

- RF remote control included
- Black border enhances the definition of the projected image
- Adjustable drop and retract distance limiter
- Flame retardant and mildew proof
- Low noise electric motor
- Available in 4:3 and 16:9 formats
- NOTE: Mains cable entry is on the right hand side of the unit
- Power supply 230Vac, 50Hz
- Gain 1.1
- Border size 40mm
- Viewing angle 100°
- Screen colour Matte white
- Remote control frequency 433.92MHz
- Lead length plug to controller: 1.5m
- Lead length controller to housing: 1.5m
Versions
| 952.321UK | 952.322UK | 952.323UK | 952.324UK | 952.325UK | 952.324EU | 952.325EU | |
|---|---|---|---|---|---|---|---|
| Screen size | 86" (218cm) | 100" (254cm) | 120" (305cm) | 100" (254cm) | 120" (305cm) | 100" (254cm) | 120" (305cm) |
| Screen ratio | 4:3 | 4:3 | 4:3 | 16:9 | 16:9 | 16:9 | 16:9 |
| Max. drop | 1595mm | 1795mm | 2095mm | 1545mm | 1800mm | 1545mm | 1800mm |
| Screen dimensions | 1720 x 1300mm | 2000 x 1500mm | 2400 x 1800mm | 2210 x 1230mm | 2650 x 1480mm | 2210 x 1230mm | 2650 x 1480mm |
| Housing dimensions | 2040 x 88 x 88mm | 2320 x 88 x 88mm | 2720 x 88 x 88mm | 2520 x 88 x 88mm | 2980 x 88 x 88mm | 2520 x 88 x 88mm | 2980 x 88 x 88mm |
| Weight | 10kg | 12kg | 14kg | 13kg | 16kg | 13kg | 16kg |
In the box
The box for this item contains :
- Electric Screen with in-line control switch
- RF Remote control and wall mount bracket
- Screen drop adjusting tool
- User guide
