Electric Projector Screens

952.321UK EPS86-4:3

A range of large format projector screens with built-in electric motor controlled via the in-line switch or remote control. The screen is housed in a white steel case with mounting brackets on eith...

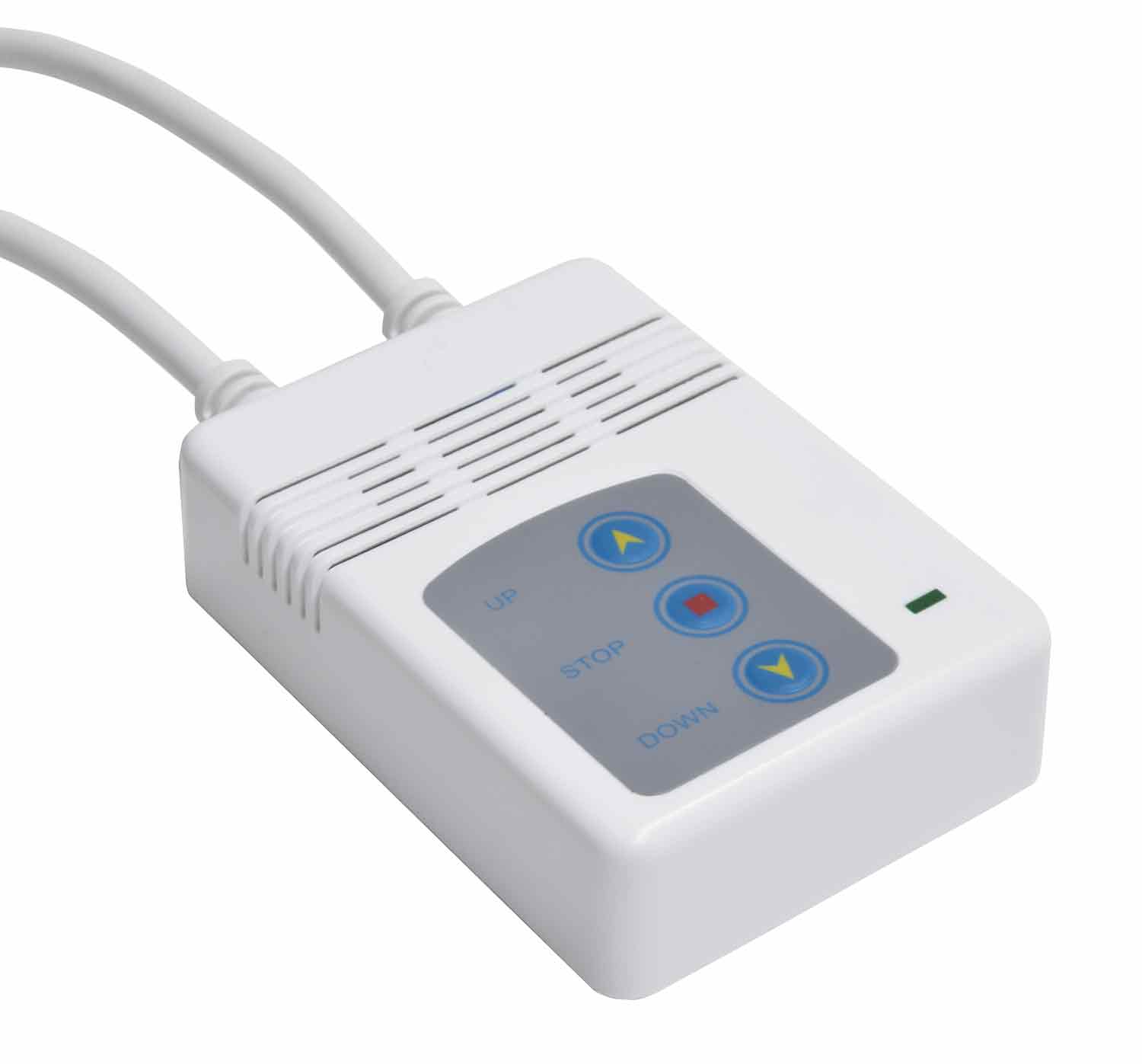

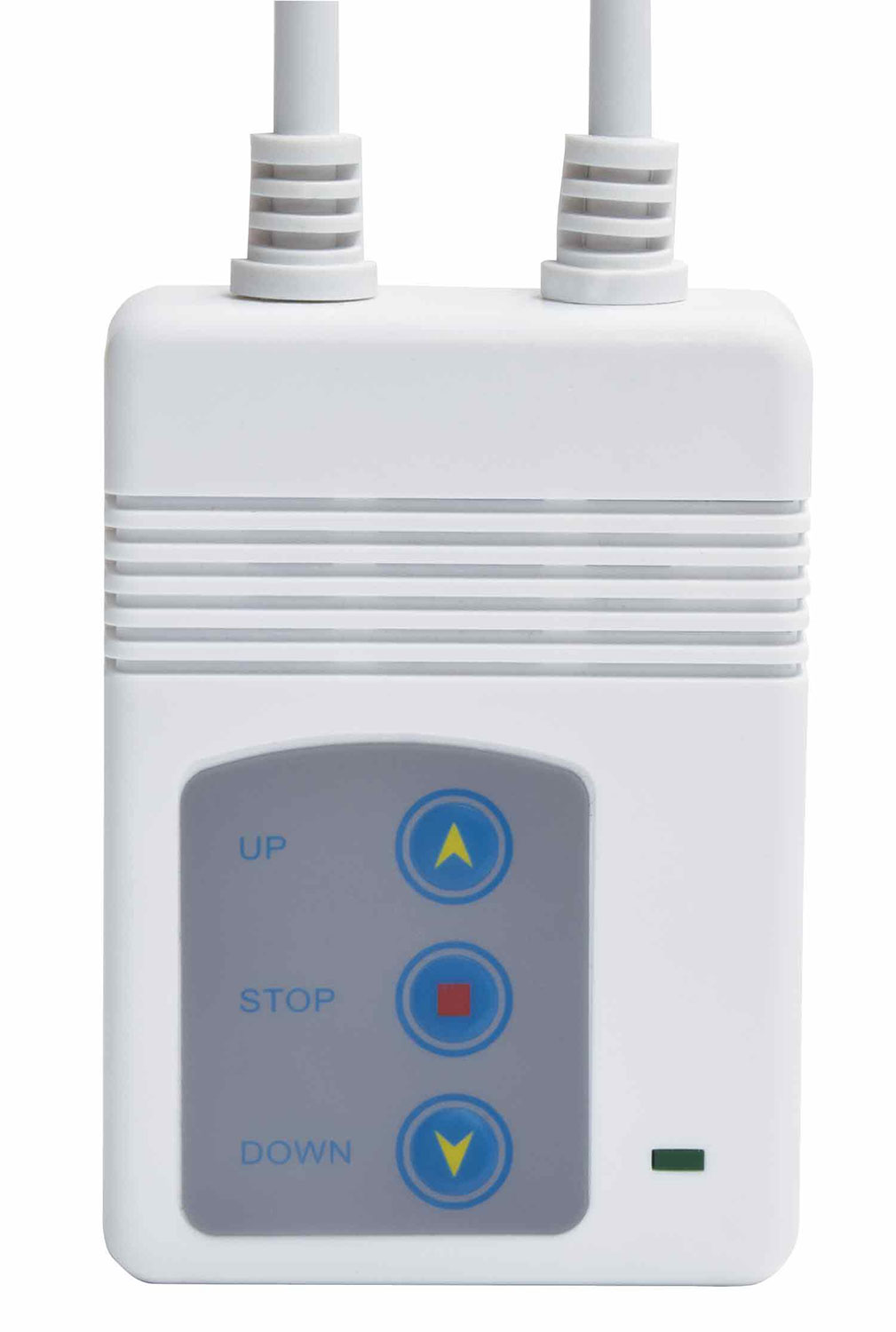

  • Fitted with In-line control switch

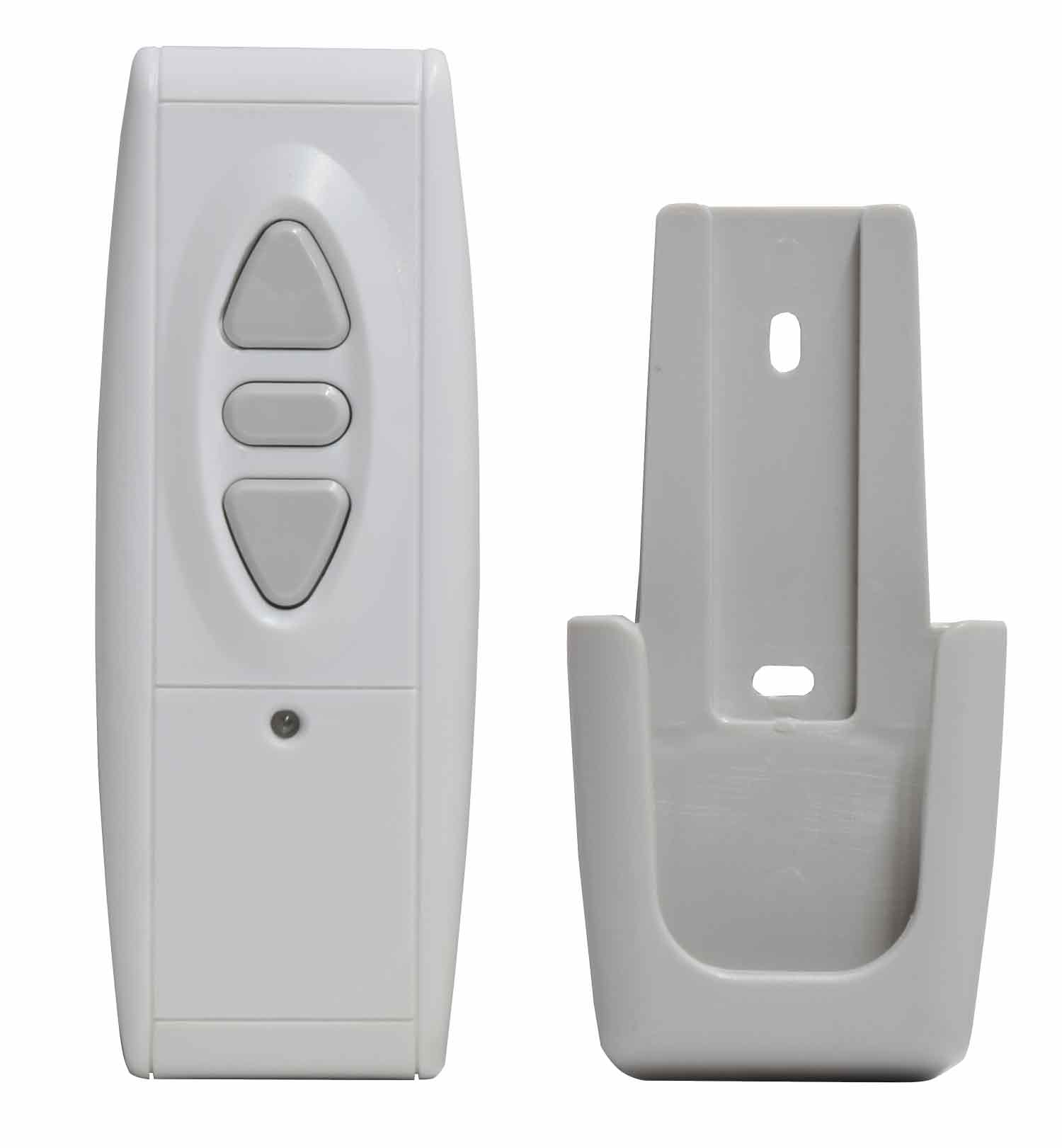

  • RF remote control included
  • Black border enhances the definition of the projected image
Full description Find retailer
Description Version Packed
952.321UK
86" 4:3 Electric Motorised Projector Screen 		86" 4:3 Box Label BW
952.322UK
100" 4:3 Electric Motorised Projector Screen 		100" 4:3 Box Label BW
952.323UK
120" 4:3 Electric Motorised Projector Screen 		120" 4:3 Box Label BW
952.324UK
100" 16:9 Electric Motorised Projector Screen 		100" 16:9 Box Label BW
952.325UK
120" 16:9 Electric Motorised Projector Screen 		120" 16:9 Box Label BW
952.324EU
100" 16:9 Electric Motorised Projector Screen EU Version 		100" 16:9 EU Box Label BW
952.325EU
120" 16:9 Electric Motorised Projector Screen EU Version 		120" 16:9 EU Box Label BW

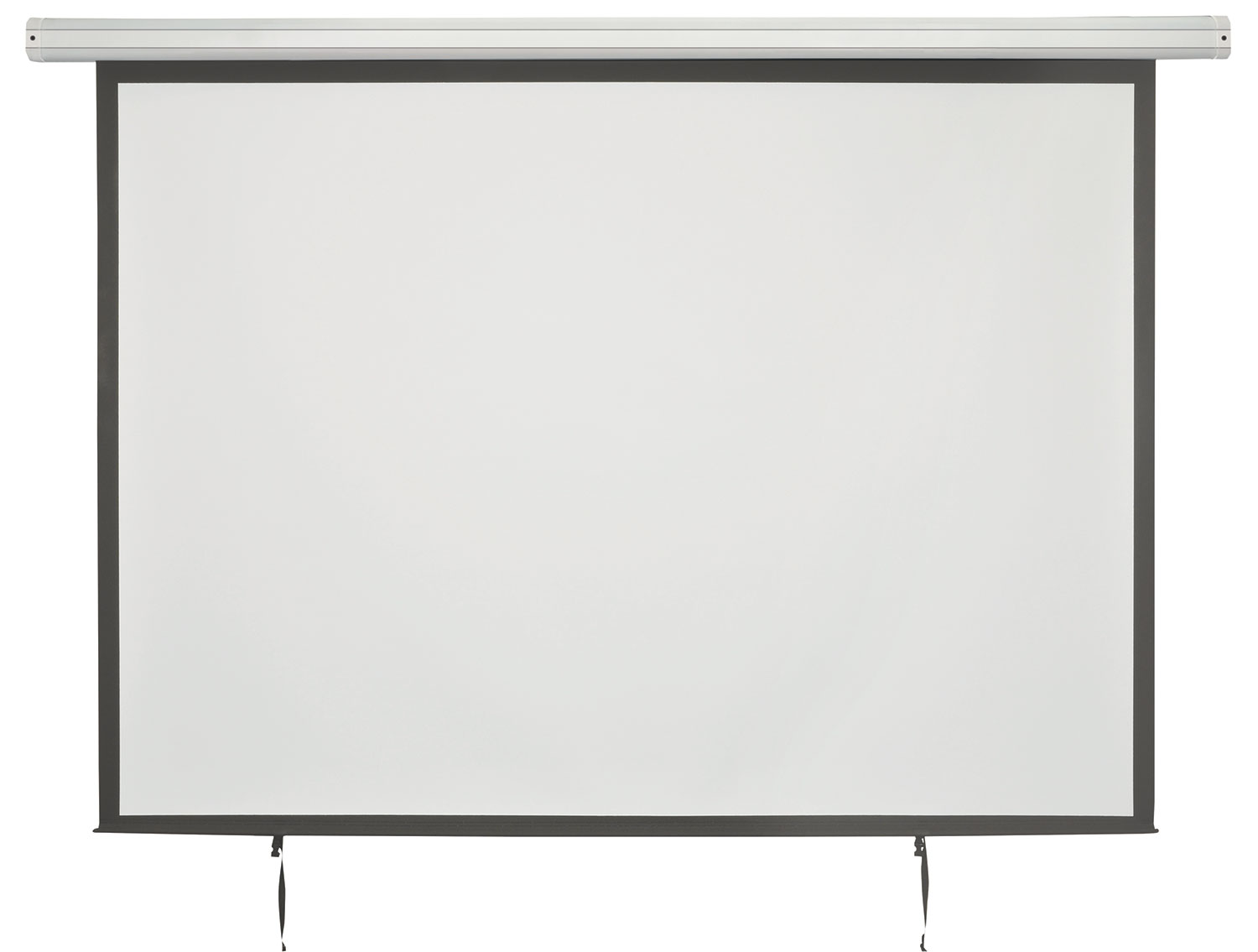

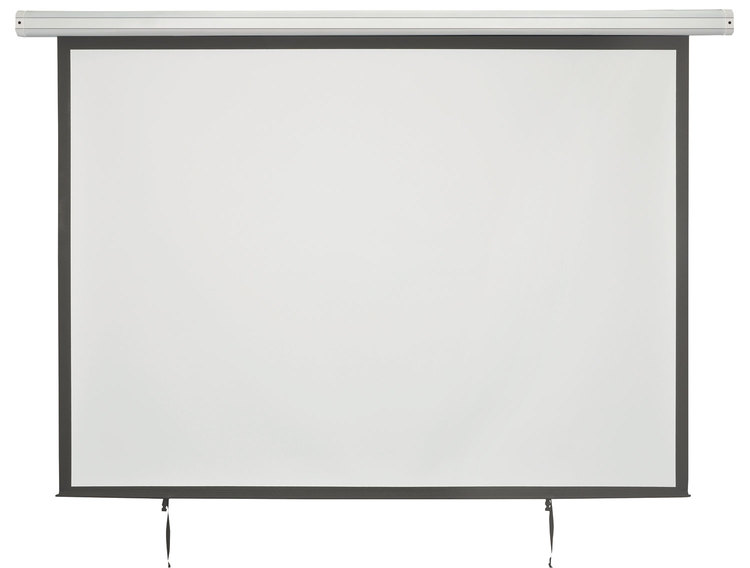

Electric Projector Screens

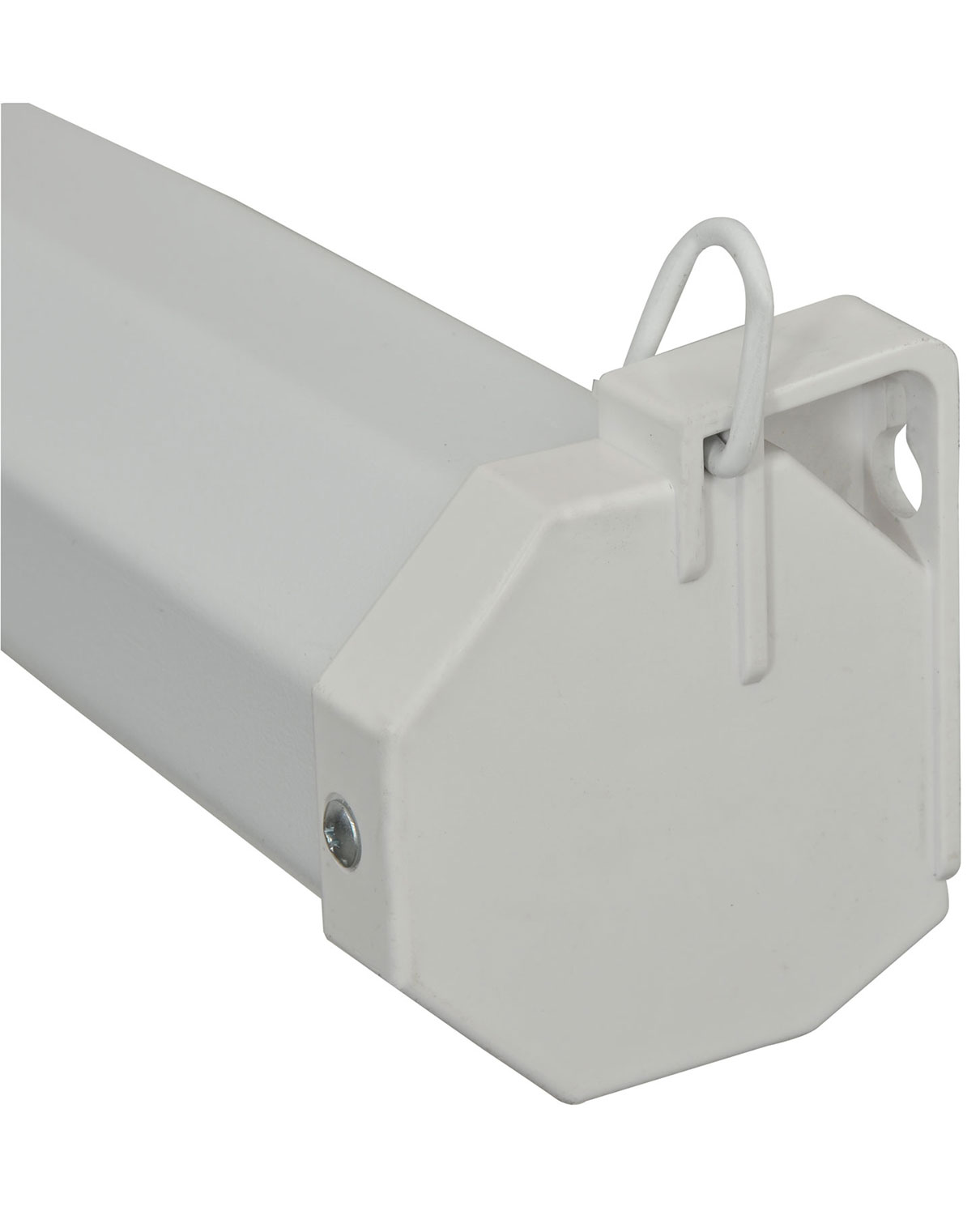

A range of large format projector screens with built-in electric motor controlled via the in-line switch or remote control. The screen is housed in a white steel case with mounting brackets on either end, allowing installation onto ceilings or walls. The screen itself has a weighted bottom bar to prevent the screen jamming in the case or curling. Various sizes available for all types of installation such as classrooms, auditoriums or places of worship.

  • Fitted with In-line control switch
  • RF remote control included
  • Black border enhances the definition of the projected image
  • Adjustable drop and retract distance limiter
  • Flame retardant and mildew proof
  • Low noise electric motor
  • Available in 4:3 and 16:9 formats
  • NOTE: Mains cable entry is on the right hand side of the unit

Specification : Common

  • Power supply 230Vac, 50Hz
  • Gain 1.1
  • Border size 40mm
  • Viewing angle 100°
  • Screen colour Matte white
  • Remote control frequency 433.92MHz
  • Lead length plug to controller: 1.5m
  • Lead length controller to housing: 1.5m

Specification : Versions

  952.321UK 952.322UK 952.323UK 952.324UK 952.325UK 952.324EU 952.325EU
Screen size 86" (218cm) 100" (254cm) 120" (305cm) 100" (254cm) 120" (305cm) 100" (254cm) 120" (305cm)
Screen ratio 4:3 4:3 4:3 16:9 16:9 16:9 16:9
Max. drop 1595mm 1795mm 2095mm 1545mm 1800mm 1545mm 1800mm
Screen dimensions 1720 x 1300mm 2000 x 1500mm 2400 x 1800mm 2210 x 1230mm 2650 x 1480mm 2210 x 1230mm 2650 x 1480mm
Housing dimensions 2040 x 88 x 88mm 2320 x 88 x 88mm 2720 x 88 x 88mm 2520 x 88 x 88mm 2980 x 88 x 88mm 2520 x 88 x 88mm 2980 x 88 x 88mm
Weight 10kg 12kg 14kg 13kg 16kg 13kg 16kg

Trade information

  952.321UK 952.322UK 952.323UK 952.324UK 952.325UK 952.324EU 952.325EU
Barcode / EAN 5015972158555 5015972158548 5015972158531 5015972158524 5015972158517 5015972218198 5015972218204
Tariff code 9010600000 9010600000 9010600000 9010600000 9010600000 9010600000 9010600000
Country of Origin CN CN CN CN CN CN CN
Package type Box Label BW Box Label BW Box Label BW Box Label BW Box Label BW Box Label BW Box Label BW
Package dimensions 2040 x 88 x 88mm 2320 x 88 x 88mm 2720 x 88 x 88mm 2520 x 88 x 88mm 2980 x 88 x 88mm 2520 x 88 x 88mm 2980 x 88 x 88mm
Package weight 11.50kg 13.50kg 15.50kg 14.50kg 18.00kg 14.50kg 18.00kg
Package quantity 1 unit 1 unit 1 unit 1 unit 1 unit 1 unit 1 unit
Carton dimensions 2300 x 140 x 140mm 2580 x 140 x 140mm 2980 x 140 x 140mm 2790 x 140 x 140mm 3230 x 140 x 140mm 2790 x 140 x 140mm 3230 x 140 x 140mm
Carton weight 11.50kg 13.50kg 15.50kg 14.50kg 18.00kg 14.50kg 18.00kg
Carton quantity 1 package 1 package 1 package 1 package 1 package 1 package 1 package
Pack paper weight 2.62kg 2.93kg 3.15kg 3.15kg 3.42kg 3.15kg 3.42kg
Pack plastic weight 0.09kg 0.10kg 0.11kg 0.11kg 0.12kg 0.11kg 0.12kg

In the box

The box for this item contains :

  • Electric Screen with in-line control switch
  • RF Remote control and wall mount bracket
  • Screen drop adjusting tool
  • User guide

Support

Instruction manual
For 952.321UK (219KB)
Instruction manual
For 952.322UK (219KB)
Instruction manual
For 952.323UK (219KB)
Instruction manual
For 952.324UK (219KB)
Instruction manual
For 952.325UK (219KB)
