AS-6 mkII Audio Source Multi-Player

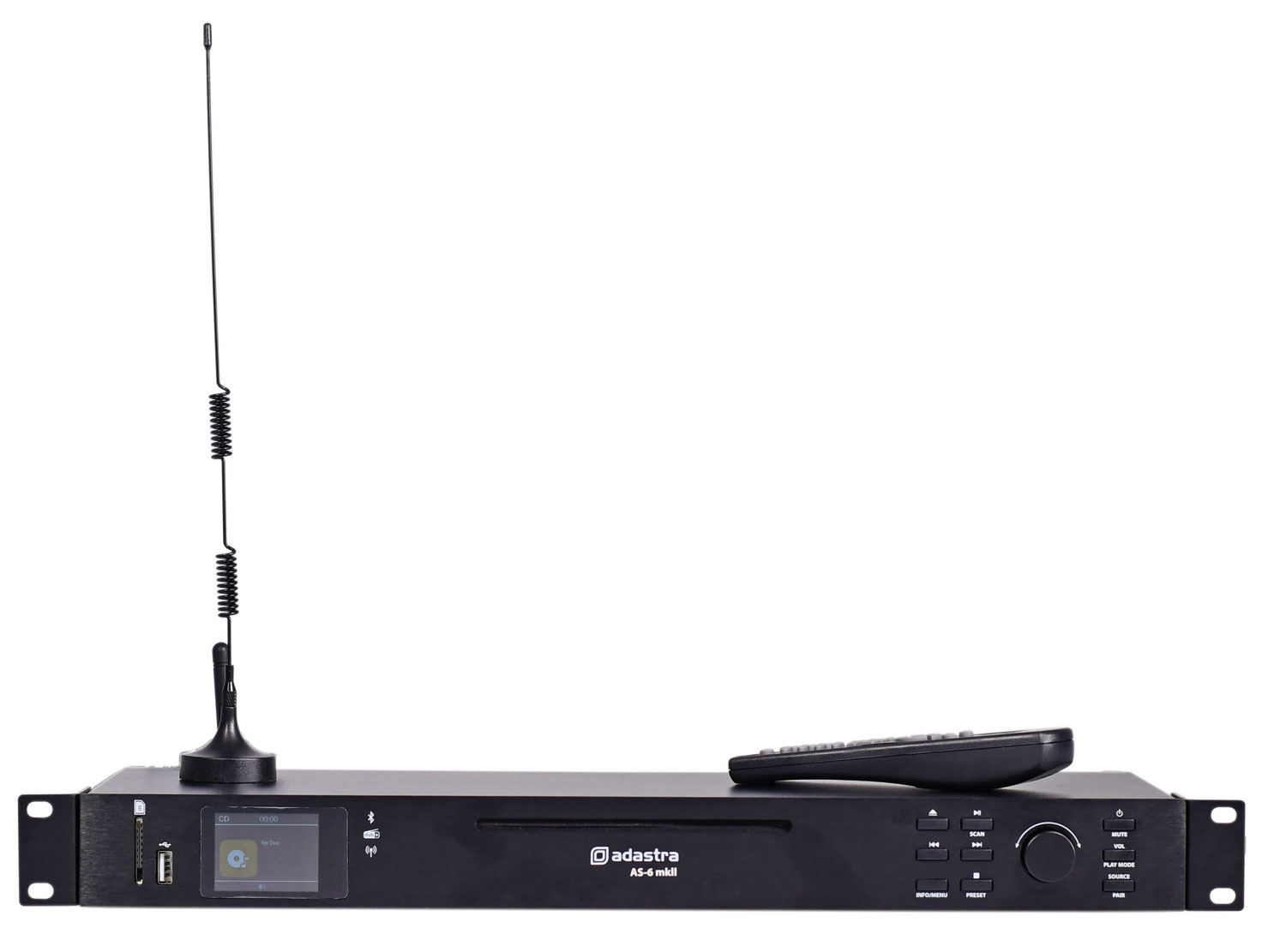

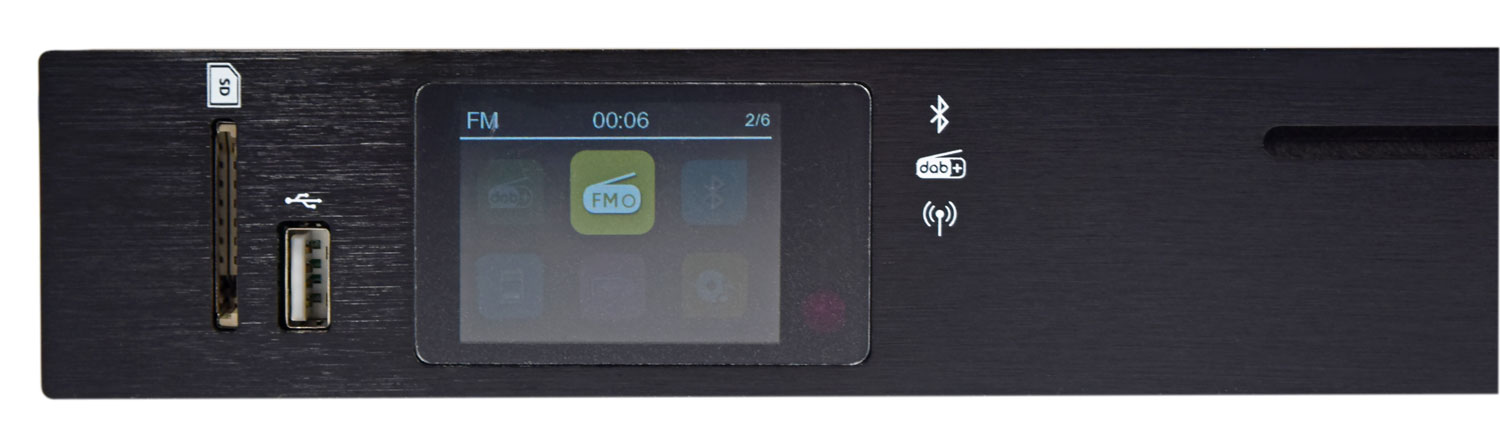

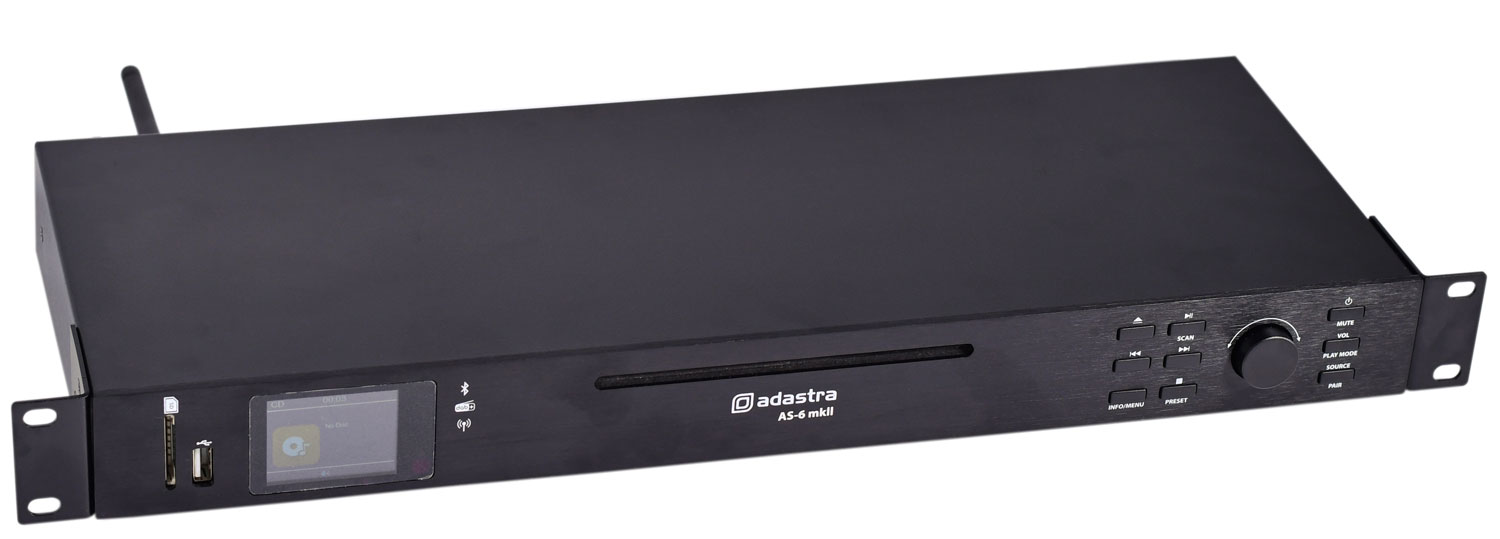

1U rack-mountable audio source with 6 different playback modes all in a single, compact unit. The clean and minimalist front panel is home to a full colour TFT display, which shows mode and settings information (including a clock in standby mode). Controls on the right side of the front panel operate the menus and playback, along with the included remote control handset. Modes include a slot-feed CD player, USB player, SD card player, FM tuner, DAB/DAB+ tuner and Bluetooth® receiver. A compact magnetic spring antenna is provided for FM and DAB+ reception which connects to an F socket on the AS-6 rear panel, or alternatively connect this socket to a roof mounted aerial for best possible reception. This mkII model has Left + Right outputs on both unbalanced RCA and balanced XLR connectors. A comprehensive solution for playback in any sound system installation requiring background music and other continuous program material.

• Unbalanced and balanced outputs
• Slot-feed CD player
• Bluetooth receiver
• USB/SD audio player
• DAB/DAB+/FM tuner
• Supplied with magnetic DAB/FM antenna
• Supplied with handheld remote control

• Power supply 230Vac, 50Hz (IEC)
• Fuse F1AL 250V (5 x 20mm)
• Power consumption ≤15W

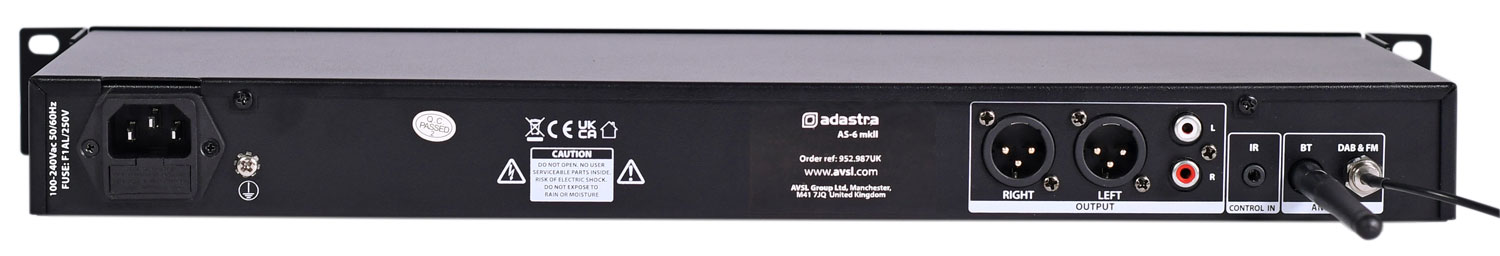

• Outputs L+R RCA (line level) + L+R XLRM (balanced)
• Modes CD, USB, SD, FM, DAB, Bluetooth
• Bluetooth version 5.0
• Frequency response 20Hz - 20kHz (CD), 40Hz - 16kHz (USB/SD/DAB/FM/BT)
• THD 0.03% (CD), 0.05% (USB/SD), 0.10% (DAB/FM)
• SNR ≥75dB (CD/USB/SD), ≥65dB (FM)
• Tuning range 87.5 - 108MHz (FM) ,160MHz - 240MHz (DAB/DAB+)
• Dimensions 482 x 167 x 44mm (1U)
• Weight 2.35kg
