100V line speakers
For many applications, it is necessary to drive many speakers with a single amplifier, giving greater coverage to multiple rooms or over a given area. 100V line is a solution to this problem.
MH Series Round Horn Speakers 100V
952.265UK
MH15V
PA horn speakers with 100V transformer offering several different power settings. The housing is moulded from high impact ABS material to offer maximum protection against physical or weather damage...
- IP66 rated weatherproof
- 100V rotary tapping selector

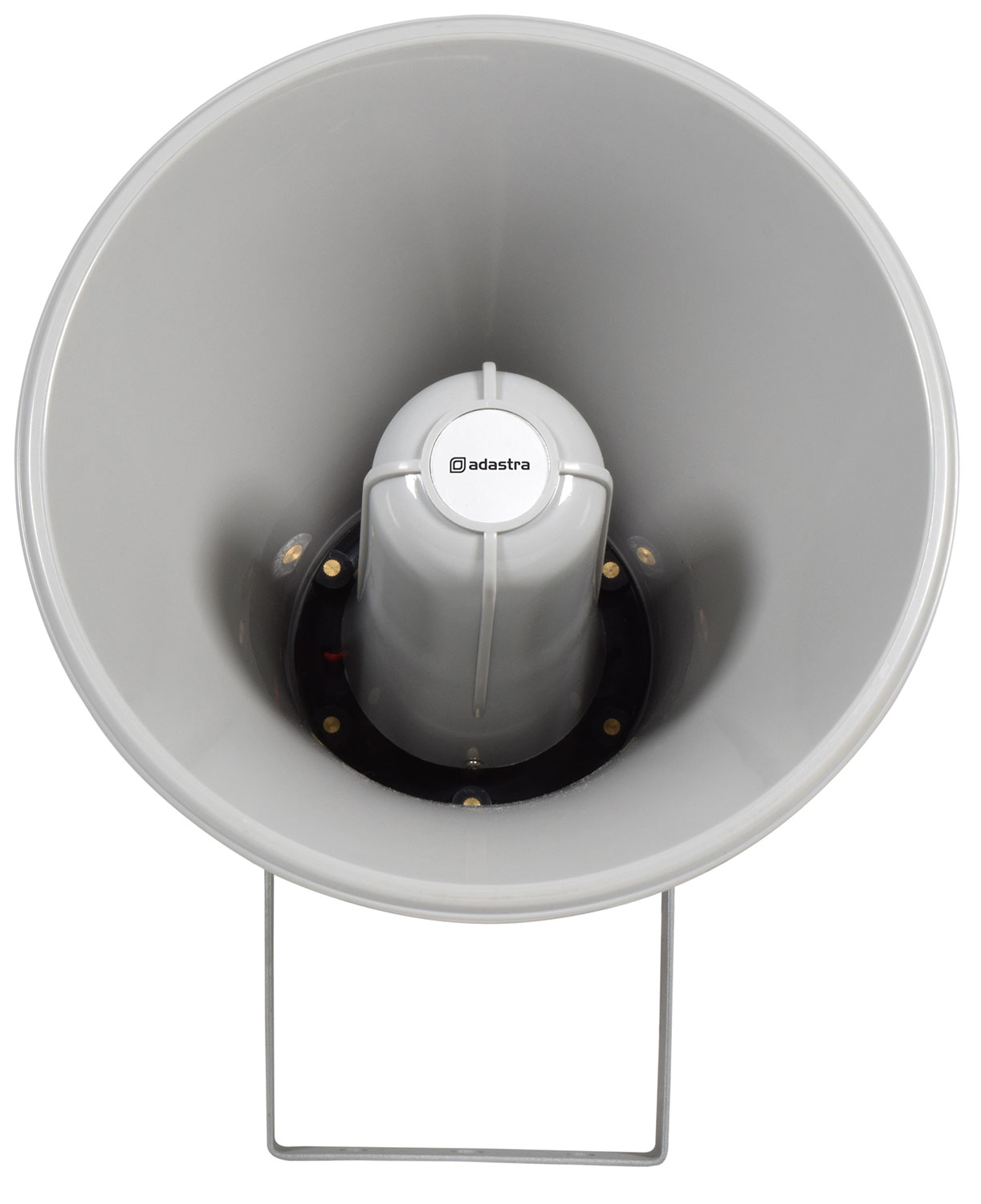

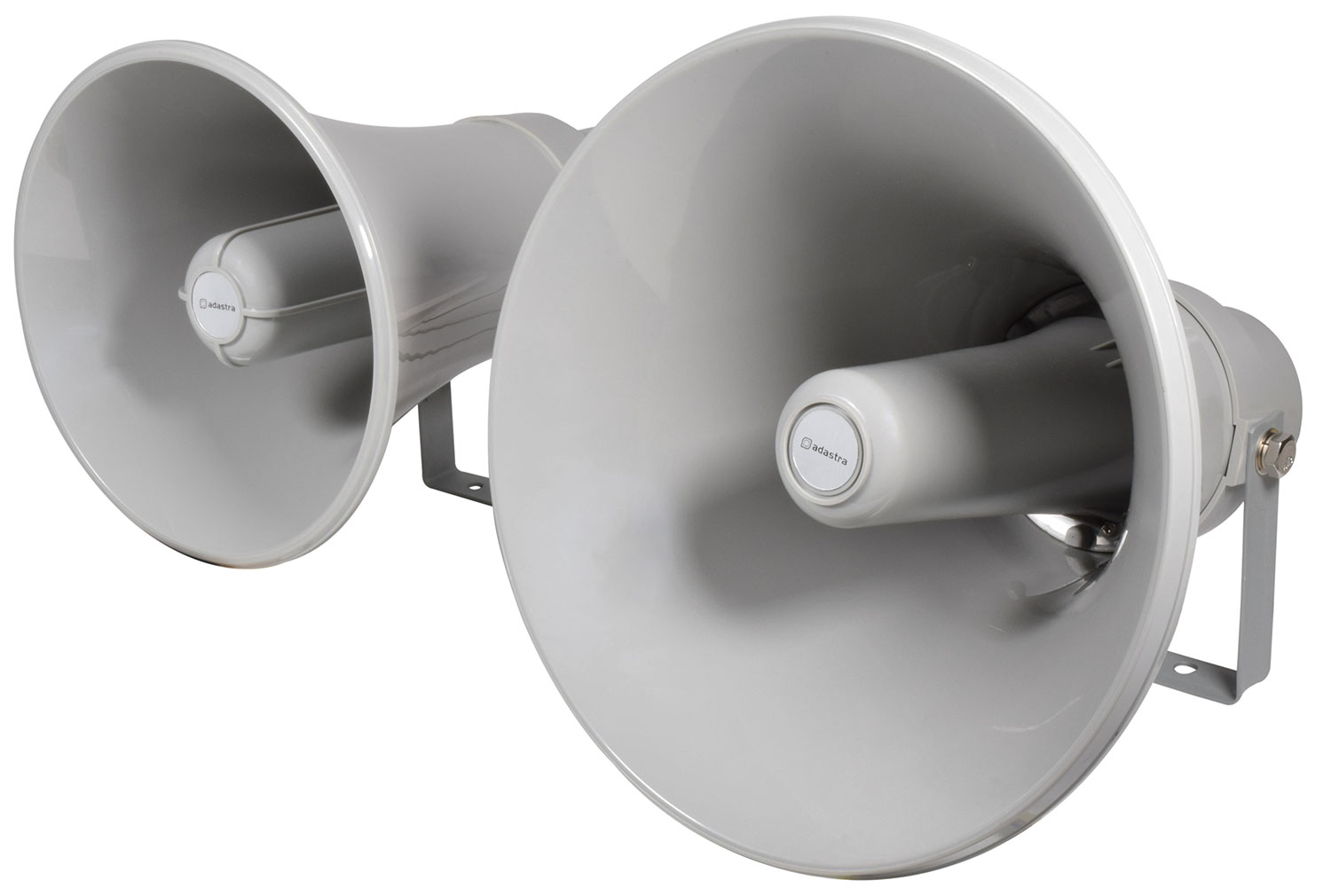

MH Series Round Horn Speakers 100V
PA horn speakers with 100V transformer offering several different power settings. The housing is moulded from high impact ABS material to offer maximum protection against physical or weather damage. Reflex loading and a conical flared aperture ensures efficient and directed sound delivery over large areas.
- IP66 rated weatherproof
- 100V rotary tapping selector
- IP rating IP66
Versions
| 952.265UK | 952.266UK | |
|---|---|---|
| Power handling : rms | 15W | 30W |
| 100V line tappings | 2.5W, 5W, 10W, 15W | 5W, 10W, 15W, 20W, 30W |
| Frequency response : ±3dB | 275Hz - 7kHz | 180Hz - 7kHz |
| Impedance | 4k / 2k / 1k / 670 Ohms | 2k / 1k / 670 Ohms / 500 Ohms / 330 Ohms |
| SPL @ 1W/1m | 106dB | 111dB |
| Dimensions | 295 x 230mmØ | 315 x 310mmØ |
| Weight | 1.44kg | 1.77kg |
Support : articles
Speaker system types
Our speaker and amplifier products cover many environments and applications with a focus on clear and efficient sound coverage. Here we discuss the different types of systems
Power Ratings: RMS vs Max vs Peak
A summary explaining the key differences between RMS, Max and Peak power ratings.
In the box
The box for this item contains :
- MH series round 100V horn speaker
