AVSL : Brands : Mercury : Product : Cable (Reels) : Loudspeaker : Pure Copper : 807.101UK

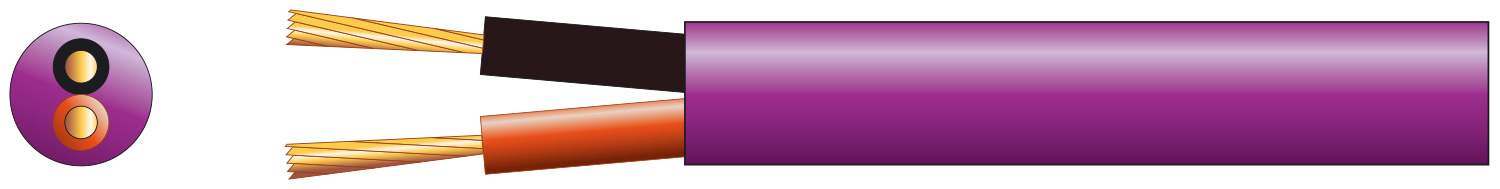

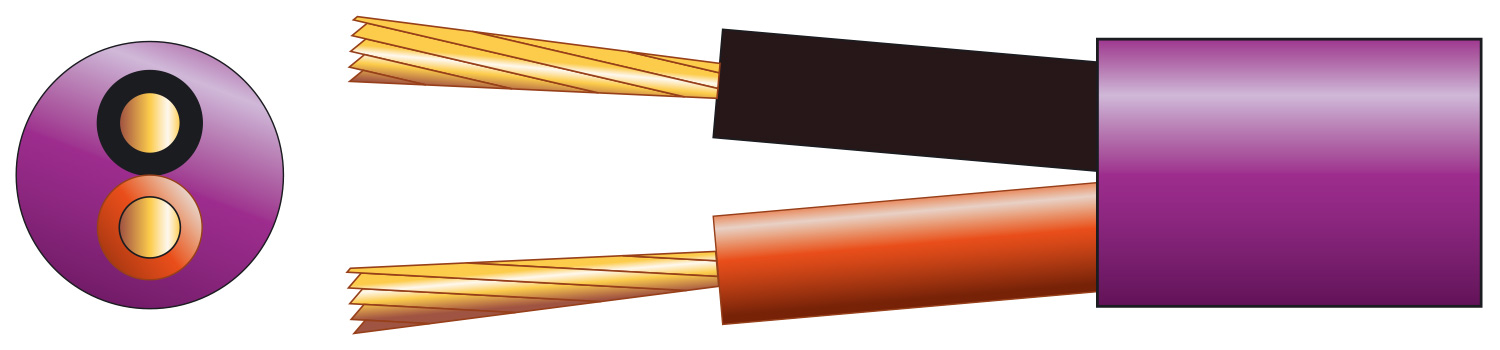

Hi Flex Double Insulated Low Smoke Speaker Cable

807.101UK

Highly flexible double insulated low smoke zero halogen speaker cables with pure oxygen free copper conductors. Ideal for small and large installations.

Low smoke zero halogen sheath material compliant to RoHS, minimises the risk of thick black smoke and poisonous fumes in the event of a fire
Pure oxygen free copper conductors for high quality audio transmission

Full description Find retailer

	Description	Version	Packed
	807.096UK Hi Flex Double Insulated Speaker cable, 2 x (24 x 0.2mmØ) LSZH	2x24 LSZH 100m	Reel
	807.100UK Hi Flex Double Insulated Speaker cable, 2 x (48 x 0.2mmØ) LSZH	2x48 LSZH 100m	Reel
	807.101UK Hi Flex Double Insulated Speaker cable, 2 x (79 x 0.2mmØ) LSZH	2x79 LSZH 100m	Reel

Hi Flex Double Insulated Low Smoke Speaker Cable

Highly flexible double insulated low smoke zero halogen speaker cables with pure oxygen free copper conductors. Ideal for small and large installations.

Low smoke zero halogen sheath material compliant to RoHS, minimises the risk of thick black smoke and poisonous fumes in the event of a fire
Pure oxygen free copper conductors for high quality audio transmission

Length 100m

Versions

	807.096UK	807.100UK	807.101UK
Sheath	Purple LSZH	Purple LSZH	Purple LSZH
CSA	2 x 0.75mm²	2 x 1.5mm²	2 x 2.5mm²
Strands	2 x (12 x 0.2mmØ Cu + 12 x 0.2mmØ CCA)	2 x (24 x 0.2mmØ Cu + 24 x 0.2mmØ CCA)	2 x (39 x 0.2mmØ Cu + 40 x 0.2mmØ CCA)
Dimensions	7mmØ	8mmØ	10mmØ
Current	6A max.	8A max	14A max
Packed	2 reels	2 reels	1 reel

Downloads

UK Declaration of conformity
For 807.101UK (242KB)

EU Declaration of conformity
For 807.101UK (235KB)
