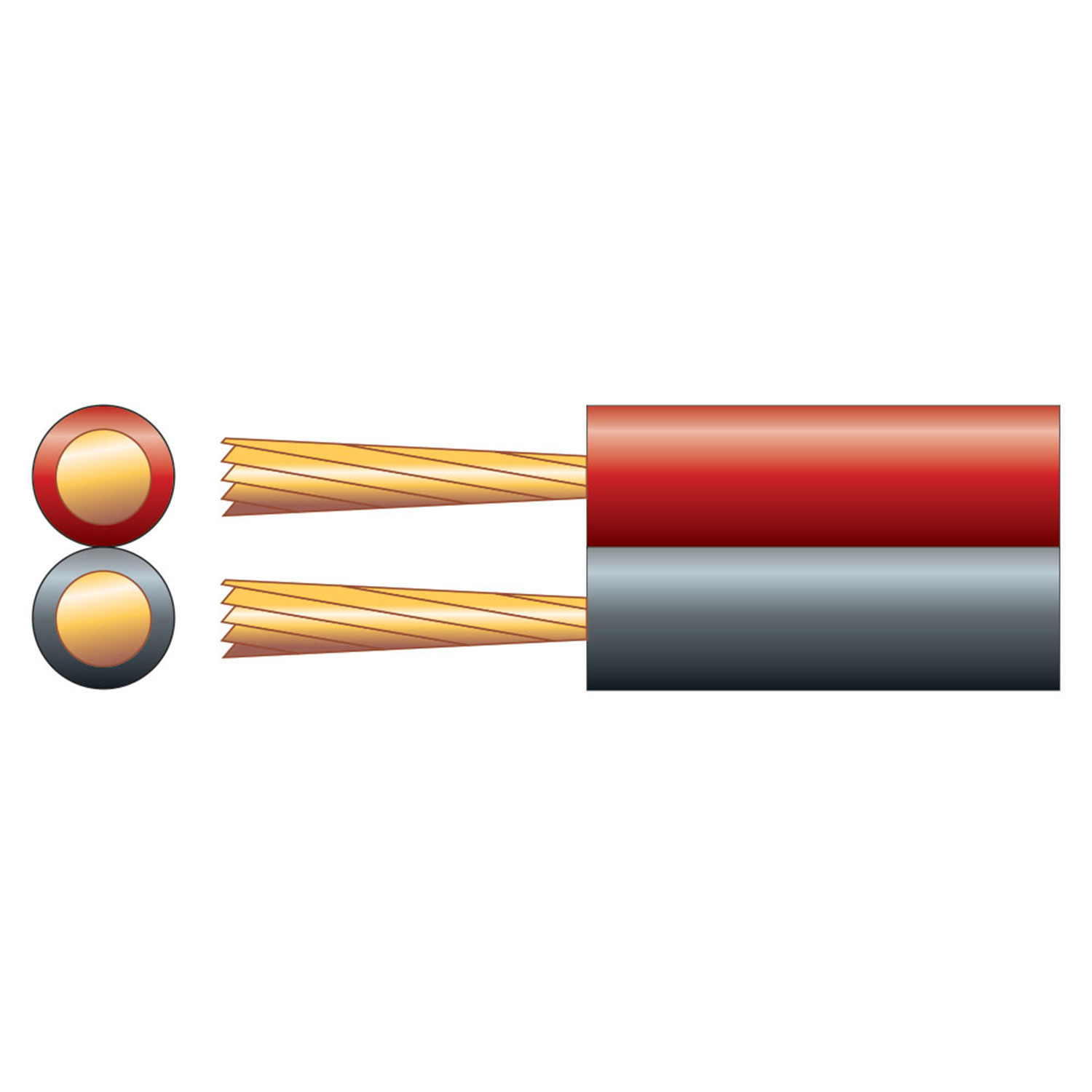

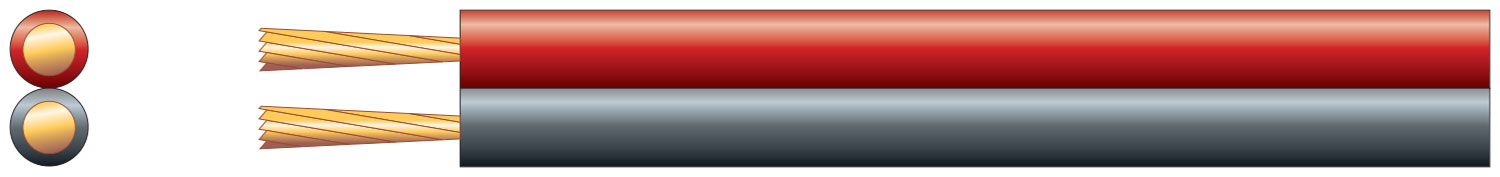

Figure 8 Power/Speaker Cable Red/Black

802.703UK

Standard 2 core stranded power cable for automotive and other applications. Stranded conductors in red and black PVC outer sheath.

Description Version Packed
802.368UK
Fig 8 Power/Speaker Cable, 2 x (14 x 0.18mmØ)
2x14 Red/Black 100m Reel
802.459UK
Fig 8 Power/Speaker Cable, 2 x (24 x 0.18mmØ)
2x24 Red/Black 100m Reel
802.520UK
Fig 8 Power/Speaker Cable, 2 x (32 x 0.18mmØ)
2x32 Red/Black 100m Reel
802.673UK
Fig 8 Power/Speaker Cable, 2 x (45 x 0.18mmØ)
2x45 Red/Black 100m Reel
802.703UK
Fig 8 Power/Speaker Cable, 2 x (79 x 0.18mmØ)
2x79 Red/Black 100m Reel
802.764UK
Fig 8 Power/Speaker Cable, 2 x (130 x 0.18mmØ, 50m reel)
2x130 Red/Black 50m Reel

Figure 8 Power/Speaker Cable Red/Black

Standard 2 core stranded power cable for automotive and other applications. Stranded conductors in red and black PVC outer sheath.

Specification : Common

  • Conductor Copper/Copper Clad Aluminium
  • Sheath Red/Black

Specification : Versions

  802.368UK 802.459UK 802.520UK 802.673UK 802.703UK 802.764UK
Strands 2 x (7 x 0.18mmØCu + 7 x 0.18mmØCCA) 2 x (12 x 0.18mmØCu + 12 x 0.18mmØCCA) 2 x (16 x 0.18mmØCu + 16 x 0.18mmØCCA) 2 x (25 x 0.18mmØCu + 20 x 0.18mmØCCA) 2 x (40 x 0.18mmØCu + 39 x 0.18mmØCCA) 2 x (65 x 0.18mmØCu + 65 x 0.18mmØCCA)
CSA 0.36mm² 0.61mm² 0.81mm² 1.15mm² 2.01mm² 3.31mm²
Dimensions 2.3 x 4.6mm 2.8 x 5.6mm 3.2 x 6.4mm 3.5 x 7.0mm 4.2 x 8.2mm 5.0 x 10.0mm
Current 2.5A max. 6A max. 10A max. 15A max. 25.0A max. 40.0A max.
Length 100m 100m 100m 100m 100m 50m
Packed quantity 10 reels 4 reels 4 reels 2 reels 2 reels 4 reels

Trade information

  802.368UK 802.459UK 802.520UK 802.673UK 802.703UK 802.764UK
Barcode / EAN 5015972050156 5015972050163 5015972050170 5015972050187 5015972050194 5015972050200
Package type Reel Reel Reel Reel Reel Reel
Package dimensions 80 x 150 x 80mm 90 x 180 x 90mm 180 x 180 x 110mm 100 x 200 x 100mm 140 x 200 x 140mm 140 x 200 x 140mm
Package weight 2.00kg 3.00kg 3.00kg 4.00kg 7.00kg 5.50kg
Package quantity 1 unit 1 unit 1 unit 1 unit 1 unit 1 unit
Carton dimensions 310 x 310 x 195mm 370 x 370 x 215mm 370 x 370 x 130mm 210 x 410 x 235mm 210 x 410 x 310mm 250 x 490 x 155mm
Carton weight 16.00kg 12.00kg 12.00kg 16.00kg 28.00kg 11.00kg
Carton quantity 8 packages 8 packages 4 packages 4 packages 4 packages 2 packages
