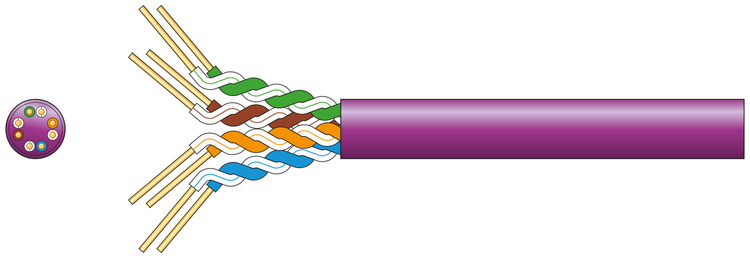

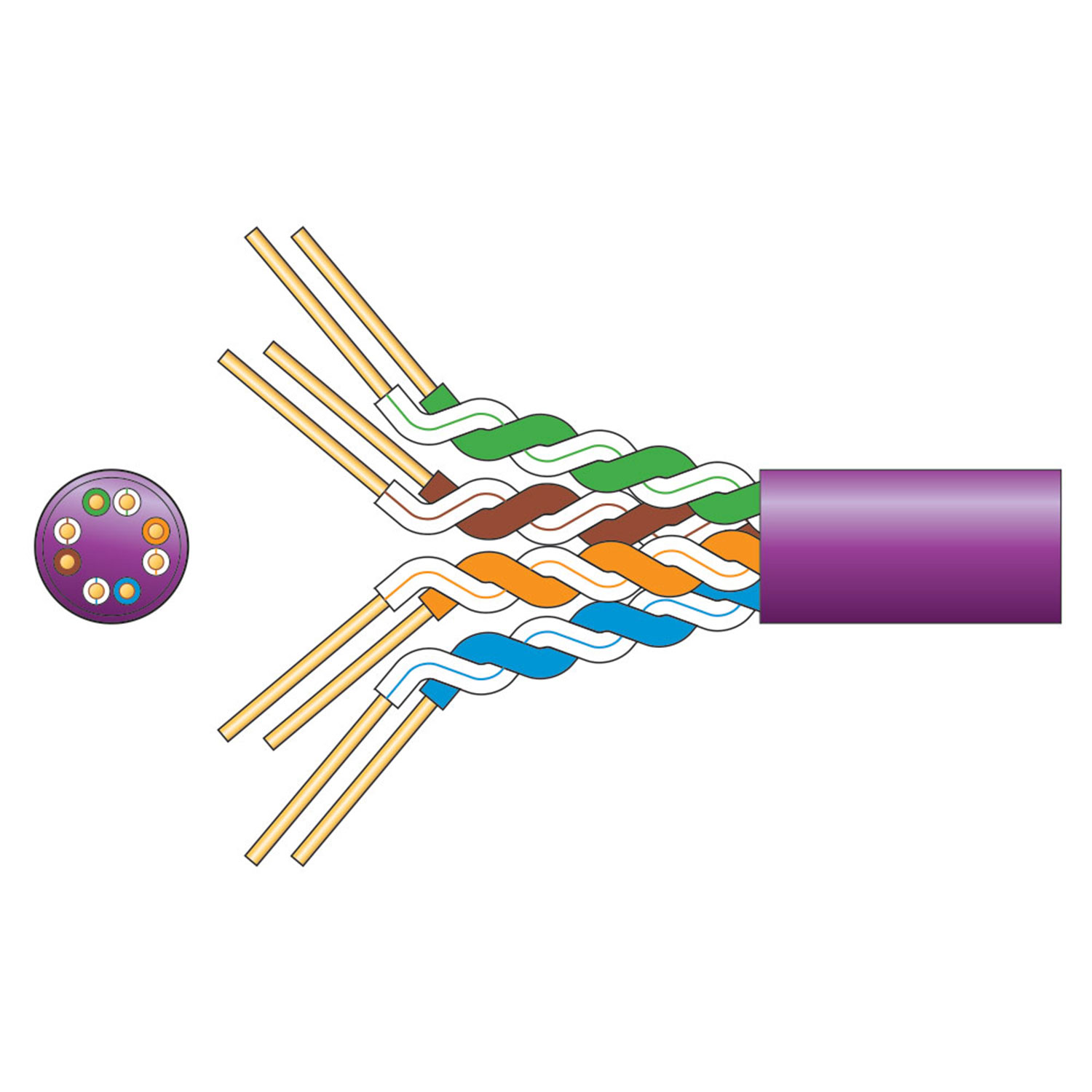

Cat5e U/Utp LSZH Network Cable
808.005UK
Cat5e oxygen free copper twisted pair data cable with low smoke zero halogen sheath. Supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmiss...
- Low smoke zero halogen sheath material compliant to RoHS minimises the risk of thick black smoke and poisonous fumes in the event of a fire
- AWG 24 oxygen free solid copper conductor
- Supplied in an easy-pull dispensing box
| Description | |
|---|---|
|
808.005UK
Cat5e U/UTP LSZH Network Cable 305m Lilac |
Cat5e U/Utp LSZH Network Cable
Cat5e oxygen free copper twisted pair data cable with low smoke zero halogen sheath. Supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.
- Low smoke zero halogen sheath material compliant to RoHS minimises the risk of thick black smoke and poisonous fumes in the event of a fire
- AWG 24 oxygen free solid copper conductor
- Supplied in an easy-pull dispensing box
- Passes Cat5e fluke test 100m at 100MHz
- Complies to TIA/EIA-568 Cat5e standard
- HDBaseT Compliant
- Conductor Solid OFC
- Strands 8 x 1/0.5mmØ ±2%
- Conductor CSA 8 x 0.196mm²
- Cable : diameter 5mmØ
- Insulation HDPE 0.19mm thickness
- Sheath LSZH 0.5mm thickness
- Capacitance 4.9nF/100m
- DC resistance @ 20°C <9.5 ohms/100m
- Impedance (1 to 100MHz) 100±15 ohms
- Return loss >20dB @100m
- Attenuation <22dB @100m
- NEXT >35.3dB
- PSNEXT >32.3dB
- ELFEXT >23.8dB
- PSELFEXT >20.8dB
- Phase delay <570ns
- Cable colour Lilac
- Length 305m
- Weight 8.6kg
