Cat6a U/FTP Outdoor Network Cable
808.034UK
Cat6a oxygen free copper twisted pair data cable with LDPE sheath and individual pair aluminium foil screen. Supplied on a wooden drum reel and marked at 1 metre intervals. This cable is designed f...
- AWG 23 oxygen free solid copper conductor
- LDPE sheath with UV resistant properties ideal for outdoor installations
- Supplied on a sturdy wooden drum reel
| Description | |
|---|---|
|
808.034UK
Cat6a U/FTP Outdoor Network Cable 305m Black |

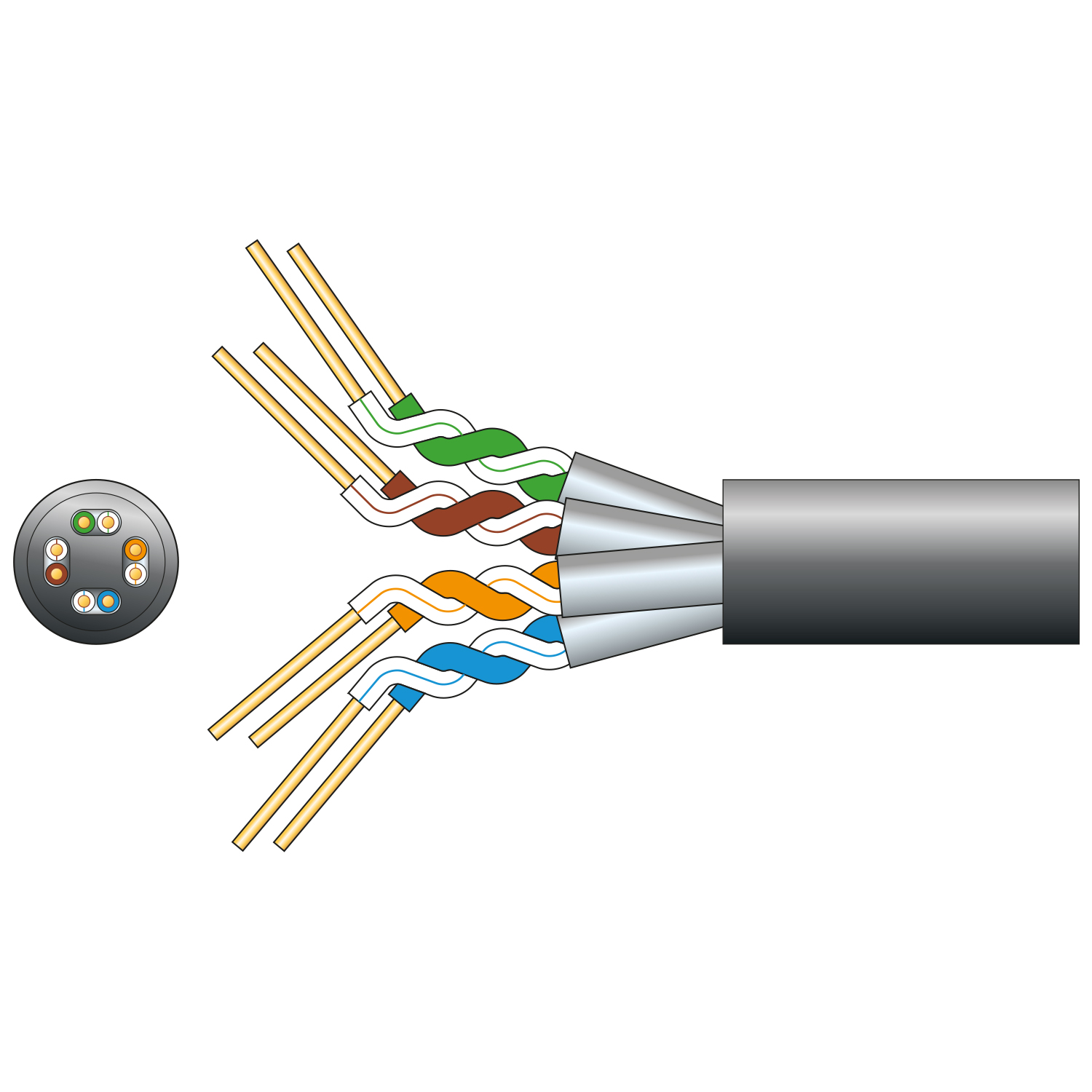

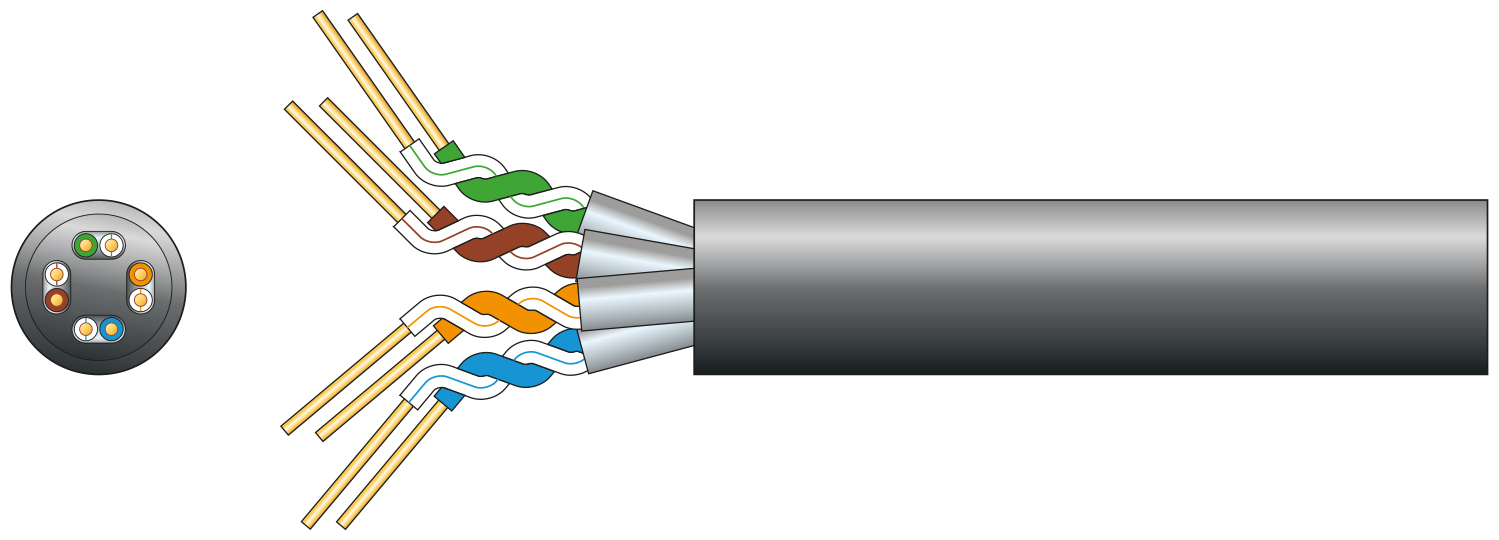

Cat6a U/FTP Outdoor Network Cable
Cat6a oxygen free copper twisted pair data cable with LDPE sheath and individual pair aluminium foil screen. Supplied on a wooden drum reel and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications in an outdoor environment.
- AWG 23 oxygen free solid copper conductor
- LDPE sheath with UV resistant properties ideal for outdoor installations
- Supplied on a sturdy wooden drum reel
- Passes Cat6a fluke test 100m at 500MHz
- Complies to TIA/EIA-568 Cat6a standard
- Conductor Solid OFC
- Strands 8 x 1/0.560mmØ ±2%
- Cable : diameter 7.3±0.5mm
- Screen Aluminium/Mylar foil
- Insulation PE 1.330±0.05mmØ
- Sheath LDPE 0.55±0.05mm thickness
- Capacitance <330pf/100m
- DC resistance @ 20°C <9.38 Ohms/100m
- Impedance (100 to 250MHz) 100±15 Ohms
- Impedance (250 to 500MHz) 100±22 Ohms
- Return loss >26.62dB
- Attenuation <2.03dB
- NEXT >87.2dB
- PSNEXT >85.15dB
- ELFEXT >88.77dB
- PSELFEXT >86.74dB
- Phase delay <450.79ns
- Colour Black
- Length 305m
- Weight 17.4kg
