Cat6 U/UTP Network Cable

808.011UK

Cat6 oxygen free copper twisted pair data cable supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applicat...

  • Oxygen free solid copper conductor
  • Supplied in an easy-pull dispensing box and marked at 1m intervals
  • Passes Cat6 fluke test 100m at 250MHz
Description Version Packed
808.011UK
Cat6 U/UTP Network Cable 305m Grey
Grey 305m Box Printed
808.030UK
Cat6 U/UTP Network Cable 100m Grey
Grey 100m Box Printed
808.035UK
Cat6 U/UTP Network Cable 305m Red
Red 305m Box Printed
808.036UK
Cat6 U/UTP Network Cable 305m Green
Green 305m Box Printed

Cat6 U/UTP Network Cable

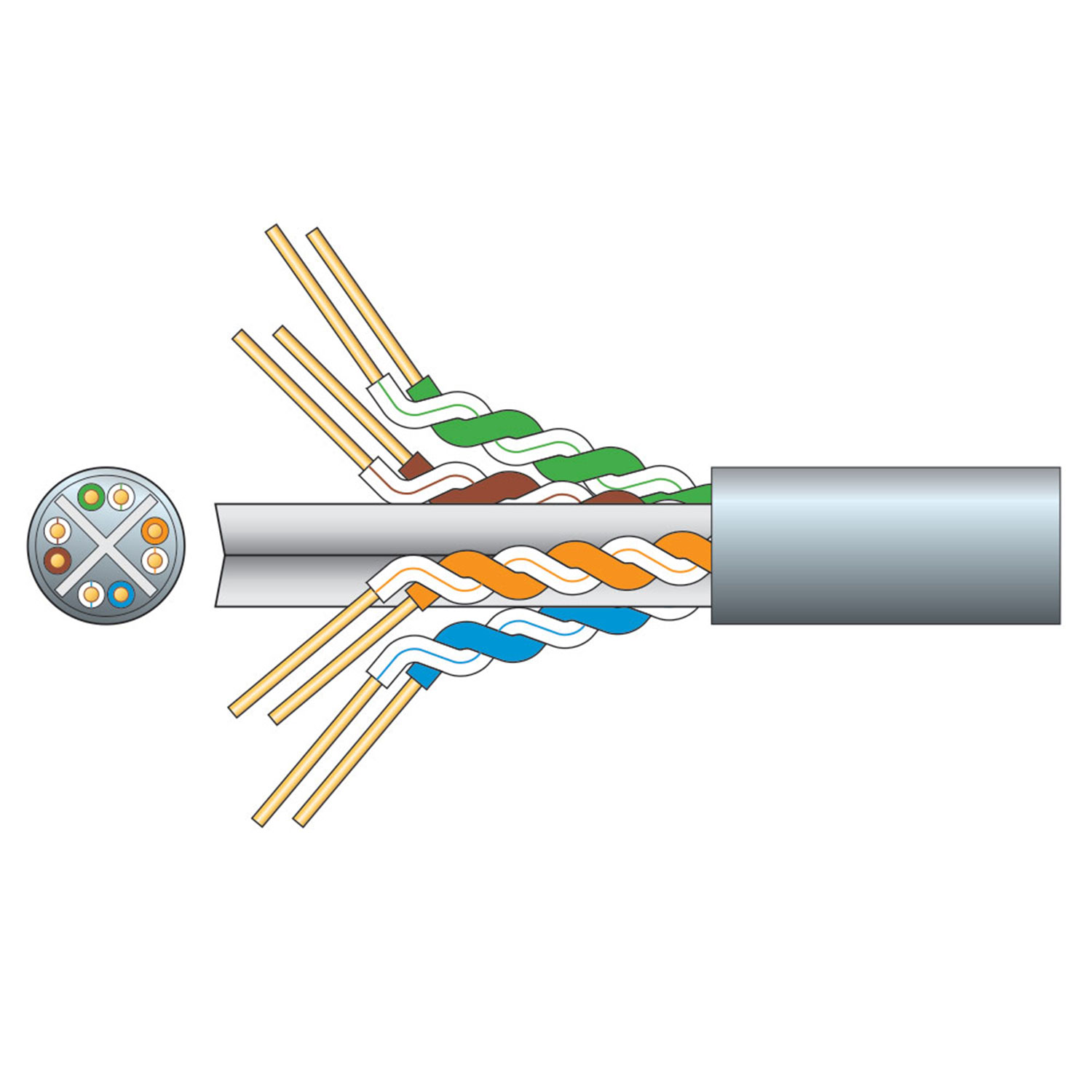

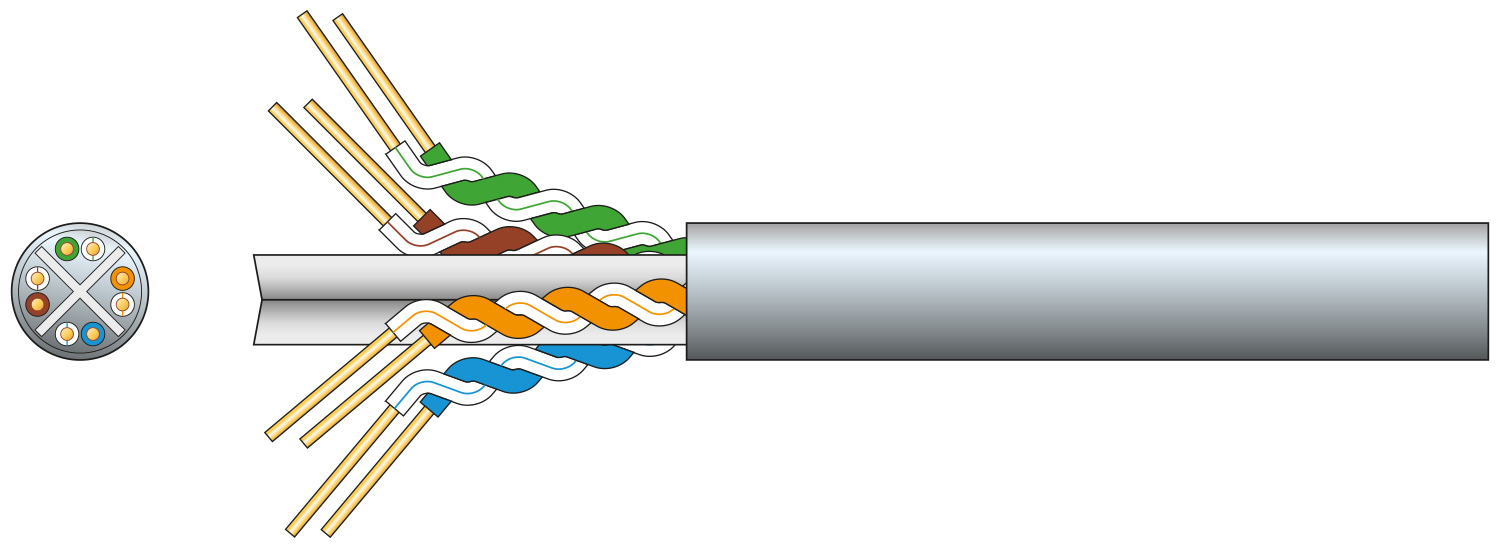

Cat6 oxygen free copper twisted pair data cable supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.

  • Oxygen free solid copper conductor
  • Supplied in an easy-pull dispensing box and marked at 1m intervals
  • Passes Cat6 fluke test 100m at 250MHz
  • Complies to TIA/EIA-568 Cat6 standard
  • HDBaseT Compliant

Specification : Common

  • Conductor Solid OFC
  • Strands 8 x 1/0.54mmØ ±2%
  • Conductor CSA 8 x 0.229mm²
  • Cable : diameter 5.8mmØ
  • Insulation HDPE 0.195mm thickness
  • Sheath PVC 0.55mm thickness
  • Capacitance 5.2nF/100m
  • DC resistance @ 20°C <9.5 ohms/100m
  • Impedance (1 to 250MHz) 100±15 ohms
  • Return loss >17.3dB @100m
  • Attenuation <32.8dB @100m
  • NEXT >38.3dB
  • PSNEXT >36.3dB
  • ELFEXT >19.8dB
  • PSELFEXT >16.8dB
  • Phase delay <570ns

Specification : Versions

  808.011UK 808.030UK 808.035UK 808.036UK
Cable colour Grey Grey Red Green
Length 305±1.5m 100±0.5m 305±1.5m 305±1.5m
Weight 12.7kg 4.3kg 12.7kg 12.7kg

Trade information

  808.011UK 808.030UK 808.035UK 808.036UK
Barcode / EAN 5015972166178 5015972201947 5015972201961 5015972201985
Package type Box Printed Box Printed Box Printed Box Printed
Package dimensions 405 x 405 x 210mm 280 x 280 x 120mm 405 x 405 x 210mm 405 x 405 x 210mm
Package weight 12.70kg 4.30kg 12.70kg 12.70kg
Package quantity 1 unit 1 unit 1 unit 1 unit
Carton dimensions 450 x 430 x 430mm 295 x 575 x 260mm 450 x 430 x 430mm 450 x 430 x 430mm
Carton weight 25.40kg 20.00kg 29.00kg 29.00kg
Carton quantity 2 packages 4 packages 2 packages 2 packages

Support

Fluke
Test Report
DoP Certification
In relation to the new CPR regulations 1st July 2017
DoP Certification
In relation to the new CPR regulations 1st July 2017
DoP Certification
In relation to the new CPR regulations 1st July 2017
DoP Certification
In relation to the new CPR regulations 1st July 2017
