Cat7 S/FTP LSZH Network Cable
808.050UK
Cat7 oxygen free copper twisted pair data cable with low smoke zero halogen sheath. Individual pair aluminium foil screen and overall braided aluminium screen provide protection from any pair or al...
- Delivers ultra high speed data transmission up to 10 Gbps at bandwidths up to 600MHz
- Low smoke zero halogen sheath material compliant to RoHS minimises the risk of thick black smoke and poisonous fumes in the event of a fire
- AWG23 oxygen free solid copper conductor
| Description | |
|---|---|
|
808.050UK
Cat7 S/FTP LSZH Network Cable |
Cat7 S/FTP LSZH Network Cable

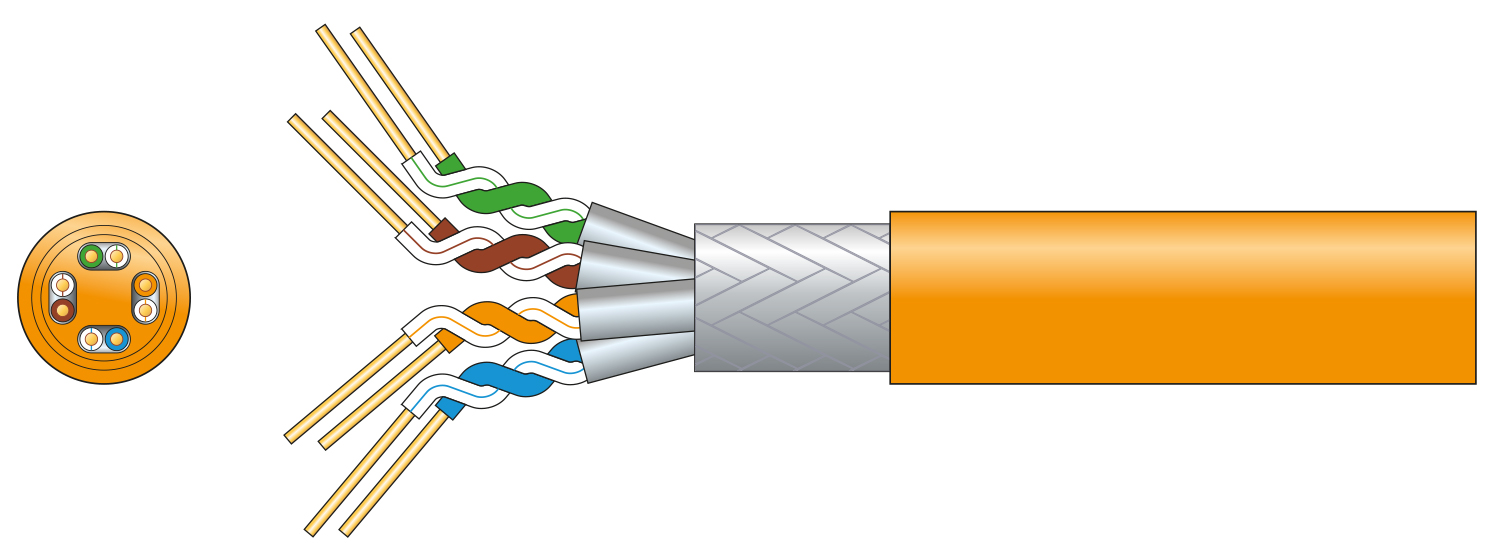

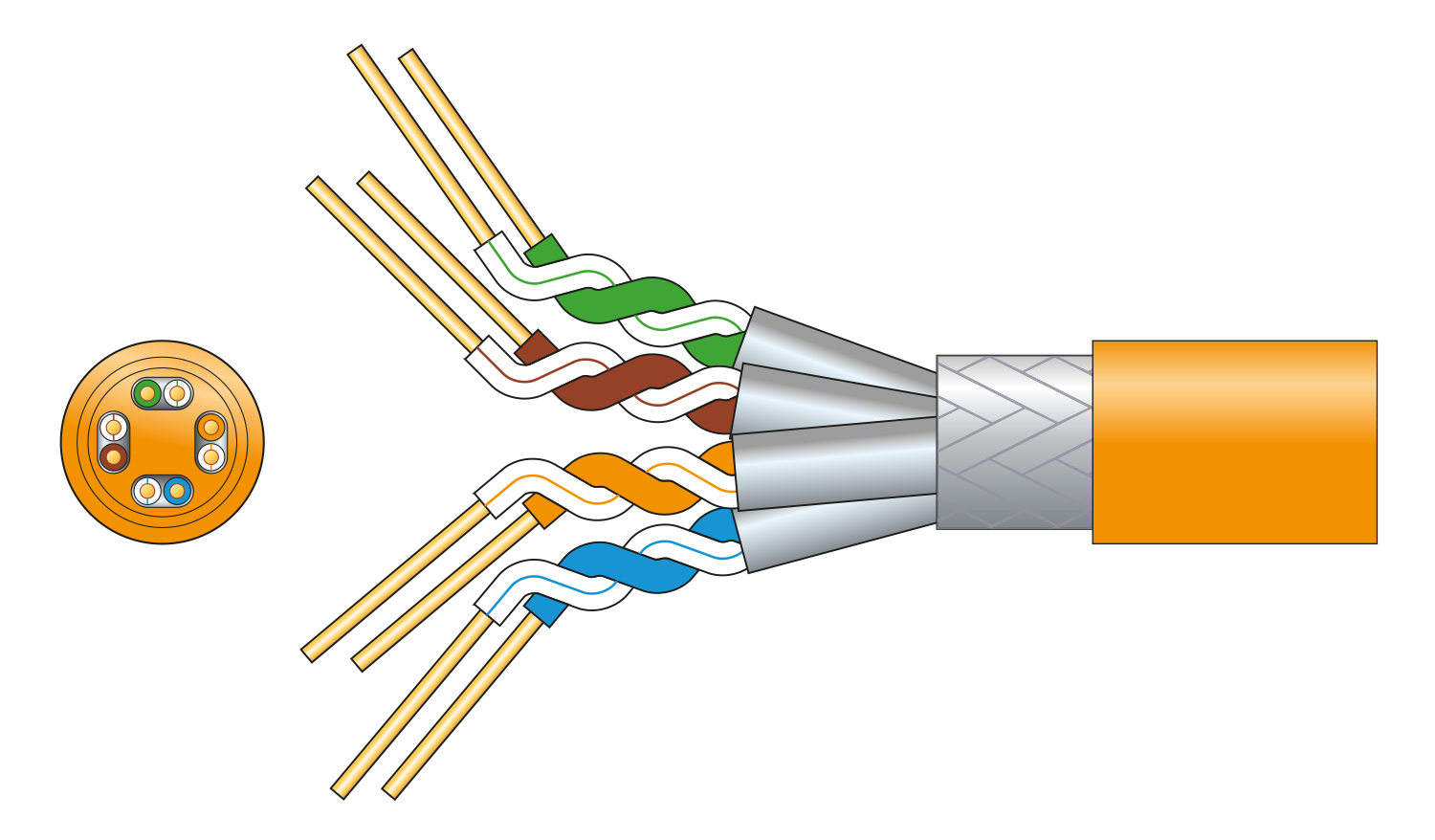

Cat7 oxygen free copper twisted pair data cable with low smoke zero halogen sheath. Individual pair aluminium foil screen and overall braided aluminium screen provide protection from any pair or alien crosstalk. Supplied on a wooden drum reel and marked at 1 metre intervals, this cable is designed for ultra high speed data transmission up to 10 Gbps at bandwidths up to 600MHz.
- Delivers ultra high speed data transmission up to 10 Gbps at bandwidths up to 600MHz
- Low smoke zero halogen sheath material compliant to RoHS minimises the risk of thick black smoke and poisonous fumes in the event of a fire
- AWG23 oxygen free solid copper conductor
- Supplied on a sturdy wooden drum reel
- Conductor Solid OFC
- Conductor diameter 0.560±0.005mm
- Cable : diameter 7.2±0.5mm
- Screen Aluminium/Mylar foil
- Braid material Aluminium magnesium alloy
- Insulation PE 1.30±0.05mm
- Sheath LSZH 0.50±0.05mm
- Capacitance <330pf/100m
- DC resistance @ 20°C <9.38 Ohms/100m
- Impedance (1 to 100MHz) 100±15?
- Impedance (100 to 250MHz) 100±18?
- Impedance (250 to 600MHz) 100±25?
- Return loss >20.95dB
- Attenuation <1.92dB
- NEXT >81.17dB
- Phase delay <426.34ns
- PSNEXT >81.07dB
- ELFEXT >58.61dB
- PSELFEXT >55.88dB
- Colour Orange
- Weight 17.5kg
