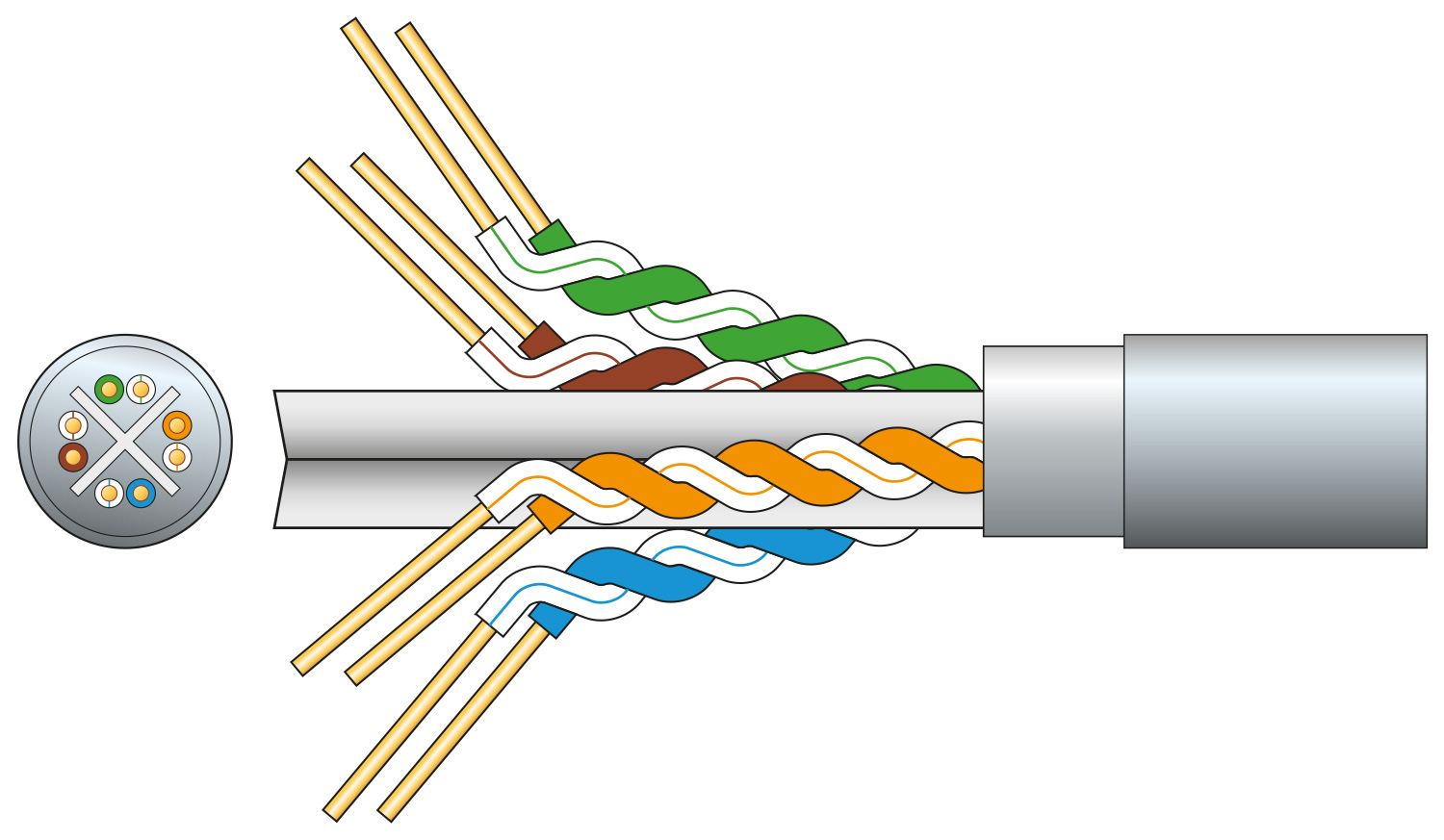

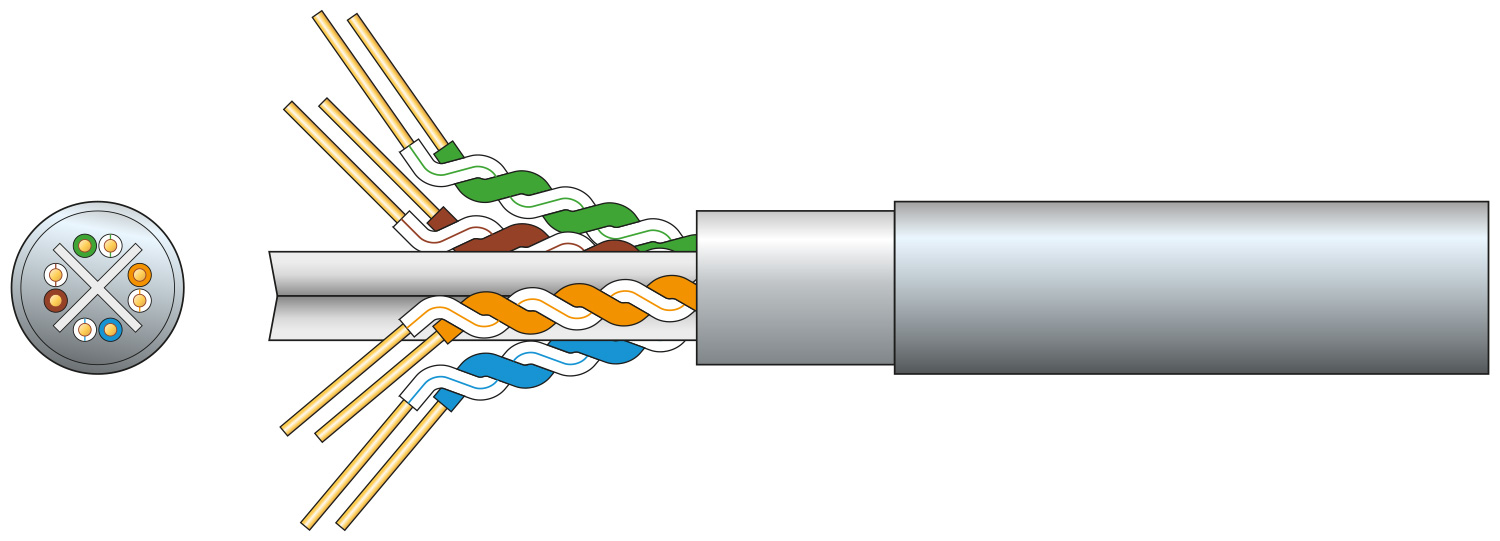

Cat6 F/UTP Network Cable

808.013UK

Cat6 oxygen free copper twisted pair data cable with overall aluminium foil screen. Supplied on a wooden drum reel and marked at 1 metre intervals. This cable is designed for high speed data transm...

  • AWG 23 oxygen free solid copper conductor
  • Supplied on a sturdy wooden drum reel
  • Passes Cat6 fluke test 100m at 250MHz
Description Version Packed
808.013UK
Cat6 F/UTP Network Cable 305m Grey
Grey 305m Reel

Cat6 F/UTP Network Cable

Cat6 oxygen free copper twisted pair data cable with overall aluminium foil screen. Supplied on a wooden drum reel and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.

  • AWG 23 oxygen free solid copper conductor
  • Supplied on a sturdy wooden drum reel
  • Passes Cat6 fluke test 100m at 250MHz
  • Complies to TIA/EIA-568 Cat6 standard
  • Conductor Solid OFC
  • Strands 8 x 1/0.57mmØ ±2%
  • Conductor CSA 8 x 0.255mm²
  • Screen material Mylar + Aluminium/Mylar + Drain wire
  • Cable : diameter 7.4mmØ
  • Insulation HDPE 0.275mm thickness
  • Sheath PVC 0.6mm thickness
  • Capacitance 5.5nF/100m
  • DC resistance @ 20°C <9.5 ohms/100m
  • Impedance (100 to 250MHz) 100±15 ohms
  • Return loss >17.3dB @100m
  • Attenuation <32.8dB @100m
  • NEXT >38.3dB
  • PSNEXT >36.3dB
  • ELFEXT >20dB
  • PSELFEXT >17dB
  • Phase delay <570ns
  • Cable colour Grey
  • Length 305m
  • Weight 16.5kg

Downloads

UK Declaration of conformity
For 808.013UK (242KB)
EU Declaration of conformity
For 808.013UK (231KB)
Fluke
Test Report
DoP Certification
In relation to the new CPR regulations 1st July 2017
