2 Way Low Profile 100V Line Ceiling Speakers
8"
952.262UK
LP8V

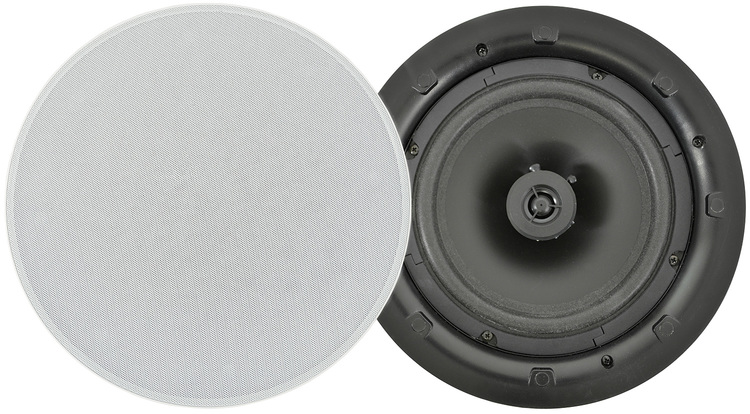

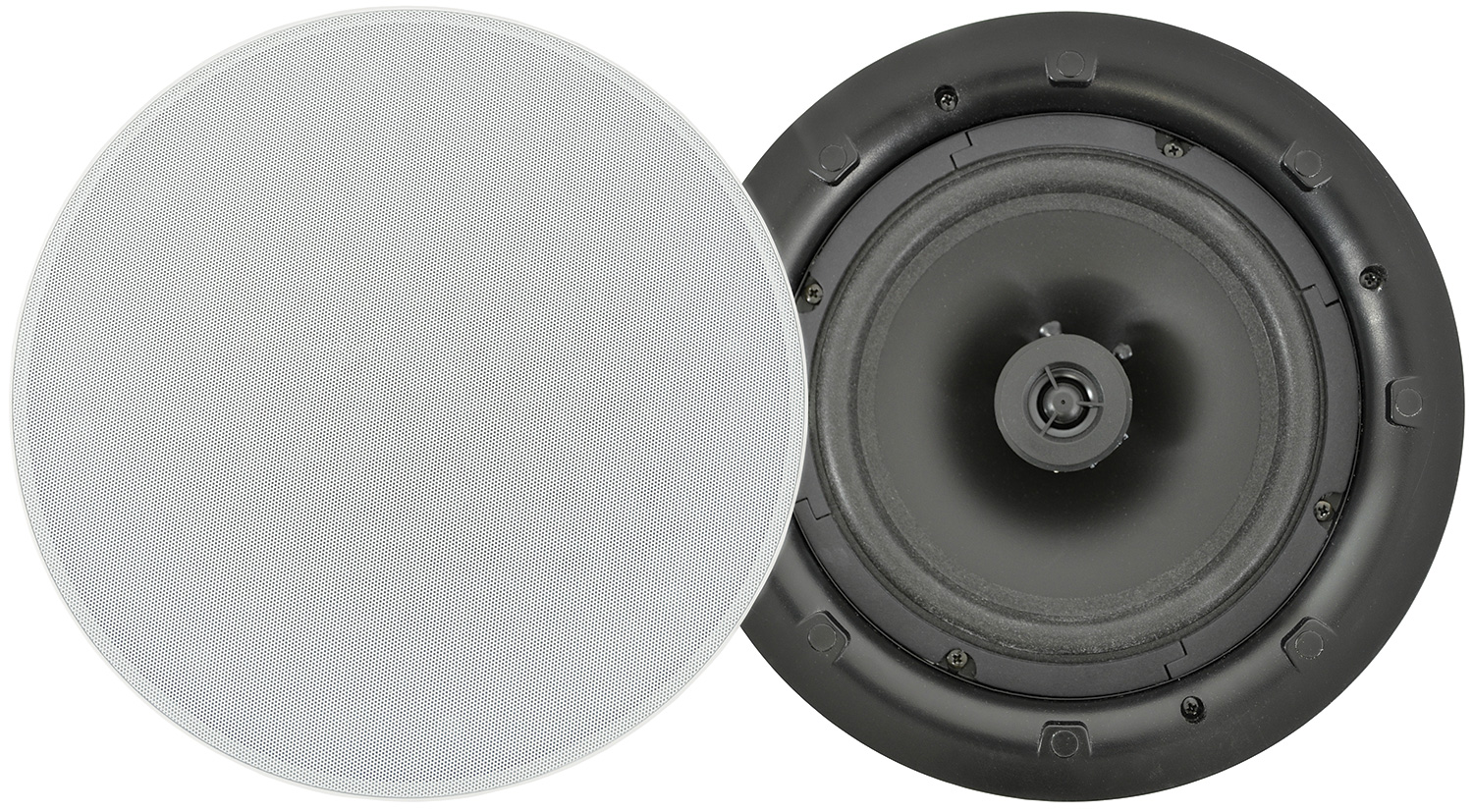

2-way ceiling speakers with flared baffle and a low profile magnetic grille. The main driver with concentric directional tweeter is operated via a rotary control with 5 x 100V volume tappings and an 8… more

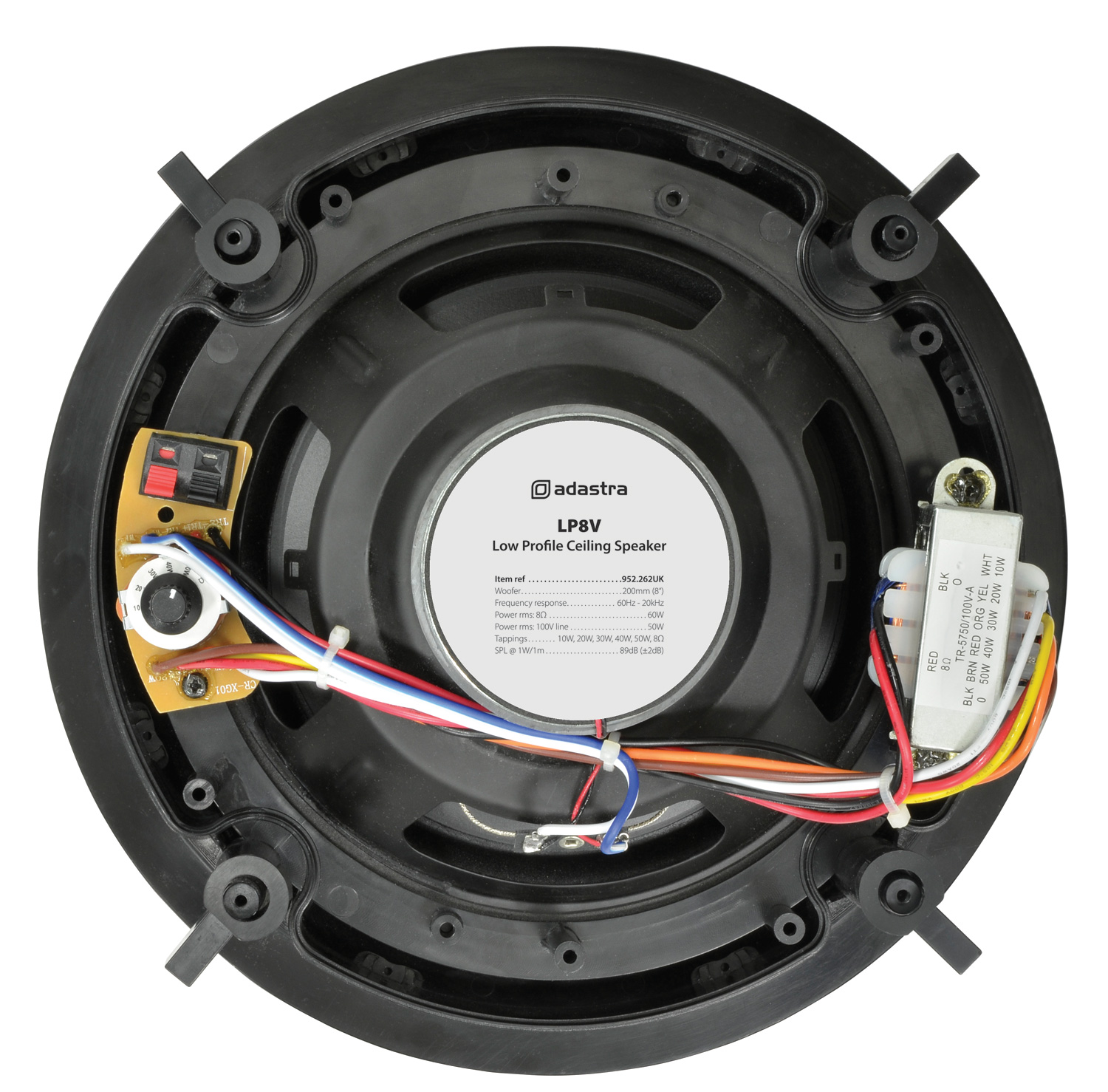

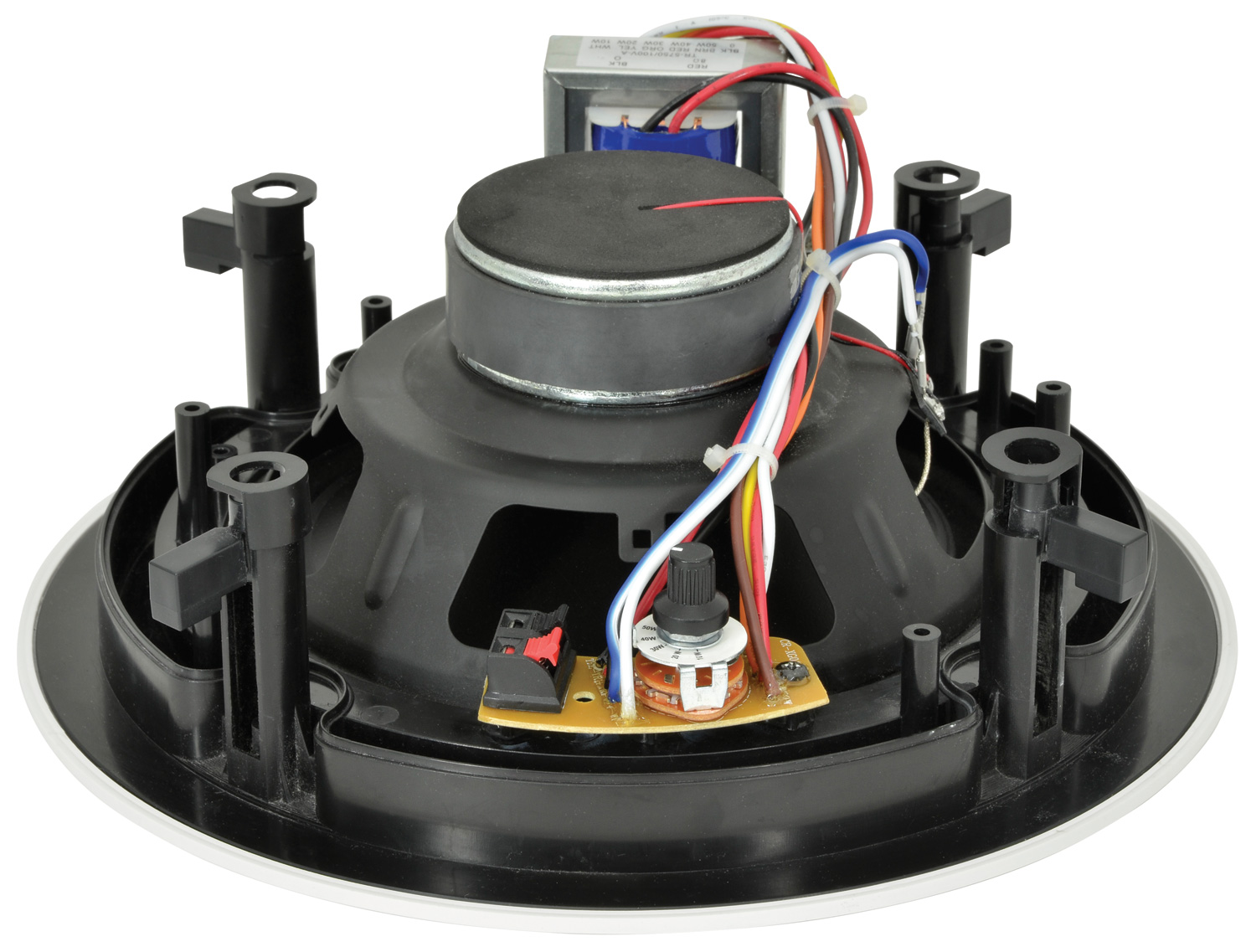

- Rotary selector switch for 100V line tappings or 8 Ohms

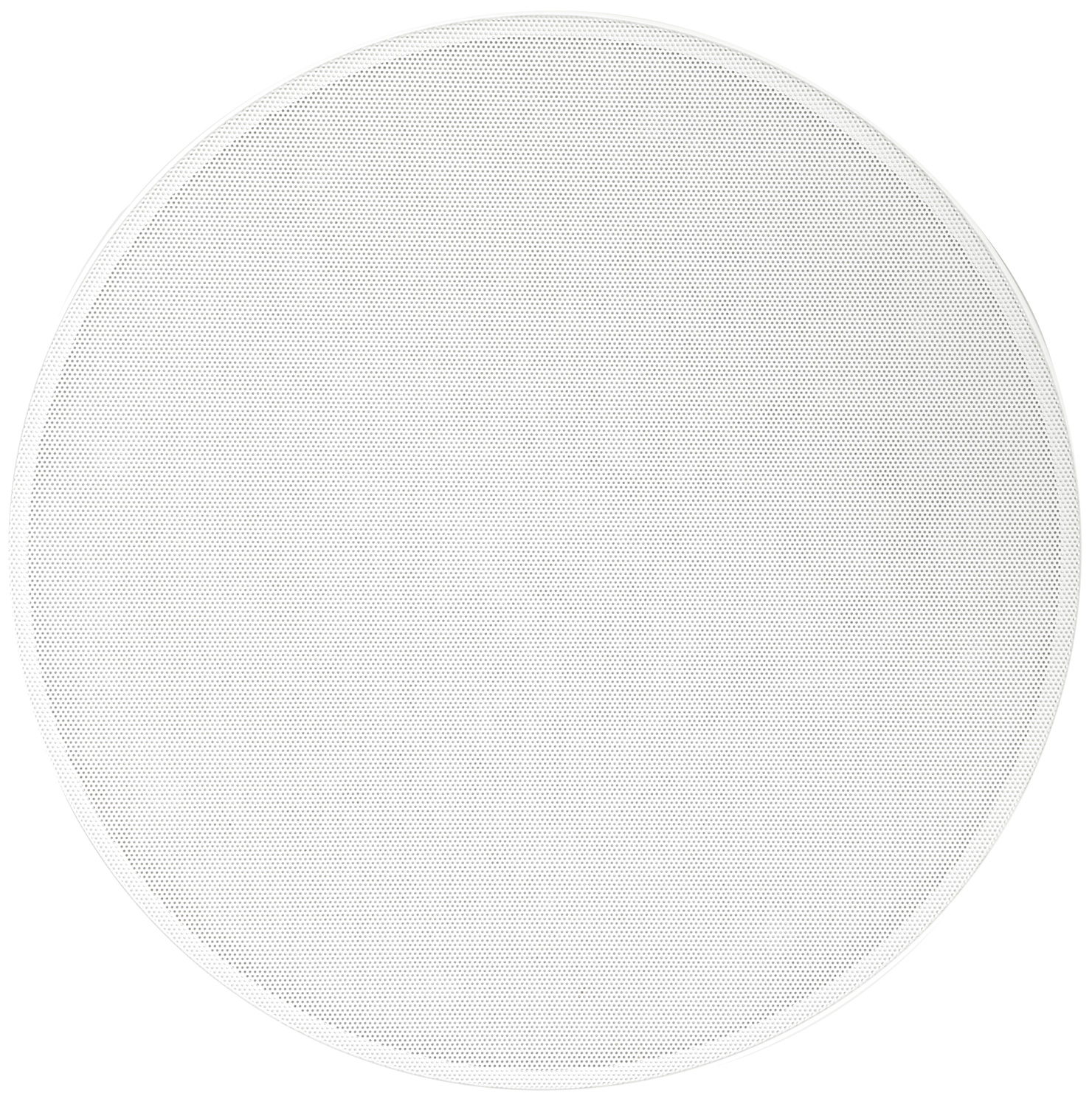

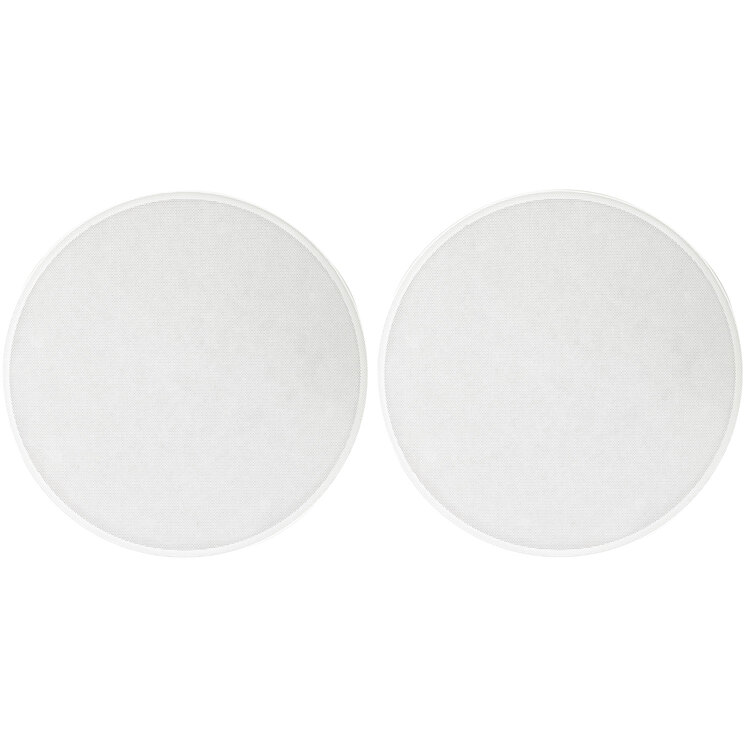

- Magnetic frameless grille
- Fitted with "dog-ear" mounts for fixing to suspended or false ceilings
2 Way Low Profile 100V Line Ceiling Speakers

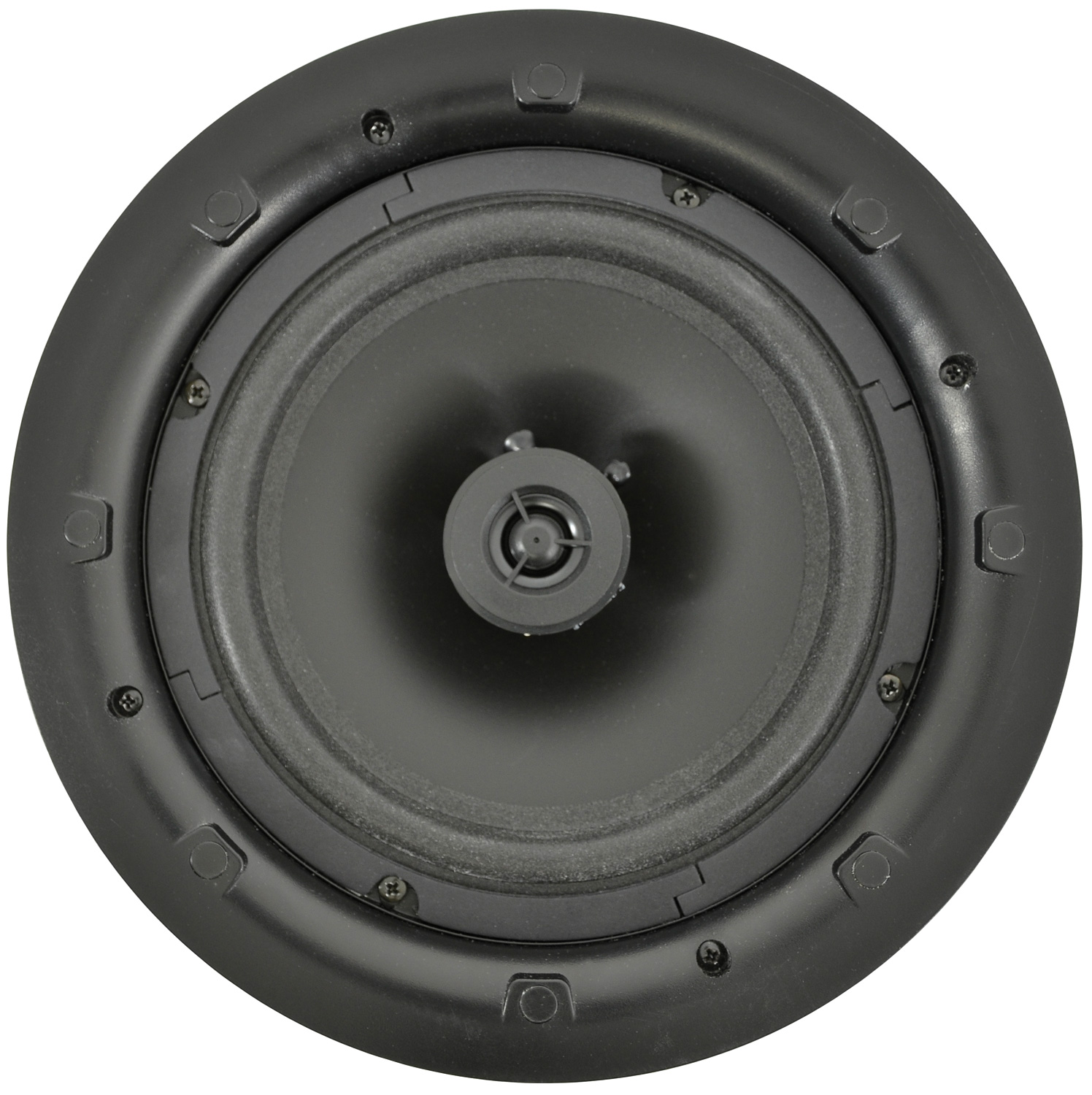

2-way ceiling speakers with flared baffle and a low profile magnetic grille. The main driver with concentric directional tweeter is operated via a rotary control with 5 x 100V volume tappings and an 8 Ohms option. Mount into suspended or false ceilings using the 4 "dog-ear" mounts to achieve a discreet, high quality sound installation.
- Rotary selector switch for 100V line tappings or 8 Ohms
- Magnetic frameless grille
- Fitted with "dog-ear" mounts for fixing to suspended or false ceilings
- Discreet, low profile installation
- Grille can be painted to match decor
- Supplied singly
- Weight 1.98kg
- Dimensions 108 x 281mmØ
- Tappings 10, 20, 30, 40, 50W & 8 Ohms
- SPL @ 1W/1m 89dB (±2dB)
- Mounting depth 104mm
- Cutout 245mm
- Power rms : 100V line 50W
- Power rms : 8 Ohms 60W
- Power max. : 8 Ohms 120W
- Frequency response 60Hz - 20kHz
- Tweeter 44mmØ (1.75")
- Woofer 200mmØ (8")
- Dispersion angle 160°
In the Box
- Ceiling speaker with detachable grille
