MH Series Round Horn Speakers 100V

952.266UK MH30V

PA horn speakers with 100V transformer offering several different power settings. The housing is moulded from high impact ABS material to offer maximum protection against physical or weather damage...

  • IP66 rated weatherproof
  • 100V rotary tapping selector
Description Version Packed
952.265UK
MH15V 100V ABS Horn Speaker 15W
15W Box Label
952.266UK
MH30V 100V ABS Horn Speaker 30W
30W Box Label

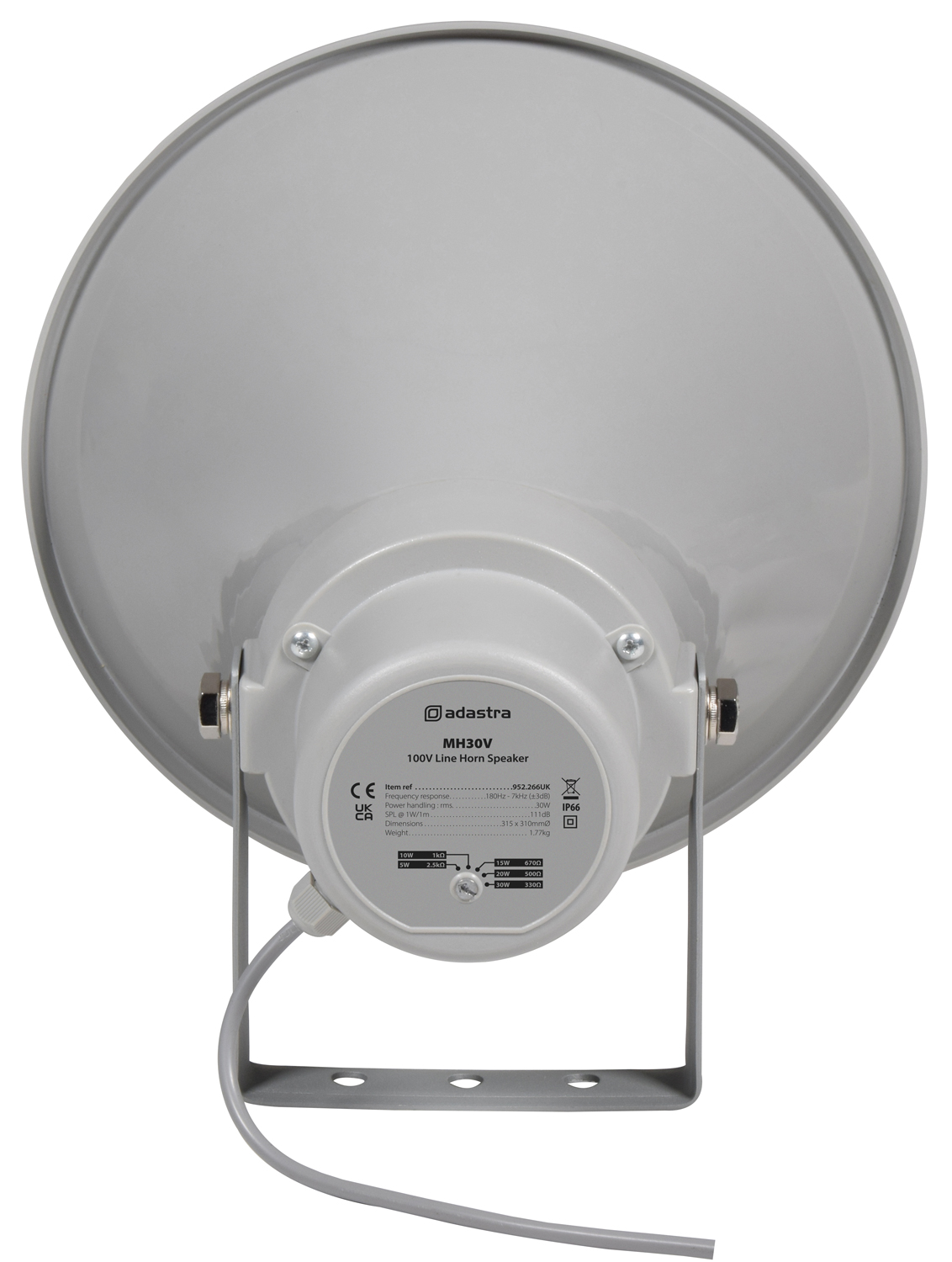

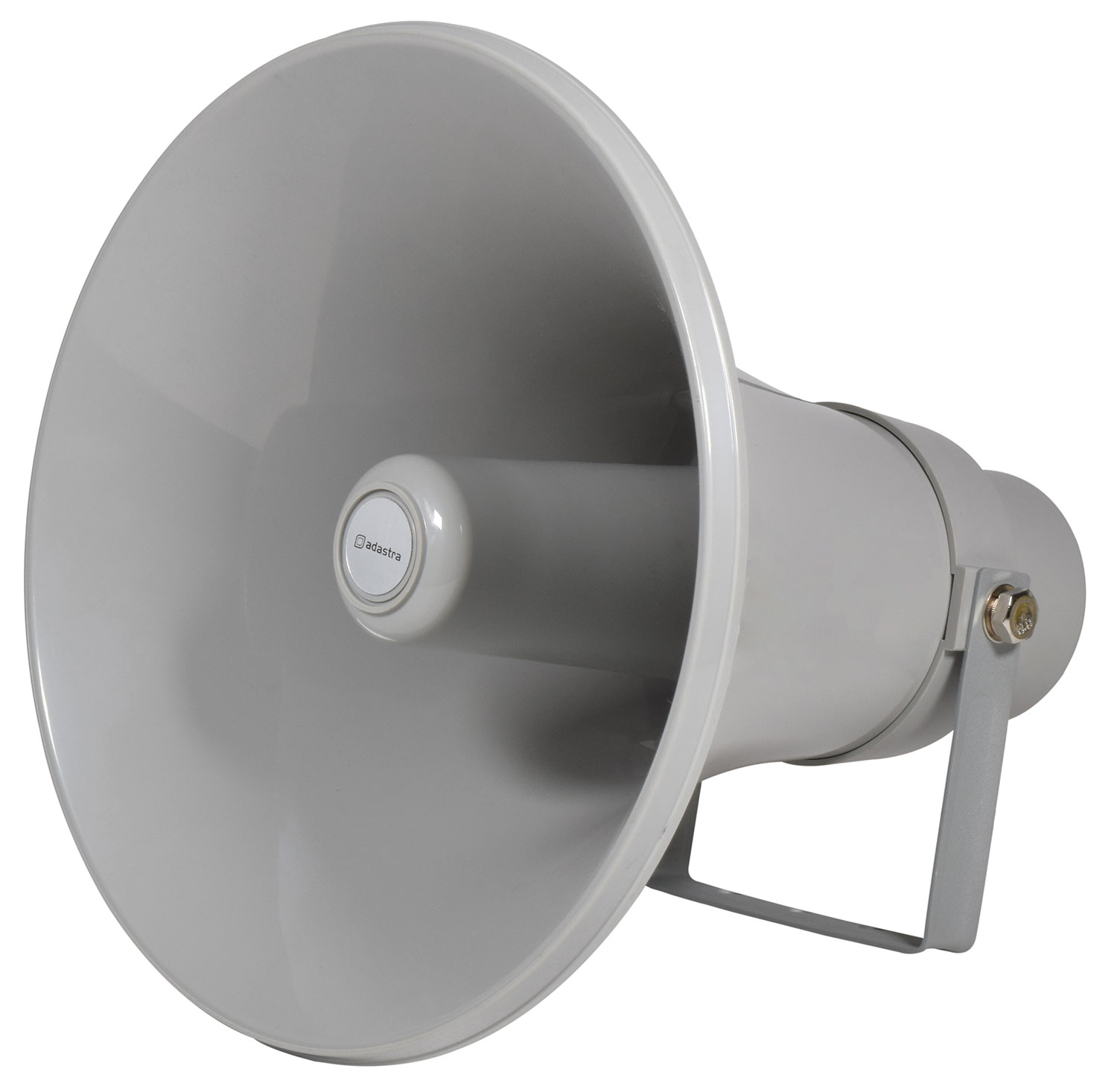

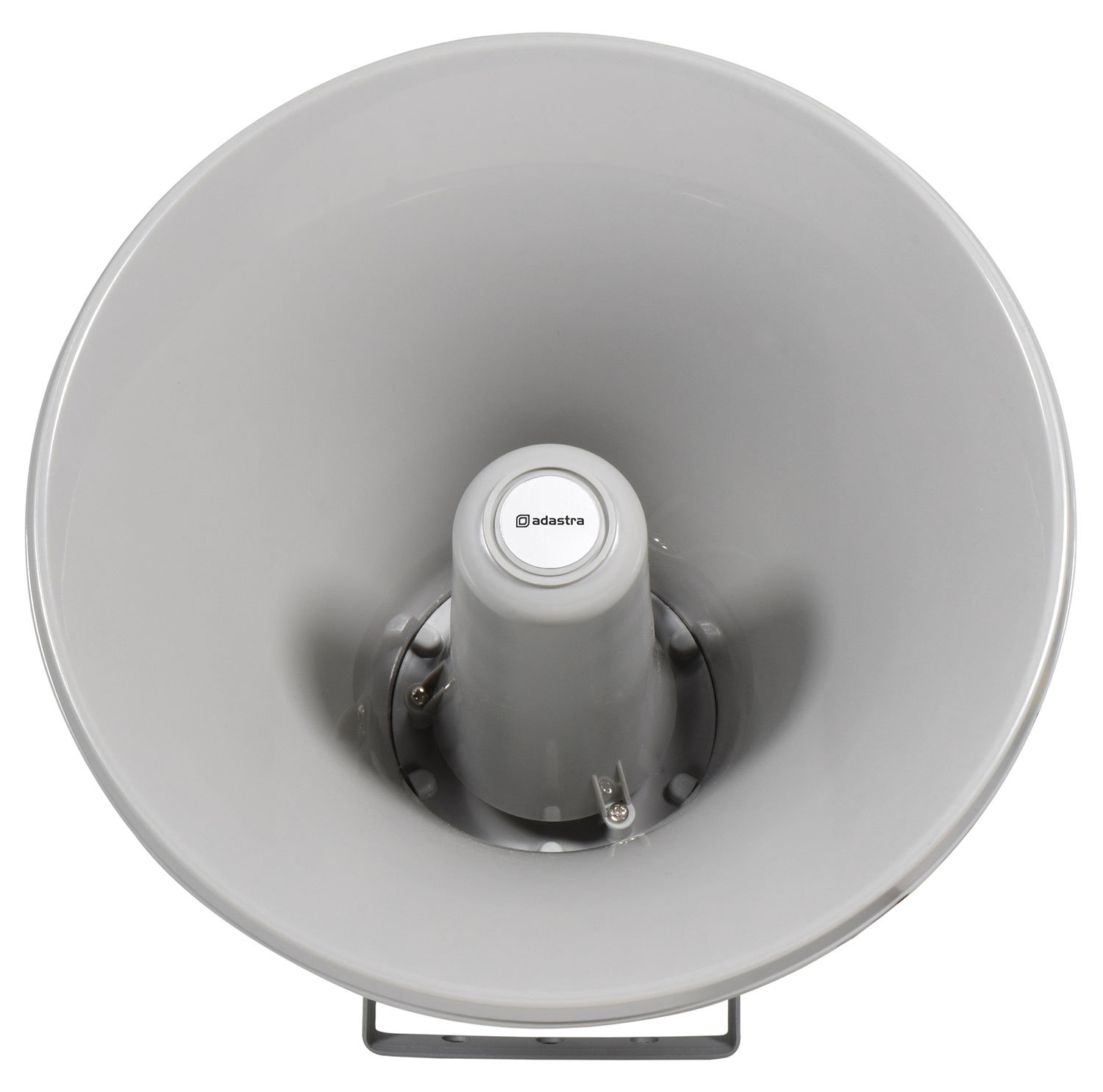

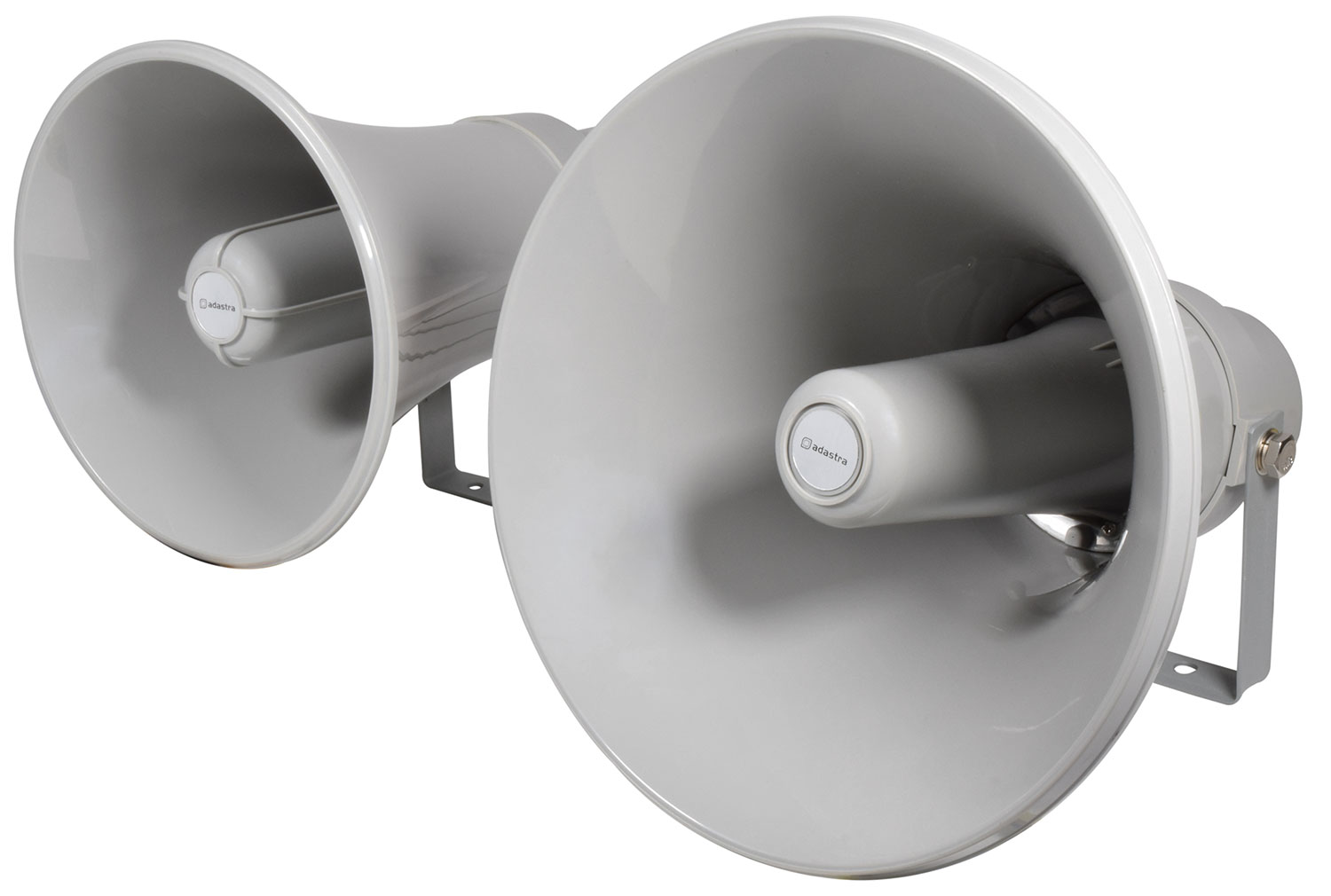

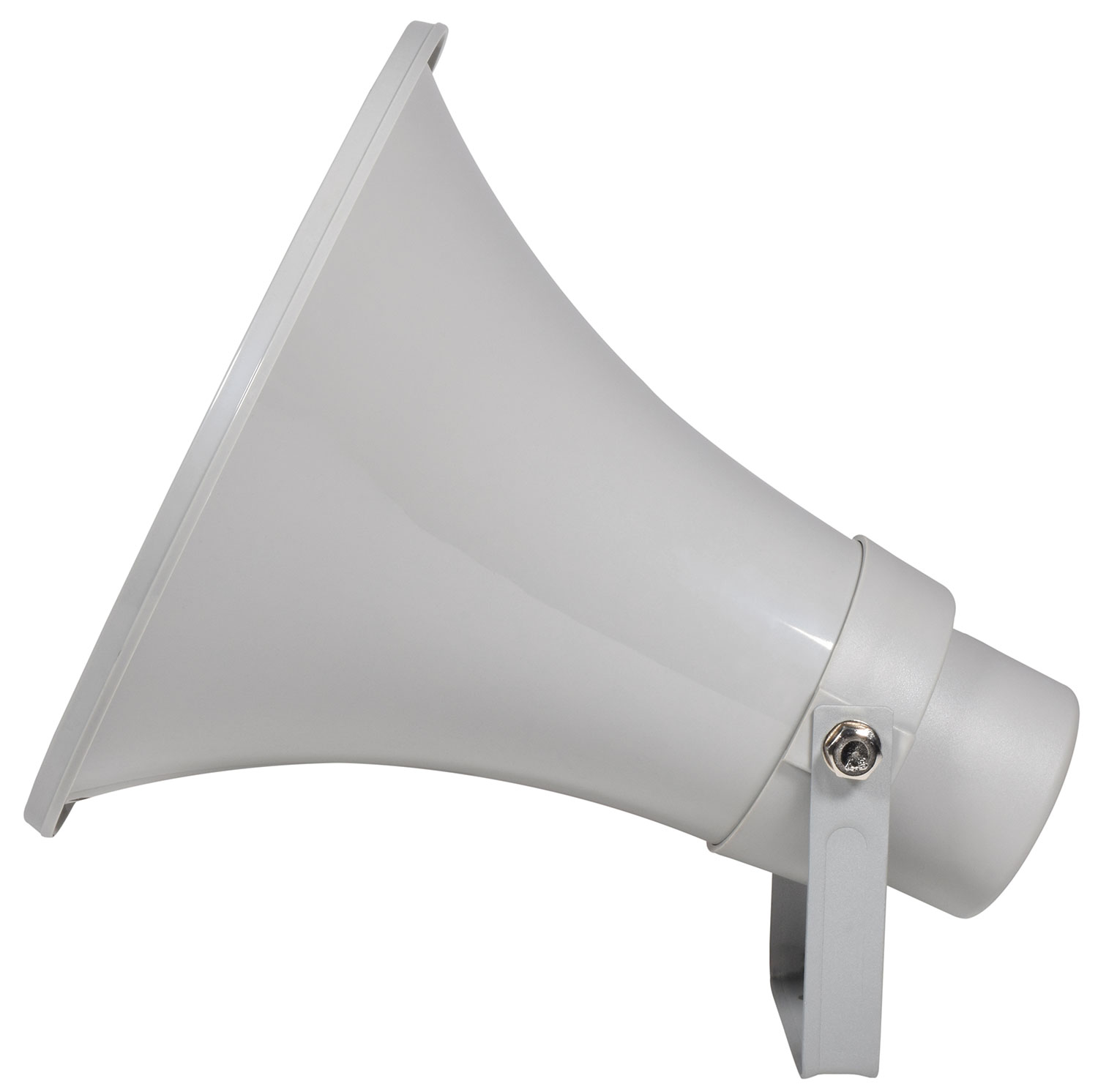

MH Series Round Horn Speakers 100V

PA horn speakers with 100V transformer offering several different power settings. The housing is moulded from high impact ABS material to offer maximum protection against physical or weather damage. Reflex loading and a conical flared aperture ensures efficient and directed sound delivery over large areas.

  • IP66 rated weatherproof
  • 100V rotary tapping selector
  • IP rating IP66

Versions

  952.265UK 952.266UK
Power handling : rms 15W 30W
100V line tappings 2.5W, 5W, 10W, 15W 5W, 10W, 15W, 20W, 30W
Frequency response : ±3dB 275Hz - 7kHz 180Hz - 7kHz
Impedance 4k / 2k / 1k / 670 Ohms 2k / 1k / 670 Ohms / 500 Ohms / 330 Ohms
SPL @ 1W/1m 106dB 111dB
Dimensions 295 x 230mmØ 315 x 310mmØ
Weight 1.44kg 1.77kg

Support : articles

100V line speakers

For many applications, it is necessary to drive many speakers with a single amplifier, giving greater coverage to multiple rooms or over a given area. 100V line is a solution to this problem.

Sunday, 1st January 2017

Speaker system types

Our speaker and amplifier products cover many environments and applications with a focus on clear and efficient sound coverage. Here we discuss the different types of systems

Sunday, 1st January 2017

Power Ratings: RMS vs Max vs Peak

A summary explaining the key differences between RMS, Max and Peak power ratings.

Tuesday, 10th March 2020

In the box

The box for this item contains :

  • MH series round 100V horn speaker

Downloads

UK Declaration of conformity
For 952.266UK (243KB)
EU Declaration of conformity
For 952.266UK (231KB)
