SL Series - Slimline Ceiling Speakers
952.545UK
SL3
High-grade ceiling speaker offering a premium quality sound delivery system. Quick and neat installation with sleek edge profile.
- Minimal profile edge
- Full range sound reproduction
- Sleek, understated profile
- Efficient 2-way crossover network
SL Series - Slimline Ceiling Speakers
A high-grade ceiling speaker featuring a hi-flex polypropylene cone main driver for extended low frequency response, and a mylar tweeter unit for accurate HF reproduction. Two quick-fit spring clamps enable easy installation. The result is a minimalist profile for a discreet and understated sound system.
- Efficient 2-way crossover network
- Gold-plated spring terminals
- Sleek, understated profile
- Flared baffle for wide dispersion
- 3 "dog-ear" mounts for SL5 and SL6

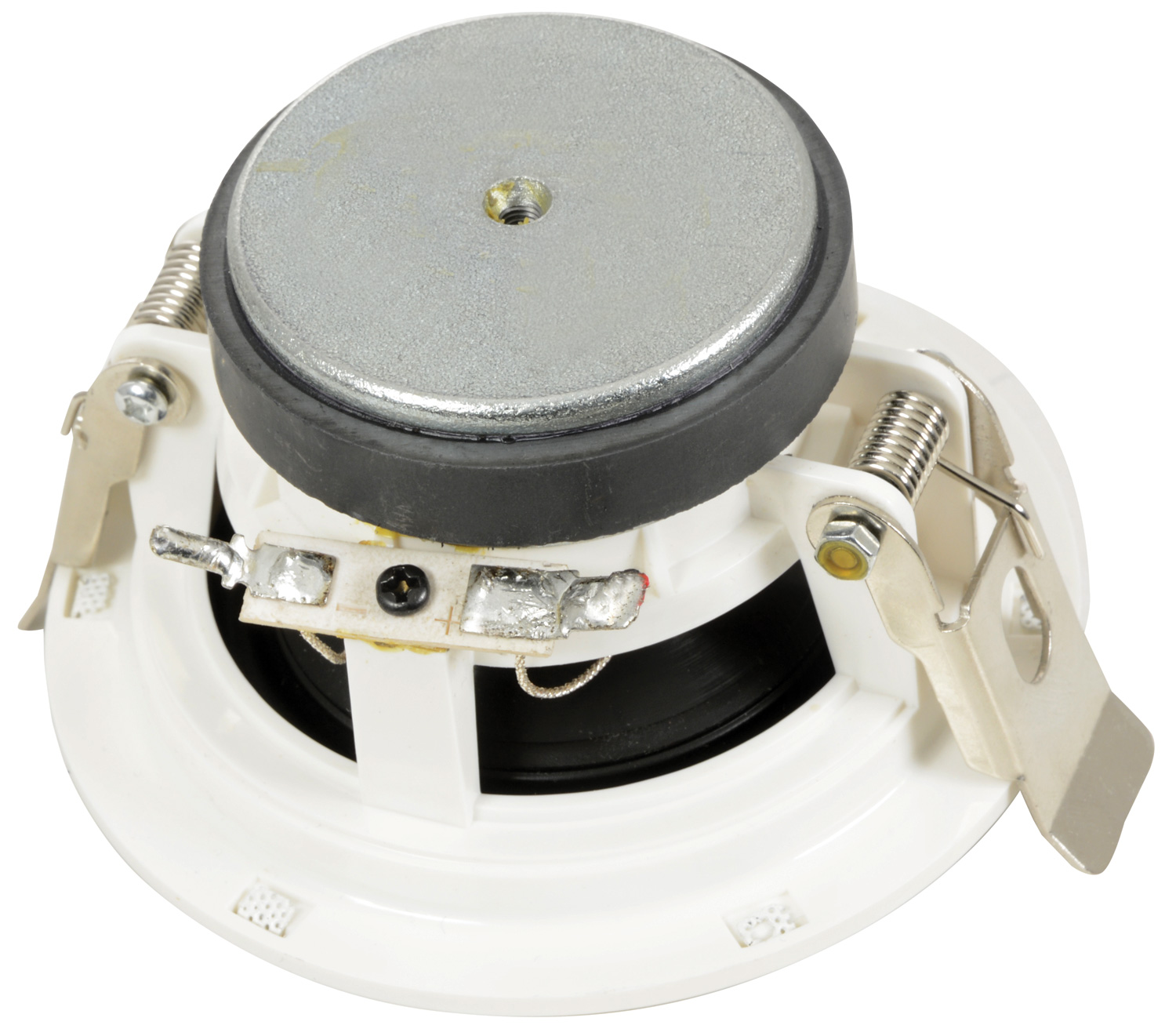

- 2 spring clips for SL3
- Supplied in pairs
Specification : Common
- Impedance 8 ohms
- Dispersion angle 160°
Specification : Versions
| 952.545UK | 952.547UK | 952.548UK | |
|---|---|---|---|
| Woofer | 75mmØ (3") PP cone | 130mmØ (5.25") PP cone | 165mmØ (6.5") PP cone |
| Tweeter | N/A | 12mmØ (0.5") mylar dome | 12mmØ (0.5") mylar dome |
| Crossover frequency | N/A | 4.5kHz | 4.5kHz |
| Frequency response | 200Hz - 20kHz | 50Hz - 20kHz | 40Hz - 20kHz |
| Power rms | 10W | 35W | 40W |
| Cutout | 90mmØ | 178mmØ | 204mmØ |
| Mounting depth | 57mm | 93mm | 102mm |
| SPL @ 1W/1m | 82dB | 88dB | 89dB |
| Dimensions (each) | 57 x 100mmØ | 93 x 203mmØ | 102 x 232mmØ |
| Weight (each) | 0.36kg | 1.30kg | 1.50kg |
Trade information
| 952.545UK | 952.547UK | 952.548UK | |
|---|---|---|---|
| Barcode / EAN | 5015972058831 | 5015972111055 | 5015972111079 |
| Package type | Gift Box | Gift Box | Gift Box |
| Package dimensions | 115 x 230 x 90mm | 218 x 219 x 212mm | 243 x 248 x 233mm |
| Package weight | 0.75kg | 2.36kg | 2.60kg |
| Package quantity | 1 unit | 2 units | 2 units |
| Carton dimensions | 390 x 480 x 360mm | 450 x 460 x 480mm | 490 x 510 x 280mm |
| Carton weight | 18.00kg | 18.88kg | 10.40kg |
| Carton quantity | 24 packages | 8 packages | 4 packages |
In the box
The box for this item contains :
- Pair of SL ceiling speakers
