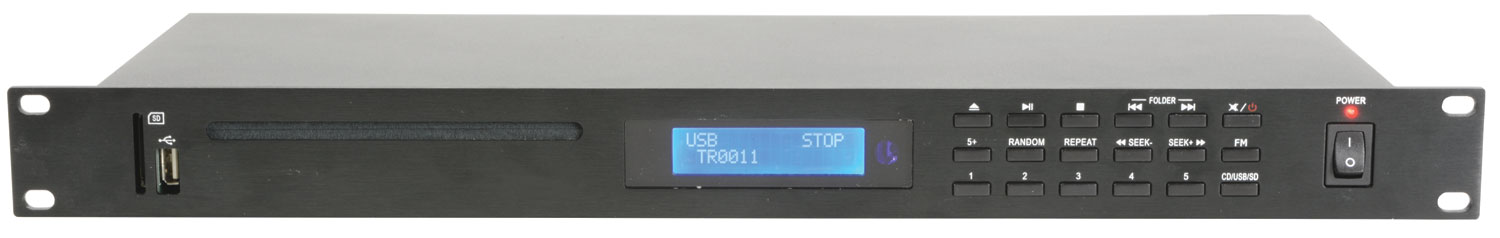

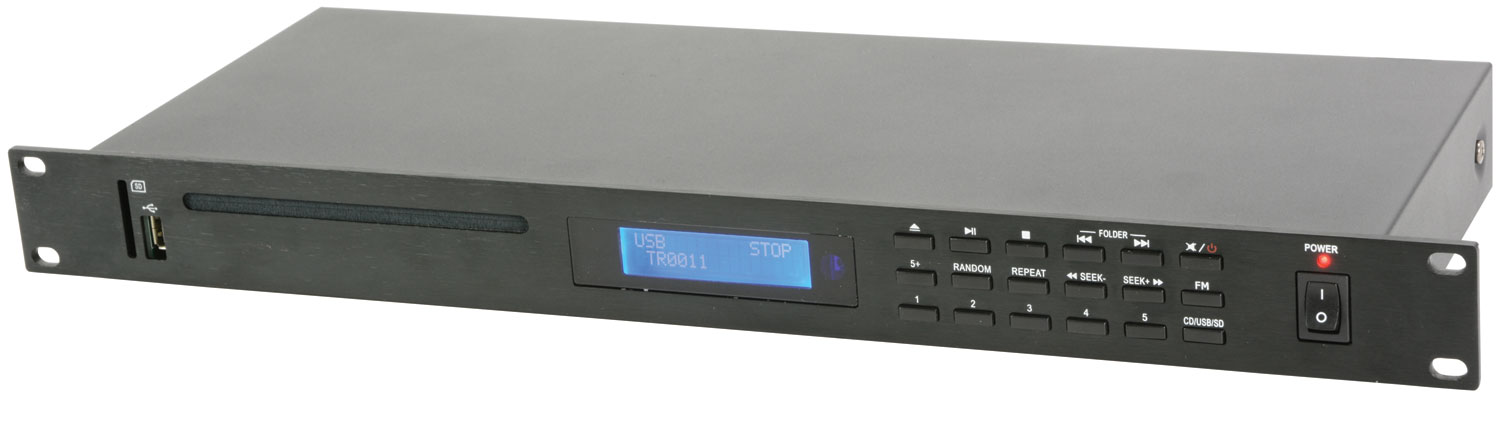

Multimedia Player with CD/USB/SD & FM Tuner

952.982UK AD-400

1U rack mountable CD player with USB and SD card inputs and a built in FM tuner. Supplied with a handheld IR control and a 3.5mm jack IR extender lead for remote operation. CD, USB or SD tracks can...

  • Slot feed CD player
  • Backlit LCD display
  • Random and repeat playback modes
Description Version Packed
952.982UK
AD-400 Multimedia Player CD/USB/SD + FM Tuner
Box Printed

Multimedia Player with CD/USB/SD & FM Tuner

1U rack mountable CD player with USB and SD card inputs and a built in FM tuner. Supplied with a handheld IR control and a 3.5mm jack IR extender lead for remote operation. CD, USB or SD tracks can be accessed directly by track number or by track/folder navigation buttons. Output is via 2 RCA connectors or digitally via the optical output. FM radio reception can be set up by connecting an FM aerial to the rear panel antenna socket. 4 different sources in a single 19" rack housing makes this a flexible machine for background music installations.

  • Slot feed CD player
  • Backlit LCD display
  • Random and repeat playback modes

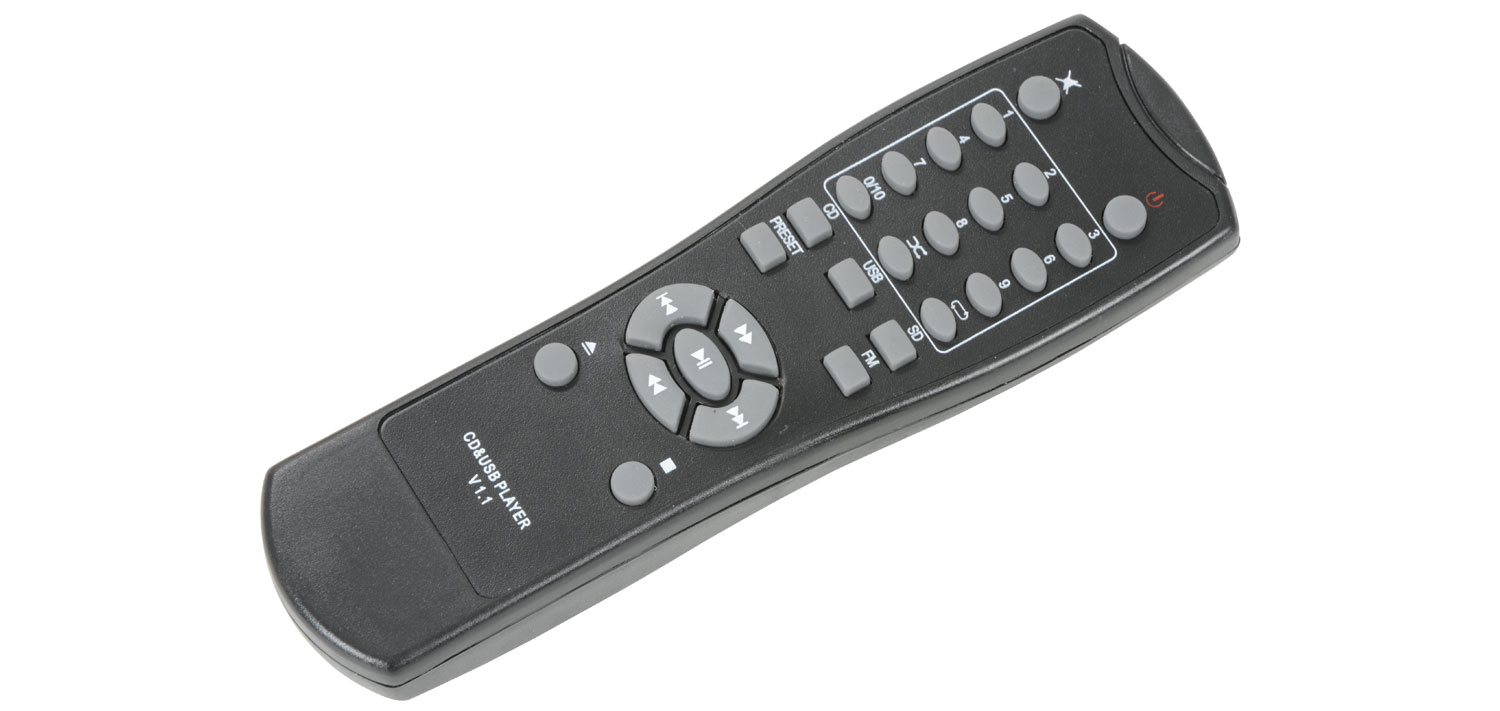

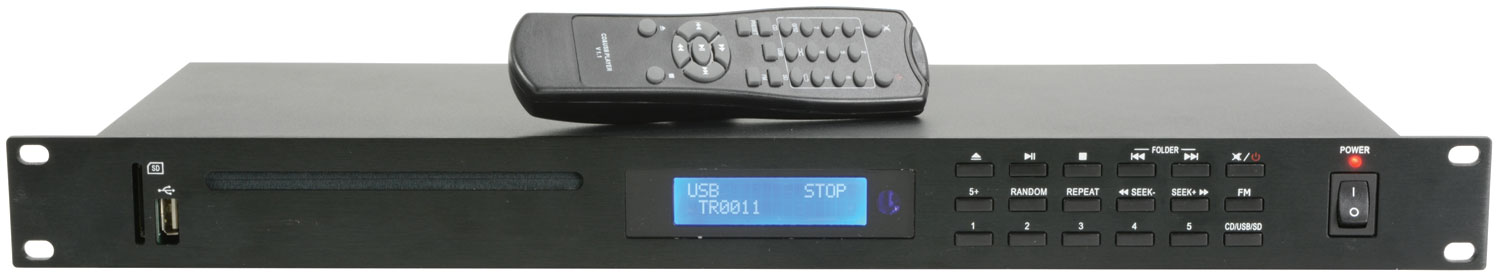

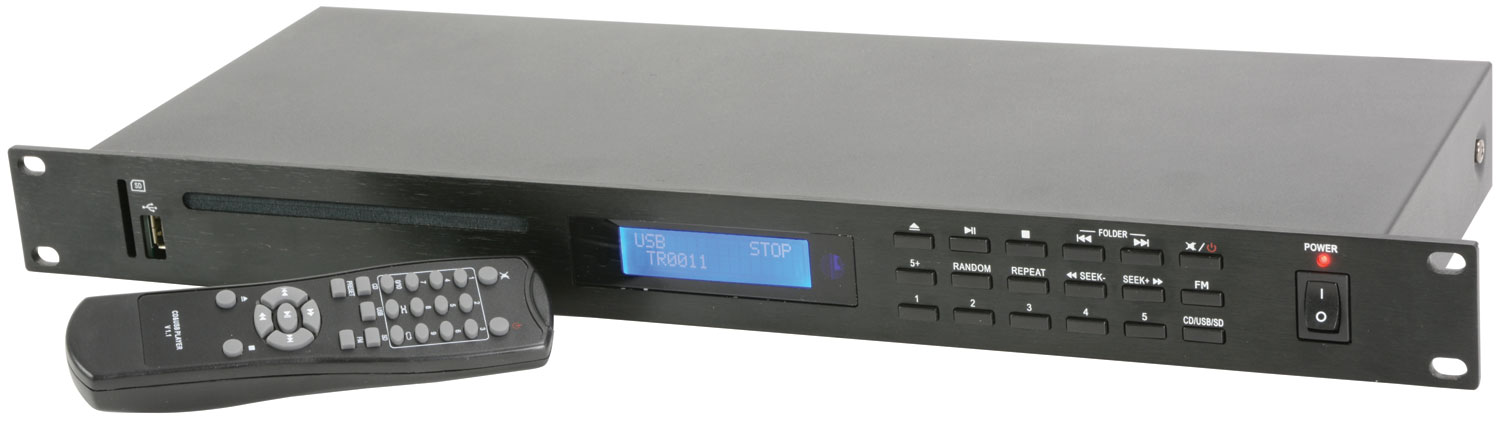

  • Supplied with remote control and 1m IR extender lead

Specification

  • Power supply 100-240Vac, 50/60Hz (IEC)
  • Power consumption ?15W
  • Fuse F1AL 250V
  • Frequency response 20Hz-20kHz (CD), 40Hz-16kHz (USB/SD/FM)
  • THD 0.03% (CD), 0.05% (USB/SD), 0.1% (FM)
  • SNR 75dB (CD/USB/SD), 60dB (FM)
  • FM frequency range 87.5 - 108MHz
  • Channels 30 storable FM channels
  • Antenna connection F connector

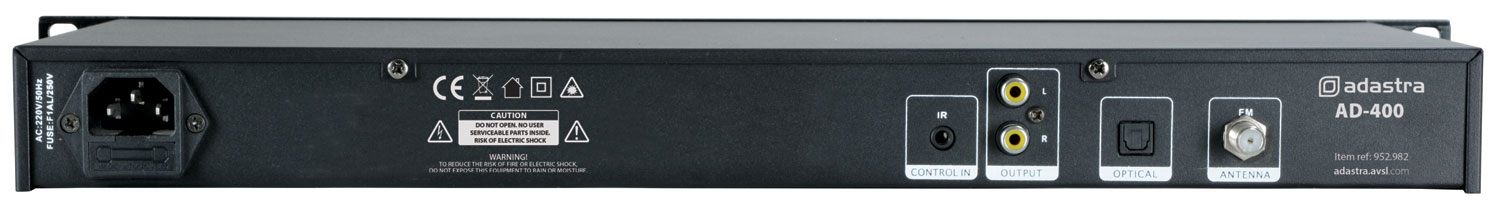

  • Output connections L+R RCA and optical
  • Dimensions 482 x 175 x 44mm
  • Weight 2.12kg

Trade information

  952.982UK
Barcode / EAN 5015972181867
Package type Box Printed
Package dimensions 210 x 575 x 83mm
Package weight 2.82kg
Package quantity 1 unit
Carton dimensions 220 x 590 x 355mm
Carton weight 11.50kg
Carton quantity 4 packages

Videos

952.982UK: AD-400 Multimedia Player

Support

Instruction manual
For 952.982UK (727KB)
