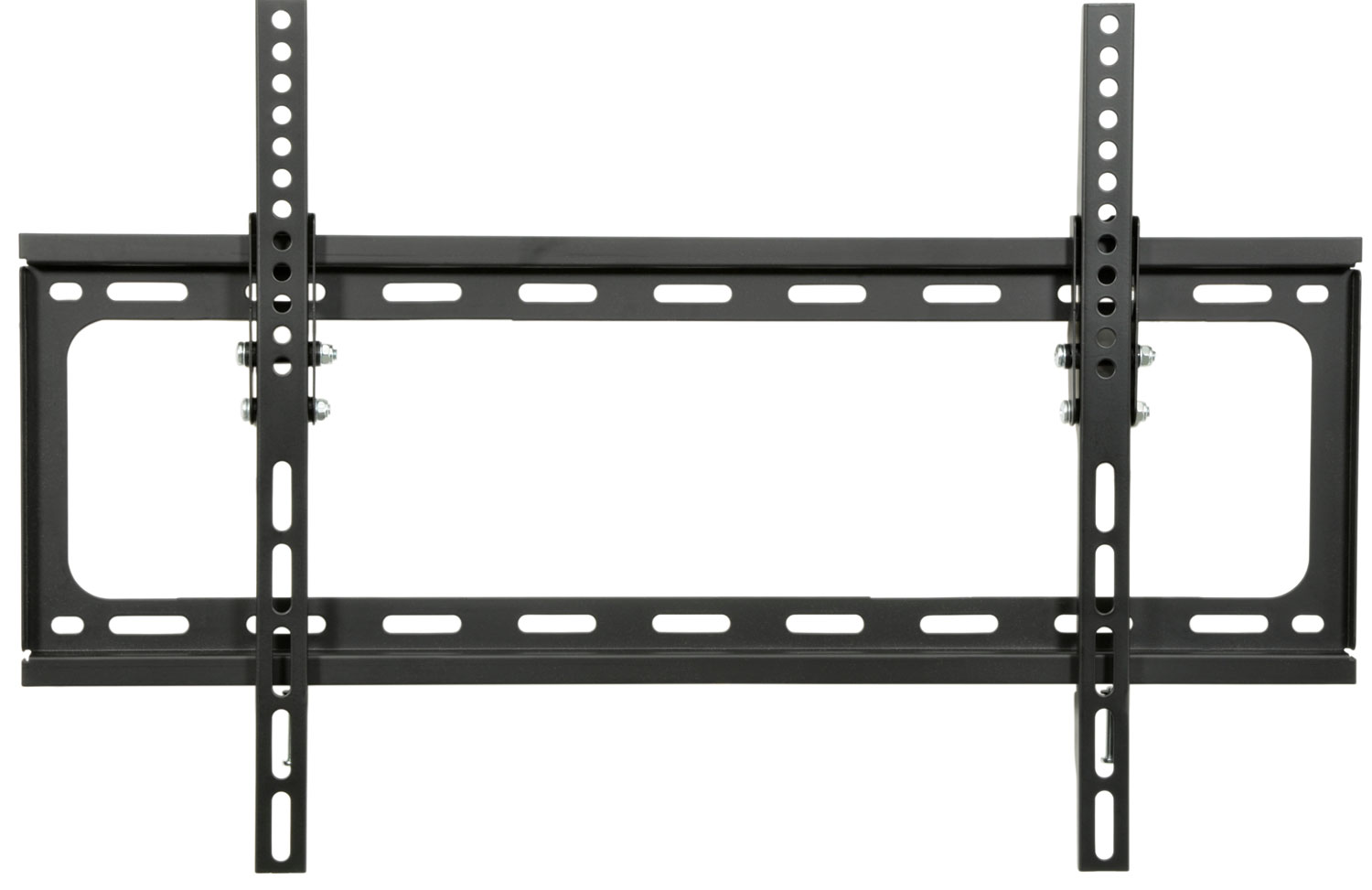

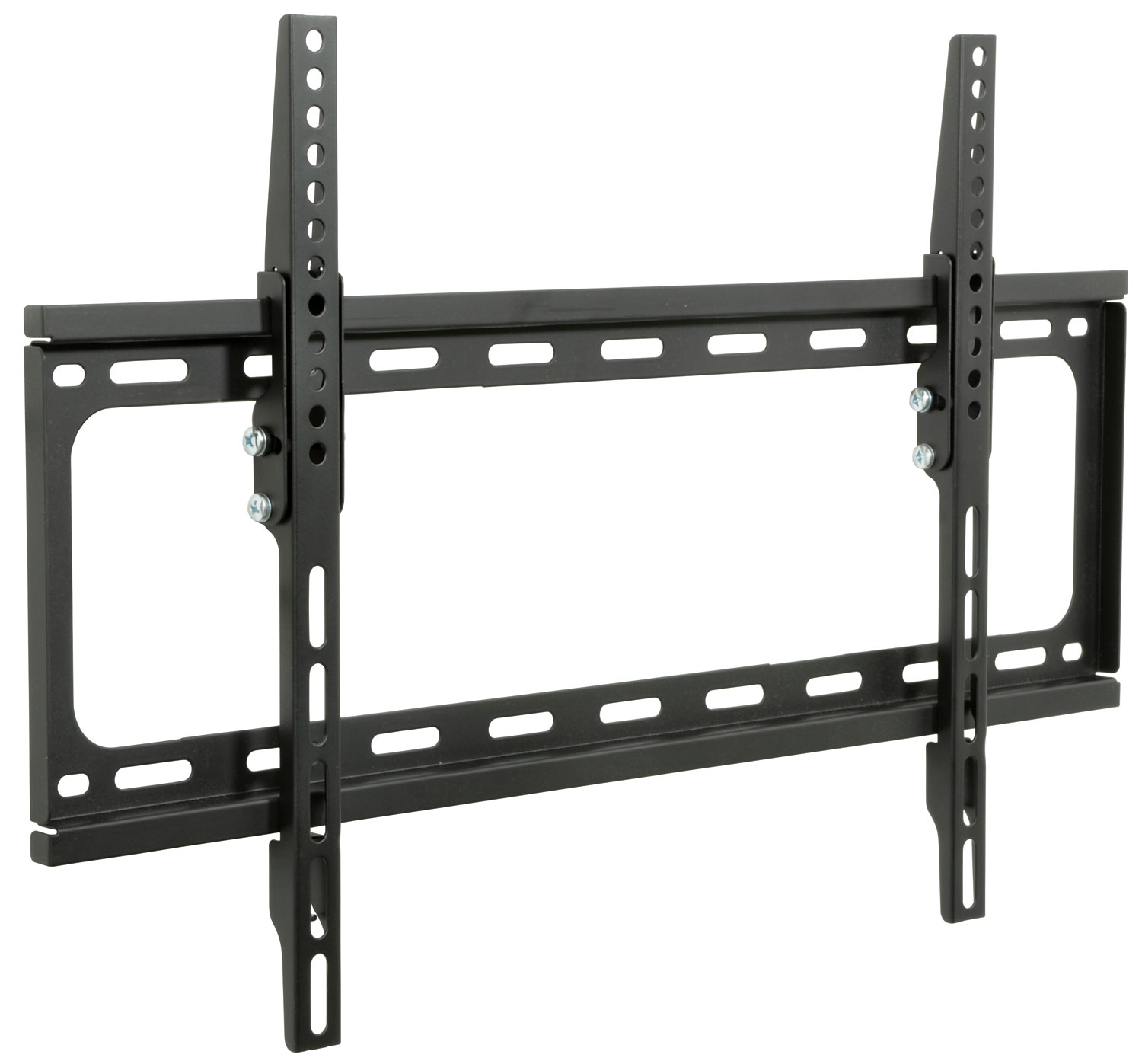

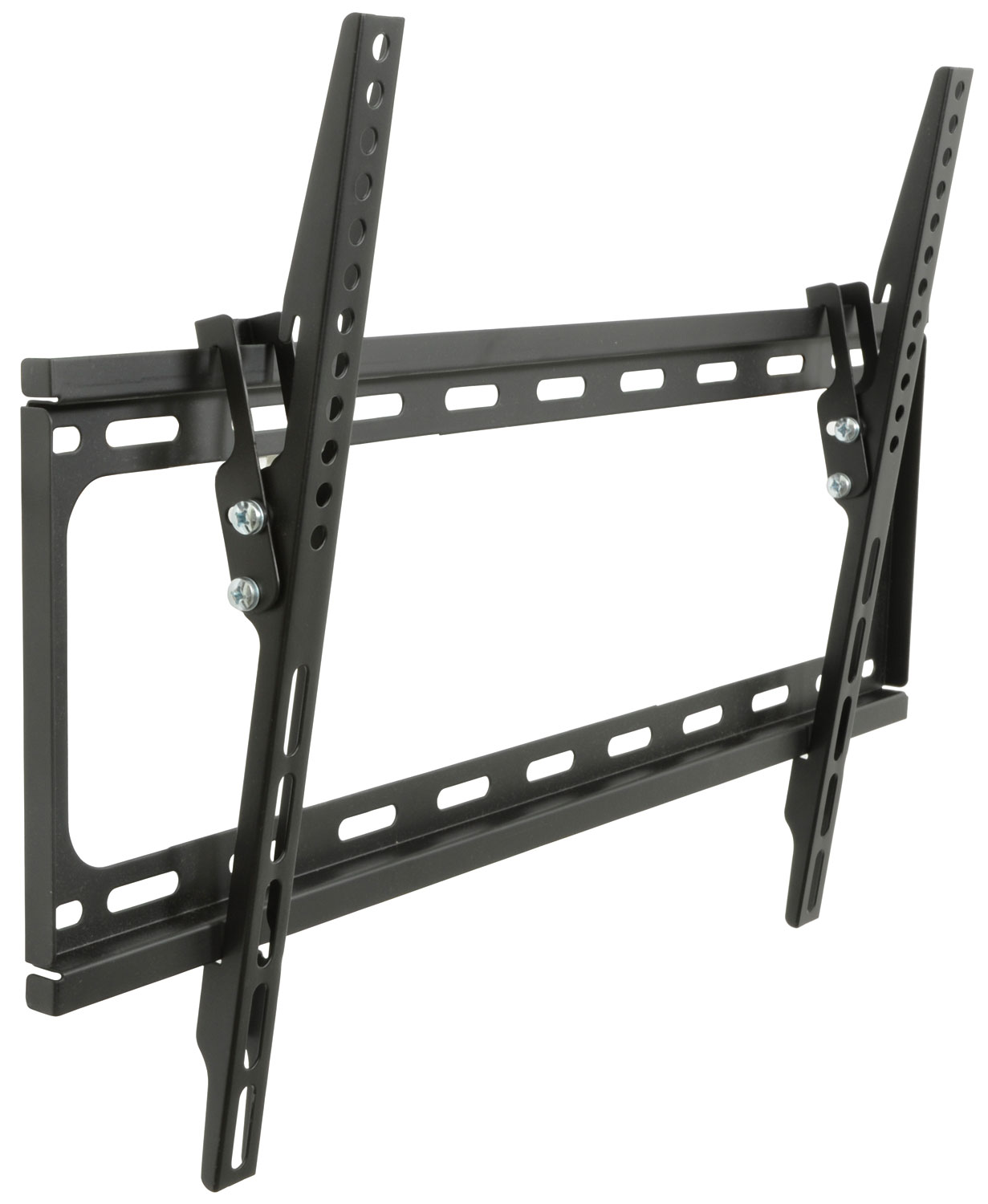

Tilting TV Wall Bracket

129.552UK ST601

An easy to install range of tilting TV wall brackets, with low profile design and VESA compatible mounting patterns.

  • Suitable for a wide range of screen sizes
  • Low profile design
  • Compatible with VESA mounting patterns
Description Version Packed
129.550UK
Standard TV/monitor tilted wall bracket VESA 200x200 17" - 42"
200x200 Max (17-42") Gift Box
129.551UK
Standard TV/monitor tilted wall bracket VESA 400x400 26" - 55"
400x400 Max (26-50") Gift Box
129.552UK
Standard TV/monitor tilted wall bracket VESA 600x400 32" - 65"
600x400 Max (32-65") Gift Box

Tilting TV Wall Bracket

An easy to install range of tilting TV wall brackets, with low profile design and VESA compatible mounting patterns.

  • Suitable for a wide range of screen sizes
  • Low profile design
  • Compatible with VESA mounting patterns
  • Installation hardware included
  • TV fixing screws provided 4 x M4 25mm, 4 x M5 25mm, 4 x M6 25mm, 4 x M8 25mm

Versions

  129.550UK 129.551UK 129.552UK
Max. VESA 200 x 200 400 x 400 600 x 400
Max. weight load 20kg 30kg 35kg
Screen size 17" - 42" 26" - 50" 32" - 65"
Distance from wall 25mm 25mm 25mm
Tilt range 0 to 10° 0 to 10° 0 to 10°

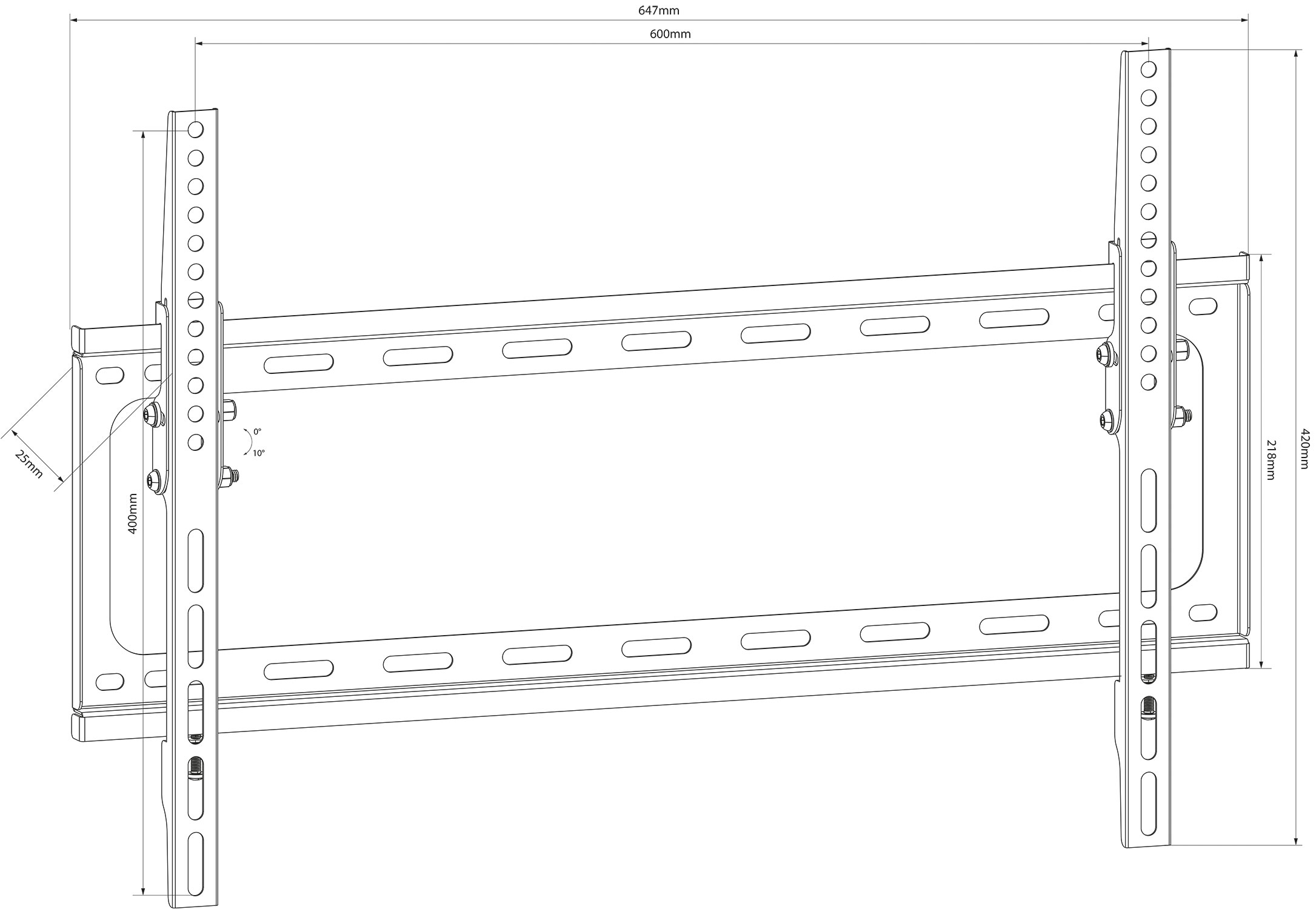

Wall plate dimensions 272 x 192mm 452 x 218mm 647 x 218mm
Bracket dimensions 272 x 221mm 452 x 420mm 647 x 420mm
Weight 750g 1.16kg 1.34kg

Videos

AV:LINK TV Brackets and Projector Brackets Overview

Downloads

Instruction manual
For 129.552UK (568KB)
