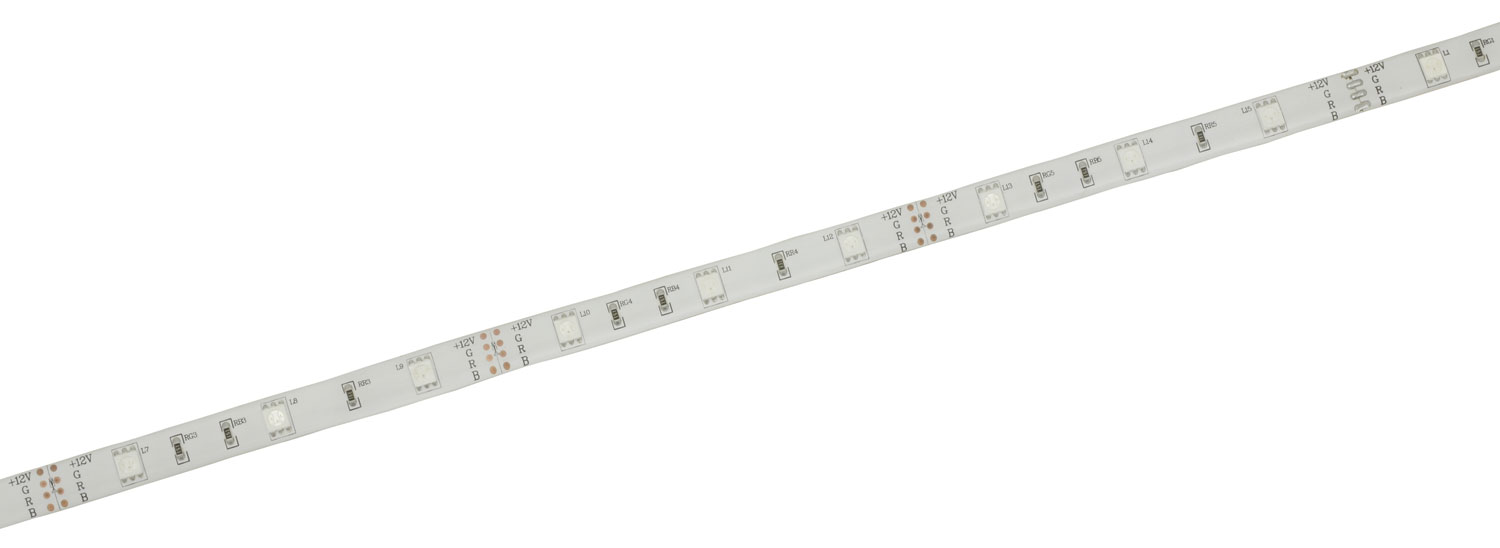

IP68 DIY LED Tape - 5m Multi-colour RGB

153.693UK DIYH-RGB30

Retail ready blister packed RGB waterproof LED tape together with multi adaptor power supply, IR controller and connectors to get started. The tape is IP68 rated allowing it to be fully submersed i...

  • 30 x SMD5050 LEDs per metre
  • Self-adhesive backing for easy installation
  • Waterproof IP68 rated
Full description Find retailer
Description Version Packed
153.693UK
DIY IP68 LED tape kit 5m RGB 		RGB Gift Box

Accessories

Description Version Packed
153.900UK
RGB LED Tape Y-Splitter Lead 		Splitter Lead 0.3m Poly Bag
153.903UK
RGB LED Tape Extension Lead 3.0m 		Extension Lead 3.0m Poly Bag
153.905UK
RGB LED Tape Extension Lead 5.0m 		Extension Lead 5.0m Poly Bag
153.797UK
RGB LED Tape Controller DC 		Poly Bag
153.744UK
Power Supply 12Vdc 5A 60W 		12Vdc 5A 60W Box Label
153.753UK
Power Supply 12Vdc 3.75A 45W 		12Vdc 3.75A 45W Box Label
153.755UK
Power Supply 12Vdc 8.3A 100W 		12Vdc 8.3A 100W Box Label
153.756UK
Power Supply 12Vdc 12.5A 150W 		12Vdc 12.5A 150W Box Label
777.000UK
2.1mm DC Plug with screw in terminals 		Poly Bag
777.001UK
2.1mm DC Socket with screw in terminals 		Poly Bag

IP68 DIY LED Tape - 5m Multi-colour RGB

Retail ready blister packed RGB waterproof LED tape together with multi adaptor power supply, IR controller and connectors to get started. The tape is IP68 rated allowing it to be fully submersed in water. It is low voltage operated at 12Vdc and the self adhesive backing allows for quick and easy installation in a variety of places, such as kitchens, bathrooms or ponds in either the home, caravan, cars or lorries.

  • 30 x SMD5050 LEDs per metre
  • Self-adhesive backing for easy installation
  • Waterproof IP68 rated
  • Low voltage operation
  • Includes IR remote controller
  • Supplied with 12Vdc UK adaptor
  • Power supply 12Vdc
  • Number of LEDs 30/m
  • Beam angle 130° - 150°
  • Cut intervals 10cm
  • Reel length 5m
  • LED : type SMD5050 RGB
  • IP rating IP68
  • LED : spacing 32mm
  • Current 600mA/m
  • Power consumption per metre 7.2W
  • Cross-section 12 x 4mm
  • Weight 250g
  • Battery : remote CR2025

Support : articles

IP ratings

IP (or "Ingress Protection") ratings are used to define levels of sealing effectiveness of electrical enclosures against intrusion from foreign bodies (tools, dirt etc) and moisture.

Sunday, 1st January 2017

Downloads

Instruction manual
For 153.693UK (255KB)
UK Declaration of conformity
For 153.693UK (251KB)
EU Declaration of conformity
For 153.693UK (239KB)
