Tilt & Lock Slim TV Bracket for Screens 32" to 70"
129.328UK
LPTL600
Easy to assemble and install this professional tilting wall mounting is specifically designed for todays lighter and slimmer TVs up to 70" in screen size. The self-locking mechanism can be opened by… more
- Specifically designed for todays slimmer and lighter TVs from 32" to 70"
- Automatic self locking mechanism
- Low profile design sits only 36mm from the mounting surface
DESCRIPTION | VERSION | PACKED | |
---|---|---|---|
![]() |
129.328UK
Tilt & Lock Slim TV Bracket for Screens 32" to 70" |
Gift Box |
Tilt & Lock Slim TV Bracket for Screens 32" to 70"

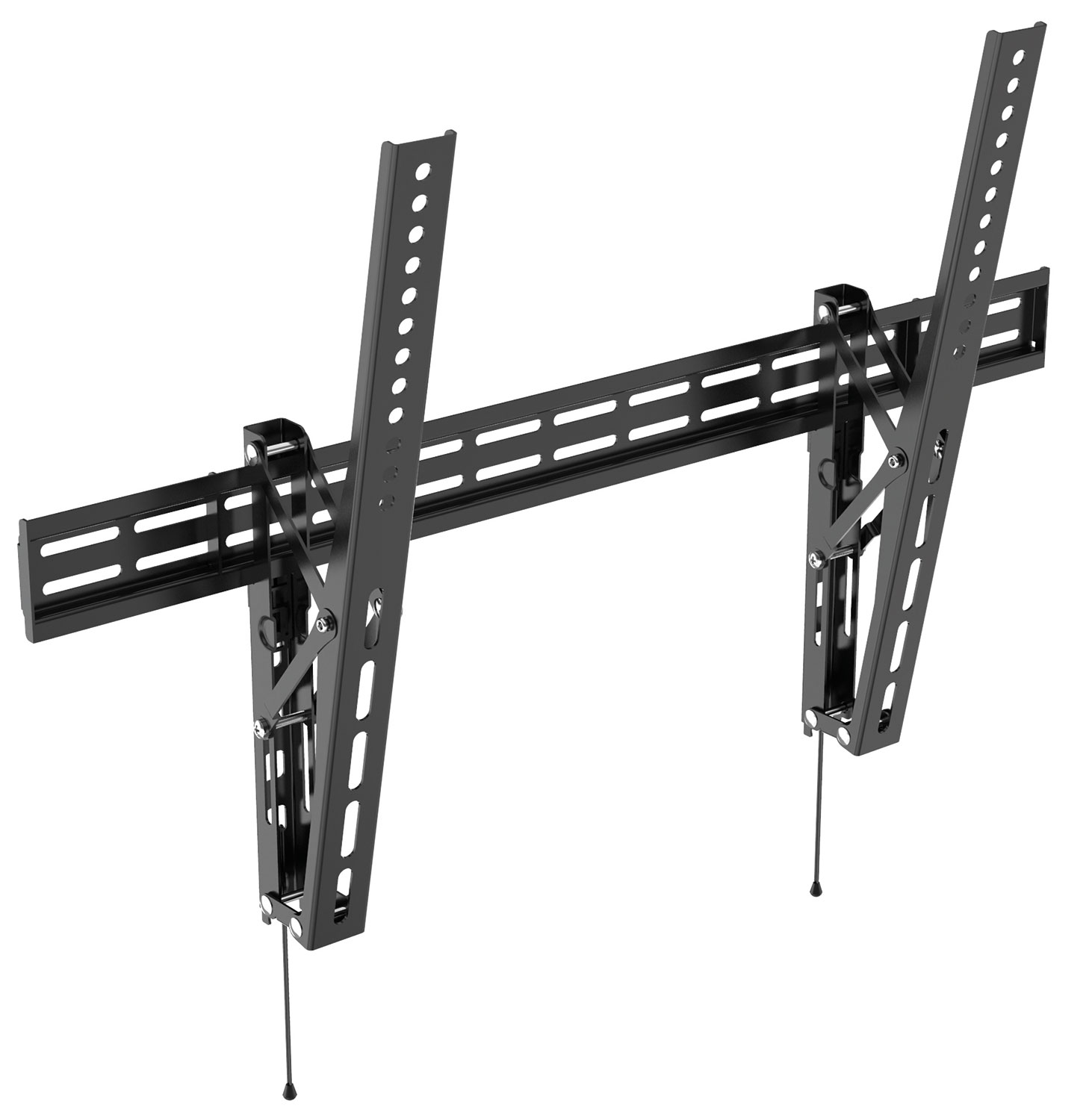

Easy to assemble and install this professional tilting wall mounting is specifically designed for todays lighter and slimmer TVs up to 70" in screen size. The self-locking mechanism can be opened by simply pulling on 2 drawstrings that hang either side of the unit making removal of the TV quick and hassle free. The smooth, accurate tilting mechanism provides an additional 12° tilt angle should your mounting position require it.
- Specifically designed for todays slimmer and lighter TVs from 32" to 70"
- Automatic self locking mechanism
- Low profile design sits only 36mm from the mounting surface
- Maximum weight load 35kg
- Maximum 600x400mm VESA compatible
- Up to 12° tilt angle adjustment if required
- Wide range of fixings supplied
- Max. VESA 600x400mm
- Max. weight load 35kg
- Screen size 32" to 70"
- Distance from wall 36mm
- Tilt angle adjustment 0° to 12°
- Dimensions 666 x 437mm (W x H)
- Weight 1.46kg
In the Box
- 1pc TV bracket
- 4pcs M4 x 20mm
- 4pcs M5 x 20mm
- 4pcs M6 x 20mm
- 4pcs M8 x 30mm
- 4pcs Spacer
- 4pcs Plate
- 4pcs Wall screw
- 4pcs Wall plug
- 4pcs Washer
- 1pc Magnetic spirit level (removable)
- 1pc User guide
